Omega SGN-2/20-E Specification

Download

Page 1

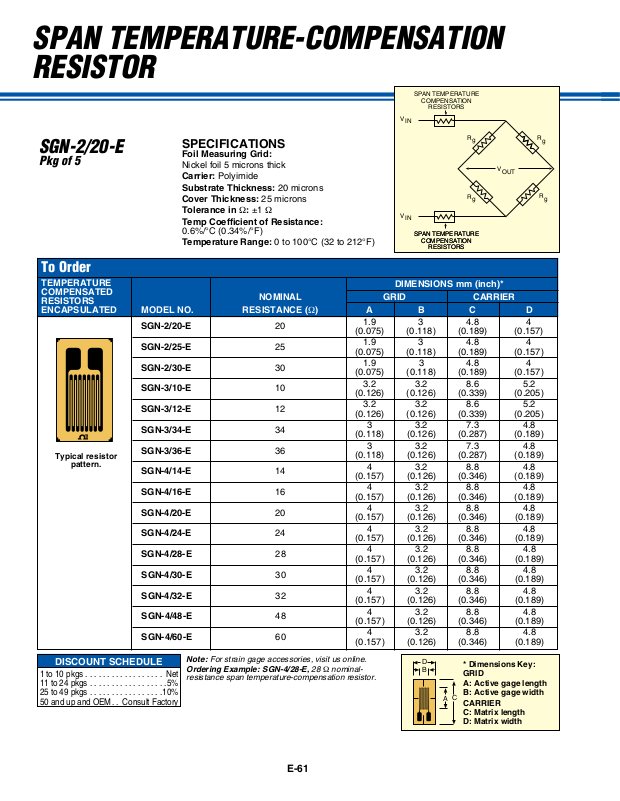

SPAN TEMPERATURE-COMPENSATION

SGN-4/14-E

RESISTOR

SPAN TEMPERATURE

COMPENSATION

RESISTORS

SGN-2/20-E

Pkg of 5

SPECIFICATIONS

Foil Measuring Grid:

Nickel foil 5 microns thick

Carrier: Polyimide Substrate Thickness: 20 microns Cover Thickness: 25 microns Tolerance in Ω: ±1 Ω Temp Coefficient of Resistance:

0.6%/°C (0.34%/°F) Temperature Range: 0 to 100°C (32 to 212°F)

SPAN TEMPERATURE

COMPENSATION

RESISTORS

To Order

TEMPERATURE

DIMENSIONS mm (inch)*

COMPENSATED

NOMINAL GRID CARRIER

RESISTORS

MODEL NO. RESISTANCE (Ω) A B C D

ENCAPSULATED

(0.075) (0.118) (0.189) (0.157)

(0.126) (0.126) (0.339) (0.205)

(0.118) (0.126) (0.287) (0.189)

Typical resistor

pattern.

(0.157) (0.126) (0.346) (0.189)

DISCOUNT SCHEDULE

1 to 10 pkgs .................. Net

11 to 24 pkgs ..................5%

SGN-2/20-E 20

SGN-2/25-E 25

SGN-2/30-E 30

SGN-3/10-E 10

SGN-3/12-E 12

SGN-3/34-E 34

SGN-3/36-E 36

SGN-4/14-E 14

SGN-4/16-E 16

SGN-4/20-E 20

SGN-4/24-E 24

SGN-4/28-E 28

SGN-4/30-E 30

SGN-4/32-E 32

SGN-4/48-E 48

SGN-4/60-E 60

Note: For strain gage accessories, visit us online. Ordering Example: SGN-4/28-E, 28 Ω nominal-

resistance span temperature-compensation resistor.

25 to 49 pkgs .................10%

50 and up and OEM .. Consult Factory

1.9 3 4.8 4

3.2 3.2 8.6 5.2

3 3.2 7.3 4.8

4 3.2 8.8 4.8

D B

* Dimensions Key: GRID A: Active gage length B: Active gage width

CARRIER C: Matrix length D: Matrix width

OUT

E-61

Page 2

SPAN TEMPERATURE-COMPENSATION,

SGN-4/14-E

SG-RES-2C

bRIdGE-bAlANCING, ANd zERO TEMPERATURE-COMPENSATION RESISTORS

SPECIFICATIONS RES-C RES-N

Foil Measuring Grid Constantan foil 5 microns thick Nickel foil 5 microns thick Carrier Polyimide Polyimide Substrate Thickness 20 microns 20 microns Tolerance in Ω ±1 Ω ±1 Ω Temp Coefficient of Resistance —— 0.6%/°C (0.34%/°F) Temperature Range -75 to 200°C (-100 to 392°F) 0 to 100°C (32 to 212°F)

To Order

TEMPERATURE

DIMENSIONS mm (inch)*

COMPENSATED

NOMINAL GRID CARRIER

RESISTORS

MODEL NO. RESISTANCE (Ω) A B C D

OPEN FACE

SGN-2/20-PN 20 (0.075) (0.118) (0.189) (0.157)

SGN-2/25-PN 25 (0.075) (0.118) (0.189) (0.157)

(0.075) (0.118) (0.189) (0.157)

(0.126) (0.126) (0.339) (0.205)

(0.118) (0.126) (0.287) (0.189)

Typical resistor

(0.157) (0.126) (0.346) (0.189)

BRIDGE-BALANCING AND ZERO TEMPERATURE-COMPENSATION RESISTORS

(0.134) (0.248) (0.181) (0.264)

1 to 10 pkgs .................. Net

11 to 24 pkgs ..................5%

25 to 49 pkgs .................10%

50 and up and OEM .. Consult Factory

pattern.

DISCOUNT SCHEDULE

SGN-2/30-PN 30

SGN-3/10-PN 10

SGN-3/12-PN 12

SGN-3/34-PN 34

SGN-3/36-PN 36

SGN-4/14-PN 16

SGN-4/16-PN 16

SGN-4/20-PN 20

SGN-4/24-PN 24

SGN-4/28-PN 28

SGN-4/30-PN 30

SGN-4/32-PN 32

SGN-4/48-PN 48

SGN-4/60-PN 60

RES-2C 2

RES-5C 5

RES-2N 2

RES-5N 5

For dimensions key, visit us online.

Note: For strain gage accessories, visit us online. Ordering Example: SGN-4/28-PN, 28 Ω nominal-resistance span temperature-compensation resistor.

1.9 3 4.8 4

3.2 3.2 8.6 5.2

3 3.2 7.3 4.8

4 3.2 8.8 4.8

3.4 6.3 4.6 6.7

STRAIN GAGES
