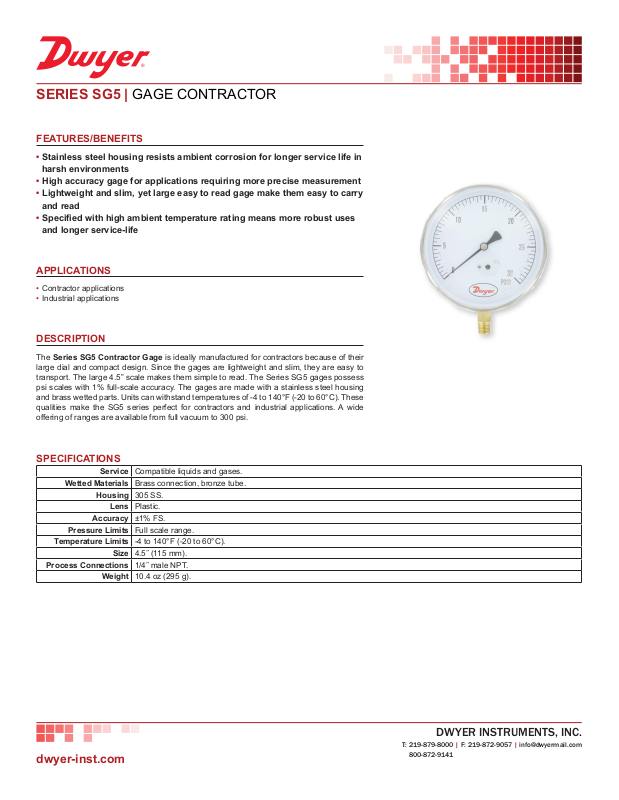

SERIES SG5 | GAGE CONTRACTOR
FEATURES/BENEFITS
• Stainless steel housing resists ambient corrosion for longer service life in
harsh environments
• High accuracy gage for applications requiring more precise measurement
• Lightweight and slim, yet large easy to read gage make them easy to carry
and read
• Specied with high ambient temperature rating means more robust uses
and longer service-life
APPLICATIONS
• Contractor applications
• Industrial applications
DESCRIPTION
The Series SG5 Contractor Gage is ideally manufactured for contractors because of their
large dial and compact design. Since the gages are lightweight and slim, they are easy to
transport. The large 4.5” scale makes them simple to read. The Series SG5 gages possess
psi scales with 1% full-scale accuracy. The gages are made with a stainless steel housing
and brass wetted parts. Units can withstand temperatures of -4 to 140°F (-20 to 60°C). These
qualities make the SG5 series perfect for contractors and industrial applications. A wide
offering of ranges are available from full vacuum to 300 psi.
SPECIFICATIONS
Service Compatible liquids and gases.
Wetted Materials Brass connection, bronze tube.
Housing 305 SS.
Lens Plastic.
Accuracy ±1% FS.
Pressure Limits Full scale range.
Temperature Limits -4 to 140°F (-20 to 60°C).
Size 4.5˝ (115 mm).
Process Connections 1/4˝ male NPT.
Weight 10.4 oz (295 g).
dwyer-inst.com
DWYER INSTRUMENTS, INC.
T: 219-879-8000 | F: 219-872-9057 | [email protected]
800-872-9141
Page 2
®

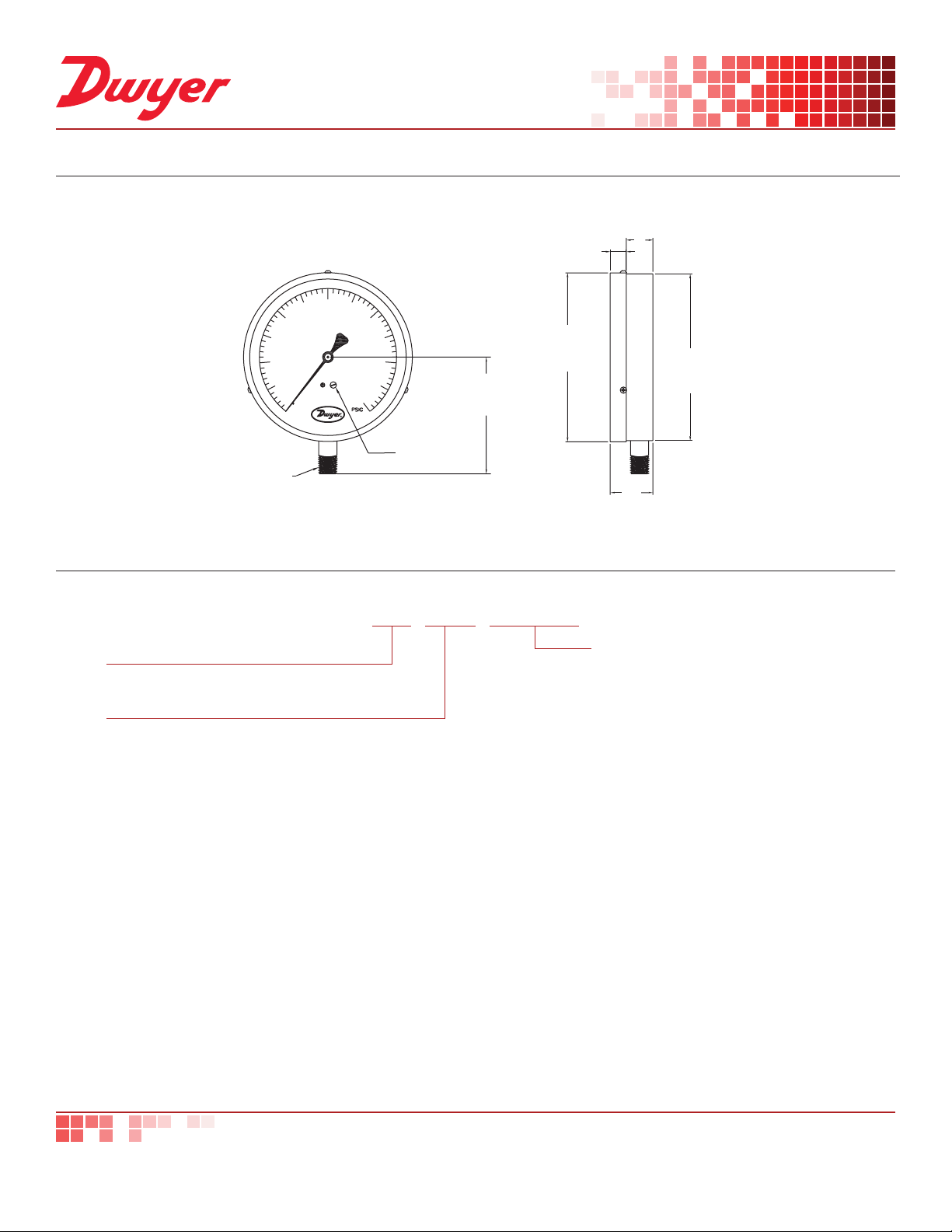

DIMENSIONS
MALE NPT
[31.50]
4
49/64
ADJUSTMENT
1/4˝
SCREW
HOW TO ORDER
Use the bold characters from the chart below to construct a product code.
SG5 -G0122N -NISTCAL-PG1
SERIES
SG5: 4.5˝ Contractor gage
3-13/32
[86.50]
[12.00]
Ø4-59/64
[125.00]
15/32
[19.50]
Ø4-55/6
[123.50]
1-15/64
OPTION
-NISTCAL-PG1: NIST traceable calibration certicate
RANGE
-G0122N: 30 in Hg to 0
-G0322N: 0 to 30 psi
-G0422N: 0 to 60 psi
-G0522N: 0 to 100 psi
-G0622N: 0 to 160 psi
-G0722N: 0 to 200 psi
-G0822N: 0 to 300 psi
Important Notice: Dwyer Instruments, Inc. reserves the right to make changes to or discontinue any product or service identied in this publication without notice. Dwyer advises its customers to obtain the
latest version of the relevant information to verify, before placing any orders, that the information being relied upon is current.
DWYER INSTRUMENTS, INC.
T: 219-879-8000 | F: 219-872-9057 | [email protected]
dwyer-inst.com
800-872-9141
DS-SG5 | 11/18
