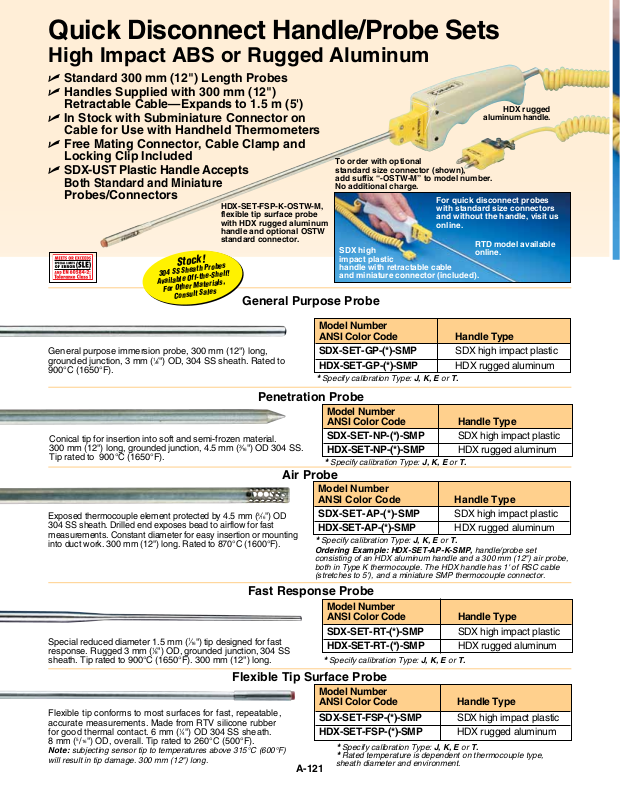

Quick Disconnect Handle/Probe Sets
High Impact ABS or Rugged Aluminum
U Standard 300 mm (12") Length Probes
U Handles Supplied with 300 mm (12")
Retractable Cable—Expands to 1.5 m (5')
U In Stock with Subminiature Connector on
Cable for Use with Handheld Thermometers
U Free Mating Connector, Cable Clamp and
Locking Clip Included
U SDX-UST Plastic Handle Accepts
Both Standard and Miniature
Probes/Connectors

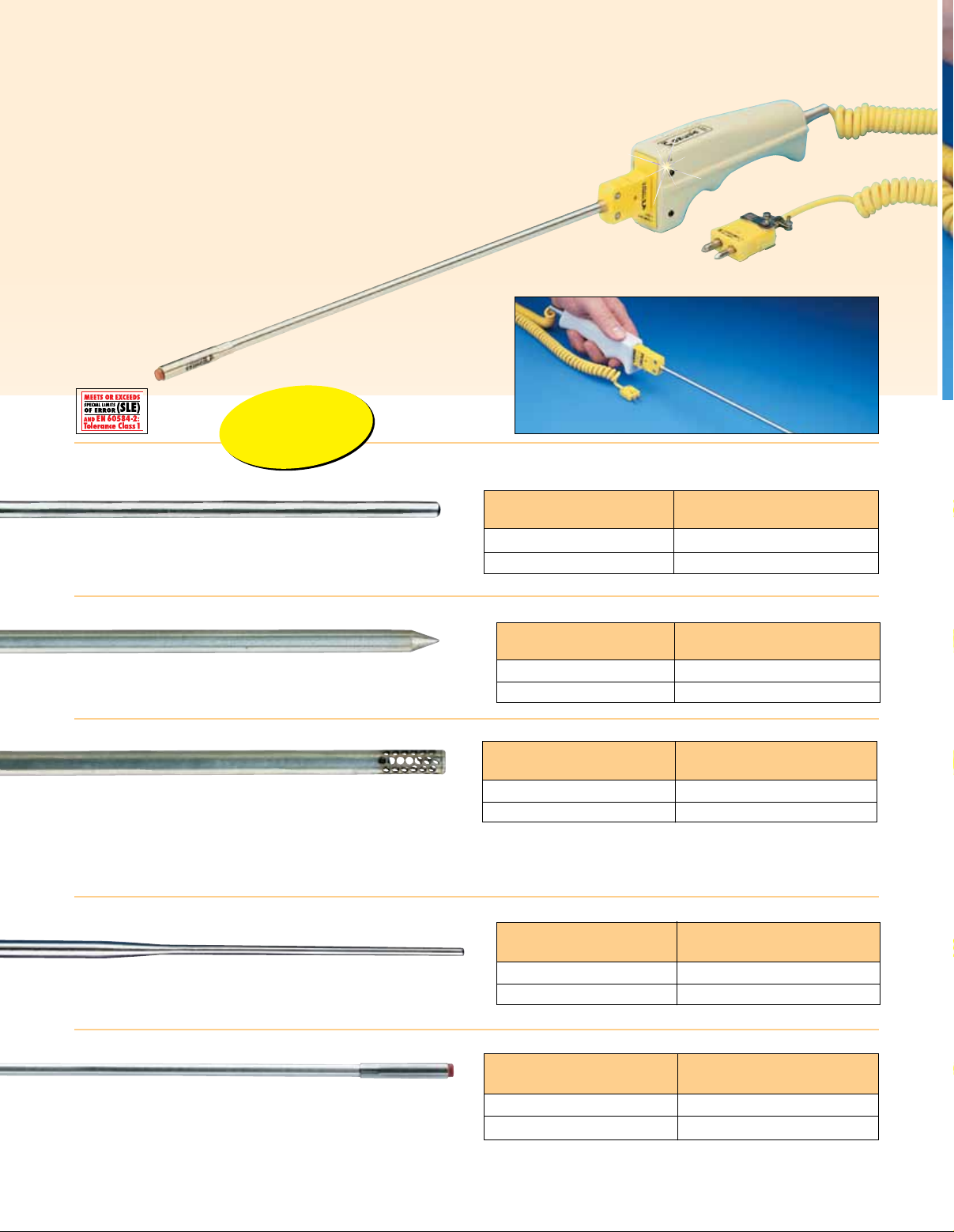

HDX-SET-FSP-K-OSTW-M,
flexible tip surface probe
with HDX rugged aluminum
handle and optional OSTW
standard connector.
Stock!
304 SS Sheath Probes
Available Off-the-Shelf!
For Other Materials,
Consult Sales
General purpose immersion probe, 300 mm (12") long,
grounded junction, 3 mm (1⁄8") OD, 304 SS sheath. Rated to
900°C (1650°F).
General Purpose Probe
To order with optional
standard size connector (shown),
add suffix “-OSTW-M” to model number.
No additional charge.
For quick disconnect probes
with standard size connectors
and without the handle, visit us
online.
SDX high
impact plastic
handle with retractable cable
and miniature connector (included).
Model Number
ANSI Color Code Handle Type
SDX-SET-GP-(*)-SMP SDX high impact plastic
HDX-SET-GP-(*)-SMP HDX rugged aluminum
Specify calibration Type: J, K, E or T.
*
aluminum handle.
RTD model available
online.
HDX rugged
Penetration Probe
Conical tip for insertion into soft and semi-frozen material.
300 mm (12") long, grounded junction, 4.5 mm (3⁄16") OD 304 SS.
Tip rated to 900°C (1650°F).
Air Probe
Exposed thermocouple element protected by 4.5 mm (3⁄16") OD
304 SS sheath. Drilled end exposes bead to airflow for fast
measurements. Constant diameter for easy insertion or mounting
into duct work. 300 mm (12") long. Rated to 870°C (1600°F).
Fast Response Probe
Special reduced diameter 1.5 mm (1⁄16") tip designed for fast
response. Rugged 3 mm (1⁄8") OD, grounded junction, 304 SS
sheath. Tip rated to 900°C (1650°F). 300 mm (12") long.
Flexible Tip Surface Probe
Flexible tip conforms to most surfaces for fast, repeatable,
accurate measurements. Made from RTV silicone rubber
for good thermal contact. 6 mm (1⁄4") OD 304 SS sheath.
8 mm (5/16") OD, overall. Tip rated to 260°C (500°F).
Note: subjecting sensor tip to temperatures above 315°C (600°F)
will result in tip damage. 300 mm (12") long.
A-121
Model Number
ANSI Color Code Handle Type
SDX-SET-NP-(*)-SMP SDX high impact plastic
HDX-SET-NP-(*)-SMP HDX rugged aluminum
Specify calibration Type: J, K, E or T.
*
Model Number
ANSI Color Code Handle Type
SDX-SET-AP-(*)-SMP SDX high impact plastic
HDX-SET-AP-(*)-SMP HDX rugged aluminum
Specify calibration Type: J, K, E or T.
*
Ordering Example: HDX-SET-AP-K-SMP, handle/probe set
consisting of an HDX aluminum handle and a 300 mm (12") air probe,
both in Type K thermocouple. The HDX handle has 1' of RSC cable
(stretches to 5'), and a miniature SMP thermocouple connector.
Model Number
ANSI Color Code Handle Type
SDX-SET-RT-(*)-SMP SDX high impact plastic
HDX-SET-RT-(*)-SMP HDX rugged aluminum
Specify calibration Type: J, K, E or T.
*
Model Number
ANSI Color Code Handle Type
SDX-SET-FSP-(*)-SMP SDX high impact plastic
HDX-SET-FSP-(*)-SMP HDX rugged aluminum
Specify calibration Type: J, K, E or T.
*
Rated temperature is dependent on thermocouple type,
*
sheath diameter and environment.
Page 2
Special Application
Tip Probes
Quick Disconnect and
Integral Handle Styles
Made from Special Limits of Error Material
QD probes have a standard size quick disconnect termination,
and can be used with either SDX type ABS plastic
or HDX type rugged aluminum handles.

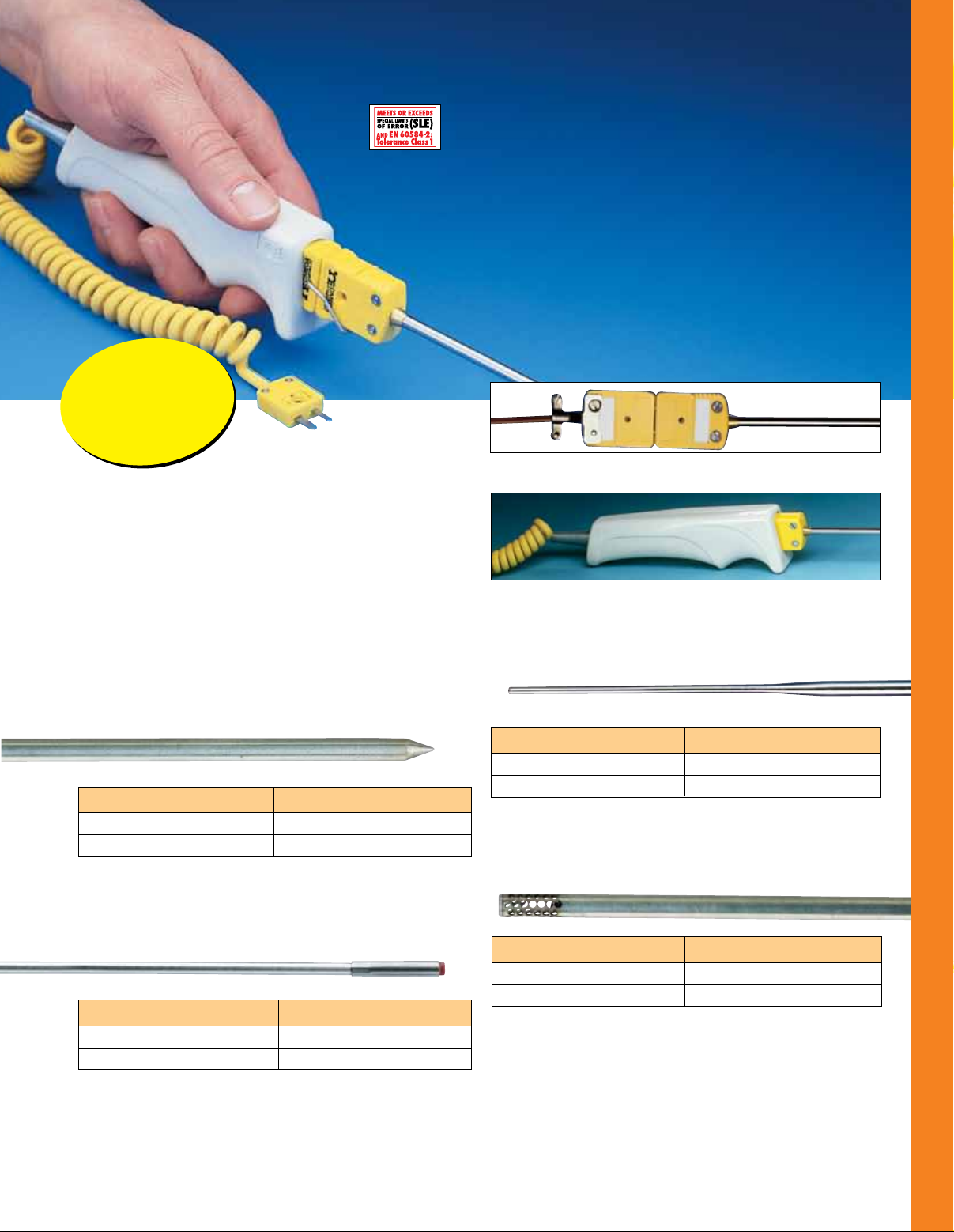

QD-NP-K-316G-12 penetration probe shown
with SDX-UST-K-SMP-M handle.
A
General Purpose QD
Probes eg; KQSS-18U-12,
and Utility, Molded
Handle Probes; eg:
JHSS-18U-RSC-18,
Are Available
SDX Series handle
shown is sold
separately.
U Perfect for Handheld Meters
U 300 mm (12") Probe Length Standard
U Quick Disconnect Probes Supplied with
Mating Connector, Cable Clamp and
Locking Clip
U Handle Probes have 300 mm (12")
Retractable Cable
U Cable–Expands to 1.5 m (5')
U SMP Miniature Male Connector
Termination Standard/Molded with Strain
Relief or SMPW
Penetration Probe
Model No. Probe Type
QD-NP-(*)-316G-12 Quick Disconnect
HPS-NP-(*)-316G-12 Integral Handle
Conical tip for insertion into soft and semi-frozen material.
Made from 4.5mm (
grounded junction. Tip rated to 900°C (1650°F).
3
⁄16") OD 304 SS. 300 mm (12") length,
*Rated temperature is dependent on thermocouple
QD probes feature a quick disconnect connector, and are
supplied with mating connector and cable clamp.
HPS probes feature an ABS plastic handle and
retractable cable permanently attached to the probe.
type, sheath diameter and environment.
Fast Response Probe
Model No. Probe Type
QD-RT-(*)-18G-12 Quick Disconnect
HPS-RT-(*)-18G-12 Integral Handle
Special reduced diameter 1.5 mm (1⁄16") tip designed for fast
response. Rugged 3 mm (
(12") length, grounded junction. Tip rated to 900°C (1650°F).
1
⁄8") OD 304 SS sheath. 300 mm
Air Probe
Flexible Tip Surface Probe
Model No. Probe Type
QD-FSP-(*)-14E-12 Quick Disconnect
HPS-FSP-(*)-14E-12 Integral Handle
Flexible tip conforms to most surfaces for fast, repeatable,
accurate measurements. Made from RTV silicone rubber for
good thermal contact. 6 mm (
(12") length, exposed junction. Tip rated to 260°C (500°F).
Note: subjecting sensor tip to temperatures above 315°C
(600°F) will result in tip damage.
1
⁄4") OD 304 SS sheath. 300 mm
Model No. Probe Type
QD-AP-(*)-316E-12 Quick Disconnect
HPS-AP-(*)-316E-12 Integral Handle
Exposed element protected by 4.5 mm (3⁄16") OD
304 SS sheath. Drilled end exposes bead to airflow
for fast measurements. Constant diameter for easy
insertion or mounting into duct work. 300 mm (12") length,
exposed junction. Rated to 870°C (1600°F).
Specify calibration Type: J, K, E, or T. Custom assemblies available!
*
† Other lengths and diameters are also available.
Consult Custom Engineering for details.
Ordering Example: HPS-RT-K-18G-12, reduced tip fast response
probe, type K, integral handle style.
