NEMA TypE 3R powER
VENTEd ouTdooR
ENclosuRE wiTh BuilT-iN FAN
SCE-3RV Series
• 0.075 Thick Galvannealed Steel
• Black Quarter-Turn Latches and
Pad Lockable Wing Knob
• Doors Open 180º
• Concealed Hinges
• Weatherproof Vented Top Hood
with Bug Screen
• Top Mounted Fan
• Vented Rain Hood with Filter Kits
Installed Door
• DIN Rail Mounting Provisions
Inside Top for Installation of
Thermostat and Terminals
• Oil Resistant Gasket
• Ground Studs on Door and Body
• Mounting Holes for Optional
Mounting Straps
• 3/8-16 Grounding Kit
• Provisions for Subpanel
The SCE-3RV outdoor enclosure series is
designed to house electrical controls, drives,
instruments and components which require
weatherproof protection and cooling. These
electrical enclosures have built-in venting
and one or two 115 Vac fans to provide
cooling. These outdoor enclosures meet
IS7 Industry Standards to provide a degree
of protection for the equipment inside the
enclosure against ingress of solid foreign
objects (falling dirt); and provide a degree of
protection with respect to the harmful effects
on the equipment due to the ingress of water
(rain, sleet, snow).
SPECIFICATIONS
Fan: 115 Vac, 60/50 Hz, 0.26 A with
finger guard
Industry Standards IS7: NEMA Type 3R,
UL Listed Type 3R, CSA Type 3R,
IEC 60529 IP32
Finish: White powder coating inside
and out; optional panels are powder
coated white

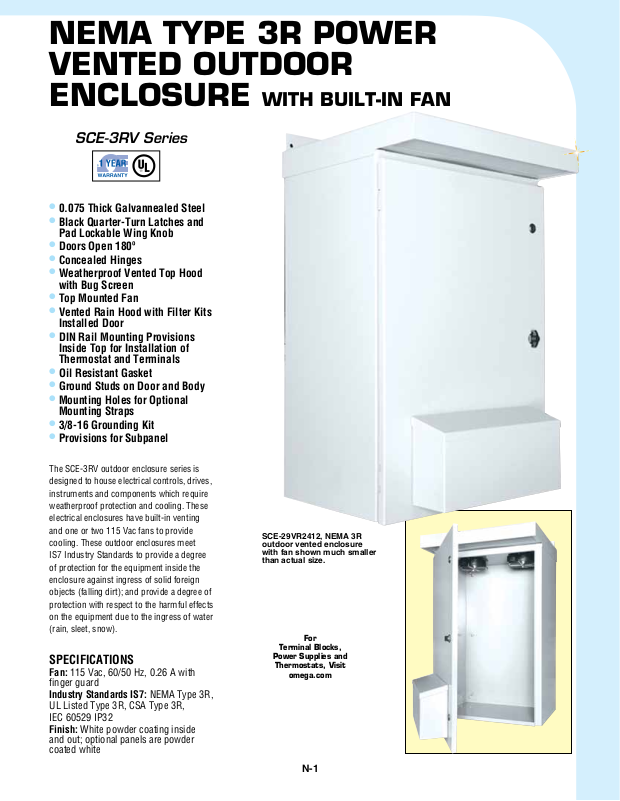

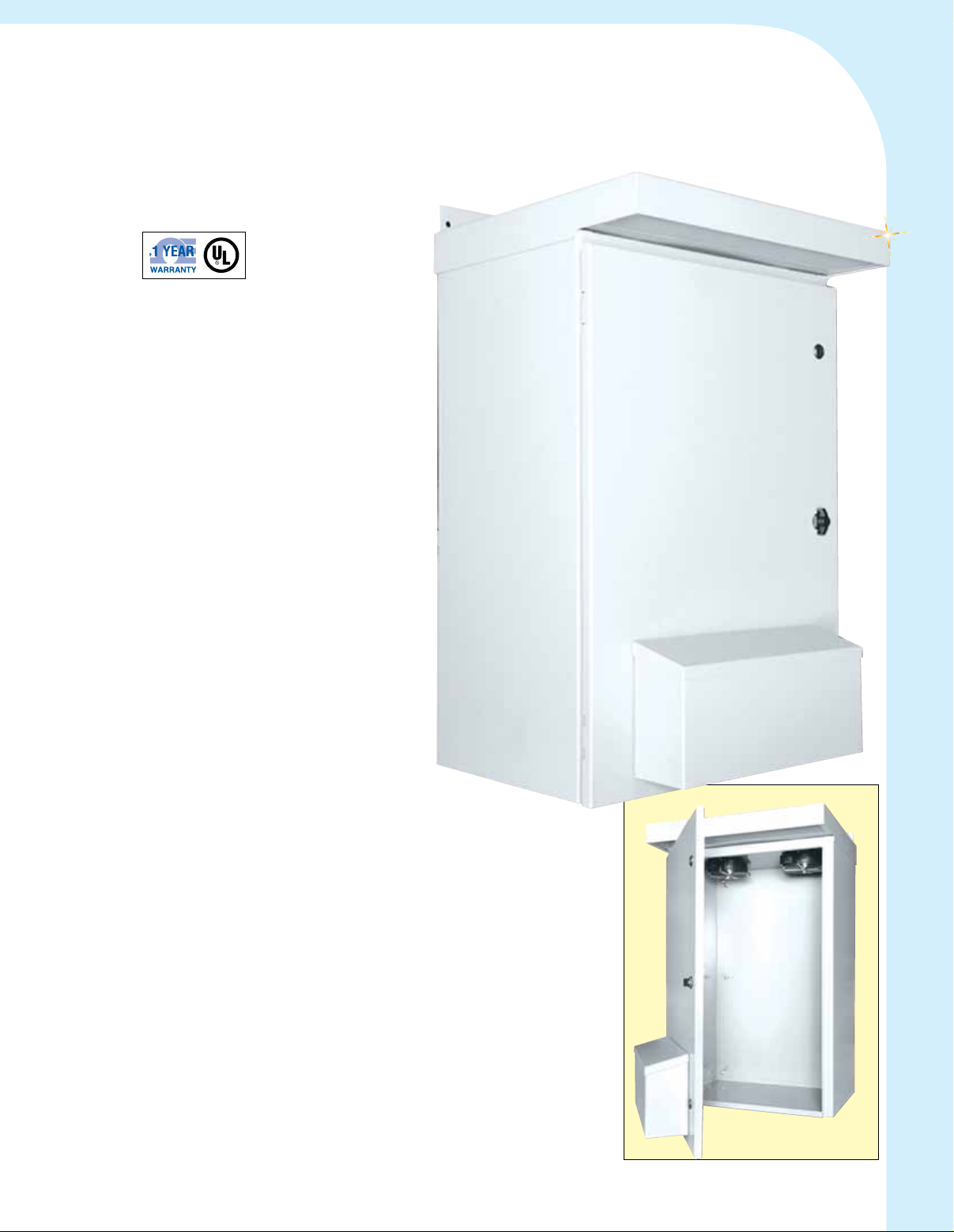

SCE-29VR2412, NEMA 3R
outdoor vented enclosure
with fan shown much smaller
than actual size.
For
Terminal Blocks,
Power Supplies and
Thermostats, Visit
omega.com
N-1
Page 2
B
25
(1)
76
(3)
32
(1.25)
337
(13.25)
32
(1.25)
21
(0.83)
38
(1.50)
A - 80
(3.14)
Door
A - 121
(4.75)
Opening
B - 64
(2.50)
Opening
B - 9
(0.37) Door
A - 442
(17.39)
C - 5
(0.18)
B - 124
(4.87)
Available
Door Space
Padlocking
Wing Knob
A
A
A
C
D
B
76
(3)
32
(1.25)
337
(13.25)
Ø 11
(0.44)
A - 121
(4.75)
Opening
B - 64
(2.50)
Opening
C + 145
(5.70)
B - 9
(0.37) Door
A - 442
(17.39)
C - 5
(0.18)
B - 124
(4.87)
Available
Door Space
Padlocking
Wing Knob
A
A
A
C
E
D
102
(4)
152
(6)
152
(6)
Ø 11
(0.44)
A - 127
(5)
C - 5
(0.18)
A
A
A
C
D
25
(1)
102
(4)

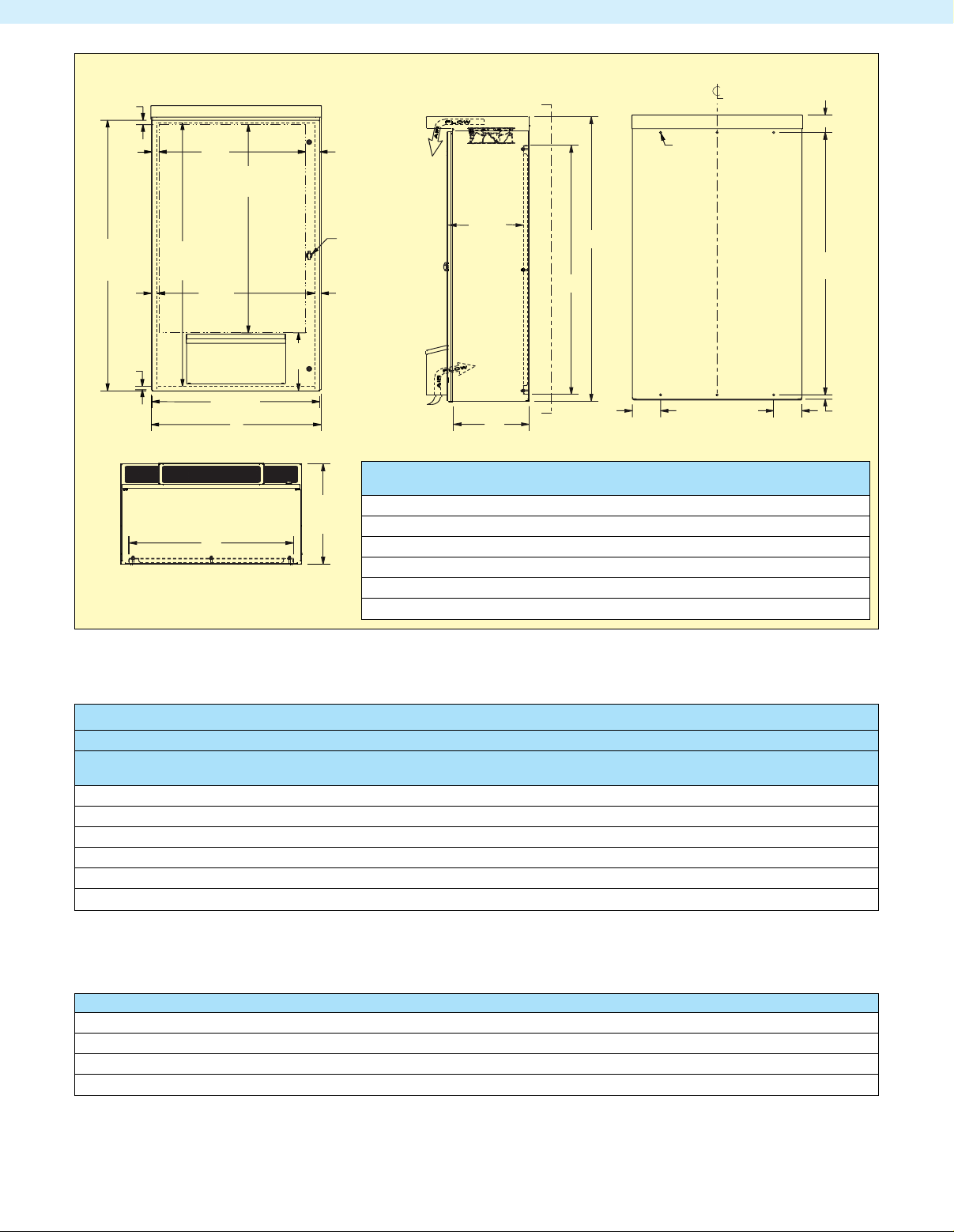

Dimensions: mm (inch)
C - 5
(0.18)
A
A
A
C
D
Air Flow
Air Flow
SYSTEM
MODEL FAN SIZE CFM @ 60HZ
SCE-29VR2412 1 @ 6" 107
SCE-35VR2412 1 @ 6" 107
SCE-41VR2412 1 @ 6" 107
SCE-47VR2414 1 @ 10" 300
To Order
HEIGHT WIDTH DEPTH OVERALL WT HEIGHT WIDTH
MODEL NO. A B C DEPTH kg (lb) MODEL NO. D E
SCE-29VR2412 29 24 12 17.7 58 (129) SCE-24P24 21 21
SCE-35VR2412 35 24 12 17.7 59 (131) SCE-30P24 27 21
SCE-41VR2412 41 24 12 17.7 65 (144) SCE-36P24 33 21
SCE-47VR2414 47 24 14 19.6 73 (161) SCE-42P24 39 21
SCE-53VR3616 53 36 16 21.6 100 (221) SCE-48P36 45 33
SCE-65VR3616 65 36 16 21.6 111 (244) SCE-60P36 56 33
ACCESSORIES
MODEL NO. DESCRIPTION
SCE-VRMS24 Mounting straps (2 per kit) for 24" wide 3R vented enclosures
SCE-VRMS36 Mounting straps (2 per kit) for 36" wide 3R vented enclosures
SCE-FLT66 Replacement filter for 24" wide models, 2 required
SCE-FLT88 Replacement filter for 36" wide models, 2 required
Ordering Examples: SCE-29VR2412, power vented weatherproof outdoor enclosure, SCE-24P24, sub-panel, and SCE-VRMS24,
mounting strap kit for 24" wide 3R vented enclosure.
SCE-35VR2412, power vented weatherproof enclosure, SCE-30P24GALV, galvanized sub-panel, and SCE-VRMS24, mounting strap kit for
24" wide 3R vented enclosure.
DIMENSIONS: inch SUB-PANEL
SCE-53VR3616 1 @ 10" 300
SCE-65VR3616 2 @ 10" 600
