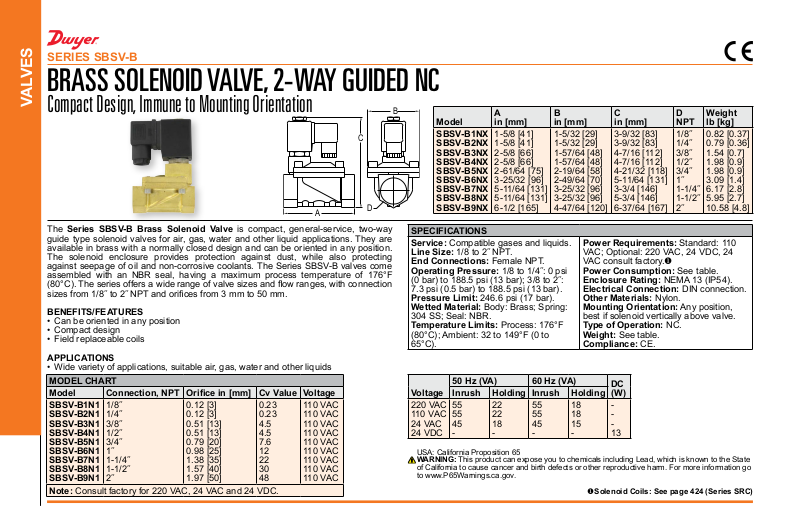

SERIES SBSV-B

BRASS SOLENOID VALVE, 2-WAY GUIDED NC

VALVES

Compact Design, Immune to Mounting Orientation

The Series SBSV-B Brass Solenoid Valve is compact, general-service, two-way guide type solenoid valves for air, gas, water and other liquid applications. They are available in brass with a normally closed design and can be oriented in any position. The solenoid enclosure provides protection against dust, while also protecting against seepage of oil and non-corrosive coolants. The Series SBSV-B valves come assembled with an NBR seal, having a maximum process temperature of 176°F

(80°C). The series offers a wide range of valve sizes and ow ranges, with connection sizes from 1/8˝ to 2˝ NPT and orices from 3 mm to 50 mm.

BENEFITS/FEATURES

• Can be oriented in any position

• Compact design

• Field replaceable coils

APPLICATIONS

• Wide variety of applications, suitable air, gas, water and other liquids

MODEL CHART Model Connection, NPT Orice in [mm] Cv Value Voltage SBSV-B1N1

SBSV-B2N1 SBSV-B3N1 SBSV-B4N1 SBSV-B5N1 SBSV-B6N1 SBSV-B7N1 SBSV-B8N1 SBSV-B9N1

Note: Consult factory for 220 VAC, 24 VAC and 24 VDC.

1/8˝ 1/4˝ 3/8˝ 1/2˝ 3/4˝ 1˝ 1-1/4˝ 1-1/2˝ 2˝

0.12 [3]

0.51 [13]

0.79 [20]

0.98 [25]

1.38 [35]

1.57 [40]

1.97 [50]

0.23

4.5

7.6

12 22 30

110 VAC 110 VAC 110 VAC 110 VAC 110 VAC 110 VAC 110 VAC 110 VAC 110 VAC

Model SBSV-B1NX

SBSV-B2NX SBSV-B3NX SBSV-B4NX SBSV-B5NX SBSV-B6NX SBSV-B7NX SBSV-B8NX SBSV-B9NX

SPECIFICATIONS Service: Compatible gases and liquids.

Line Size: 1/8 to 2˝ NPT. End Connections: Female NPT. Operating Pressure: 1/8 to 1/4˝: 0 psi

(0 bar) to 188.5 psi (13 bar); 3/8 to 2˝:

7.3 psi (0.5 bar) to 188.5 psi (13 bar).

Pressure Limit: 246.6 psi (17 bar). Wetted Material: Body: Brass; Spring:

304 SS; Seal: NBR. Temperature Limits: Process: 176°F (80°C); Ambient: 32 to 149°F (0 to 65°C).

Voltage

220 VAC 110 VAC 24 VAC 24 VDC

50 Hz (VA) 60 Hz (VA)

55 55 45

USA: California Proposition 65

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go

to www.P65Warnings.ca.gov.

A in [mm]

1-5/8 [41] 1-5/8 [41] 2-5/8 [66] 2-5/8 [66] 2-61/64 [75] 3-25/32 [96] 5-11/64 [131] 5-11/64 [131] 6-1/2 [165]

22 22

55 55 45

B in [mm]

1-5/32 [29] 1-5/32 [29] 1-57/64 [48] 1-57/64 [48] 2-19/64 [58] 2-49/64 [70] 3-25/32 [96] 3-25/32 [96] 4-47/64 [120]

18 18

C in [mm]

3-9/32 [83] 3-9/32 [83] 4-7/16 [112] 4-7/16 [112] 4-21/32 [118] 5-11/64 [131] 3-3/4 [146] 5-3/4 [146] 6-37/64 [167]

Power Requirements: Standard: 110 VAC; Optional: 220 VAC, 24 VDC, 24 VAC consult factory.u

Power Consumption: See table. Enclosure Rating: NEMA 13 (IP54). Electrical Connection: DIN connection. Other Materials: Nylon. Mounting Orientation: Any position,

best if solenoid vertically above valve.

Type of Operation: NC. Weight: See table. Compliance: CE.

DC (W)Inrush Holding Inrush Holding

uSolenoid Coils: See page 424 (Series SRC)

D NPT

1/8˝ 1/4˝ 3/8˝ 1/2˝ 3/4˝ 1˝ 1-1/4˝ 1-1/2˝ 2˝

Weight lb [kg]

0.82 [0.37]

0.79 [0.36]

1.54 [0.7]

1.98 [0.9]

3.09 [1.4]

6.17 [2.8]

5.95 [2.7]

10.58 [4.8]
