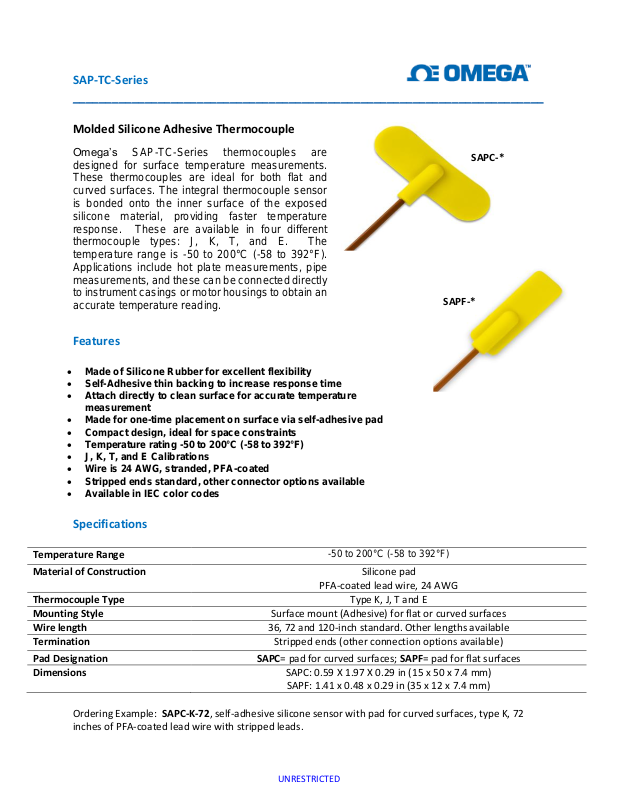

SAP-TC-Series
________________________________________________________________________
Molded Silicone Adhesive Thermocouple
Omega’s SAP-TC-Series thermocouples are
designed for surface temperature measurements.
These thermocouples are ideal for both flat and
curved surfaces. The integral thermocouple sensor
is bonded onto the inner surface of the exposed
silicone material, providing faster temperature
response. These are available in four different
thermocouple types: J, K, T, and E. The
temperature range is -50 to 200°C (-58 to 392°F).
Applications include hot plate measurements, pipe
measurements, and these can be connected directly
to instrument casings or motor housings to obtain an
accurate temperature reading.
Features
• Made of Silicone Rubber for excellent flexibility
• Self-Adhesive thin backing to increase response time
• Attach directly to clean surface for accurate temperature
measurement
• Made for one-time placement on surface via self-adhesive pad
• Compact design, ideal for space constraints
• Temperature rating -50 to 200°C (-58 to 392°F)
• J, K, T, and E Calibrations
• Wire is 24 AWG, stranded, PFA-coated
• Stripped ends standard, other connector options available
• Available in IEC color codes
Specifications
Temperature Range
-50 to 200°C (-58 to 392°F)
Material of Construction
Silicone pad
PFA-coated lead wire, 24 AWG
Thermocouple Type
Type K, J, T and E
Mounting Style
Surface mount (Adhesive) for flat or curved surfaces
Wire length
36, 72 and 120-inch standard. Other lengths available
Termination
Stripped ends (other connection options available)
Pad Designation
SAPC= pad for curved surfaces; SAPF= pad for flat surfaces
Dimensions
SAPC: 0.59 X 1.97 X 0.29 in (15 x 50 x 7.4 mm)
SAPF: 1.41 x 0.48 x 0.29 in (35 x 12 x 7.4 mm)
Ordering Example: SAPC-K-72, self-adhesive silicone sensor with pad for curved surfaces, type K, 72
inches of PFA-coated lead wire with stripped leads.

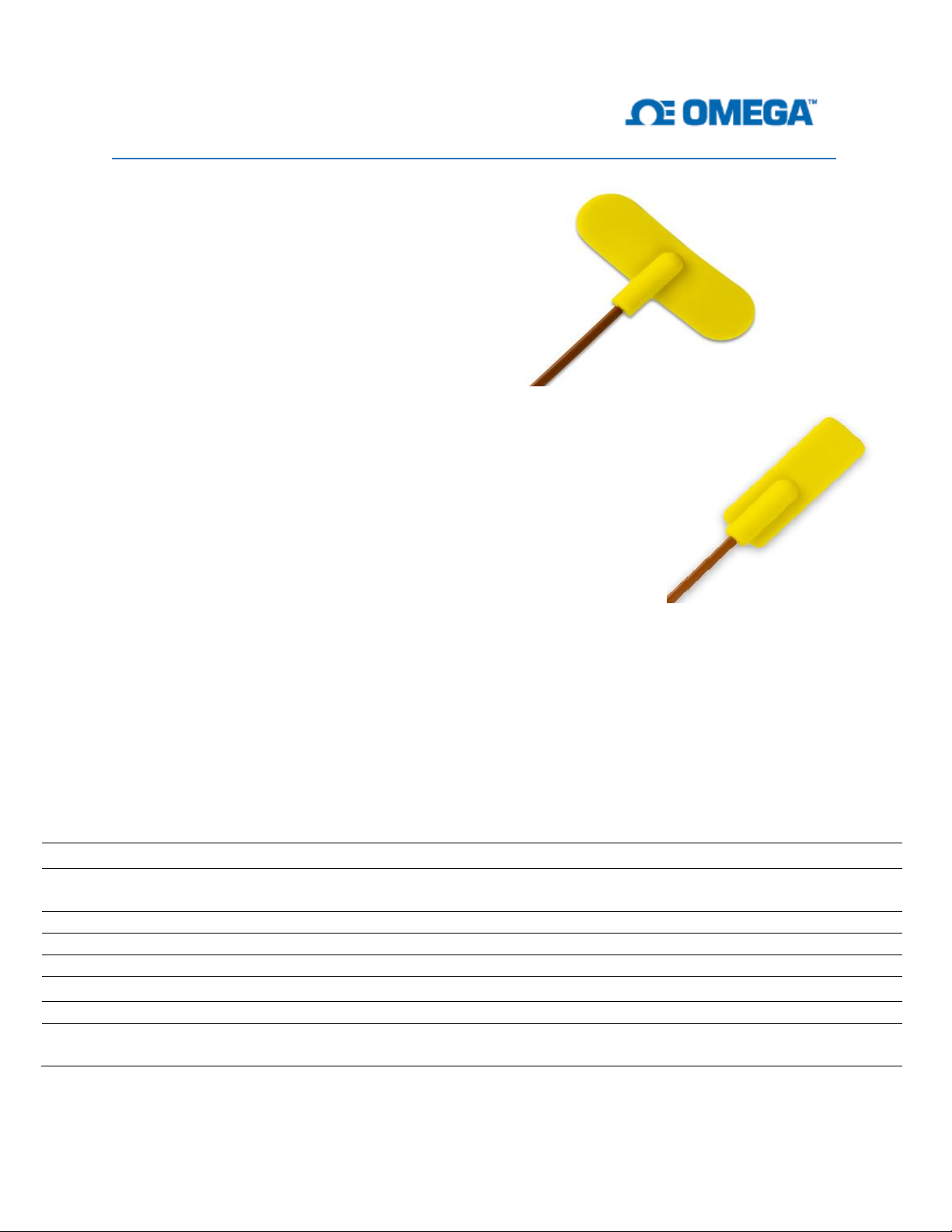

SAPC-*
SAPF-*
