SAP-RTD-Series
________________________________________________________________________

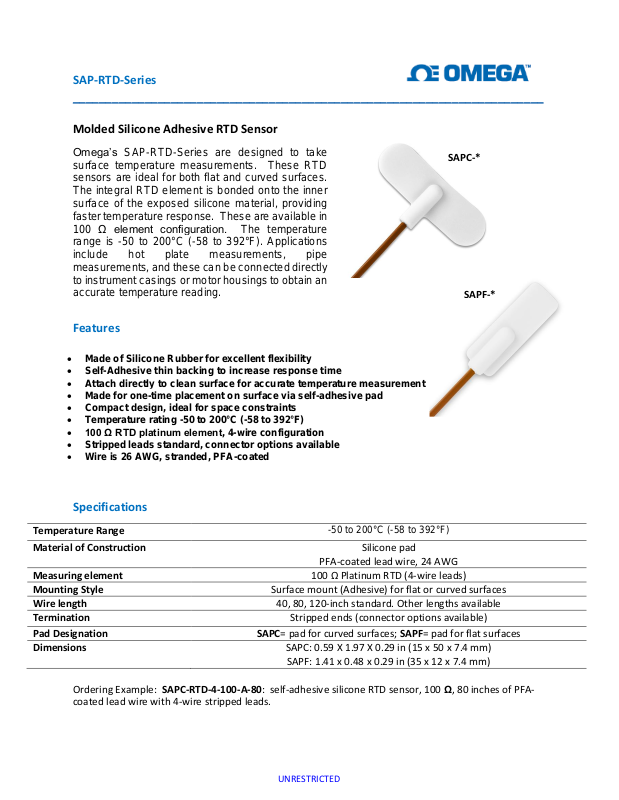

Molded Silicone Adhesive RTD Sensor
Omega’s SAP-RTD-Series are designed to take
surface temperature measurements. These RTD
sensors are ideal for both flat and curved surfaces.
The integral RTD element is bonded onto the inner
surface of the exposed silicone material, providing
faster temperature response. These are available in
100 Ω element configuration. The temperature
range is -50 to 200°C (-58 to 392°F). Applications
include hot plate measurements, pipe
measurements, and these can be connected directly
to instrument casings or motor housings to obtain an
accurate temperature reading.
Features
• Made of Silicone Rubber for excellent flexibility
• Self-Adhesive thin backing to increase response time
• Attach directly to clean surface for accurate temperature measurement
• Made for one-time placement on surface via self-adhesive pad
• Compact design, ideal for space constraints
• Temperature rating -50 to 200°C (-58 to 392°F)
• 100 Ω RTD platinum element, 4-wire configuration
• Stripped leads standard, connector options available
• Wire is 26 AWG, stranded, PFA-coated
Specifications
Temperature Range
-50 to 200°C (-58 to 392°F)
Material of Construction
Silicone pad
PFA-coated lead wire, 24 AWG
Measuring element
100 Ω Platinum RTD (4-wire leads)
Mounting Style
Surface mount (Adhesive) for flat or curved surfaces
Wire length
40, 80, 120-inch standard. Other lengths available
Termination
Stripped ends (connector options available)
Pad Designation
SAPC= pad for curved surfaces; SAPF= pad for flat surfaces
Dimensions
SAPC: 0.59 X 1.97 X 0.29 in (15 x 50 x 7.4 mm)
SAPF: 1.41 x 0.48 x 0.29 in (35 x 12 x 7.4 mm)
SAPC-*
SAPF-*
SAPC-*
Ordering Example: SAPC-RTD-4-100-A-80: self-adhesive silicone RTD sensor, 100 Ω, 80 inches of PFAcoated lead wire with 4-wire stripped leads.
