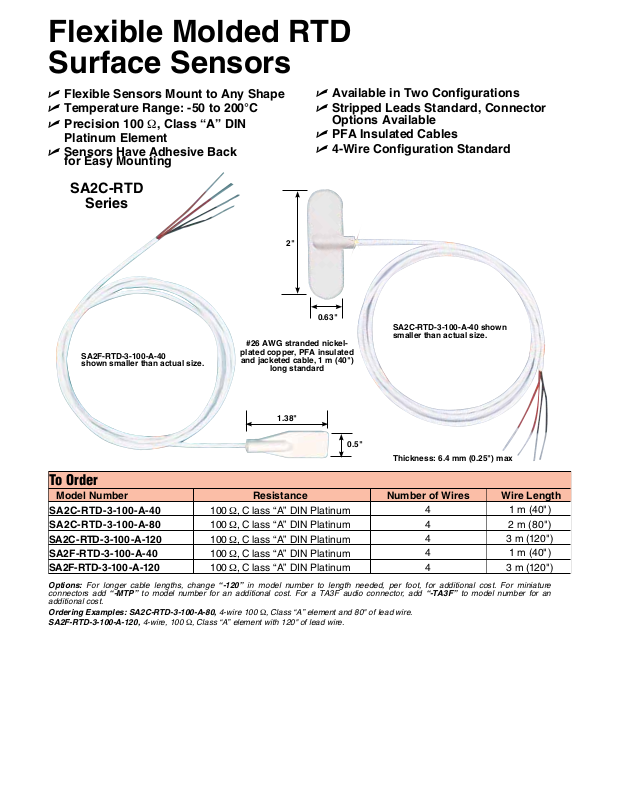

Flexible Molded RTD
Surface Sensors
U Flexible Sensors Mount to Any Shape
U Temperature Range: -50 to 200°C
U Precision 100 Ω, Class “A” DIN
Platinum Element
U Sensors Have Adhesive Back
for Easy Mounting
SA2C-RTD
Series
#26 AWG stranded nickel-
SA2F-RTD-3-100-A-40
shown smaller than actual size.
plated copper, PFA insulated
and jacketed cable, 1 m (40")
long standard
U Available in Two Configurations
U Stripped Leads Standard, Connector
Options Available
U PFA Insulated Cables
U 4-Wire Configuration Standard
2"
0.63"

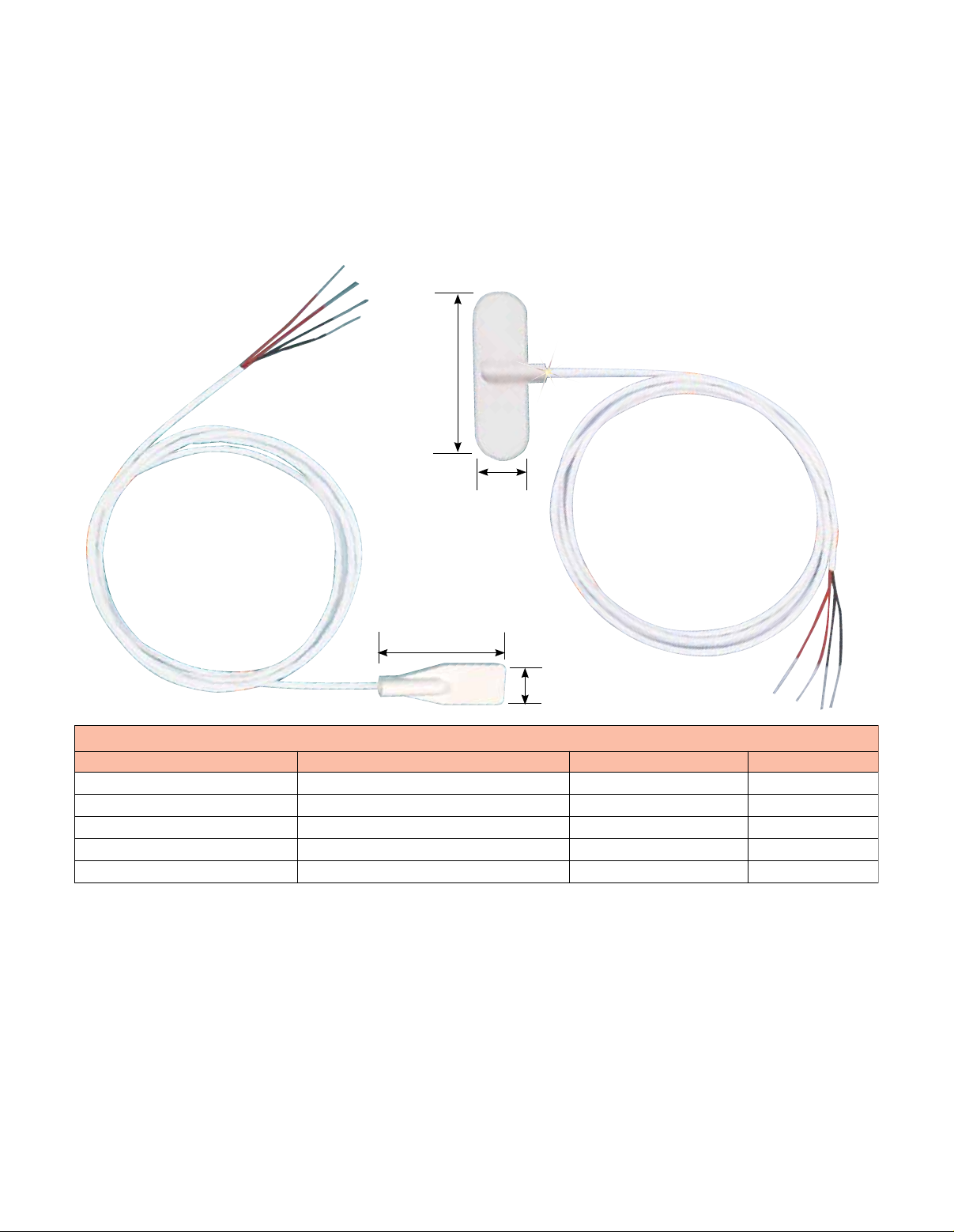

SA2C-RTD-3-100-A-40 shown
smaller than actual size.
1.38"
0.5"
Thickness: 6.4 mm (0.25") max
To Order
Model Number Resistance Number of Wires Wire Length
00 Ω, C lass “A” DIN Platinum
SA2C-RTD-3-10
SA2C-RTD-3-10
SA2C-RTD-3-100-A-120
SA2F-RTD-3-100-A-40
SA2F-RTD-3-100-A-120
Options: For longer cable lengths, change “-120”
connectors add “-MTP” to model number for an additional cost. For a TA3F audio connector, add “-TA3F” to model number for an
additional cost.
Ordering Examples: SA2C-RTD-3-100-A-80, 4-wire 100 Ω, Class “A” element and 80" of lead wire.
SA2F-RTD-3-100-A-120, 4-wire, 100 Ω, Class “A” element with 120" of lead wire.
0-A-40
0-A-80
1
00 Ω, C lass “A” DIN Platinum
1
00 Ω, C lass “A” DIN Platinum
1
00 Ω, C lass “A” DIN Platinum
1
00 Ω, C lass “A” DIN Platinum
1
in model number to length needed, per foot, for additional cost. For miniature
4 1 m (40")
4 2 m (80")
4 3 m (120")
4 1 m (40")
4 3 m (120")
