Omega SA1-IEC Specification

Download

Page 1

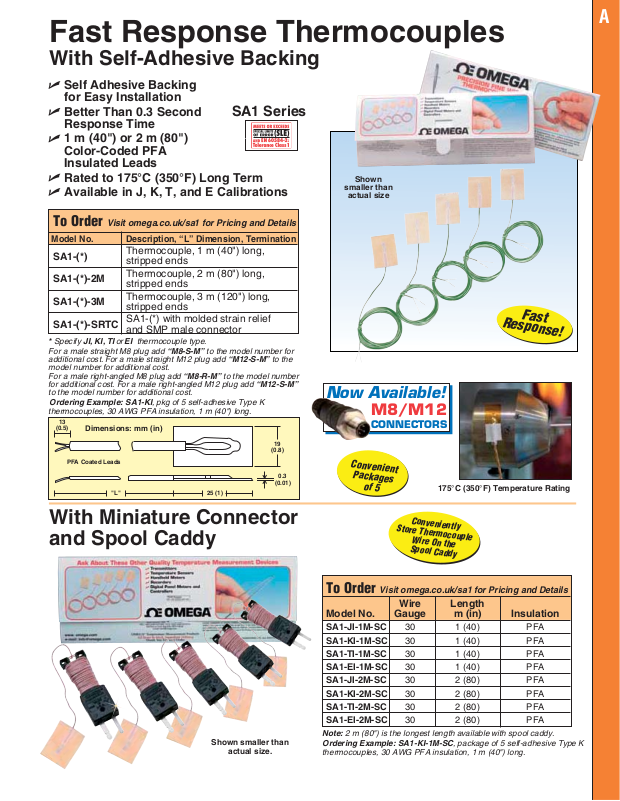

Fast Response Thermocouples

With Self-Adhesive Backing

Self Adhesive Backing

for Easy Installation

Better Than 0.3 Second

Response Time

1 m (40") or 2 m (80")

Color-Coded PFA

Insulated Leads Rated to 175°C (350°F) Long Term Available in J, K, T, and E Calibrations

SA1 Series

Shown

smaller than

actual size

To Order

Model No. Description, “L” Dimension, Termination

SA1-(*)

stripped ends

SA1-(*)-2M

stripped ends

SA1-(*)-3M

stripped ends

SA1-(*)-SRTC

and SMP male connector

* Specify JI, KI, TI or EI thermocouple type. For a male straight M8 plug add “M8-S-M” to the model number for

additional cost. For a male straight M12 plug add “M12-S-M” to the model number for additional cost. For a male right-angled M8 plug add “M8-R-M” to the model number for additional cost. For a male right-angled M12 plug add “M12-S-M” to the model number for additional cost.

Ordering Example: SA1-KI, pkg of 5 self-adhesive Type K thermocouples, 30 AWG PFA insulation, 1 m (40") long.

(0.5)

PFA Coated Leads

Visit omega.co.uk/sa1 for Pricing and Details

Thermocouple, 1 m (40") long,

Thermocouple, 2 m (80") long,

Thermocouple, 3 m (120") long,

SA1-(*) with molded strain relief

Dimensions: mm (in)

"L"

25 (1)

(0.8)

(0.01)

0.3

With Miniature Connector and Spool Caddy

Now Available!

M8/M12

CONNECTORS

Convenient

Packages

of 5

Conveniently

Store Thermocouple

Wire On the

Spool Caddy

Fast

Response!

175°C (350°F) Temperature Rating

Shown smaller than

actual size.

To Order

Wire Length Model No. Gauge m (in) Insulation

SA1-JI-1M-SC 30 1 (40) PFA SA1-KI-1M-SC 30 1 (40) PFA SA1-TI-1M-SC 30 1 (40) PFA SA1-EI-1M-SC 30 1 (40) PFA SA1-JI-2M-SC 30 2 (80) PFA SA1-KI-2M-SC 30 2 (80) PFA SA1-TI-2M-SC 30 2 (80) PFA SA1-EI-2M-SC 30 2 (80) PFA

Note: 2 m (80") is the longest length available with spool caddy. Ordering Example: SA1-KI-1M-SC

thermocouples, 30 AWG PFA insulation, 1 m (40") long.

Visit omega.co.uk/sa1 for Pricing and Details

, package of 5 self-adhesive Type K

Page 2
