Page 1
13
(0.5)
19
(0.8)
"L"
25 (1)

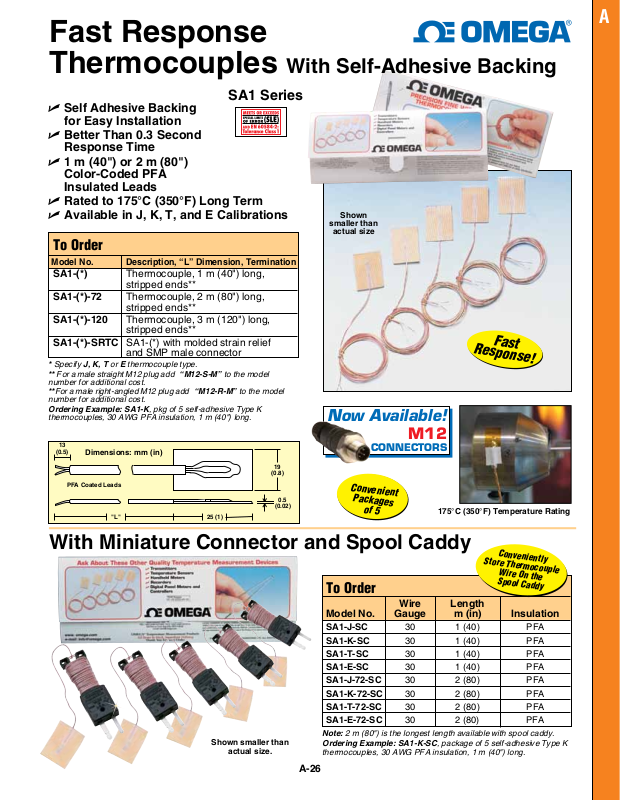

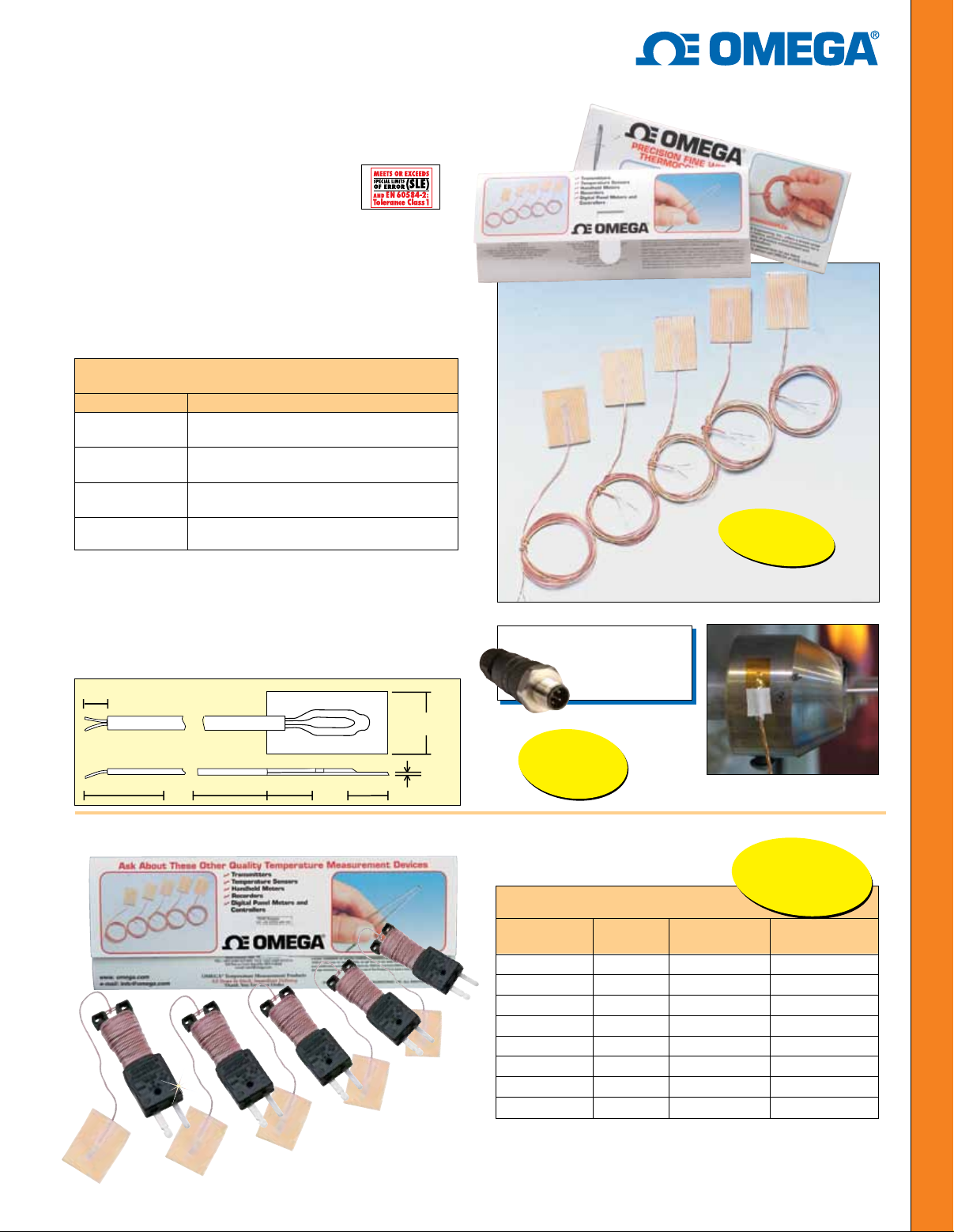

PFA Coated Leads
Fast Response
A
Thermocouples
With Self-Adhesive Backing
SA1 Series
U Self Adhesive Backing
for Easy Installation
U Better Than 0.3 Second
Response Time
U 1 m (40") or 2 m (80")
Color-Coded PFA
Insulated Leads
U Rated to 175°C (350°F) Long Term
U Available in J, K, T, and E Calibrations
To Order
Model No. Description, “L” Dimension, Termination
SA1-(*) Thermocouple, 1 m (40") long,
stripped ends**
SA1-(*)-72 Thermocouple, 2 m (80") long,
stripped ends**
SA1-(*)-120 Thermocouple, 3 m (120") long,
stripped ends**
SA1-(*)-SRTC SA1-(*) with molded strain relief
and SMP male connector
* Specify J, K, T or E thermocouple type.
**
For a male straight M12 plug add “M12-S-M” to the model
number for additional cost.
**For a male right-angled M12 plug add “M12-R-M” to the model
number for additional cost.
Ordering Example: SA1-K, pkg of 5 self-adhesive Type K
thermocouples, 30 AWG PFA insulation, 1 m (40") long.
Dimensions: mm (in)
Shown
smaller than
actual size
Now Available!
M12
CONNECTORS
Fast
Response!
Convenient
0.5
(0.02)
Packages
of 5
175°C (350°F) Temperature Rating
With Miniature Connector and Spool Caddy
To Order
Wire Length
Model No. Gauge m (in) Insulation
SA1-J-SC 30 1 (40) PFA
SA1-K-SC 30 1 (40) PFA
SA1-T-SC 30 1 (40) PFA
SA1-E-SC 30 1 (40) PFA
SA1-J-72-SC 30 2 (80) PFA
SA1-K-72-SC 30 2 (80) PFA
SA1-T-72-SC 30 2 (80) PFA
SA1-E-72-SC 30 2 (80) PFA
Shown smaller than
actual size.
Note: 2 m (80") is the longest length available with spool caddy.
Ordering Example: SA1-K-SC, package of 5 self-adhesive Type K
thermocouples, 30 AWG PFA insulation, 1 m (40") long.
A-26
Conveniently
Store Thermocouple
Wire On the
Spool Caddy
