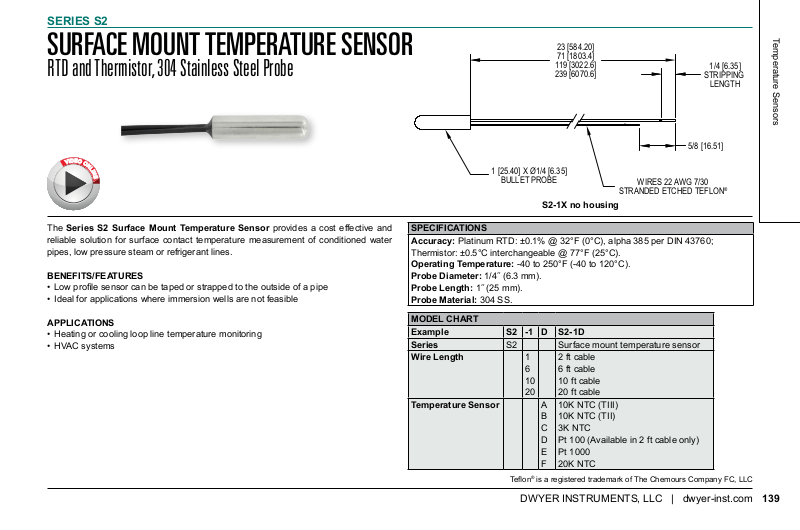

SURFACE MOUNT TEMPERATURE SENSOR

RTD and Thermistor, 304 Stainless Steel Probe

71 [1803.4]
119 [3022.6]
239 [6070.6]

Temperature Sensors

1/4 [6.35]

LENGTH

E

O

D

I

V

O

N

L

I

N

The Series S2 Surface Mount Temperature Sensor provides a cost effective and
reliable solution for surface contact temperature measurement of conditioned water
pipes, low pressure steam or refrigerant lines.

BENEFITS/FEATURES

• Lowprolesensorcanbetapedorstrappedtotheoutsideofapipe

• Ideal for applications where immersion wells are not feasible

APPLICATIONS

• Heating or cooling loop line temperature monitoring

• HVAC systems

5/8 [16.51]

1 [25.40] X Ø1/4 [6.35]

BULLET PROBE

WIRES 22 AWG 7/30

S2-1X no housing

SPECIFICATIONS
Accuracy: Platinum RTD: ±0.1% @ 32°F (0°C), alpha 385 per DIN 43760;

Thermistor: ±0.5°C interchangeable @ 77°F (25°C).

Operating Temperature: -40 to 250°F (-40 to 120°C).
Probe Diameter: 1/4˝(6.3mm).
Probe Length: 1˝(25mm).
Probe Material: 304 SS.

MODEL CHART
Example S2 -1 D S2-1D
Series S2 Surface mount temperature sensor
Wire Length 1

Temperature Sensor A

Teon® is a registered trademark of The Chemours Company FC, LLC

2 ft cable

6

6 ft cable

10

10 ft cable

20

20 ft cable
10K NTC (TIII)

B

10K NTC (TII)

C

3K NTC

D

Pt 100 (Available in 2 ft cable only)

E

Pt 1000

F

20K NTC
