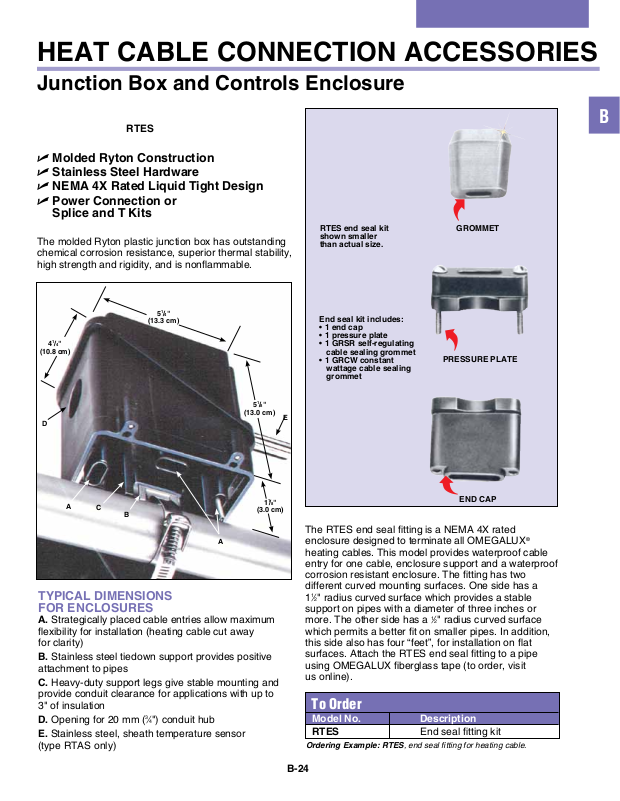

HEAT CABLE CONNECTION ACCESSORIES
Junction Box and Controls Enclosure
RTES
U Molded Ryton Construction
U Stainless Steel Hardware
U NEMA 4X Rated Liquid Tight Design
U Power Connection or
Splice and T Kits
The molded Ryton plastic junction box has outstanding
chemical corrosion resistance, superior thermal stability,
high strength and rigidity, and is nonflammable.
1
5
/4"
(13.3 cm)
41/4"
(10.8 cm)
1
5
/8"
(13.0 cm)
D
E
RTES end seal kit
shown smaller
than actual size.
End seal kit includes:
• 1 end cap
• 1 pressure plate
• 1 GRSR self-regulating
cable sealing grommet
• 1 GRCW constant
wattage cable sealing
grommet
B
GROMMET
PRESSURE PLATE
1
1
A
C
B
A
/8"
(3.0 cm)

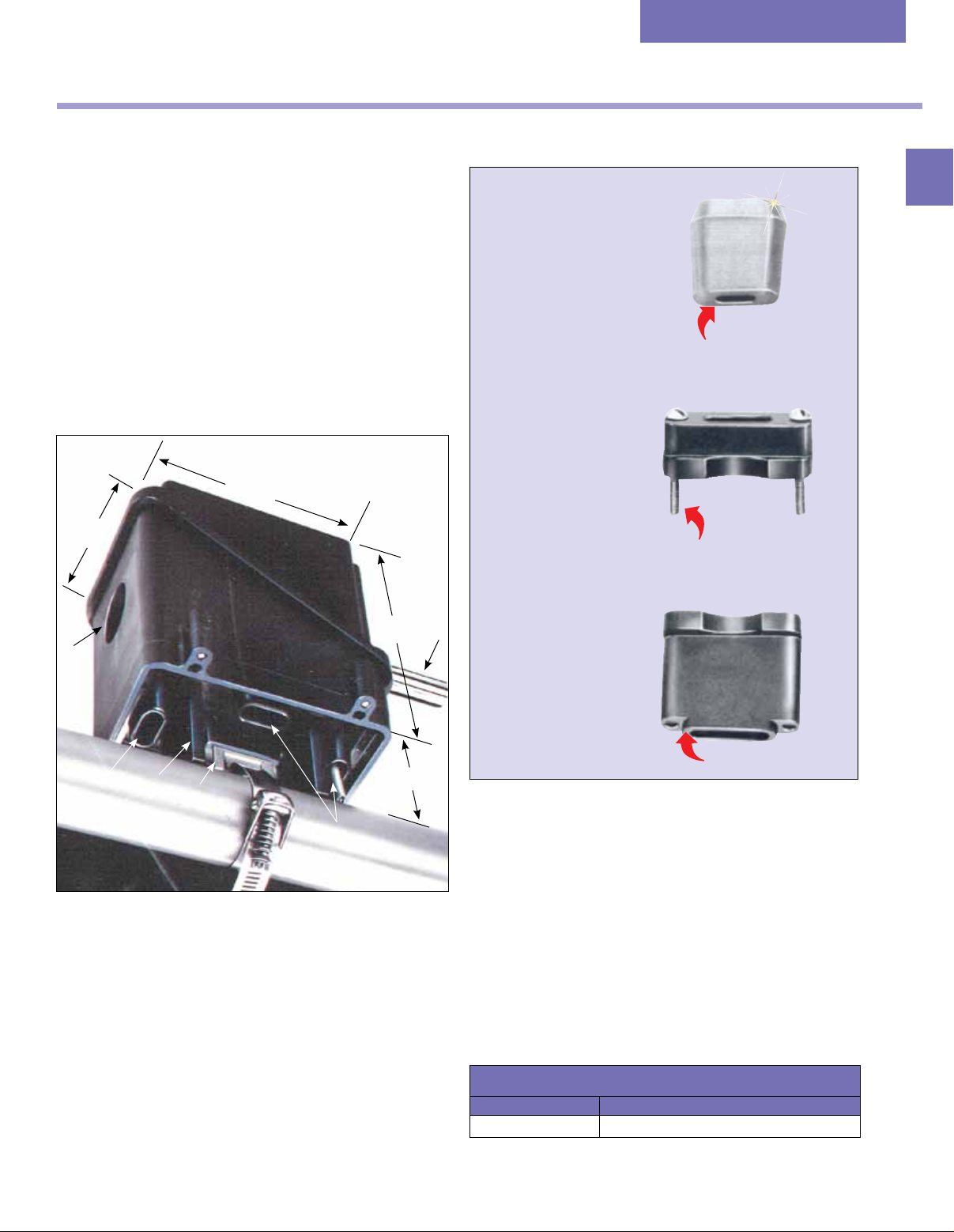

TYPICAL DIMENSIONS
FOR ENCLOSURES
A. Strategically placed cable entries allow maximum
flexibility for installation (heating cable cut away
for clarity)
B. Stainless steel tiedown support provides positive
attachment to pipes
C. Heavy-duty support legs give stable mounting and
provide conduit clearance for applications with up to
3" of insulation
D. Opening for 20 mm (3⁄4") conduit hub
E. Stainless steel, sheath temperature sensor
(type RTAS only)
END CAP
The RTES end seal fitting is a NEMA 4X rated
enclosure designed to terminate all OMEGALUX
heating cables. This model provides waterproof cable
entry for one cable, enclosure support and a waterproof
corrosion resistant enclosure. The fitting has two
different curved mounting surfaces. One side has a
11⁄2" radius curved surface which provides a stable
support on pipes with a diameter of three inches or
more. The other side has a 1⁄2" radius curved surface
which permits a better fit on smaller pipes. In addition,
this side also has four “feet”, for installation on flat
surfaces. Attach the RTES end seal fitting to a pipe
using OMEGALUX fiberglass tape (to order, visit
us online).
To Order
Model No. Description
RTES End seal fitting kit
Ordering Example: RTES, end seal fitting for heating cable.
B-24
®
