4.82
(0.19)
4.31
(0.17)
ø4.31
(0.17)
ø14.48
(0.57)
10.66
(0.42)
15.49
(0.61)
40.64
(1.60)

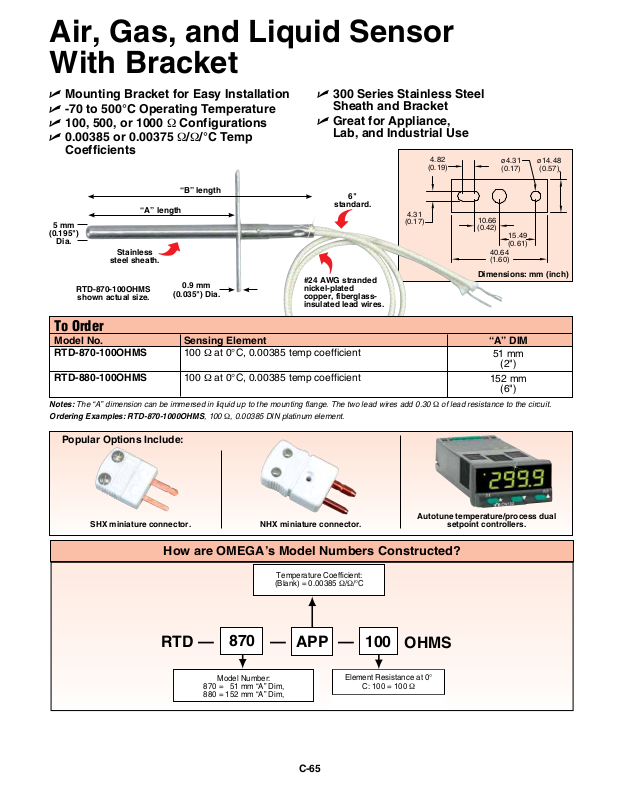

Air, Gas, and Liquid Sensor
With Bracket
U Mounting Bracket for Easy Installation
U -70 to 500°C Operating Temperature
U 100, 500, or 1000 Ω Configurations
U 0.00385 or 0.00375 Ω/Ω/°C Temp
U 300 Series Stainless Steel
Sheath and Bracket
U Great for Appliance,
Lab, and Industrial Use
Coefficients
5 mm
(0.195")
Dia.
RTD-870-100OHMS
shown actual size.
“A” length
Stainless
steel sheath.
“B” length
0.9 mm
(0.035") Dia.
#24 AWG stranded
nickel-plated
copper, fiberglassinsulated lead wires.
6"
standard.
Dimensions: mm (inch)
To Order
Model No. Sensing Element “A” DIM
RTD-870-100OHMS 100 Ω at 0°C, 0.00385 temp coefficient
RTD-880-100OHMS 100 Ω at 0°C, 0.00385 temp coefficient
Notes: The “A” dimension can be immersed in liquid up to the mounting flange. The two lead wires add 0.30 Ω of lead resistance to the circuit.
Ordering Examples: RTD-870-1000OHMS, 100 Ω, 0.00385 DIN platinum element.
51 mm
152 mm
(2")
(6")
Popular Options Include:
SHX miniature connector. NHX miniature connector.
How are OMEGA’s Model Numbers Constructed?
Temperature Coefficient:
(Blank) = 0.00385 Ω/Ω/°C
870
Model Number:
870 = 51 mm “A” Dim,
880 = 152 mm “A” Dim,
RTD ——
APP
C-65
—
100
Element Resistance at 0°
C: 100 = 100 Ω
OHMS
Autotune temperature/process dual
setpoint controllers.
