Page 1

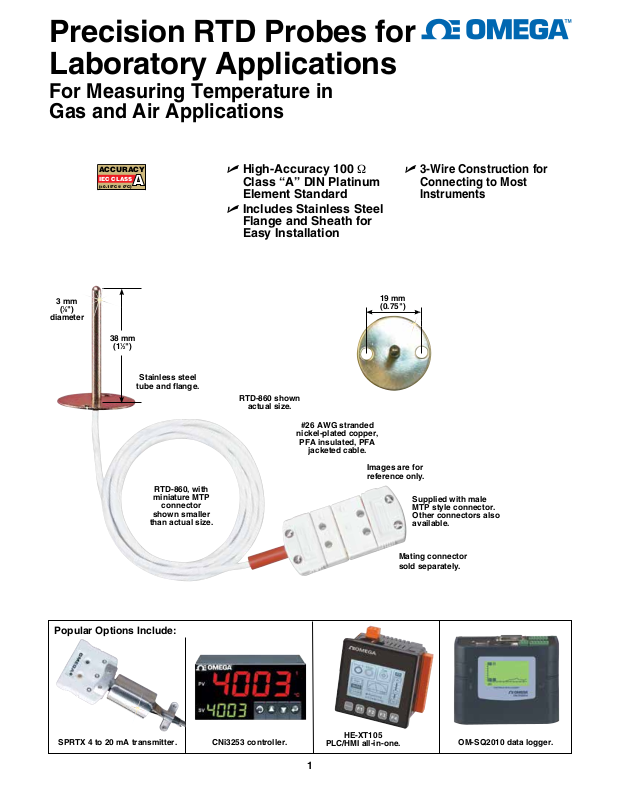

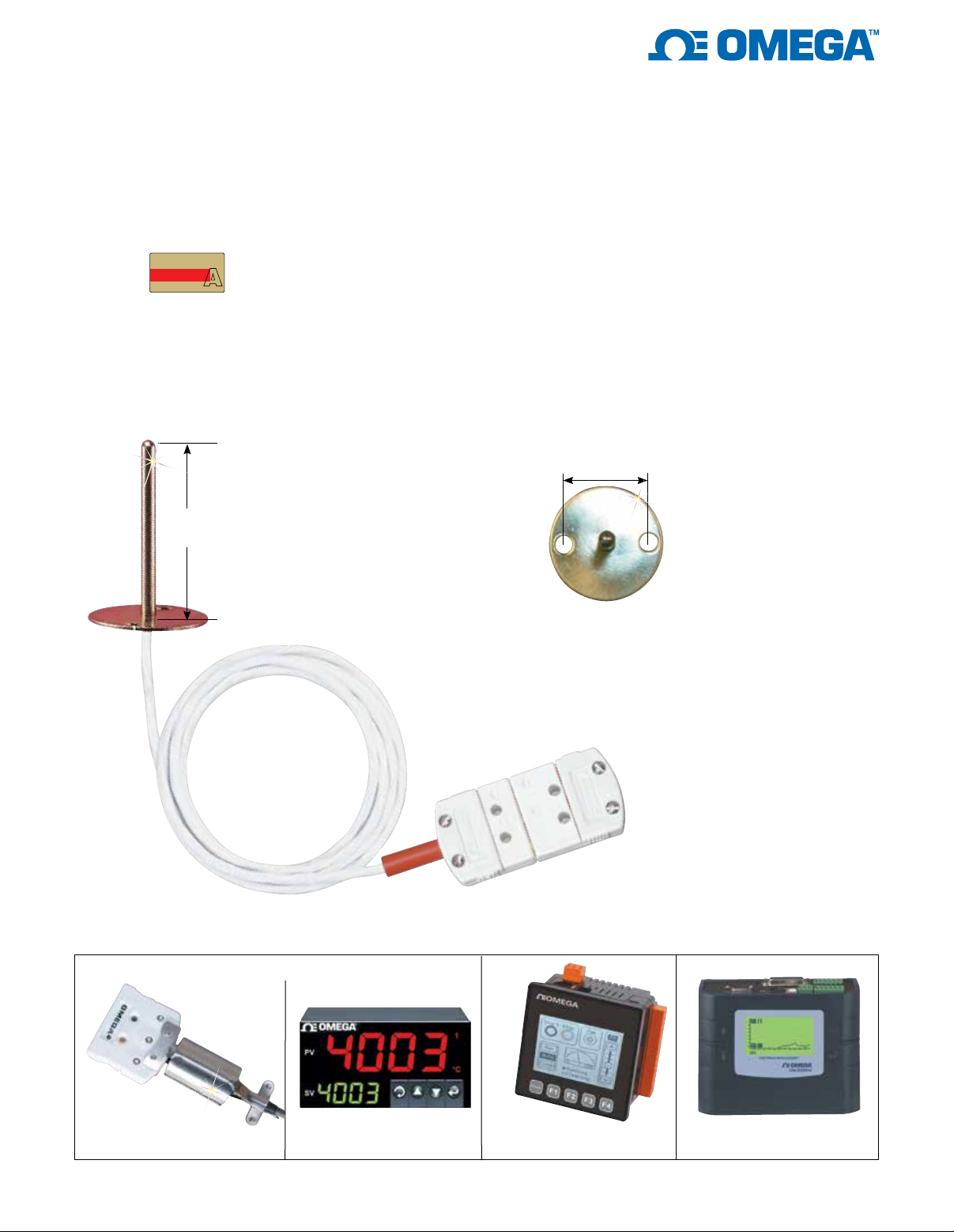

Precision RTD Probes for
A
Laboratory Applications
For Measuring Temperature in
Gas and Air Applications
3 mm
1
⁄8")
(
diameter
ACCURACY
IEC CLASS
(±0.15ºC @ 0ºC)
38 mm
(11⁄2")
tube and flange.
Stainless steel
RTD-860, with
miniature MTP
connector
shown smaller
than actual size.
U High-Accuracy 100
Ω
Class “A” DIN Platinum
Element Standard
U Includes Stainless Steel
Flange and Sheath for
Easy Installation
RTD-860 shown
actual size.
#26 AWG stranded
nickel-plated copper,
PFA insulated, PFA
jacketed cable.
Images are for
reference only.
U 3-Wire Construction for
Connecting to Most
Instruments
19 mm
(0.75")
Supplied with male
MTP style connector.
Other connectors also
available.
Popular Options Include:
SPRTX 4 to 20 mA transmitter.
CNi3253 controller.
HE-XT105
PLC/HMI all-in-one.
1
Mating connector
sold separately.
OM-SQ2010 data logger.
Page 2
To Order
Model No.
RTD-860
RTD-860-OTP
RTD-860-SPRTXM1
Terminations Available: Provided with standard miniature connector; for larger sized connector add “-OTP” to model number for an additional
cost; for audio connector add “-TA3F” to model number for an additional cost.
Ordering Examples: RTD-860-OTP, Class “A” accuracy with standard sized connector, mating connector sold separately RTD-860-TA3F,
Class A accuracy with audio connector.
Sensing Element
100 Ω Class “A” DIN 1 m (40") long PFA insulated with MTP Connector 230ºC (450ºF)
100 Ω Class “A” DIN 1 m (40") long PFA with OTP Connector 230ºC (450ºF)
100 Ω Class “A” DIN 1 m (40") long PFA SPRTX-MTH 230ºC (450ºF)
Cable
Maximum
Temperature
Model No.
RTD-860
RTD-860-OTP
All accessories sold seperately.
Sensing Element
Maximum
Temperature
100 Ω Class “A” DIN 230ºC (450ºF)
100 Ω Class “A” DIN 230ºC (450ºF)
2
Mating Connector
Cable Clamp
Model No.
MTP-U-F PCLM-MTP
OTP-U-F PCLM
Model No.
