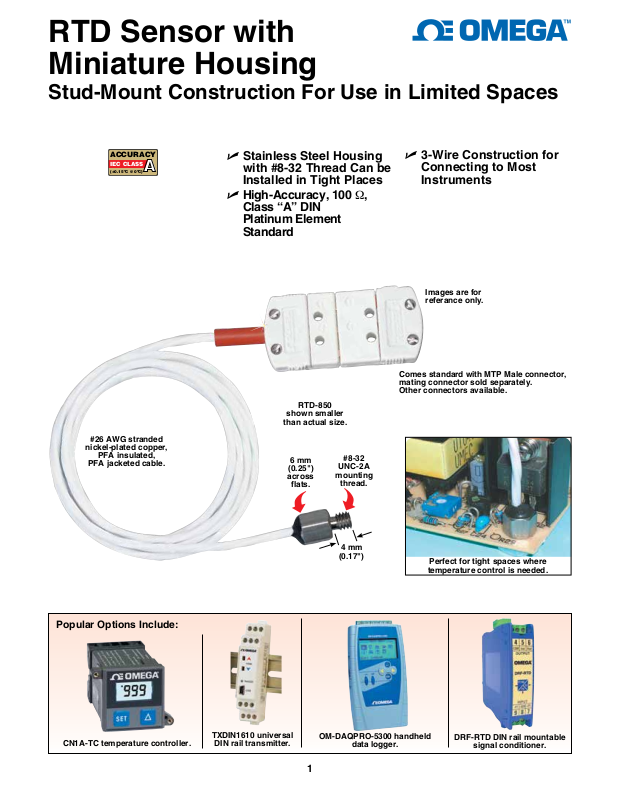

RTD Sensor with
Miniature Housing
Stud-Mount Construction For Use in Limited Spaces
ACCURACY
IEC CLASS
(±0.15ºC @ 0ºC)
#26 AWG stranded
nickel-plated copper,
PFA insulated,
PFA jacketed cable.
A
U Stainless Steel Housing
with #8-32 Thread Can be
Installed in Tight Places
U High-Accuracy, 100 Ω,
Class “A” DIN
Platinum Element
Standard

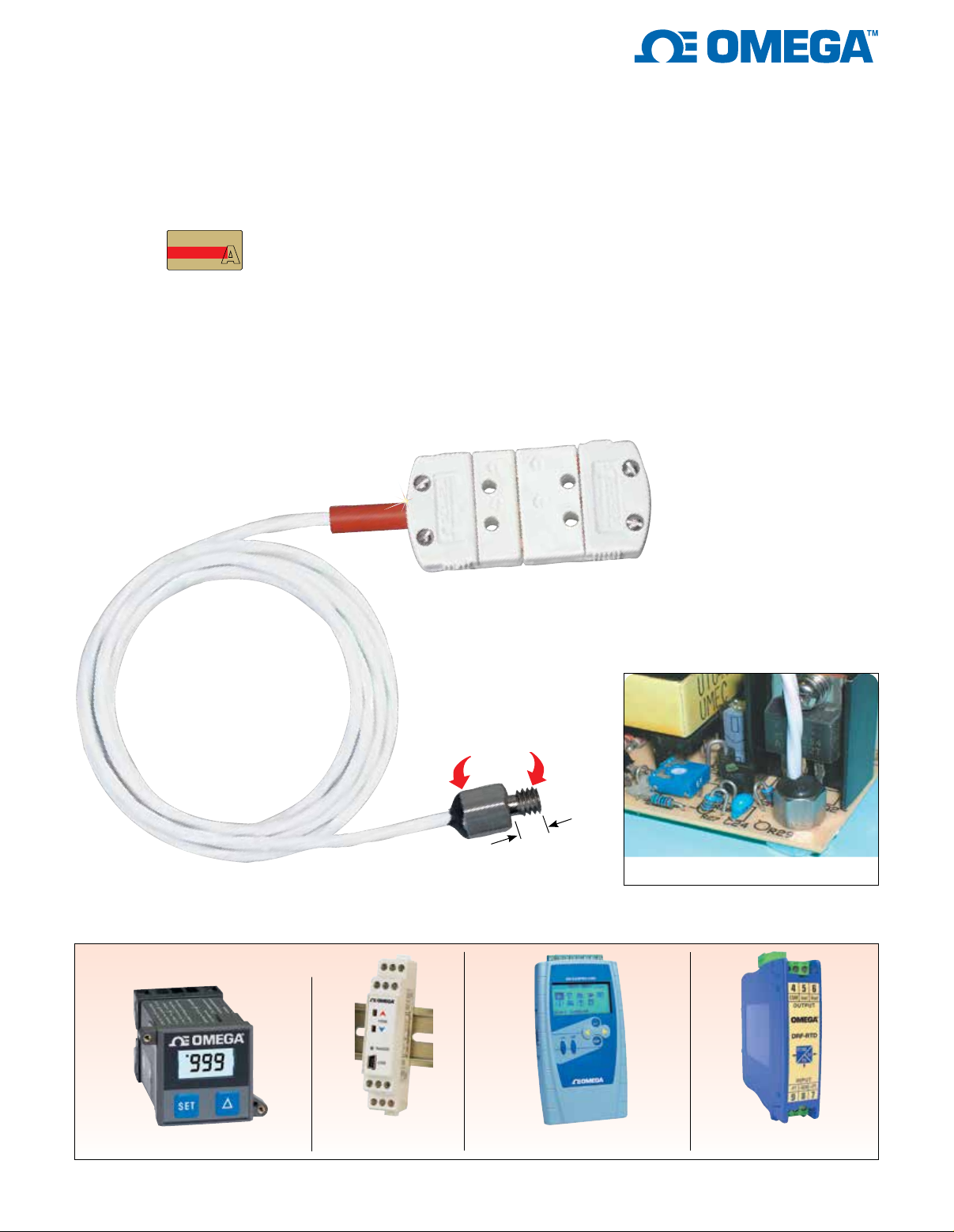

RTD-850
shown smaller
than actual size.
6 mm
(0.25")
across
flats.
#8-32
UNC-2A
mounting
thread.
U 3-Wire Construction for
Connecting to Most
Instruments
Images are for
referance only.
Comes standard with MTP Male connector,
mating connector sold separately.
Other connectors available.
Popular Options Include:
CN1A-TC temperature controller.
TXDIN1610 universal
DIN rail transmitter.
4 mm
(0.17")
OM-DAQPRO-5300 handheld
data logger.
1
Perfect for tight spaces where
temperature control is needed.
DRF-RTD DIN rail mountable
signal conditioner.
Page 2
To Order
Model No. Sensing Element Cable Max Temperature
RTD-850
RTD-850-TA3F
RTD-850-OTP
Terminations Available: Provided with a miniature connector standard. For heavy duty connector add “-OTP” to model number for an additional
cost, mating connector sold separately.
For audio connector add “-TA3F” to model number for an additional cost.
Ordering Examples: RTD-850-OTP, 100 Ω Class “A” DIN with heavy-duty connector.
RTD-850-SPRTX(M1), 100 Ω Class “A” DIN with 4 to 20 mA transmitter.
100 Ω Class “A” DIN 1 m (40") Long PFA Insulated
with MTP Connector
100 Ω Class “A” DIN 1 m (40") Long PFA Insulated
with TA3F Connector
100 Ω Class “A” DIN 1 m (40”) Long PFA Insulated
with OTP Connector
230ºC (450ºF)
230ºC (450ºF)
230ºC (450ºF)
Model No.
RTD-850
RTD-850-OTP
All accessories sold seperately.
Sensing
Element
Maximum
Temperature
100 Ω Class “A” DIN 230ºC (450ºF)
100 Ω Class “A” DIN 230ºC (450ºF)
2
Mating Connector
Cable Clamp
Model No.
MTP-U-F PCLM-MTP
OTP-U-F PCLM-OTP
Model No.
