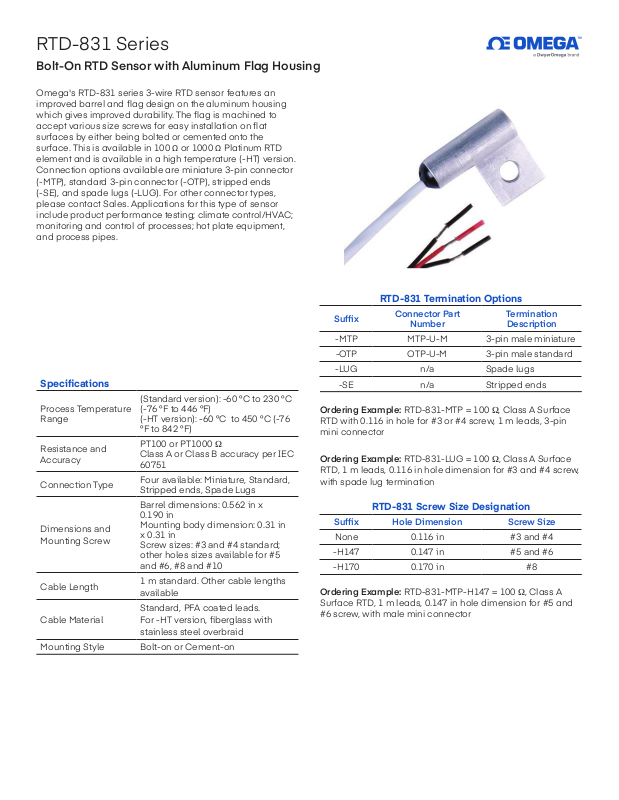

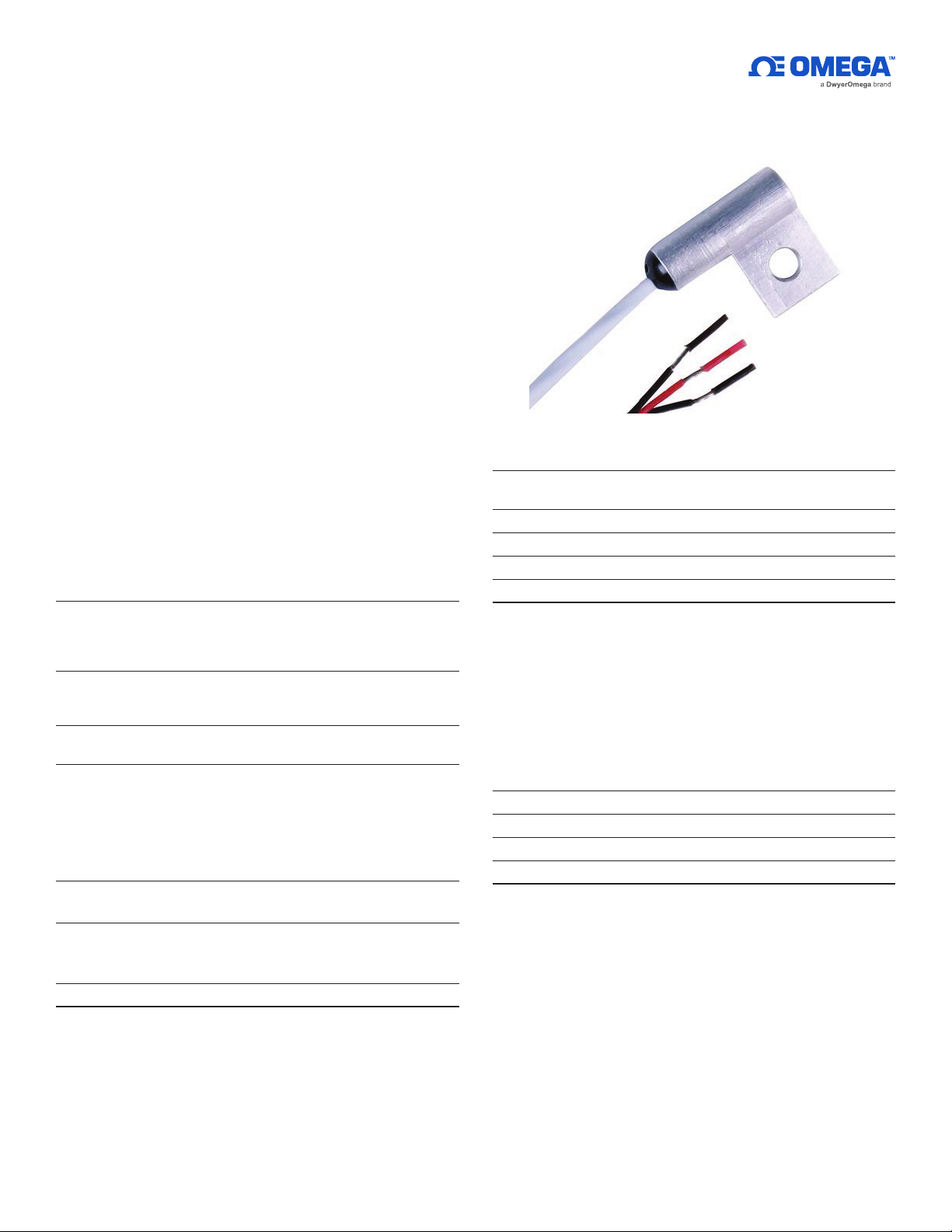

RTD-831 Series
Bolt-On RTD Sensor with Aluminum Flag Housing
Omega's RTD-831 series 3-wire RTD sensor features an
improved barrel and ag design on the aluminum housing
which gives improved durability. The ag is machined to
accept various size screws for easy installation on at
surfaces by either being bolted or cemented onto the
surface. This is available in 100 Ω or 1000 Ω Platinum RTD
element and is available in a high temperature (-HT) version.
Connection options available are miniature 3-pin connector
(-MTP), standard 3-pin connector (-OTP), stripped ends
(-SE), and spade lugs (-LUG). For other connector types,
please contact Sales. Applications for this type of sensor
include product performance testing; climate control/HVAC;
monitoring and control of processes; hot plate equipment,
and process pipes.
Specications
(Standard version): -60 °C to 230 °C
Process Temperature
Range
Resistance and
Accuracy
Connection Type
Dimensions and
Mounting Screw
Cable Length
Cable Material
Mounting Style Bolt-on or Cement-on
(-76 °F to 446 °F)
(-HT version): -60 °C to 450 °C (-76
°F to 842 °F)
PT100 or PT1000 Ω
Class A or Class B accuracy per IEC
60751
Four available: Miniature, Standard,
Stripped ends, Spade Lugs
Barrel dimensions: 0.562 in x
0.190 in
Mounting body dimension: 0.31 in
x 0.31 in
Screw sizes: #3 and #4 standard;
other holes sizes available for #5
and #6, #8 and #10
1 m standard. Other cable lengths
available
Standard, PFA coated leads.
For -HT version, berglass with
stainless steel overbraid
RTD-831 Termination Options
Sufx
-MTP MTP-U-M 3-pin male miniature
-OTP OTP-U-M 3-pin male standard
-LUG n/a Spade lugs
-SE n/a Stripped ends
Ordering Example: RTD-831-MTP = 100 Ω, Class A Surface
RTD with 0.116 in hole for #3 or #4 screw, 1 m leads, 3-pin
mini connector
Ordering Example: RTD-831-LUG = 100 Ω, Class A Surface
RTD, 1 m leads, 0.116 in hole dimension for #3 and #4 screw,
with spade lug termination
Connector Part
Number
Termination
Description
RTD-831 Screw Size Designation
Sufx Hole Dimension Screw Size
None 0.116 in #3 and #4
-H147 0.147 in #5 and #6
-H170 0.170 in #8
Ordering Example: RTD-831-MTP-H147 = 100 Ω, Class A
Surface RTD, 1 m leads, 0.147 in hole dimension for #5 and
#6 screw, with male mini connector
Page 2
®
STANDARD:
H147:
0.50

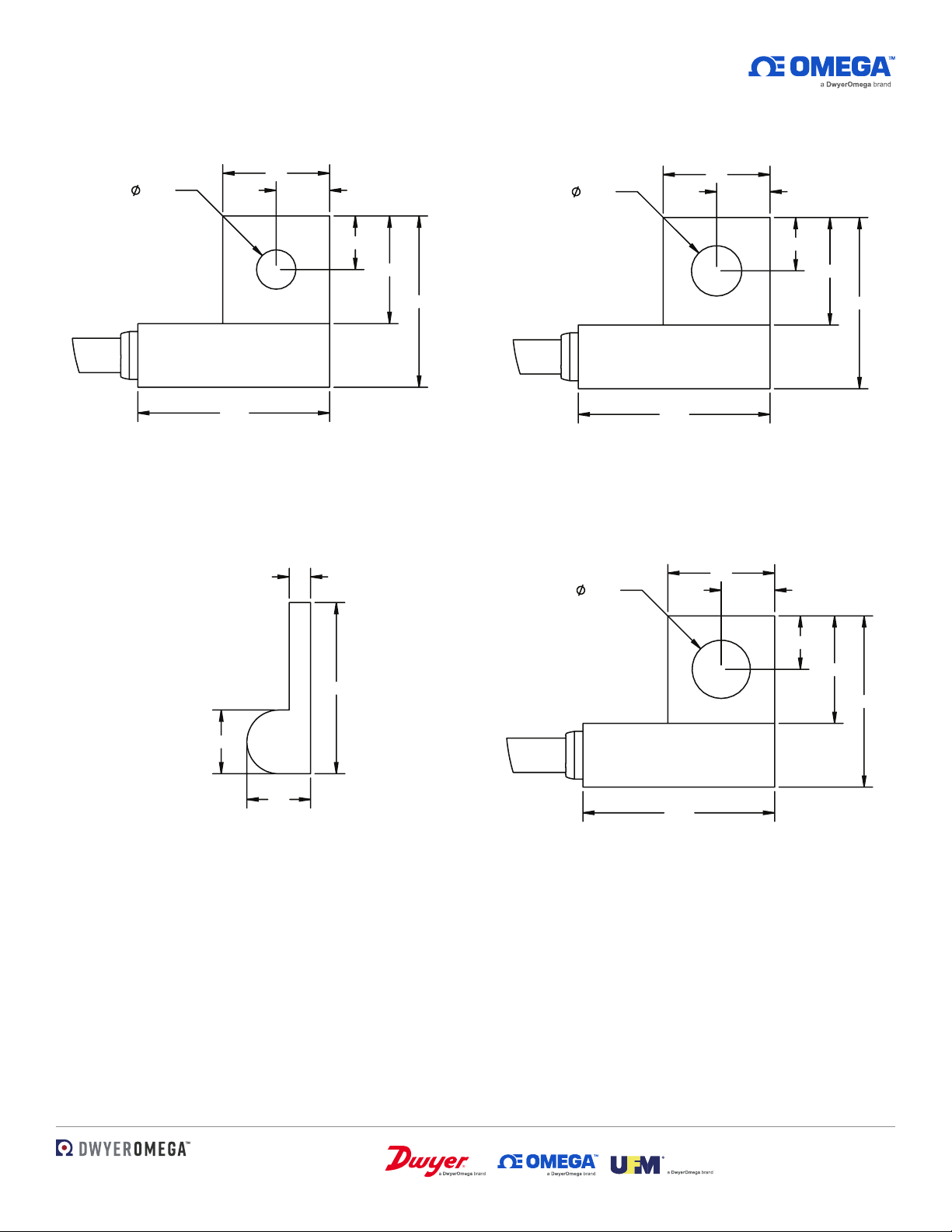

Dimensions
The following dimensions are provided in inches.
0.116
0.56
SIDE VIEW (ALL):
0.31
0.16
0.06
0.16
0.31
0.50
0.147
0.170
0.31
0.16
0.16
0.31
0.50
0.56
H170:
0.31
0.16
0.19
0.19
0.16
0.31
0.50
0.56
