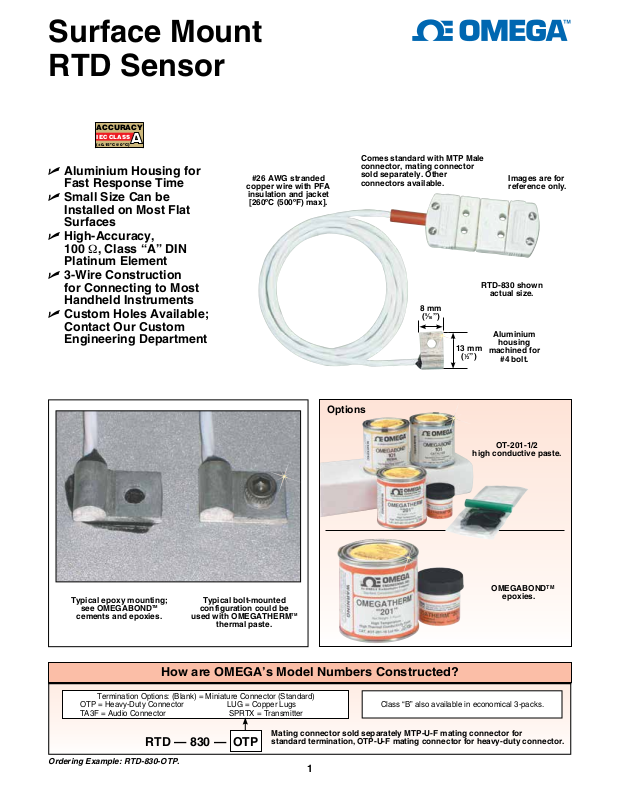

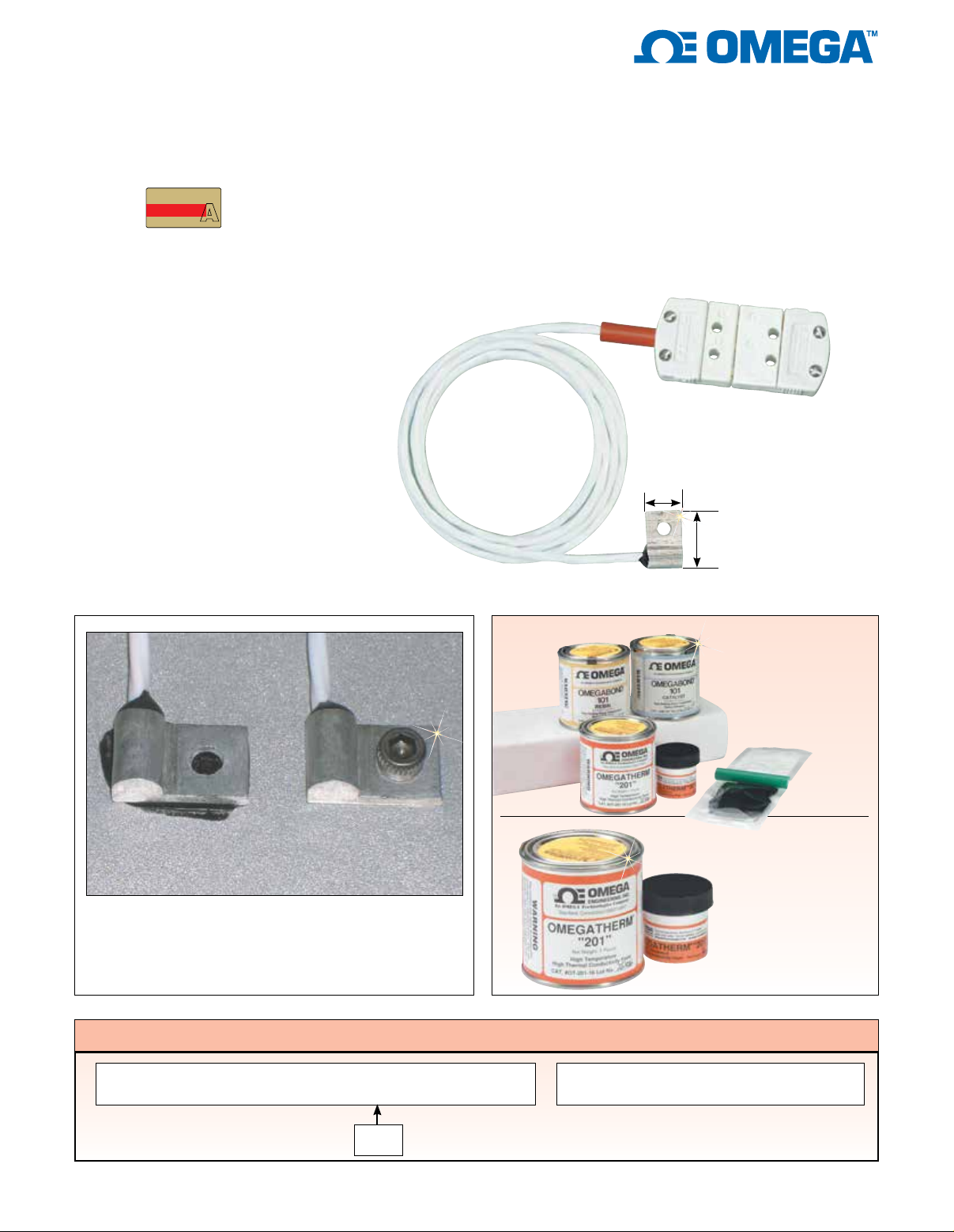

Page 1
Surface Mount
RTD Sensor
ACCURACY
IEC CLASS
(±0.15ºC @ 0ºC)
U Aluminium Housing for
Fast Response Time
U Small Size Can be
Installed on Most Flat
Surfaces
U High-Accuracy,
100 Ω, Class “A” DIN
Platinum Element
U 3-Wire Construction
for Connecting to Most
Handheld Instruments
U Custom Holes Available;
Contact Our Custom
Engineering Department
A
#26 AWG stranded
copper wire with PFA
insulation and jacket
[260ºC (500ºF) max].
Comes standard with MTP Male
connector, mating connector
sold separately. Other
connectors available.
8 mm
(5⁄16”)
13 mm
(1⁄2”)
Images are for
reference only.
RTD-830 shown
actual size.
Aluminium
housing
machined for
#4 bolt.
Typical epoxy mounting;
see OMEGABONDTM
cements and epoxies.
Typical bolt-mounted
configuration could be
used with OMEGATHERMTM
thermal paste.
How are OMEGA’s Model Numbers Constructed?
Termination Options: (Blank) = Miniature Connector (Standard)
OTP = Heavy-Duty Connector LUG = Copper Lugs
TA3F = Audio Connector SPRTX = Transmitter
Options
OT-201-1/2
high conductive paste.
OMEGABONDTM
epoxies.
Class “B” also available in economical 3-packs.
RTD — 830 — OTP
Ordering Example: RTD-830-OTP.
Mating connector sold separately MTP-U-F mating connector for
standard termination, OTP-U-F mating connector for heavy-duty connector.
1
Page 2
To Order
Model No. Sensing Element Cable Max Temperature
RTD-830
RTD-830-OTP
RTD-830-TA3F
Terminations Available: Provided with a miniature connector standard, 100 Ω Class “A” DIN, 1 m (40”) Long PFA Insulated with TA3F
Connector for an additional cost. For audio connector add “-TA3F” to model number for an additional cost.
Ordering Examples: RTD-830-SPRTX(M1), 100 Ω class “A” DIN with 4 to 20 mA transmitter.
RTD-830-TA3F, 100 Ω class “A” with audio connector.
100 Ω Class “A” DIN 1 m (40") PFA insulated
with MTP connector
100 Ω Class “A” DIN 1 m (40") PFA insulated
with OTP connector
100 Ω Class “A” DIN 1 m (40”) PFA insulated
with TA3F connector
230ºC (450ºF)
230ºC (450ºF)
230ºC (450ºF)
To Order
Model No.
RTD-830
RTD-830- OTP
All accessories sold seperately.
Sensing
Element
Maximum
Temperature
100 Ω Class “A” DIN 230ºC (450ºF)
100 Ω Class “A” DIN 230ºC (450ºF)
2
Mating Connector
Cable Clamp
Model No.
MTP-U-F PCLM-MTP
OTP-U-F PCLM
Model No.
