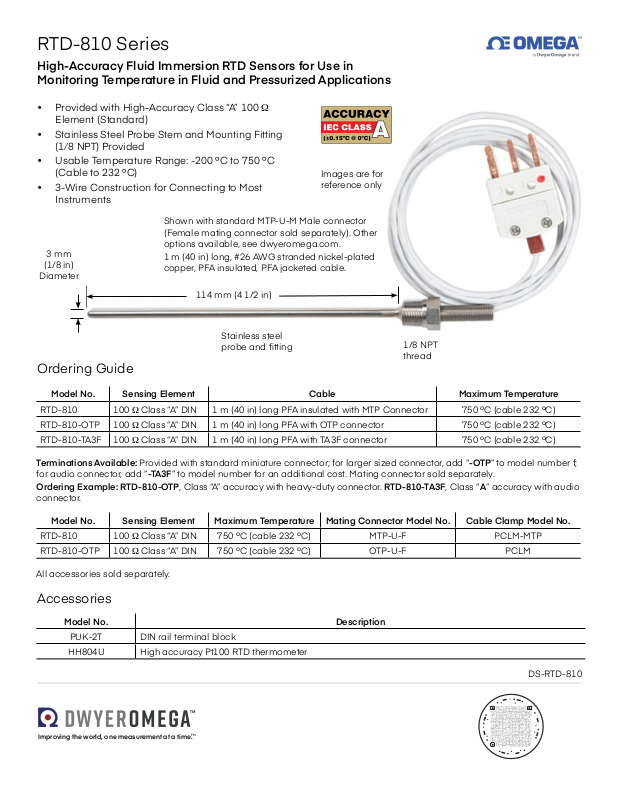

RTD-810 Series
High-Accuracy Fluid Immersion RTD Sensors for Use in
Monitoring Temperature in Fluid and Pressurized Applications
• Provided with High-Accuracy Class “A” 100 Ω
Element (Standard)
• Stainless Steel Probe Stem and Mounting Fitting
(1⁄8 NPT) Provided
• Usable Temperature Range: -200 ºC to 750 ºC
(Cable to 232 ºC)
• 3-Wire Construction for Connecting to Most
Instruments
Shown with standard MTP-U-M Male connector
(Female mating connector sold separately). Other
options available, see dwyeromega.com.
3 mm
(1/8 in)
Diameter
1 m (40 in) long, #26 AWG stranded nickel-plated
copper, PFA insulated, PFA jacketed cable.
114 mm (4 1/2 in)
Images are for
reference only
Stainless steel
probe and tting
1/8 NPT
thread
Ordering Guide
Model No. Sensing Element Cable Maximum Temperature
RTD-810 100 Ω Class “A” DIN 1 m (40 in) long PFA insulated with MTP Connector 750 ºC (cable 232 ºC)
RTD-810-OTP 100 Ω Class “A” DIN 1 m (40 in) long PFA with OTP connector 750 ºC (cable 232 ºC)
RTD-810-TA3F 100 Ω Class “A” DIN 1 m (40 in) long PFA with TA3F connector 750 ºC (cable 232 ºC)
Terminations Available: Provided with standard miniature connector; for larger sized connector, add “-OTP” to model number f;
for audio connector, add “-TA3F” to model number for an additional cost. Mating connector sold separately.
Ordering Example: RTD-810-OTP, Class “A” accuracy with heavy-duty connector. RTD-810-TA3F, Class “A” accuracy with audio
connector.
Model No. Sensing Element Maximum Temperature Mating Connector Model No. Cable Clamp Model No.
RTD-810 100 Ω Class “A” DIN 750 ºC (cable 232 ºC) MTP-U-F PCLM-MTP
RTD-810-OTP 100 Ω Class “A” DIN 750 ºC (cable 232 ºC) OTP-U-F PCLM
All accessories sold separately.
Accessories
Model No. Description
PUK-2T DIN rail terminal block
HH804U High accuracy Pt100 RTD thermometer
DS-RTD-810
