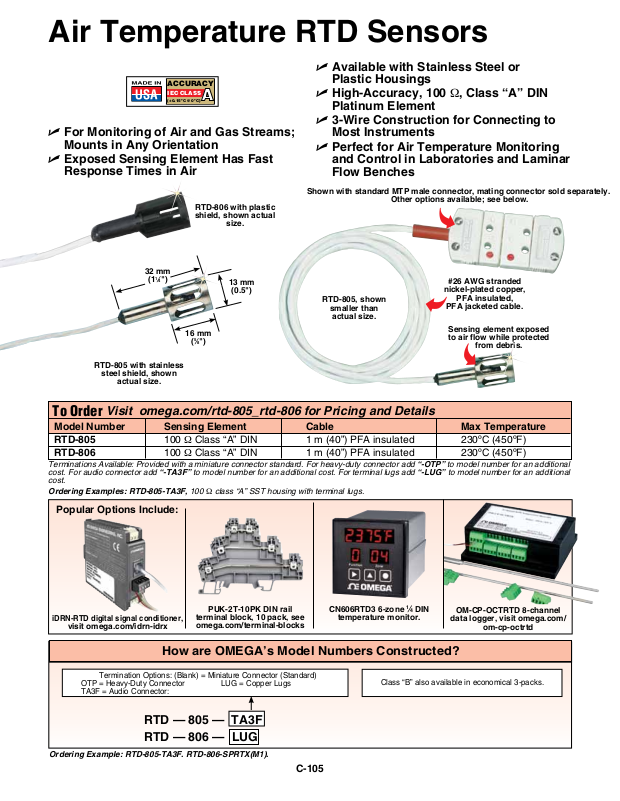

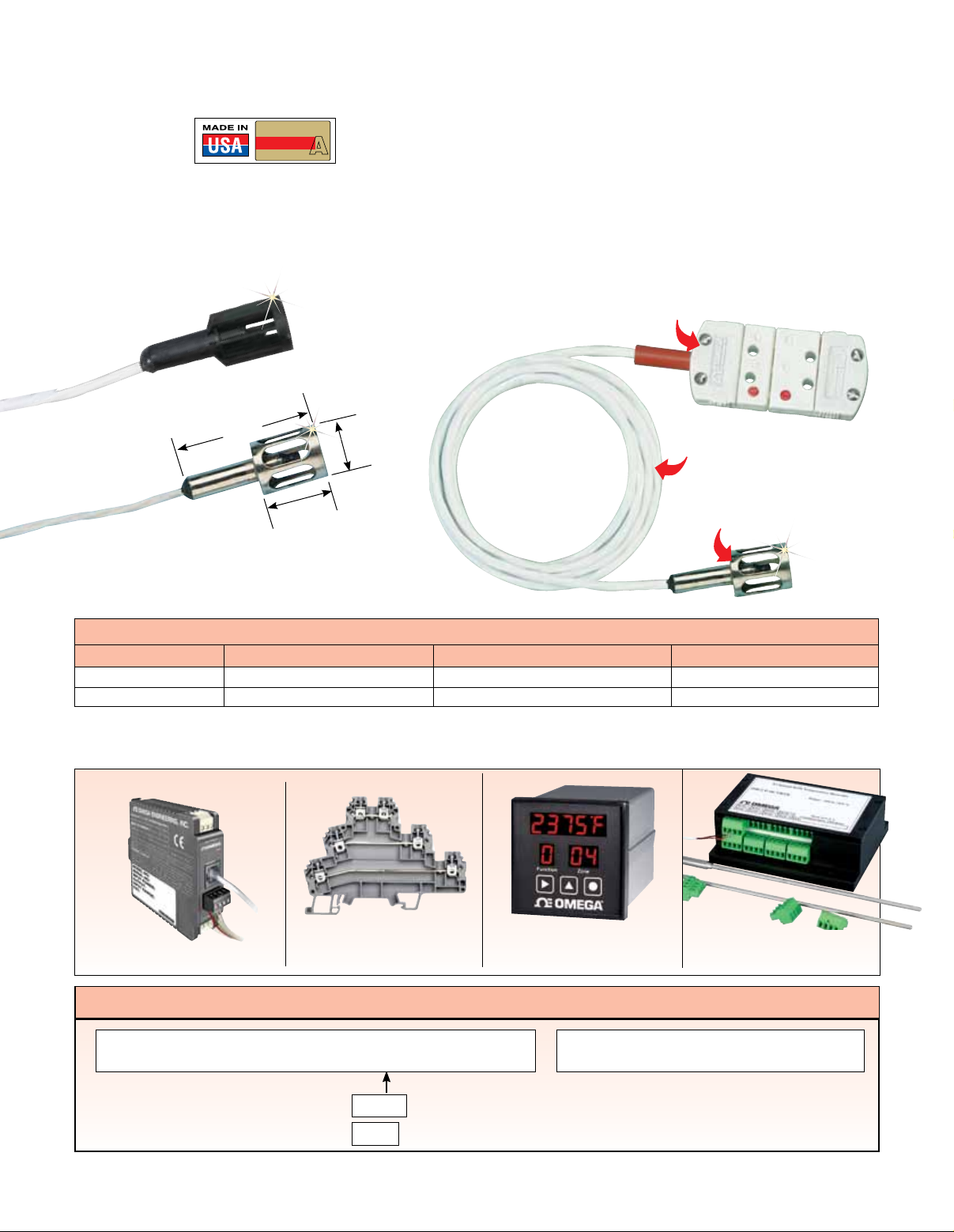

Omega RTD-805, RTD-806 Specification

Air Temperature RTD Sensors

U Available with Stainless Steel or

ACCURACY

IEC CLASS

(±0.15ºC @ 0ºC)

A

U For Monitoring of Air and Gas Streams;

Mounts in Any Orientation

U Exposed Sensing Element Has Fast

Response Times in Air

Plastic Housings

U High-Accuracy, 100 Ω, Class “A” DIN

Platinum Element

U 3-Wire Construction for Connecting to

Most Instruments

U Perfect for Air Temperature Monitoring

and Control in Laboratories and Laminar
Flow Benches

RTD-805 with stainless

To Order

Shown with standard MTP male connector, mating connector sold separately.

RTD-806 with plastic
shield, shown actual

32 mm

(11⁄4")

16 mm

(5⁄8")

steel shield, shown

actual size.

size.

13 mm

(0.5")

RTD-805, shown

smaller than

actual size.

Visit omega.com/rtd-805_rtd-806 for Pricing and Details

Other options available; see below.

#26 AWG stranded

nickel-plated copper,

PFA insulated,

PFA jacketed cable.

Sensing element exposed
to air flow while protected

from debris.

Model Number Sensing Element Cable Max Temperature
RTD-805 100 Ω Class “A” DIN 1 m (40”) PFA insulated 230ºC (450ºF)
RTD-806 100 Ω Class “A” DIN 1 m (40”) PFA insulated 230ºC (450ºF)

Terminations Available: Provided with a miniature connector standard. For heavy-duty connector add “-OTP” to model number for an additional
cost. For audio connector add “-TA3F” to model number for an additional cost. For terminal lugs add “-LUG” to model number for an additional
cost.

Ordering Examples: RTD-805-TA3F, 100 Ω class “A” SST housing with terminal lugs.

Popular Options Include:

PUK-2T-10PK DIN rail

iDRN-RTD digital signal conditioner

visit omega.com/idrn-idrx

terminal block, 10 pack, see

,

omega.com/terminal-blocks

How are OMEGA’s Model Numbers Constructed?

Termination Options: (Blank) = Miniature Connector (Standard)
OTP = Heavy-Duty Connector LUG = Copper Lugs
TA3F = Audio Connector:

RTD — 805 — TA3F
RTD — 806 — LUG

Ordering Example: RTD-805-TA3F. RTD-806-SPRTX(M1).

C-105

CN606RTD3 6-zone

temperature monitor.

Class “B” also available in economical 3-packs.

1

⁄4 DIN

OM-CP-OCTRTD 8-channel

data logger, visit omega.com/

om-cp-octrtd
