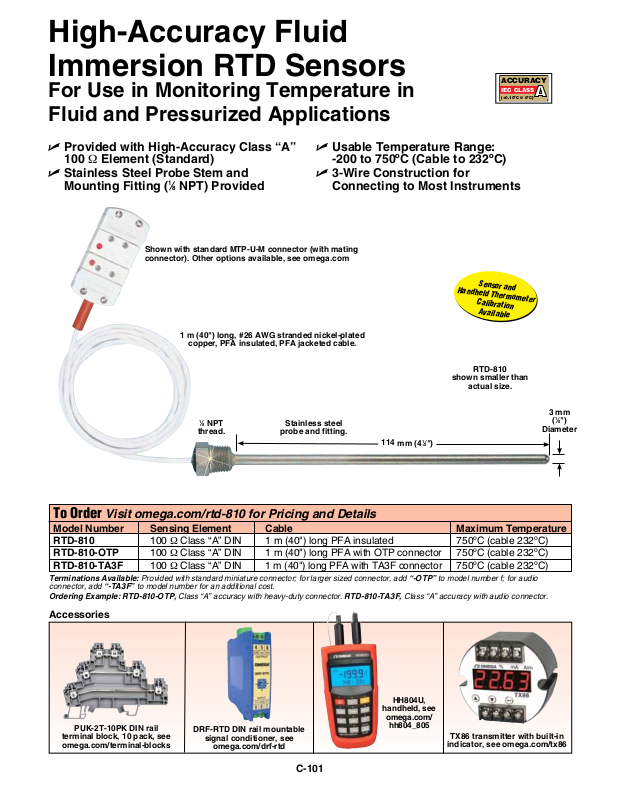

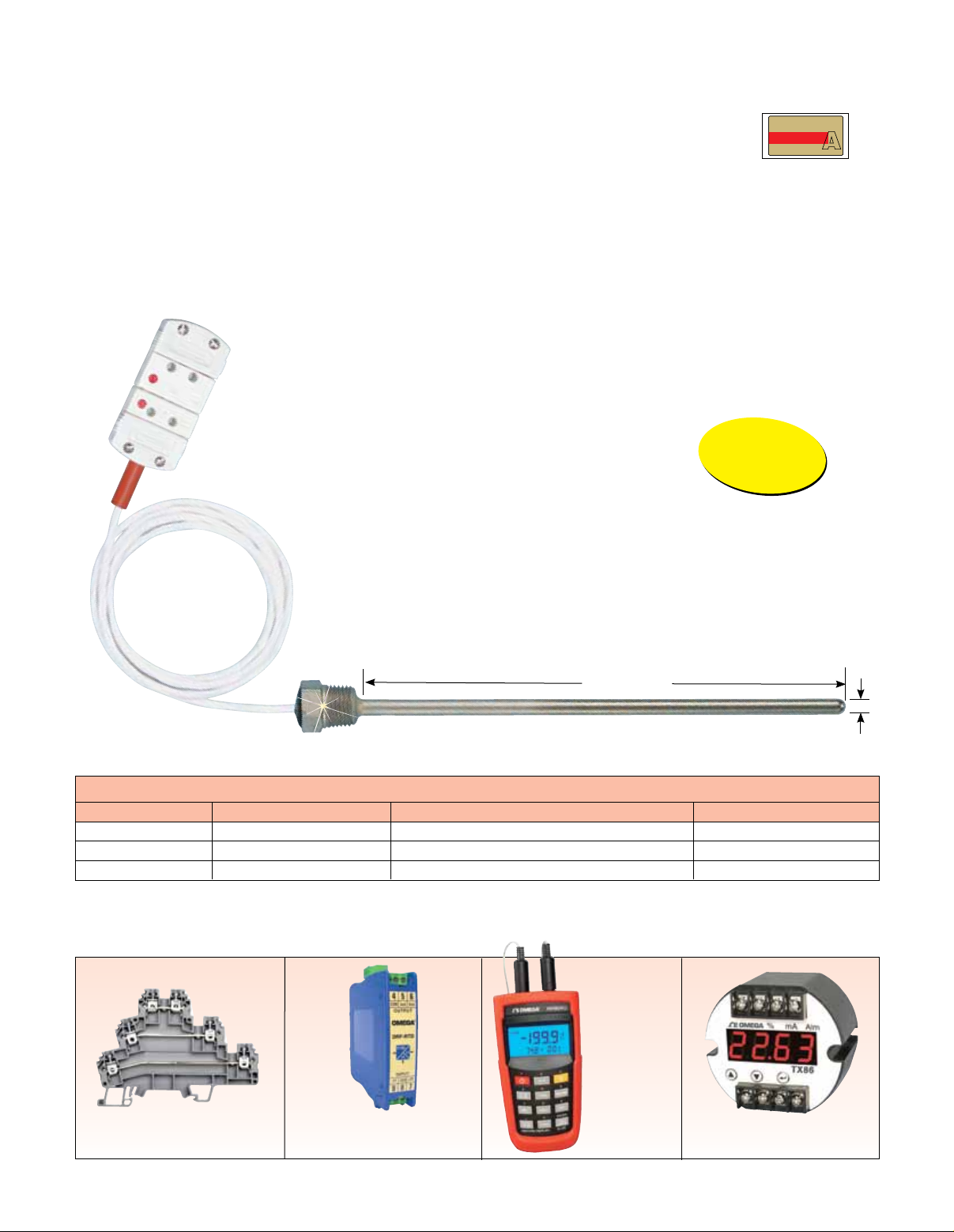

High-Accuracy Fluid Immersion RTD Sensors

For Use in Monitoring Temperature in Fluid and Pressurized Applications

U Provided with High-Accuracy Class “A”

100 Ω Element (Standard)

U Stainless Steel Probe Stem and

Mounting Fitting (

⁄8 NPT) Provided

Shown with standard MTP-U-M connector (with mating connector). Other options available, see omega.com

1 m (40") long, #26 AWG stranded nickel-plated

copper, PFA insulated, PFA jacketed cable.

U Usable Temperature Range:

-200 to 750ºC (Cable to 232ºC)

U 3-Wire Construction for

Connecting to Most Instruments

ACCURACY

IEC CLASS

(±0.15ºC @ 0ºC)

Sensor and

Handheld Thermometer

Calibration

Available

RTD-810

shown smaller than

actual size.

⁄8 NPT

thread.

To Order

Model Number Sensing Element Cable Maximum Temperature

Visit omega.com/rtd-810 for Pricing and Details

Stainless steel

probe and fitting.

114 mm (4

Diameter

⁄

RTD-810 100 Ω Class “A” DIN 1 m (40") long PFA insulated 750ºC (cable 232ºC) RTD-810-OTP 100 Ω Class “A” DIN 1 m (40") long PFA with OTP connector 750ºC (cable 232ºC) RTD-810-TA3F 100 Ω Class “A” DIN

Terminations Available: Provided with standard miniature connector; for larger sized connector, add “-OTP” to model number f; for audio connector, add “-TA3F” to model number for an additional cost.

Ordering Example: RTD-810-OTP, Class “A” accuracy with heavy-duty connector. RTD-810-TA3F, Class “A” accuracy with audio connector.

1 m (40") long PFA with TA3F connector

750ºC (cable 232ºC)

Accessories

Popular Options Include:

HH804U,

handheld, see

omega.com/

PUK-2T-10PK DIN rail terminal block, 10 pack, see omega.com/terminal-blocks

DRF-RTD DIN rail mountable

signal conditioner, see

omega.com/drf-rtd

hh804_805

TX86 transmitter with built-in

indicator, see omega.com/tx86

3 mm

(1⁄8")

C-101

Page 2

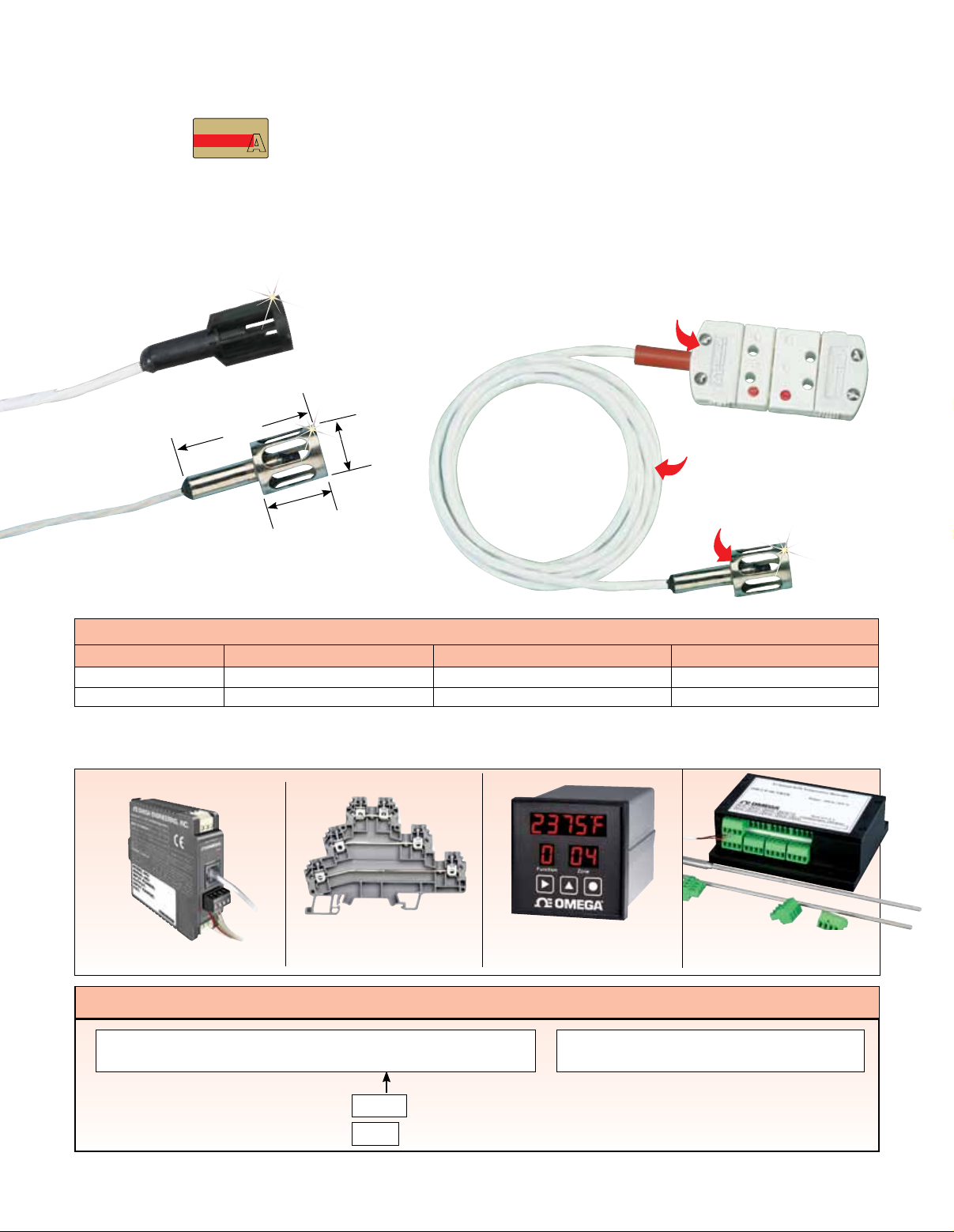

Precision RTD Probes for Laboratory Applications

For Measuring Temperature in Gas and Air Applications

U High-Accuracy 100

Class “A”

DIN Platinum Element Standard

U Includes Stainless Steel Flange

and Sheath for Easy Installation

3 mm

⁄8")

(

diameter

38 mm

(11⁄2")

Stainless steel

tube and flange.

RTD-860, with

miniature MTP

connector

shown smaller

than actual size.

U 3-Wire Construction for

Connecting to Most Instruments

19 mm (0.75")

RTD-860 shown

actual size.

#26 AWG stranded

nickel-plated copper,

PFA insulated, PFA

jacketed cable.

ACCURACY

IEC CLASS

(±0.15ºC @ 0ºC)

Shown smaller than actual size

with optional OM-DAQPRO-5300.

Supplied with miniature

MTP style connector.

Other connectors also

available.

To Order

Model Number Sensing Element Cable Maximum Temperature RTD-860 100 Ω Class “A” DIN 1 m (40") long PFA insulated 230ºC (450ºF) RTD-860-OTP 100 Ω Class “A” DIN 1 m (40") long PFA with OTP Connector 230ºC (450ºF) RTD-860-SPRTXM1 100 Ω Class “A” DIN 1 m (40") long PFA SPRTX-MTH 230ºC (450ºF)

Terminations Available: Provided with standard miniature connector; for larger sized connector add “-OTP” to model number for an additional cost; for audio connector add “-TA3F” to model number for an additional cost.

Ordering Examples: RTD-860-OTP, Class “A” accuracy with standard sized connector, RTD-860-TA3F, Class A accuracy with audio connector.

Popular Options Include:

SPRTX 4 to 20 mA transmitter.

CNi3253 controller.

HE-XT105

PLC/HMI all-in-one.

C-1

OM-SQ2010 data logger.

Page 3

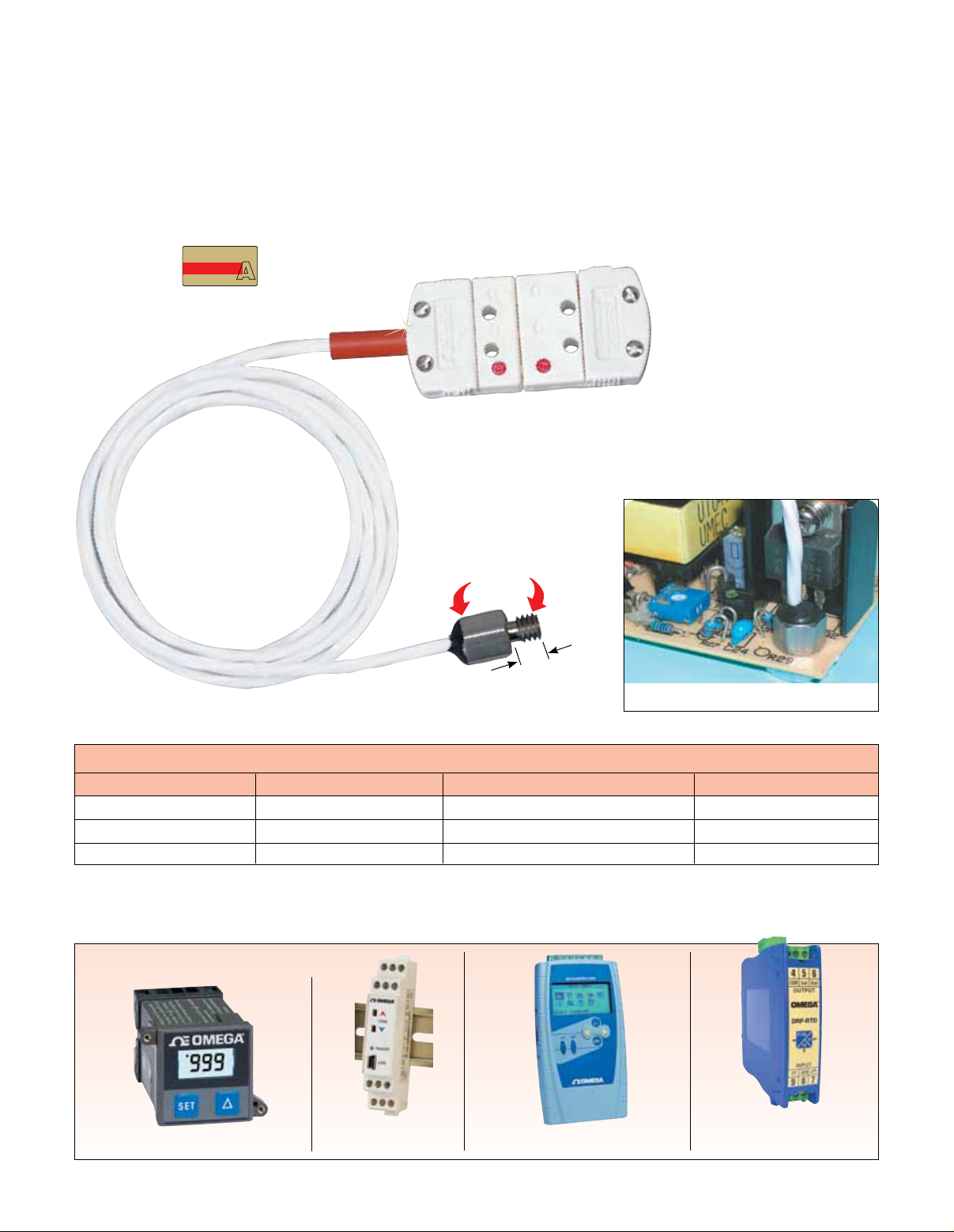

RTD Sensor with Miniature Housing

Stud-Mount Construction For Use in Limited Spaces

U Stainless Steel Housing

ACCURACY

IEC CLASS

(±0.15ºC @ 0ºC)

#26 AWG stranded

nickel-plated copper,

PFA insulated,

PFA jacketed cable.

with #8-32 Thread Can be Installed in Tight Places

RTD-850

shown smaller

than actual size.

6 mm (0.25") across

flats.

U High-Accuracy, 100 Ω, Class “A” DIN

Platinum Element Standard

U 3-Wire Construction for

Connecting to Most Instruments

Comes standard with MTP connector.

Other connectors available.

#8-32

UNC-2A

mounting

thread.

4 mm

(0.17")

Perfect for tight spaces where

temperature control is needed.

To Order

Model Number Sensing Element Cable Max Temperature

RTD-850-TA3F 100 Ω Class “A” DIN 1 m (40") Long PFA Insulated 230ºC (450ºF)

RTD-850-SPRTXM1 100 Ω Class “A” DIN 1 m (40") Long PFA Insulated 230ºC (450ºF)

RTD-850 100 Ω Class “A” DIN 1 m (40") Long PFA Insulated 230ºC (450ºF)

Terminations Available: Provided with a miniature connector standard. For heavy duty connector add “-OTP” to model number for an additional cost. For audio connector add “-TA3F” to model number for an additional cost.

Ordering Examples: RTD-850-OTP, 100 Ω Class “A” DIN with heavy-duty connector. RTD-850-SPRTX(M1), 100 Ω Class “A” DIN with 4 to 20 mA transmitter.

Popular Options Include:

CN1A-TC temperature controller.

TXDIN1610 universal

DIN rail transmitter.

OM-DAQPRO-5300 handheld

data logger.

C-103

DRF-RTD DIN rail mountable

signal conditioner.

Page 4

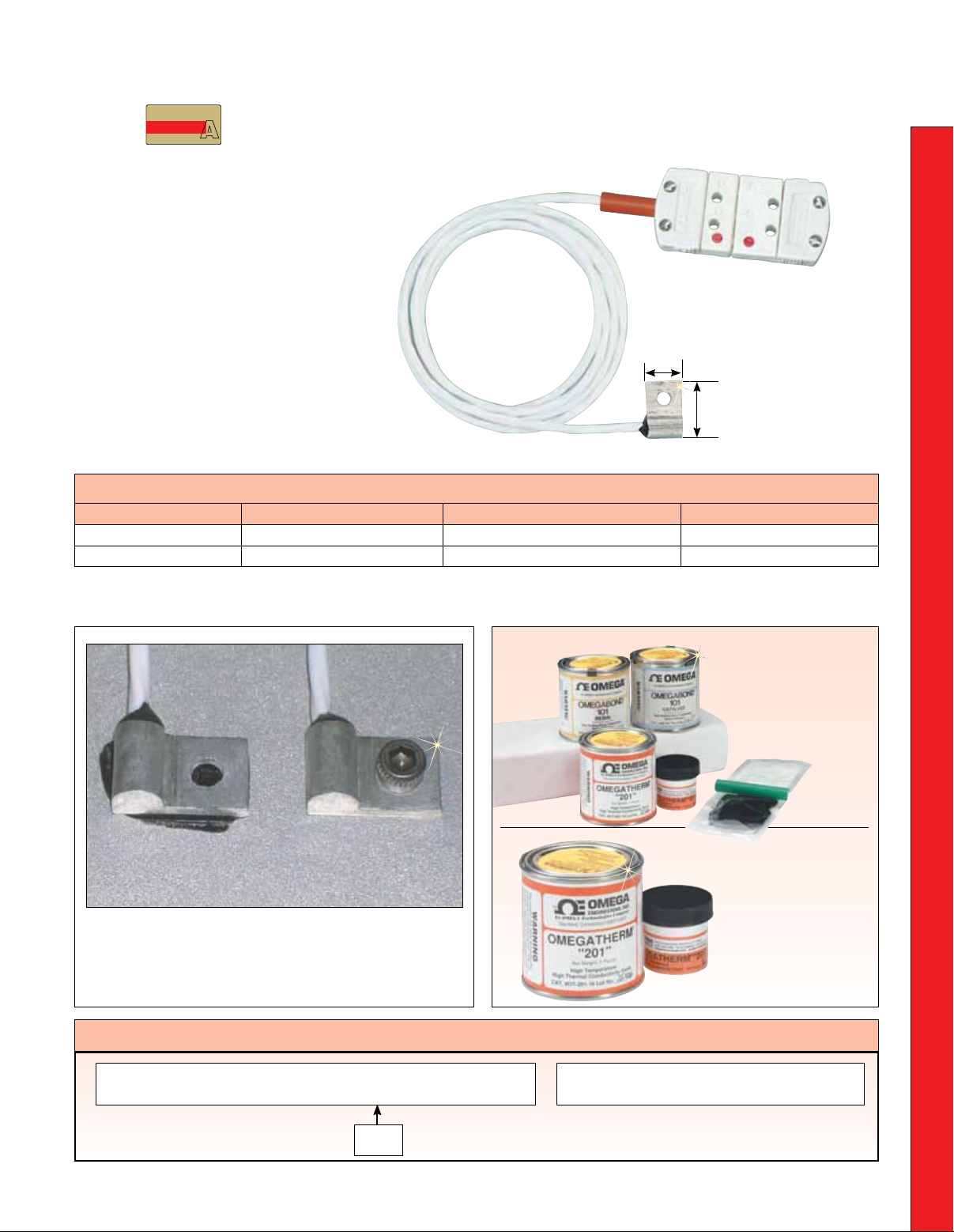

Surface Mount RTD Sensor

ACCURACY

IEC CLASS

(±0.15ºC @ 0ºC)

U Aluminium Housing for

#26 AWG stranded

copper wire with PFA

insulation and jacket

[260ºC (500ºF) max].

Fast Response Time

U Small Size Can be

Installed on Most Flat Surfaces

U High-Accuracy,

100 Ω, Class “A” DIN Platinum Element

U 3-Wire Construction

for Connecting to Most Handheld Instruments

U Custom Holes Available;

Contact Our Custom Engineering Department

To Order

Model Number Sensing Element Cable Max Temperature

RTD-830 100 Ω Class “A” DIN 1 m (40”) PFA insulated 230ºC (450ºF) RTD-83 0 -TA3F 100 Ω Class “A” DIN 1 m (40”) PFA insulated 230ºC (450ºF)

Terminations Available: Provided with a miniature connector standard, for heavy duty connector add “-OTP” to model number for an additional cost. For audio connector add “-TA3F” to model number for an additional cost.

Ordering Examples: RTD-830-SPRTX(M1), 100 Ω class “A” DIN with 4 to 20 mA transmitter. RTD-830-TA3F, 100 Ω class “A” with audio connector.

Miniature connector (MTP) style

comes with mating connector.

RTD-830 shown

actual size.

8 mm

(5⁄16”)

Aluminium

13 mm

(1⁄2”)

housing

machined for

#4 bolt.

Typical epoxy mounting;

see OMEGABOND®

cements and epoxies.

Typical bolt-mounted

configuration could be

used with OMEGATHERM®

thermal paste.

How are OMEGA’s Model Numbers Constructed?

Termination Options: (Blank) = Miniature Connector (Standard) OTP = Heavy-Duty Connector LUG = Copper Lugs TA3F = Audio Connector SPRTX = Transmitter

Options

OT-201-1/2

high conductive paste.

OMEGABOND

epoxies.

Class “B” also available in economical 3-packs.

RTD — 830 — OTP

Ordering Example: RTD-830-OTP.

C-104

Page 5

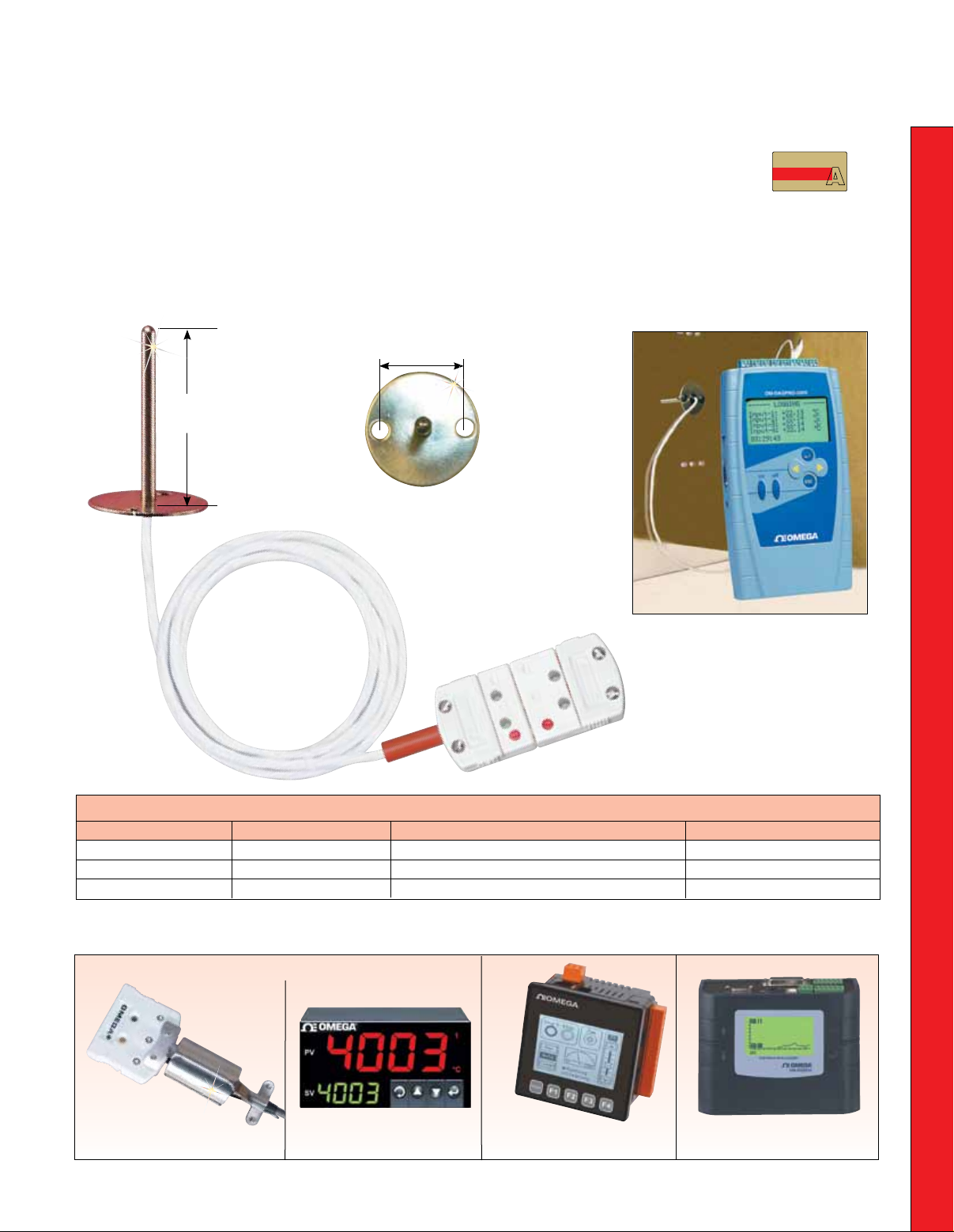

Air Temperature RTD Sensors

U Available with Stainless Steel or

ACCURACY

IEC CLASS

(±0.15ºC @ 0ºC)

U For Monitoring of Air and Gas Streams;

Mounts in Any Orientation

U Exposed Sensing Element Has Fast

Response Times in Air

RTD-806 with plastic shield, shown actual

32 mm

(11⁄4")

16 mm

(5⁄8")

size.

13 mm

(0.5")

Plastic Housings

U High-Accuracy, 100 Ω, Class “A” DIN

Platinum Element

U 3-Wire Construction for Connecting to

Most Instruments

U Perfect for Air Temperature Monitoring

and Control in Laboratories and Laminar Flow Benches

Shown with standard MTP connector.

Other options available; see below.

#26 AWG stranded

nickel-plated copper,

RTD-805, shown

smaller than

actual size.

PFA insulated,

PFA jacketed cable.

Sensing element exposed to air flow while protected

from debris.

RTD-805 with stainless

steel shield, shown

actual size.

To Order

Model Number Sensing Element Cable Max Temperature

RTD-805 100 Ω Class “A” DIN 1 m (40”) PFA insulated 230ºC (450ºF) RTD-806 100 Ω Class “A” DIN 1 m (40”) PFA insulated 230ºC (450ºF)

Terminations Available: Provided with a miniature connector standard. For heavy-duty connector add “-OTP” to model number for an additional cost. For audio connector add “-TA3F” to model number for an additional cost. For terminal lugs add “-LUG” to model number for an additional cost.

Ordering Examples: RTD-805-TA3F, 100 Ω class “A” SST housing with terminal lugs.

Popular Options Include:

⁄4 DIN

OM-CP-OCTRTD 8-channel

data logger, visit omega.com/

om-cp-octrtd

iDRN-RTD digital signal conditioner

visit omega.com/idrn-idrx

How are OMEGA’s Model Numbers Constructed?

PUK-2T-10PK DIN rail terminal block, 10 pack, see omega.com/terminal-blocks

CN606RTD3 6-zone

temperature monitor.

Termination Options: (Blank) = Miniature Connector (Standard) OTP = Heavy-Duty Connector LUG = Copper Lugs TA3F = Audio Connector:

RTD — 805 — TA3F RTD — 806 — LUG

Ordering Example: RTD-805-TA3F. RTD-806-SPRTX(M1).

Class “B” also available in economical 3-packs.

C-105

Page 6

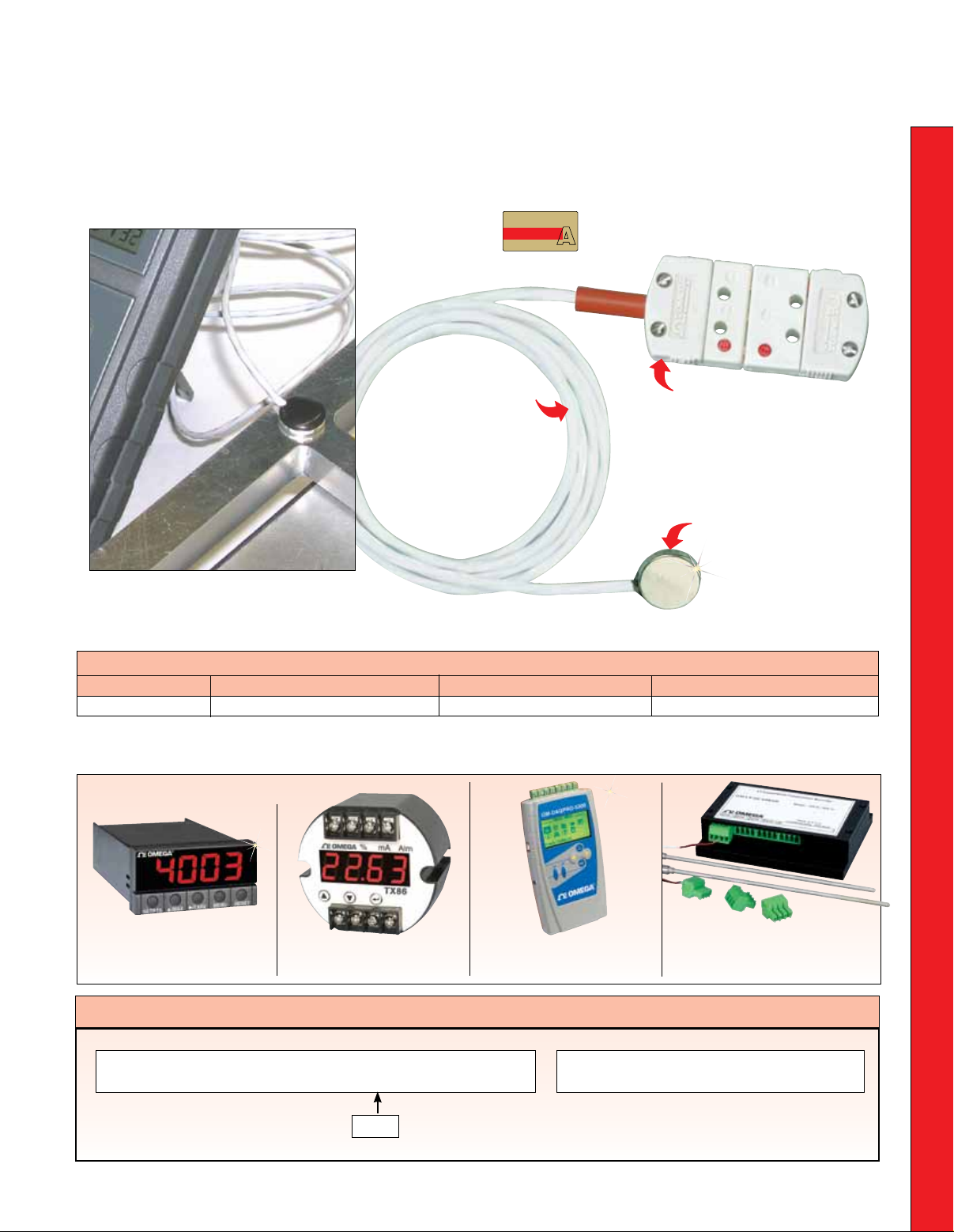

Encapsulated RTD Sensors

U Flat Disc Shape is Ideal for Surface

Temperature Measurements

U Bonds to Surfaces for Measuring Heat

Loss or Operating Temperatures

RTD-809

#26 AWG stranded nickel-

plated copper, PFA

insulated, PFA

jacketed cable.

U High-Accuracy, 100 Ω, Class “A” DIN

Platinum Element

U 3-Wire Construction for Connecting to

Most Instruments

ACCURACY

IEC CLASS

(±0.15ºC @ 0ºC)

RTD-809 shown

actual size.

Shown with standard MTP style

connector. Other connectors

available; visit us online.

11 mm (7⁄16") diameter,

3 mm (1⁄8") thick sensor

for surface mounting.

RTD-809 shown smaller

than actual size.

To Order

Model Number Sensing Element Cable Max Temperature

RTD-809 100 Ω Class “A” DIN 1 m (40") PFA Insulated 230ºC (450ºF)

Terminations Available: Provided with a miniature connector standard. For heavy-duty connector add “-OTP” to model number, for additional cost. to price. For audio connector add “-TA3F” to model number, for additional cost.

Ordering Example: RTD-809-TA3F, 100 Ω class “A” DIN with audio connector.

Popular Options Include:

DP25B-RTD process meter/

controller.

How are OMEGA’s Model Numbers Constructed?

TX86 transmitter with

built-in indicator.

OM-DAQPRO-5300 handheld

data logger.

OM-CP-QUADRTD 4-channel

data logger.

Termination Options: (Blank) = Miniature Connector (Standard) OTP = Heavy-Duty Connector LUG = Copper Lugs TA3F = Audio Connector SPRTX = Transmitter

RTD — 809 — OTP

Class “B” also available in economical 3-packs.

C-1
