#8 SPADE TERMINAL
[101.6]
SERIES RTD
4˝ 4˝
#6 SPADE
48˝
4˝
#6 SPADE
4˝ 48˝ 4˝
1/2˝ BX
48˝
4˝
RING
TERMINAL
1/2˝ BX
A
P
TERMINAL STRIP
#6 SPADE
4˝
3/8˝ OD 304
E

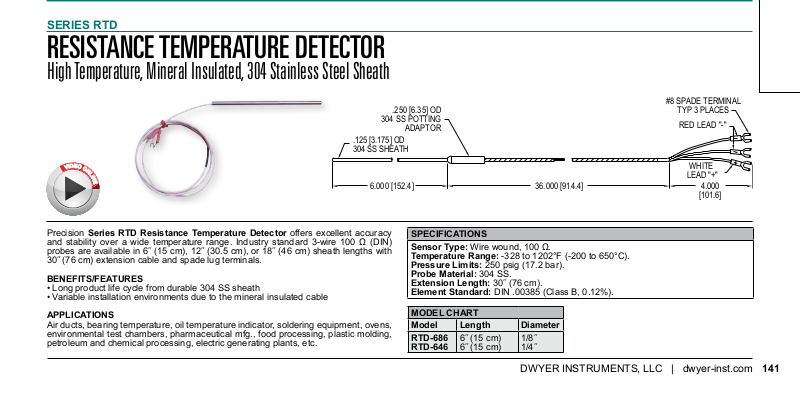

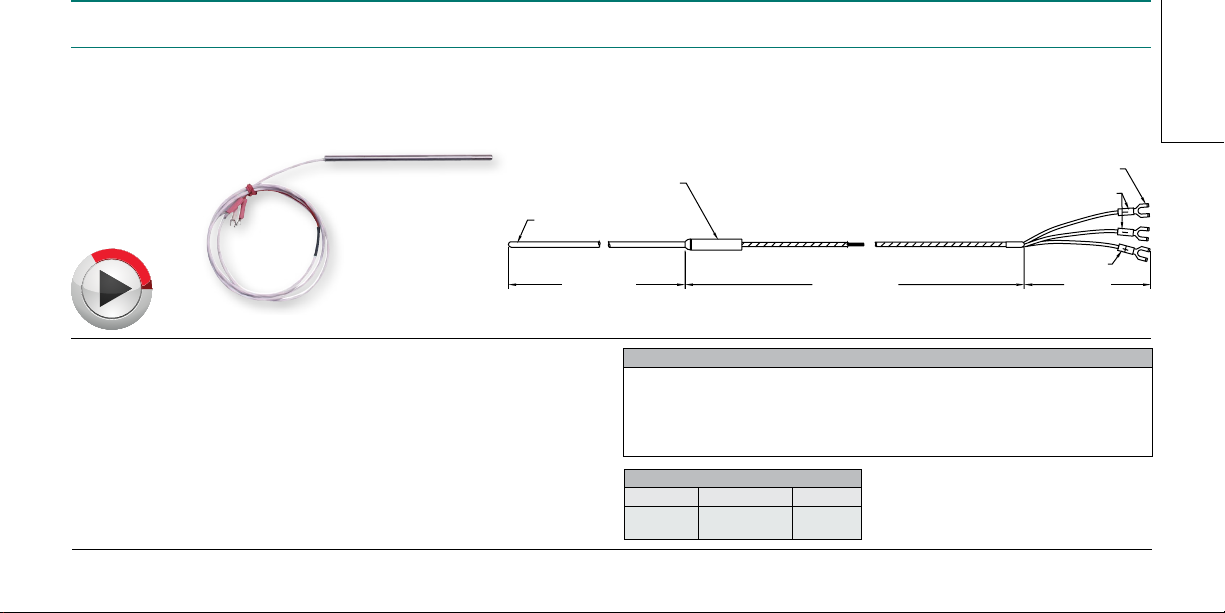

RESISTANCE TEMPERATURE DETECTOR
High Temperature, Mineral Insulated, 304 Stainless Steel Sheath
E
O
D
I
V
O
N
L
I
N
E
Precision Series RTD Resistance Temperature Detector offers excellent accuracy
and stability over a wide temperature range. Industry standard 3-wire 100 Ω (DIN)
probes are available in 6˝ (15 cm), 12˝ (30.5 cm), or 18˝ (46 cm) sheath lengths with
30˝ (76 cm) extension cable and spade lug terminals.
BENEFITS/FEATURES
• Long product life cycle from durable 304 SS sheath
• Variable installation environments due to the mineral insulated cable
APPLICATIONS
Air ducts, bearing temperature, oil temperature indicator, soldering equipment, ovens,
environmental test chambers, pharmaceutical mfg., food processing, plastic molding,
petroleum and chemical processing, electric generating plants, etc.
.250 [6.35] OD
304 SS POTTING
.125 [3.175] OD
304 SS SHEATH
ADAPTOR
6.000 [152.4] 36.000 [914.4]
TYP 3 PLACES
RED LEAD "-"
WHITE
LEAD "+"
4.000
SPECIFICATIONS
Sensor Type: Wire wound, 100 Ω.
Temperature Range: -328 to 1202°F (-200 to 650°C).
Pressure Limits: 250 psig (17.2 bar).
Probe Material: 304 SS.
Extension Length: 30˝ (76 cm).
Element Standard: DIN .00385 (Class B, 0.12%).
MODEL CHART
Model Length Diameter
RTD-686
RTD-646
6˝ (15 cm)
6˝ (15 cm)
1/8˝
1/4˝
DWYER INSTRUMENTS, LLC | dwyer-inst.com
141
