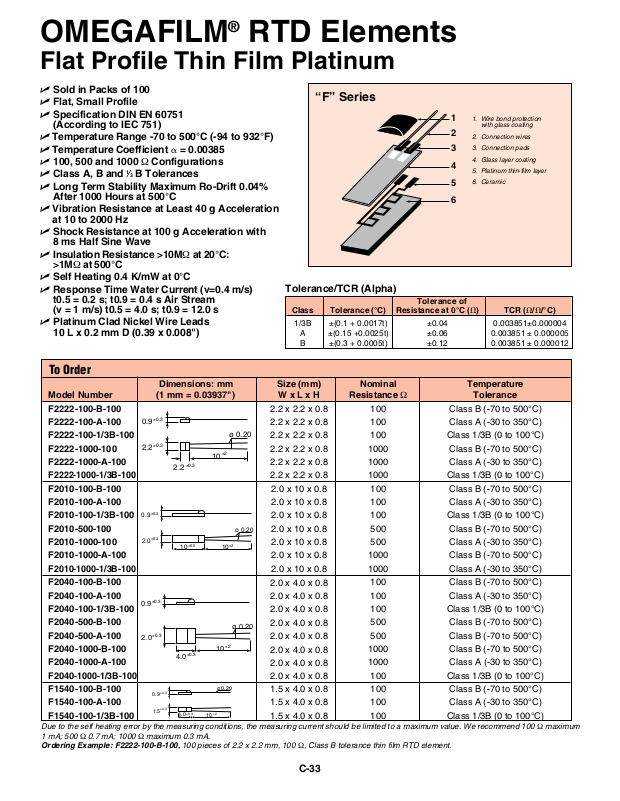

OMEGAFILM® RTD Elements
Flat Profile Thin Film Platinum
U Sold in Packs of 100
U Flat, Small Profile
U Specification DIN EN 60751
(According to IEC 751)
U Temperature Range -70 to 500°C (-94 to 932°F)
U Temperature Coefficient a = 0.00385
U 100, 500 and 1000 Ω Configurations
1
U Class A, B and
⁄3 B Tolerances
U Long Term Stability Maximum Ro-Drift 0.04%
After 1000 Hours at 500°C
“F” Series

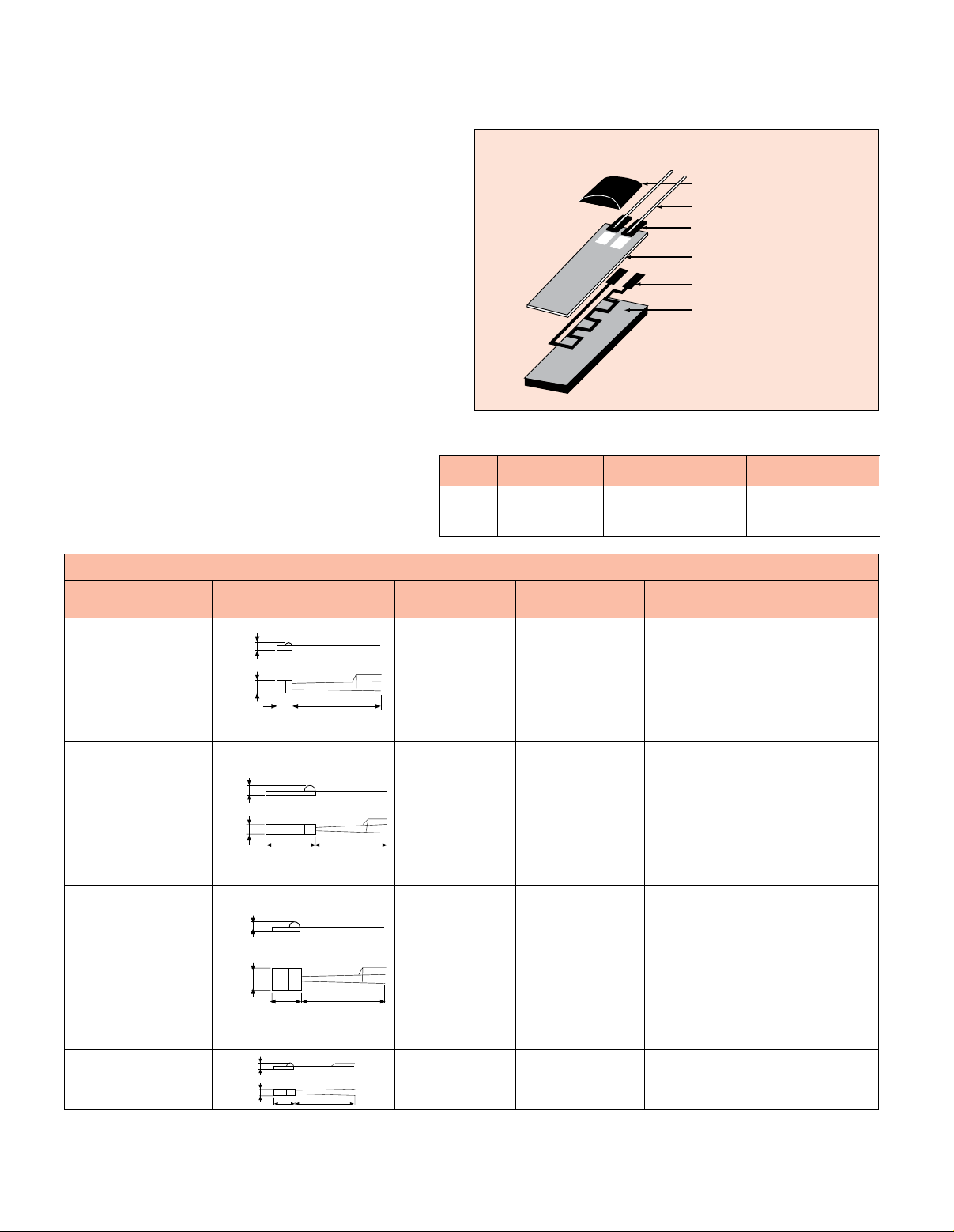

1. Wire bond protection
1
with glass coating
2
2. Connection wires
3. Connection pads
3
4. Glass layer coating
4
5. Platinum thin-film layer
6. Ceramic
5
6
U Vibration Resistance at Least 40 g Acceleration
at 10 to 2000 Hz
U Shock Resistance at 100 g Acceleration with
8 ms Half Sine Wave
U Insulation Resistance >10MΩ at 20°C:
>1MΩ at 500°C
U Self Heating 0.4 K/mW at 0°C
U Response Time Water Current (v=0.4 m/s)
t0.5 = 0.2 s; t0.9 = 0.4 s Air Stream
(v = 1 m/s) t0.5 = 4.0 s; t0.9 = 12.0 s
U Platinum Clad Nickel Wire Leads
10 L x 0.2 mm D (0.39 x 0.008")
To Order
Dimensions: mm Size (mm) Nominal Temperature
Model Number (1 mm = 0.03937") W x L x H Resistance Ω Tolerance
F2222-100-B-100 2.2 x 2.2 x 0.8 100 Class B (-70 to 500°C)
F2222-100-A-100 2.2 x 2.2 x 0.8 100 Class A (-30 to 350°C)
F2222-100-1/3B-100 2.2 x 2.2 x 0.8 100 Class 1/3B (0 to 100°C)
F2222-1000-100 2.2 x 2.2 x 0.8 1000 Class B (-70 to 500°C)
F2222-1000-A-100 2.2 x 2.2 x 0.8 1000 Class A (-30 to 350°C)
F2222-1000-1/3B-100
F2010-100-B-100 2.0 x 10 x 0.8 100 Class B (-70 to 500°C)
F2010-100-A-100 2.0 x 10 x 0.8 100 Class A (-30 to 350°C)
F2010-100-1/3B-100 2.0 x 10 x 0.8 100 Class 1/3B (0 to 100°C)
F2010-500-100 2.0 x 10 x 0.8 500 Class B (-70 to 500°C)
F2010-1000-100 2.0 x 10 x 0.8 500 Class A (-30 to 350°C)
F2010-1000-A-100 2.0 x 10 x 0.8 1000 Class B (-70 to 500°C)
F2010-1000-1/3B-100
F2040-100-B-100
F2040-100-A-100
F2040-100-1/3B-100
F2040-500-B-100
F2040-500-A-100
F2040-1000-B-100
F2040-1000-A-100
F
2040
-1000-1/3B-100
F1540-100-B-100 1.5 x 4.0 x 0.8 100 Class B (-70 to 500°C)
F1540-100-A-100 1.5 x 4.0 x 0.8 100 Class A (-30 to 350°C)
F1540-100-1/3B-100 1.5 x 4.0 x 0.8 100 Class 1/3B (0 to 100°C)
Due to the self heating error by the measuring conditions, the measuring current should be limited to a maximum value. We recommend 100 Ω maximum
1 mA; 500 Ω 0.7 mA; 1000 Ω maximum 0.3 mA.
Ordering Example: F2222-100-B-100, 100 pieces of 2.2 x 2.2 mm, 100 Ω, Class B tolerance thin film RTD element.
±0.3
0.9
2.2
±0.3
2.2
±0.3
10
ø 0.20
±2
2.2 x 2.2 x 0.8 1000 Class 1/3B (0 to 100°C)
±0.3
0.9
ø 0.20
±2
10
2.0
±0.3
±0.5
10
2.0 x 10 x 0.8 1000 Class A (-30 to 350°C)
±0.3
0.9
10
ø 0.20
±2
2.0
±0.3
4.0
±0.3
±0.3
0.9
±0.3
1.5
4.0
ø 0.20
±
±2
0.3
10
Tolerance/TCR (Alpha)
Tolerance of
Class Tolerance (°C) Resistance at 0°C (V) TCR (V/V/°C)
1/3B ±(0.1 + 0.0017t) ±0.04 0.003851±0.000004
A ±(0.15 +0.0025t) ±0.06 0.003851 ± 0.000005
B ±(0.3 + 0.0005t) ±0.12 0.003851 ± 0.000012
2.0 x 4.0 x 0.8
2.0 x 4.0 x 0.8
2.0 x 4.0 x 0.8
2.0 x 4.0 x 0.8
2.0 x 4.0 x 0.8
2.0 x 4.0 x 0.8
2.0 x 4.0 x 0.8
2.0 x 4.0 x 0.8
100 Class B (-70 to 500°C)
100 Class A (-30 to 350°C)
100 Class 1/3B (0 to 100°C)
500 Class B (-70 to 500°C)
500 Class B (-70 to 500°C)
1000 Class B (-70 to 500°C)
1000 Class A (-30 to 350°C)
100 Class 1/3B (0 to 100°C)
