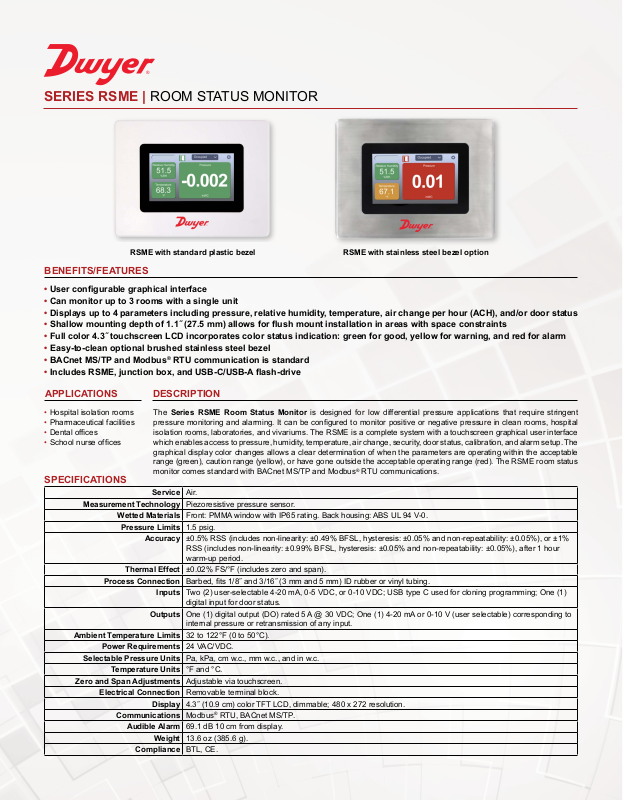

SERIES RSME | ROOM STATUS MONITOR

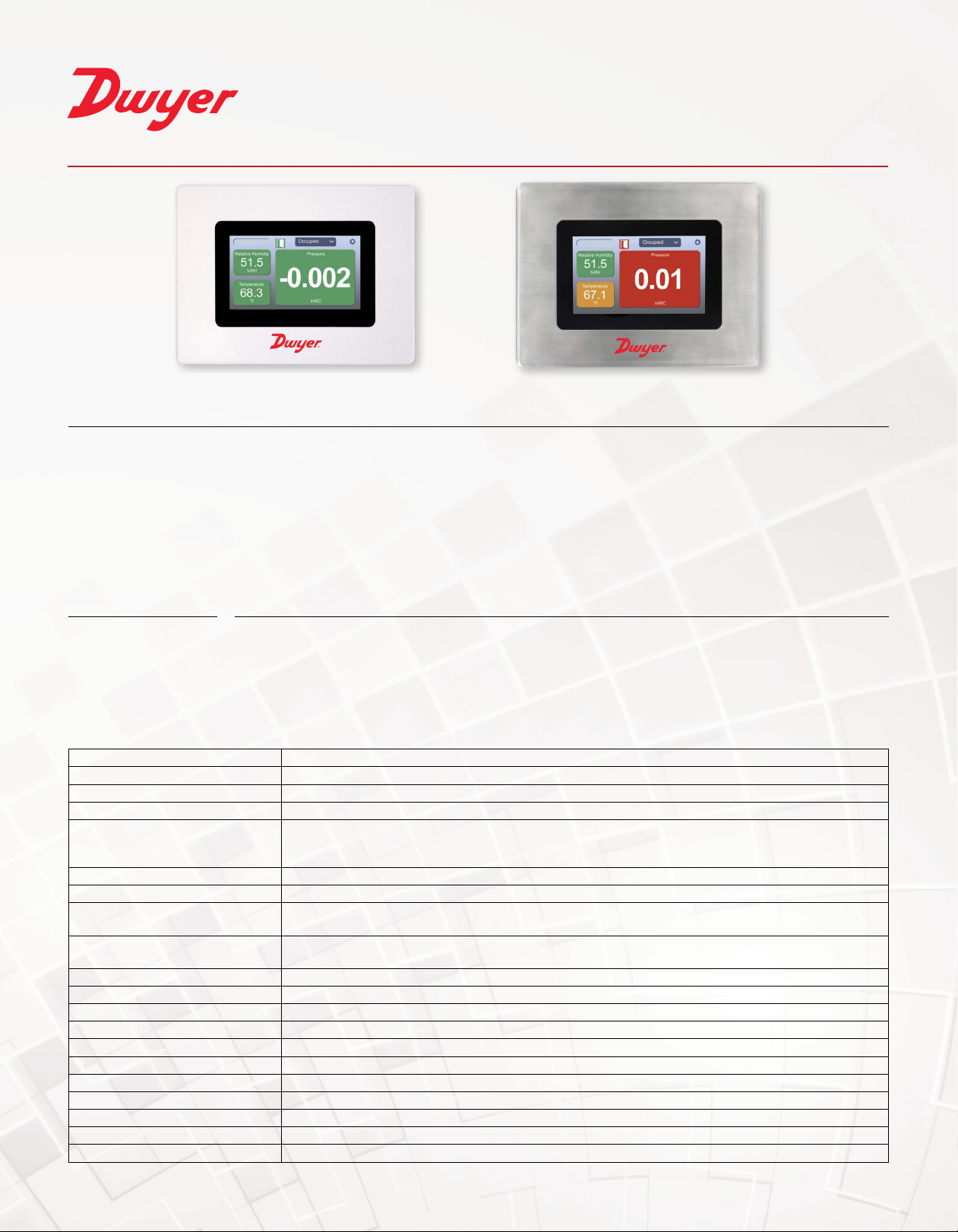

RSMEwithstainlesssteelbezeloptionRSMEwithstandardplasticbezel

BENEFITS/FEATURES

•Usercongurablegraphicalinterface

•Canmonitorupto3roomswithasingleunit

•Displaysupto4parametersincludingpressure,relativehumidity,temperature,airchangeperhour(ACH),and/ordoorstatus

•Shallowmountingdepthof1.1˝(27.5mm)allowsforushmountinstallationinareaswithspaceconstraints

•Fullcolor4.3˝touchscreenLCDincorporatescolorstatusindication:greenforgood,yellowforwarning,andredforalarm

•Easy-to-cleanoptionalbrushedstainlesssteelbezel

•BACnetMS/TPandModbus

•IncludesRSME,junctionbox,andUSB-C/USB-Aash-drive

RTUcommunicationisstandard

DESCRIPTIONAPPLICATIONS

• Hospital isolation rooms

• Pharmaceutical facilities

• Dental ofces

• School nurse ofces

The Series RSME Room Status Monitor is designed for low differential pressure applications that require stringent

pressure monitoring and alarming. It can be congured to monitor positive or negative pressure in clean rooms, hospital isolation rooms, laboratories, and vivariums. The RSME is a complete system with a touchscreen graphical user interface which enables access to pressure, humidity, temperature, air change, security, door status, calibration, and alarm setup. The graphical display color changes allows a clear determination of when the parameters are operating within the acceptable range (green), caution range (yellow), or have gone outside the acceptable operating range (red). The RSME room status monitor comes standard with BACnet MS/TP and Modbus® RTU communications.

SPECIFICATIONS

Service Air.

MeasurementTechnology Piezoresistive pressure sensor.

WettedMaterials Front: PMMA window with IP65 rating. Back housing: ABS UL 94 V-0.

PressureLimits 1.5 psig.

Accuracy ±0.5% RSS (includes non-linearity: ±0.49% BFSL, hysteresis: ±0.05% and non-repeatability: ±0.05%), or ±1%

RSS (includes non-linearity: ±0.99% BFSL, hysteresis: ±0.05% and non-repeatability: ±0.05%), after 1 hour warm-up period.

ThermalEffect ±0.02% FS/°F (includes zero and span).

ProcessConnection Barbed, ts 1/8˝ and 3/16˝ (3 mm and 5 mm) ID rubber or vinyl tubing.

Inputs Two (2) user-selectable 4-20 mA, 0-5 VDC, or 0-10 VDC; USB type C used for cloning programming; One (1)

digital input for door status.

Outputs One (1) digital output (DO) rated 5 A @ 30 VDC; One (1) 4-20 mA or 0-10 V (user selectable) corresponding to

internal pressure or retransmission of any input.

AmbientTemperatureLimits 32 to 122°F (0 to 50°C).

PowerRequirements 24 VAC/VDC.

SelectablePressureUnits Pa, kPa, cm w.c., mm w.c., and in w.c.

TemperatureUnits °F and °C.

ZeroandSpanAdjustments Adjustable via touchscreen.

ElectricalConnection Removable terminal block.

Display 4.3˝ (10.9 cm) color TFT LCD, dimmable; 480 x 272 resolution.

Communications Modbus

AudibleAlarm 69.1 dB 10 cm from display.

Weight 13.6 oz (385.6 g).

Compliance BTL, CE.

RTU, BACnet MS/TP.

Page 2

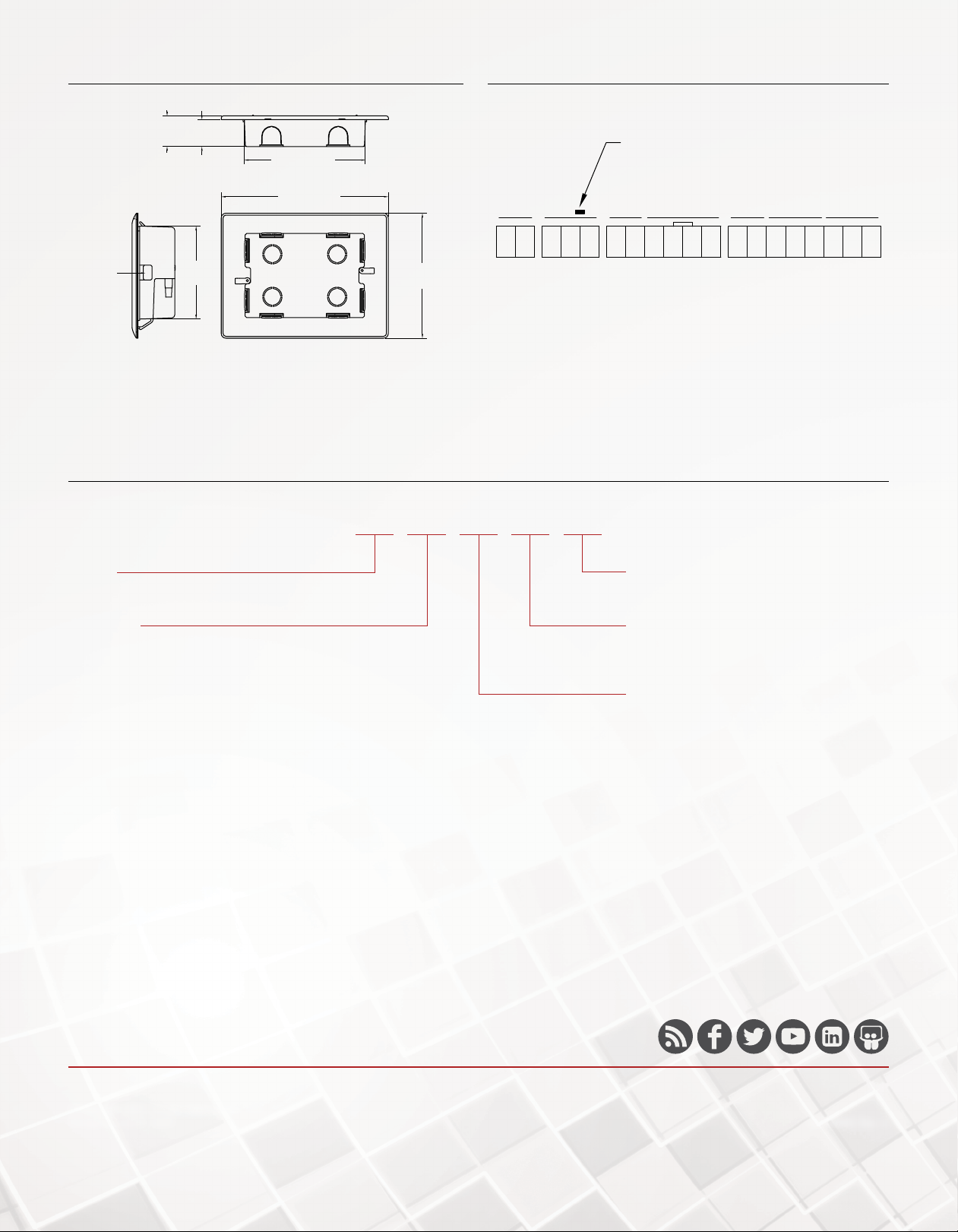

DIMENSIONS

USB C

5-21/64 [135.33]

FACTORY/PASSWORD

1-5/16

[33.34]

1-5/32 [29.37]

WIRINGDIAGRAM

RESET BUTTON

5-5/32 [130.97]

7-7/64 [180.58]

3-31/32

PORT

[102.42]

HOWTOORDER

Use the bold characters from the chart below to construct a product code.

RSME -B -003 -SS -NIST

SERIES

RSME: Room status monitor

ACCURACY

-B: ±0.5%

-C: ±1.0%

POWER

RELAY/DIG.

OUTPUT

COMMON

DIG.

DIG. INPUT

INPUT

DIG. COMMON

RS485

A-

B+

AN. OUTPUT

CURRENT

12131415161718

OUTPUT +

RS485 GND

OUTPUT GND

UI1 4-20 mA

INPUTS

INPUT GND

UI2 4-20 mA

VOLTAGE

INPUTS

UI1 0-10 V

UI2 0-10 V

INPUT GND

OPTIONS

-NIST: NIST traceable calibration certicate

BEZEL

BLANK:Plastic bezel

-SS: Brushed stainless steel bezel

PRESSURERANGE

-003: 0 to 0.5 in w.c.

-004: 0 to 1.0 in w.c.

-005: 0 to 2.0 in w.c.

-014: -0.5 to 0.5 in w.c.

-015: -1.0 to 1.0 in w.c.

-016: -2.0 to 2.0 in w.c.

Modbus® is a registered trademark of Schneider Automation, Inc.

DWYER INSTRUMENTS, INC.

Important Notice: Dwyer Instruments, LLC reserves the right to make changes to or discontinue any product or service identied in this publication without notice. Dwyer advises its customers to obtain the latest version of the relevant information to verify, before placing any orders, that the information being relied upon is current.
