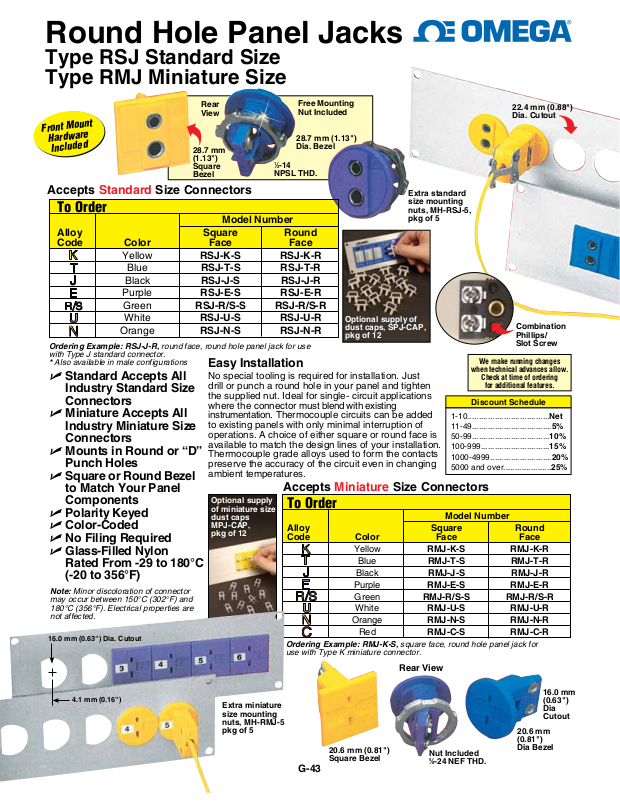

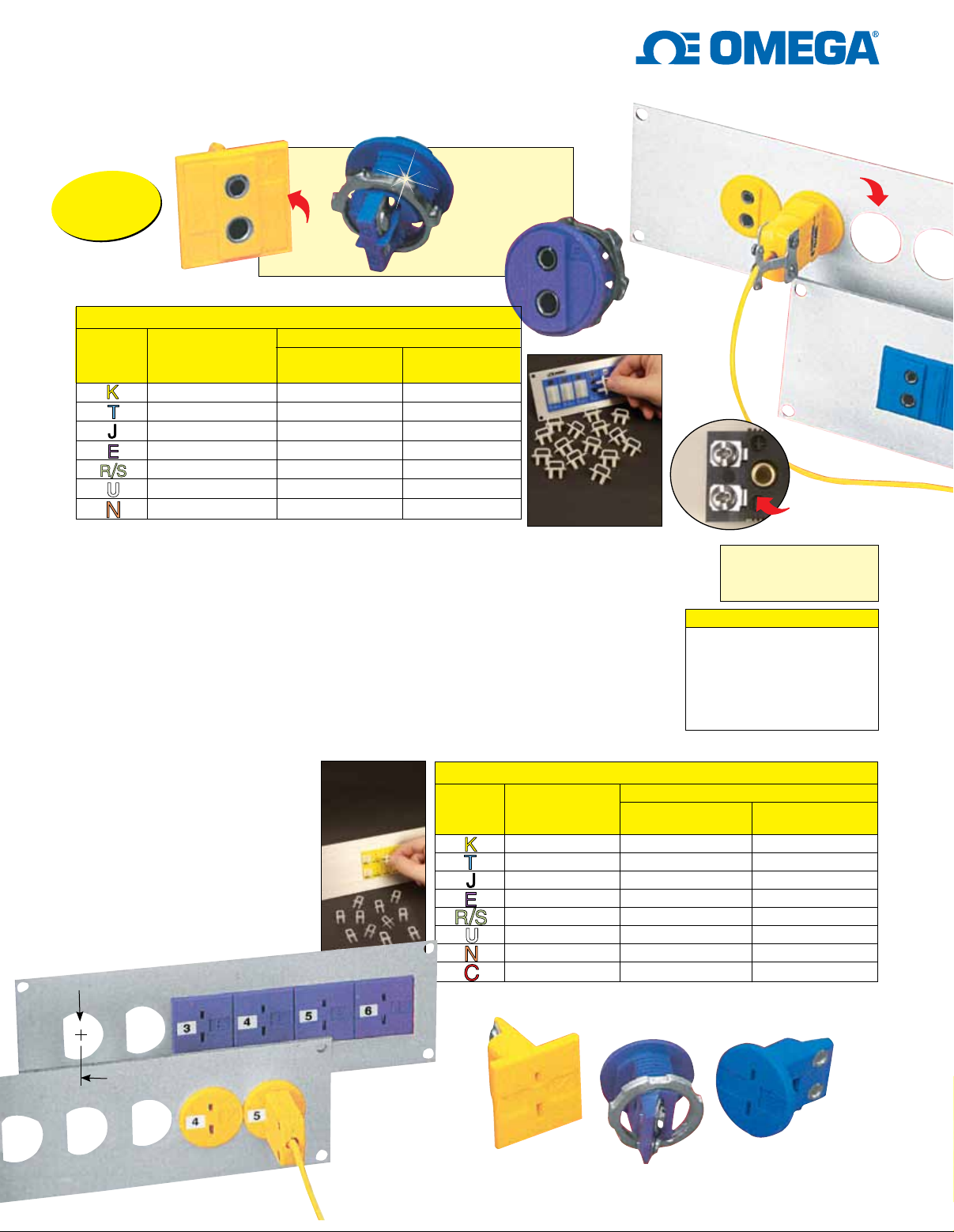

Round Hole Panel Jacks
U
W
U
U
W
U
Type RSJ Standard Size
Type RMJ Miniature Size
Rear
View
Free Mounting
Nut Included
Front Mount
Hardware
Included
28.7 mm
(1.13")
Square
Bezel
28.7 mm (1.13")
Dia. Bezel
1
⁄2-14
NPSL THD.
Accepts Standard Size Connectors
To Order
Model Number
Alloy Square Round
Code Color Face Face
Yellow RSJ-K-S RSJ-K-R
Blue RSJ-T-S RSJ-T-R
Black RSJ-J-S RSJ-J-R
Purple RSJ-E-S RSJ-E-R
Green RSJ-R/S-S RSJ-R/S-R
White RSJ-U-S RSJ-U-R
Orange RSJ-N-S RSJ-N-R
Ordering Example: RSJ-J-R, round face, round hole panel jack for use
with Type J standard connector.
* Also available in male configurations
U Standard Accepts All
Industry Standard Size
Connectors
U Miniature Accepts All
Industry Miniature Size
Connectors
U Mounts in Round or “D”
Punch Holes
U Square or Round Bezel
to Match Your Panel
Components
U Polarity Keyed
U Color-Coded
U No Filing Required
U Glass-Filled Nylon
Rated From -29 to 180°C
(-20 to 356°F)
Note: Minor discoloration of connector
may occur between 150°C (302°F) and
180°C (356°F). Electrical properties are
not affected.
16.0 mm (0.63") Dia. Cutout
Easy Installation
No special tooling is required for installation. Just
drill or punch a round hole in your panel and tighten
the supplied nut. Ideal for single- circuit applications
where the connector must blend with existing
instrumentation. Thermocouple circuits can be added
to existing panels with only minimal interruption of
operations. A choice of either square or round face is
available to match the design lines of your installation.
Thermocouple grade alloys used to form the contacts
preserve the accuracy of the circuit even in changing
ambient temperatures.
Accepts Miniature Size Connectors
Optional supply
of miniature size
dust caps
MPJ-CAP,
pkg of 12
To Order
Model Number
Alloy Square Round
Code Color Face Face
Yellow RMJ-K-S RMJ-K-R
Blue RMJ-T-S RMJ-T-R
Black RMJ-J-S RMJ-J-R
Purple RMJ-E-S RMJ-E-R
Green RMJ-R/S-S RMJ-R/S-R
White RMJ-U-S RMJ-U-R
Orange RMJ-N-S RMJ-N-R
Red RMJ-C-S RMJ-C-R
Ordering Example: RMJ-K-S, square face, round hole panel jack for
use with Type K miniature connector.
Extra standard
size mounting
nuts, MH-RSJ-5,
pkg of 5
Optional supply of
dust caps, SPJ-CAP,
pkg of 12
Rear View
22.4 mm (0.88")
Dia. Cutout
Combination
Phillips/
Slot Screw
We make running changes
when technical advances allow.
Check at time of ordering
for additional features.
Discount Schedule
1-10....................................Net
11-49...................................5%
50-99..................................10%
100-999..............................15%
1000-4999...........................20%
5000 and over.....................25%
4.1 mm (0.16")
Extra miniature
size mounting
nuts, MH-RMJ-5
pkg of 5
G-43
20.6 mm (0.81")
Square Bezel
Nut Included
5
⁄8-24 NEF THD.
16.0 mm
(0.63")
Dia
Cutout
20.6 mm
(0.81")
Dia Bezel
