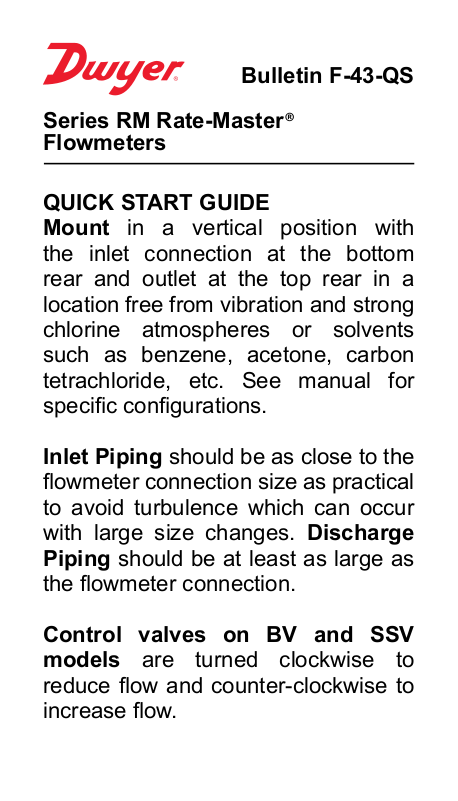

Bulletin F-43-QS

Series RM Rate-Master® Flowmeters

QUICK START GUIDE Mount in a vertical position with

the inlet connection at the bottom rear and outlet at the top rear in a location free from vibration and strong chlorine atmospheres or solvents such as benzene, acetone, carbon tetrachloride, etc. See manual for

specic congurations.

Inlet Piping should be as close to the

owmeter connection size as practical

to avoid turbulence which can occur with large size changes. Discharge Piping should be at least as large as

the owmeter connection.

Control valves on BV and SSV models are turned clockwise to

reduce ow and counter-clockwise to increase ow.

Page 2

Locate the highest point of greatest

diameter on the oat, then align that

with the theoretical center of the scale graduation. For more information, refer to the user’s manual.

CAUTION

stem unless the owmeter is

Do not completely unscrew valve

unpressurized and drained of any liquid. Failure to do so may result in serious personal injury. Avoid solutions of acids, bases, or salts

having a pH below 5.0 or above

8.5. For applications involving high pressure and/or toxic gases or uids,

contact the factory for details.
