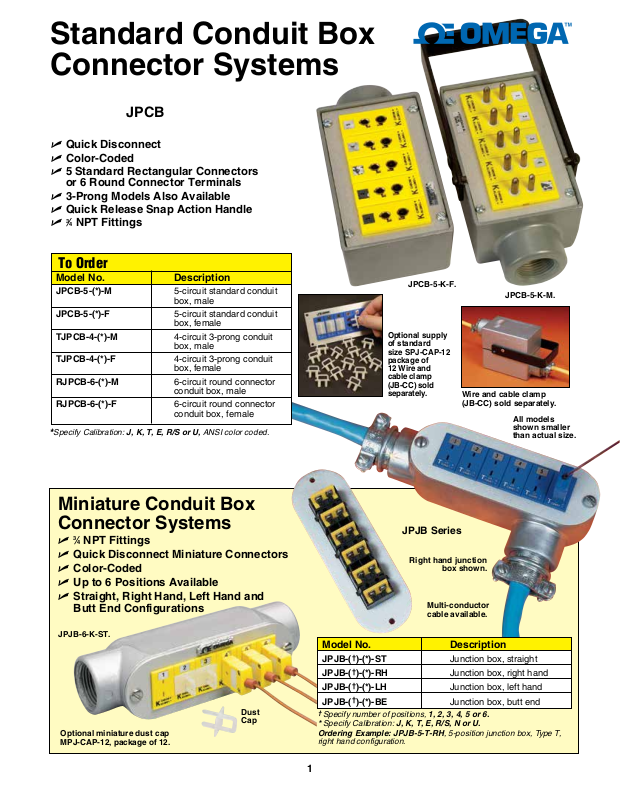

Standard Conduit Box
Connector Systems
JPCB
U Quick Disconnect
U Color-Coded
U 5 Standard Rectangular Connectors
or 6 Round Connector Terminals
U 3-Prong Models Also Available
U Quick Release Snap Action Handle
3
U
⁄4 NPT Fittings
To Order
Model No. Description
JPCB-5-(*)-M 5-circuit standard conduit
JPCB-5-(*)-F 5-circuit standard conduit
TJPCB-4-(*)-M 4-circuit 3-prong conduit
TJPCB-4-(*)-F 4-circuit 3-prong conduit
RJPCB-6-(*)-M 6-circuit round connector
RJPCB-6-(*)-F 6-circuit round connector
Specify Calibration: J, K, T, E, R/S or U, ANSI color coded.
*
box, male
box, female
box, male
box, female
conduit box, male
conduit box, female
JPCB-5-K-F.
Optional supply
of standard
size SPJ-CAP-12
package of
12 Wire and
cable clamp
(JB-CC) sold
separately.
JPCB-5-K-M.
Wire and cable clamp
(JB-CC) sold separately.
All models
shown smaller
than actual size.
Miniature Conduit Box
Connector Systems
U 3⁄4 NPT Fittings
U Quick Disconnect Miniature Connectors
U Color-Coded
U Up to 6 Positions Available
U Straight, Right Hand, Left Hand and
Butt End Configurations
JPJB-6-K-ST.
Dust
Cap
Optional miniature dust cap
MPJ-CAP-12, package of 12.
JPJB Series
Right hand junction
box shown.
Multi-conductor
cable available.
Model No. Description
JPJB-(†)-(*)-ST Junction box, straight
JPJB-(
JPJB-(
JPJB-(
†
* Specify Calibration: J, K, T, E, R/S, N or U.
Ordering Example: JPJB-5-T-RH, 5-position junction box, Type T,
right hand configuration.
†
)-(*)-RH Junction box, right hand
†
)-(*)-LH Junction box, left hand
†
)-(*)-BE Junction box, butt end
Specify number of positions, 1, 2, 3, 4, 5 or 6.
