Page 1
10-37/64
[220.27]

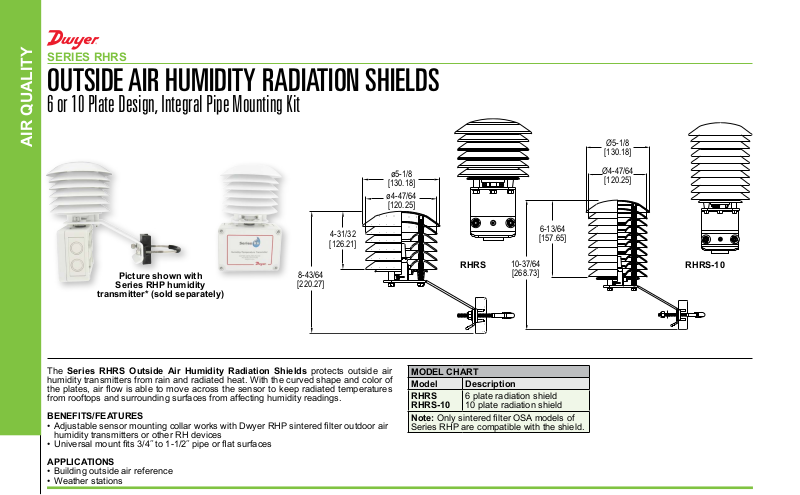

SERIES RHRS
OUTSIDE AIR HUMIDITY RADIATION SHIELDS
6 or 10 Plate Design, Integral Pipe Mounting Kit
AIR QUALITY
The Series RHRS Outside Air Humidity Radiation Shields protects outside air
humidity transmitters from rain and radiated heat. With the curved shape and color of
the plates, air ow is able to move across the sensor to keep radiated temperatures
from rooftops and surrounding surfaces from affecting humidity readings.
BENEFITS/FEATURES
• Adjustable sensor mounting collar works with Dwyer RHP sintered lter outdoor air
humidity transmitters or other RH devices
• Universal mount ts 3/4˝ to 1-1/2˝ pipe or at surfaces
APPLICATIONS
• Building outside air reference
• Weather stations
Picture shown with
Series RHP humidity
transmitter* (sold separately)
8-43/64
4-31/32
[126.21]
ø5-1/8
[130.18]
ø4-47/64
[120.25]
RHRS RHRS-10
MODEL CHART
Model Description
RHRS
RHRS-10
Note: Only sintered lter OSA models of
Series RHP are compatible with the shield.
6 plate radiation shield
10 plate radiation shield
[268.73]
6-13/64
[157.65]
Ø5-1/8
[130.18]
Ø4-47/64
[120.25]
