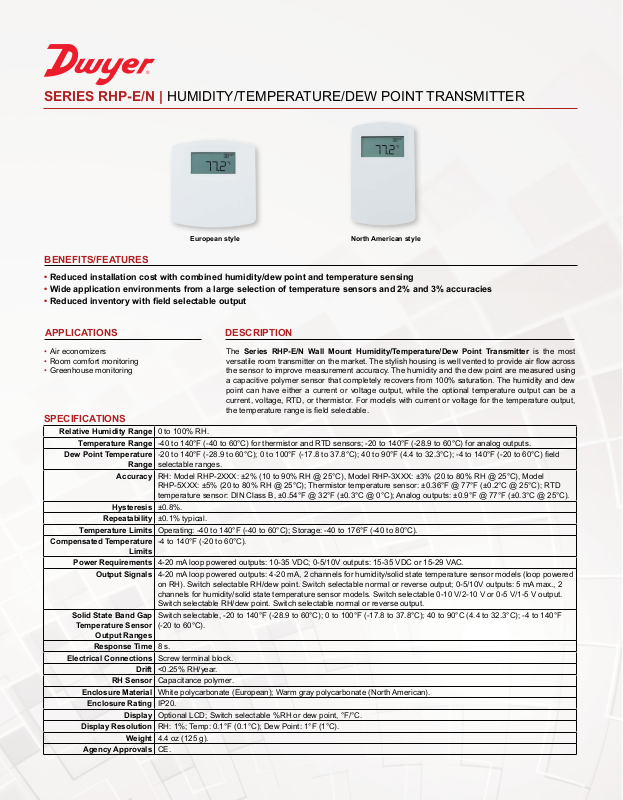

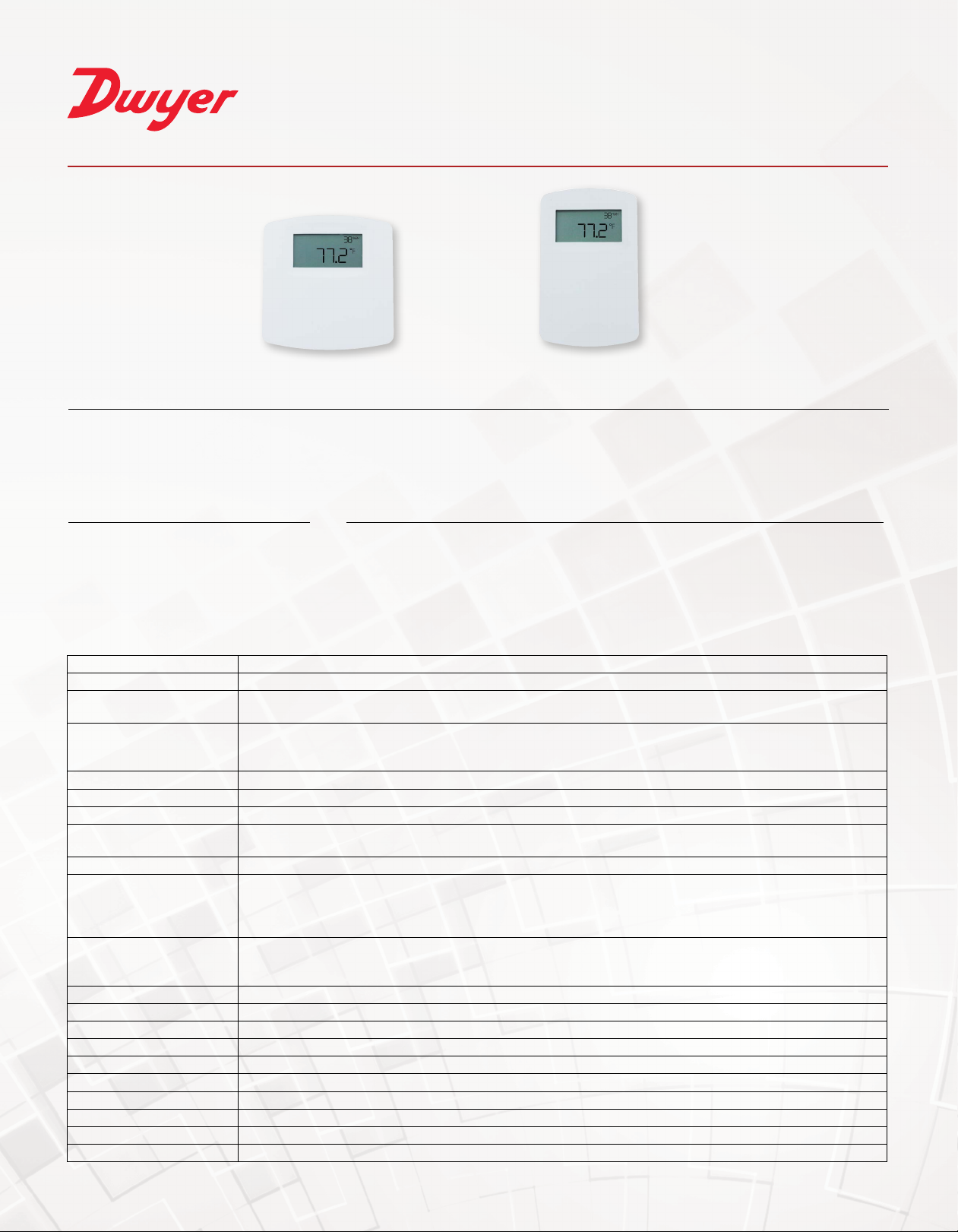

SERIES RHP-E/N | HUMIDITY/TEMPERATURE/DEW POINT TRANSMITTER

European style

North American style

BENEFITS/FEATURES

• Reduced installation cost with combined humidity/dew point and temperature sensing

• Wide application environments from a large selection of temperature sensors and 2% and 3% accuracies

•Reducedinventorywitheldselectableoutput

DESCRIPTIONAPPLICATIONS

• Air economizers

• Room comfort monitoring

• Greenhouse monitoring

The Series RHP-E/N Wall Mount Humidity/Temperature/Dew Point Transmitter is the most

versatile room transmitter on the market. The stylish housing is well vented to provide air ow across the sensor to improve measurement accuracy. The humidity and the dew point are measured using a capacitive polymer sensor that completely recovers from 100% saturation. The humidity and dew point can have either a current or voltage output, while the optional temperature output can be a current, voltage, RTD, or thermistor. For models with current or voltage for the temperature output, the temperature range is eld selectable.

SPECIFICATIONS

Relative Humidity Range 0 to 100% RH.

Temperature Range -40 to 140°F (-40 to 60°C) for thermistor and RTD sensors; -20 to 140°F (-28.9 to 60°C) for analog outputs.

Dew Point Temperature

Range

Accuracy RH: Model RHP-2XXX: ±2% (10 to 90% RH @ 25°C), Model RHP-3XXX: ±3% (20 to 80% RH @ 25°C), Model

Hysteresis ±0.8%.

Repeatability ±0.1% typical.

Temperature Limits Operating: -40 to 140°F (-40 to 60°C); Storage: -40 to 176°F (-40 to 80°C).

Compensated Temperature

Power Requirements 4-20 mA loop powered outputs: 10-35 VDC; 0-5/10V outputs: 15-35 VDC or 15-29 VAC.

Output Signals 4-20 mA loop powered outputs: 4-20 mA, 2 channels for humidity/solid state temperature sensor models (loop powered

Solid State Band Gap

Temperature Sensor

Output Ranges

Response Time 8 s.

Electrical Connections Screw terminal block.

RH Sensor Capacitance polymer.

Enclosure Material White polycarbonate (European); Warm gray polycarbonate (North American).

Enclosure Rating IP20.

Display Optional LCD; Switch selectable %RH or dew point, °F/°C.

Display Resolution RH: 1%; Temp: 0.1°F (0.1°C); Dew Point: 1°F (1°C).

Weight 4.4 oz (125 g).

Agency Approvals CE.

-20 to 140°F (-28.9 to 60°C); 0 to 100°F (-17.8 to 37.8°C); 40 to 90°F (4.4 to 32.3°C); -4 to 140°F (-20 to 60°C) eld selectable ranges.

RHP-5XXX: ±5% (20 to 80% RH @ 25°C); Thermistor temperature sensor: ±0.36°F @ 77°F (±0.2°C @ 25°C); RTD temperature sensor: DIN Class B, ±0.54°F @ 32°F (±0.3°C @ 0°C); Analog outputs: ±0.9°F @ 77°F (±0.3°C @ 25°C).

-4 to 140°F (-20 to 60°C).

Limits

on RH). Switch selectable RH/dew point. Switch selectable normal or reverse output; 0-5/10V outputs: 5 mA max., 2 channels for humidity/solid state temperature sensor models. Switch selectable 0-10 V/2-10 V or 0-5 V/1-5 V output. Switch selectable RH/dew point. Switch selectable normal or reverse output.

Switch selectable, -20 to 140°F (-28.9 to 60°C); 0 to 100°F (-17.8 to 37.8°C); 40 to 90°C (4.4 to 32.3°C); -4 to 140°F (-20 to 60°C).

Drift <0.25% RH/year.

Page 2

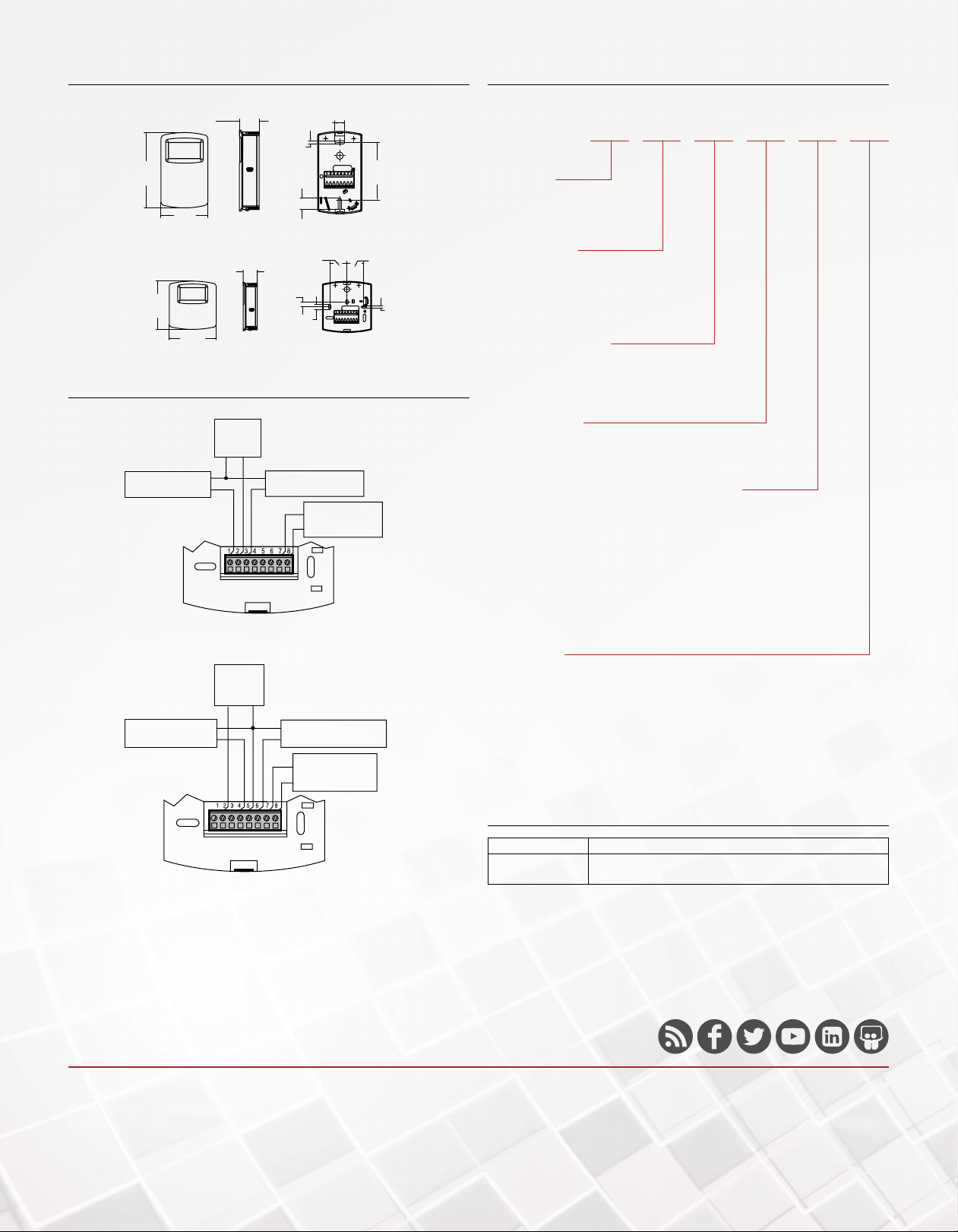

DIMENSIONS

3x .15

]

1.10

[114.30]

[90.42]

HOW TO ORDER

4.50

2.80

[71.12]

3.65

[92.72]

3.56

WIRING DIAGRAM

RH RECEIVER 4-20 mA

RH RECEIVER 0-5 V OR 0-10 V

[27.96]

1.08

[27.33]

POWER SUPPLY

+ -

Current models

POWER SUPPLY

+ -

.552

[14.02]

2x .176

[4.47]

.573

[14.56]

1.18 [30]

.33

[8.38]

3x .37

[9.36]

TEMP RECEIVER

4-20 mA

PASSIVE TEMP. SENSOR (IF PRESENT)

TEMP RECEIVER

0-5 V OR 0-10 V

PASSIVE TEMP. SENSOR (IF PRESENT)

3.000

[76.20]

1.16

[29.39]

Use the bold characters from the chart below to construct a product code.

ERHP 4-2 0 -COC

SERIES

RHP: Wall mount

RH/temp/DP transmitter

ACCURACY

-2: 2%

-3: 3%

-5: 5%

[3.87

MOUNTING TYPE

E: European N: North American

RH OUTPUT

4: IV combo 4-20 mA / 0-10 V

TEMPERATURE SENSOR/OUTPUT TYPE

0: None 4: IV combo 4-20 mA / 0-10 V A: 10K Ω thermal curve A B: 10K Ω thermal curve B C: 3K Ω thermal curve C D: 100 Ω RTD E: 1K Ω RTD F: 20K Ω thermal curve F

OPTIONS

-COC: Certicate of calibration

-FC: Factory calibration certicate

-LCD: Liquid crystal display

-NIST: NIST traceable calibration certicate

ACCESSORIES

Model Description

Voltage models

A-449 SCD-PS

Remote LCD display 100-240 VAC/VDC to 24 VDC power supply
