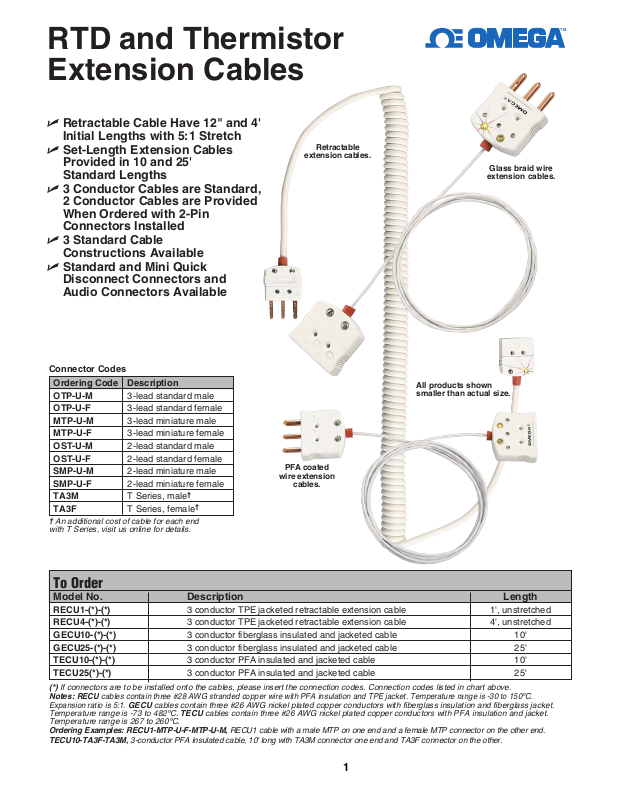

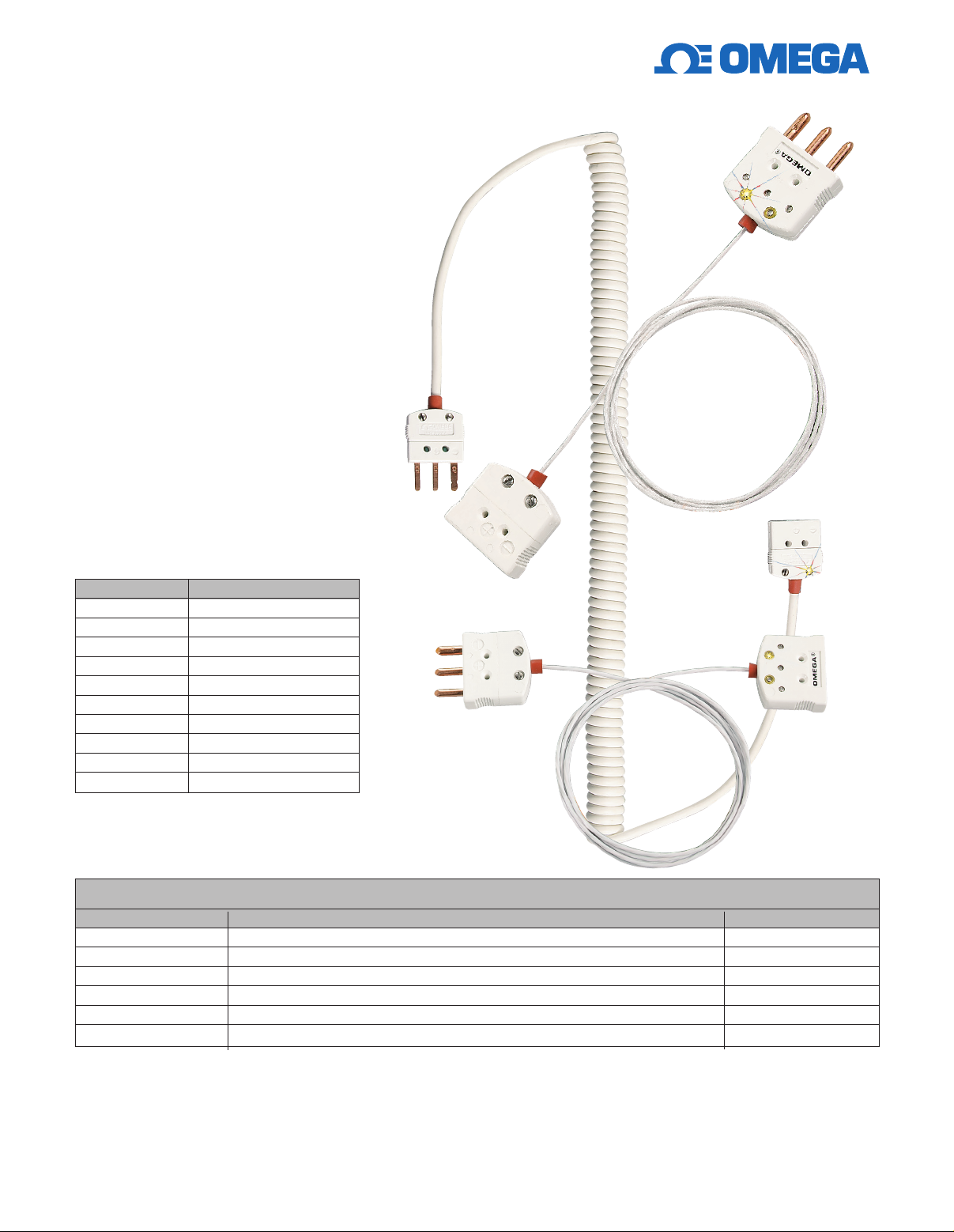

RTD and Thermistor
Extension Cables
U Retractable Cable Have 12" and 4'
Initial Lengths with 5:1 Stretch
U Set-Length Extension Cables
Provided in 10 and 25'
Standard Lengths
U 3 Conductor Cables are Standard,
2 Conductor Cables are Provided
When Ordered with 2-Pin
Connectors Installed
U 3 Standard Cable
Constructions Available
U Standard and Mini Quick
Disconnect Connectors and
Audio Connectors Available
Retractable
extension cables.
Glass braid wire
extension cables.
Connector Codes
Ordering Code Description
OTP-U-M 3-lead standard male
OTP-U-F 3-lead standard female
MTP-U-M 3-lead miniature male
MTP-U-F 3-lead miniature female
OST-U-M 2-lead standard male
OST-U-F 2-lead standard female
SMP-U-M 2-lead miniature male
SMP-U-F 2-lead miniature female
TA3M T Series, male
TA3F T Series, female
†
An additional cost of cable for each end
with T Series, visit us online for details.
†
†
PFA coated
wire extension
cables.
All products shown
smaller than actual size.
To Order
Model No. Description Length
RECU1-(*)-(*) 3 conductor TPE jacketed retractable extension cable 1', unstretched
RECU4-(*)-(*) 3 conductor TPE jacketed retractable extension cable 4', unstretched
GECU10-(*)-(*) 3 conductor fiberglass insulated and jacketed cable 10'
GECU25-(*)-(*) 3 conductor fiberglass insulated and jacketed cable 25'
TECU10-(*)-(*) 3 conductor PFA insulated and jacketed cable 10'
TECU25(*)-(*) 3 conductor PFA insulated and jacketed cable 25'
(*) If connectors are to be installed onto the cables, please insert the connection codes. Connection codes listed in chart above.
Notes:
RECU cables contain three #28 AWG stranded copper wire with PFA insulation and TPE jacket. Temperature range is -30 to 150ºC.
Expansion ratio is 5:1.
Temperature range is -73 to 482ºC. TECU cables contain three #26 AWG nickel plated copper conductors with PFA insulation and jacket.
Temperature range is 267 to 260ºC.
Ordering Examples: RECU1-MTP-U-F-MTP-U-M, RECU1 cable with a male MTP on one end and a female MTP connector on the other end.
TECU10-TA3F-TA3M, 3-conductor PFA insulated cable, 10' long with TA3M connector one end and TA3F connector on the other.
GECU cables contain three #26 AWG nickel plated copper conductors with fiberglass insulation and fiberglass jacket.
