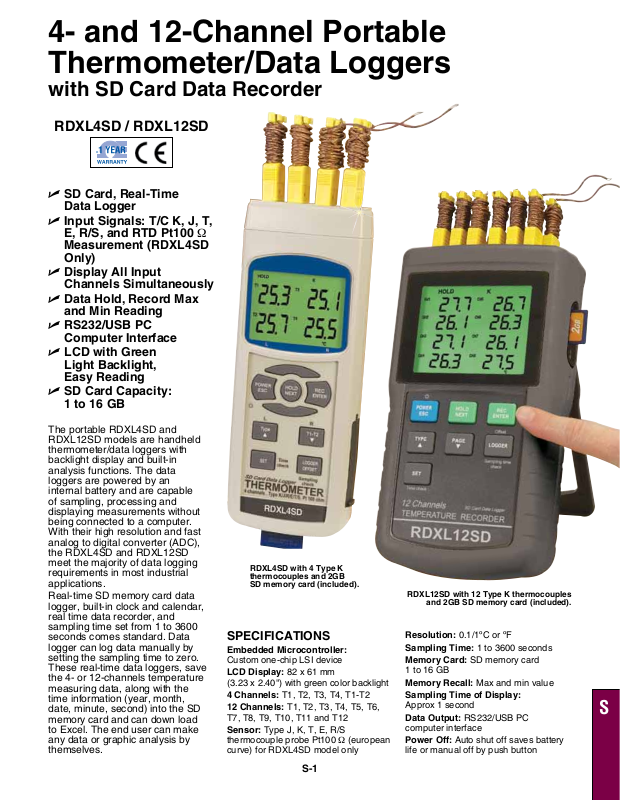

Page 1
4- and 12-Channel Portable
Thermometer/Data Loggers
with SD Card Data Recorder
RDXL4SD / RDXL12SD
U SD Card, Real-Time
Data Logger
U Input Signals: T/C K, J, T,
E, R/S, and RTD Pt100 Ω
Measurement (RDXL4SD
Only)
U Display All Input
Channels Simultaneously
U Data Hold, Record Max
and Min Reading
U RS232/USB PC
Computer Interface
U LCD with Green
Light Backlight,
Easy Reading
U SD Card Capacity:
1 to 16 GB
The portable RDXL4SD and
RDXL12SD models are handheld
thermometer/data loggers with
backlight display and built-in
analysis functions. The data
loggers are powered by an
internal battery and are capable
of sampling, processing and
displaying measurements without
being connected to a computer.
With their high resolution and fast
analog to digital converter (ADC),
the RDXL4SD and RDXL12SD
meet the majority of data logging
requirements in most industrial
applications.
Real-time SD memory card data
logger, built-in clock and calendar,
real time data recorder, and
sampling time set from 1 to 3600
seconds comes standard. Data
logger can log data manually by
setting the sampling time to zero.
These real-time data loggers, save
the 4- or 12-channels temperature
measuring data, along with the
time information (year, month,
date, minute, second) into the SD
memory card and can down load
to Excel. The end user can make
any data or graphic analysis by
themselves.

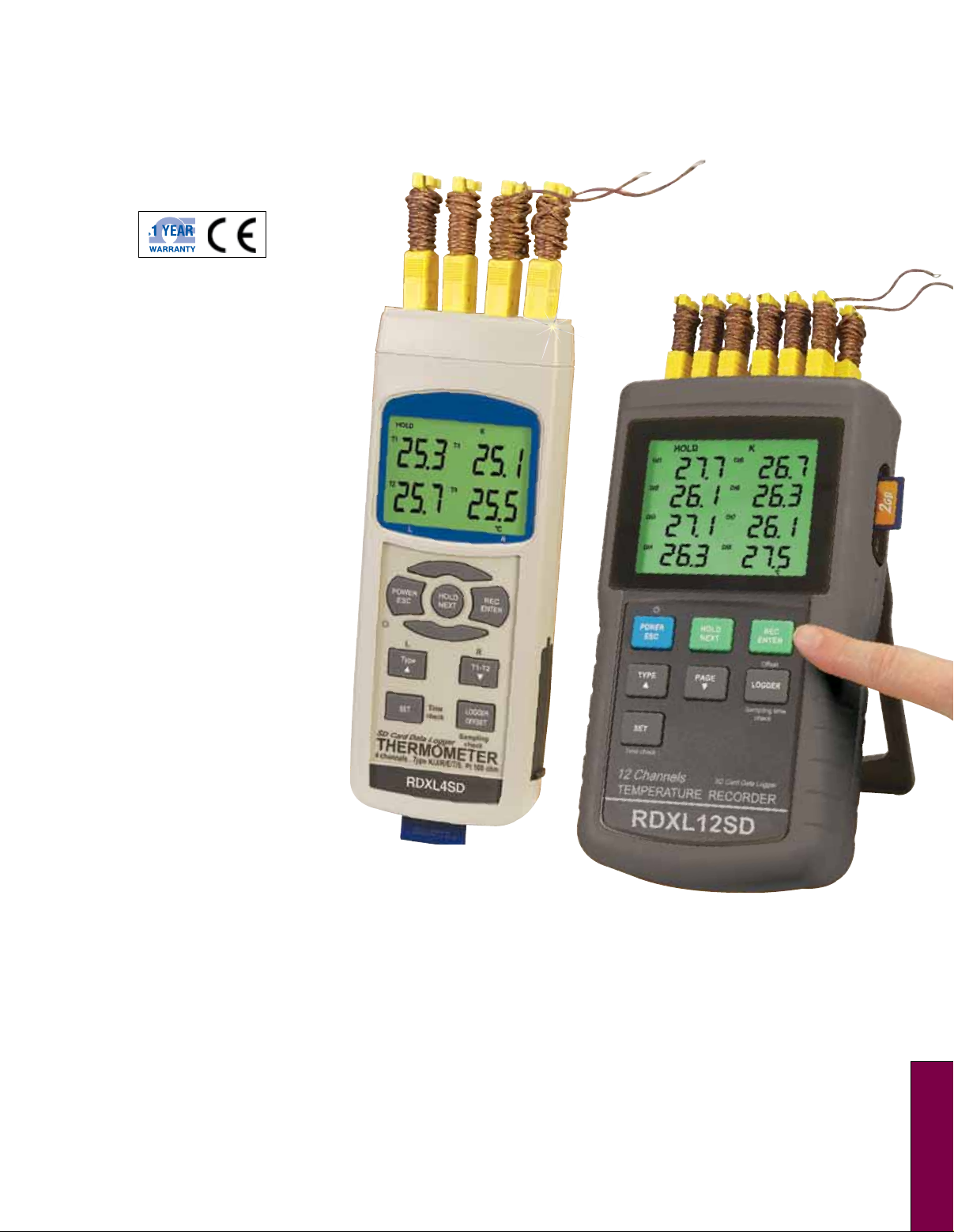

RDXL4SD with 4 Type K
thermocouples and 2GB
SD memory card (included).
SPECIFICATIONS
Embedded Microcontroller:
Custom one-chip LSI device
LCD Display: 82 x 61 mm
(3.23 x 2.40") with green color backlight
4 Channels: T1, T2, T3, T4, T1-T2
12 Channels: T1, T2, T3, T4, T5, T6,
T7, T8, T9, T10, T11 and T12
Sensor: Type J, K, T, E, R/S
thermocouple probe Pt100 Ω (european
curve) for RDXL4SD model only
RDXL12SD with 12 Type K thermocouples
and 2GB SD memory card (included).
Resolution: 0.1/1ºC or ºF
Sampling Time: 1 to 3600 seconds
Memory Card: SD memory card
1 to 16 GB
Memory Recall: Max and min value
Sampling Time of Display:
Approx 1 second
Data Output: RS232/USB PC
computer interface
Power Off: Auto shut off saves battery
life or manual off by push button
S
S-1
Page 2
Operating Temperature: 0 to 50ºC
(32 to 122ºF)
Operating Humidity: Less than
85% RH
Power Supply: Alkaline or heavy-duty
DC 1.5V battery (UM3, AA) x 6 “AA”,
(RDXL4SD) or 8 “AA” (RDXL12SD)
Power Current: Approx DC 30 mA
Weight: 489 g (1.08 lb)
Dimensions: 177 H x 68 W x 45 mm D
(7 x 2.7 x 1.9")
Electrical Specifications (23 ±5)ºC
PT100 Ω (RTD)
Resolution Range Accuracy*
0.1ºC -199.9 to ±(0.4%
850ºC + 1ºC)
0.1ºF -327.0 to ±(0.4%
999.9ºF + 1.8ºF)
1ºF 1000 to ±(0.4%
1562ºF + 2ºF)
Two input channels only.
*
OMEGACARESM extended
SM
warranty program is
available for models shown
Extended Warranty
Program
on this page. Ask your
sales representative for
full details when placing
an order. OMEGACARE
covers parts, labor and
equivalent loaners.
SM
Sensor Types
Sensor Type Resolution Range Accuracy*
0.1ºC -50.1 to -100.0ºC ±(0.4% + 1ºC)
-50.0 to 999.9°C ±(0.4% + 0.5°C)
1ºC 1000 to 1300ºC ±(0.4% + 1ºC)
0.1ºF -58.1 to -148.0ºF ±(0.4% + 1.8ºF)
-58.0 to 999.9°F ±(0.4% + 1°F)
1ºF 1000 to 2372ºF ±(0.4% + 2ºF)
0.1ºC -50.1 to -100.0ºC ±(0.4% + 1ºC)
-50.0 to 999.9°C ±(0.4% + 0.5°C)
1ºC 1000 to 1150ºC ±(0.4% + 1ºC)
0.1ºF -58.1 to -100.0ºF ±(0.4% + 1.8ºF)
-58.0 to 999.9°F ±(0.4% + 1°F)
1ºF 1000 to 2102ºF ±(0.4% + 2ºF)
0.1ºC -50.1 to -100.0ºC ±(0.4% + 1ºC)
-50.0 to 400.0°C ±(0.4% + 0.5°C)
0.1º F -58.1 to 148.0°F ±(0.4% + 1.8°F)
-58.0 to 752ºF ±(0.4% + 1ºF)
0.1ºC -50.1 to -100.0ºC ±(0.4% + 1ºC)
-50.0 to 900ºC ±(0.4% + 0.5ºC)
0.1ºF -58.1 to -148.0ºF ±(0.4% + 1.8ºF)
-58.0 to 999.9ºF ±(0.4% + 1ºF)
1ºF 1000 to 1652ºF ±(0.4% + 2ºF)
1ºC 0 to 600ºC ±(0.5% + 1ºC)
601 to 1700ºC ±(0.5% + 1ºC)
1ºF 32 to 1112ºF ±(0.5% + 2ºF)
1113 to 3092ºF ±(0.5% + 2ºF)
1°C 0 to 600°C ±(0.5% + 1°C)
601 to 1500°C ±(0.5% + 1°C)
1°F 32 to 1112°F ±(0.5% + 2°F)
1113 to 2732°F ±(0.5% + 2°F)
Accuracy value is specified for the meter only. Accuracy is tested under the meter’s
*
environment temperature within 23 ±5°C.
Linearity correction: memorize the thermocouples curve to the intelligent CPU circuit.
Above specification tests under the environment RF field strength less than 3 V/M and
frequency less than 30 MHz only.
To Order
Model No. Description
RDXL4SD 4-channel digital thermometer with 2 GB SD card
RDXL12SD 12-channel thermometer with 2 GB SD card
Accessories
Model No. Description
RDXLSD-CONN RTD connector for RDXL4SD
SW-U101-WIN Data logging software for RDXL4SD
SW-U811-WIN Data logging software for RDXL12SD
HC-SD Hard case for RDXL4SD
ADAPTER-SD AC adaptor
USB-SD Spare USB cable
RS232-SD Spare RS232 cable
2GB-SD Spare 2 GB SD card
RDXL4SD comes complete with 4 beaded wire Type K thermocouples probe, 6 “AA” batteries, 2 GB SD memory card, soft carrying case and
operator’s manual.
RDXL12SD comes complete with 12 beaded wire Type K thermocouples probe, 8 “AA” batteries, 2 GB SD memory card, hard carrying case
and operator’s manual.
Ordering Example: RDXL12SD, 12 channel thermometer data logger. OCW-3, OMEGACARESM extends standard 1-year warranty to a total of
4 years.
S-2
