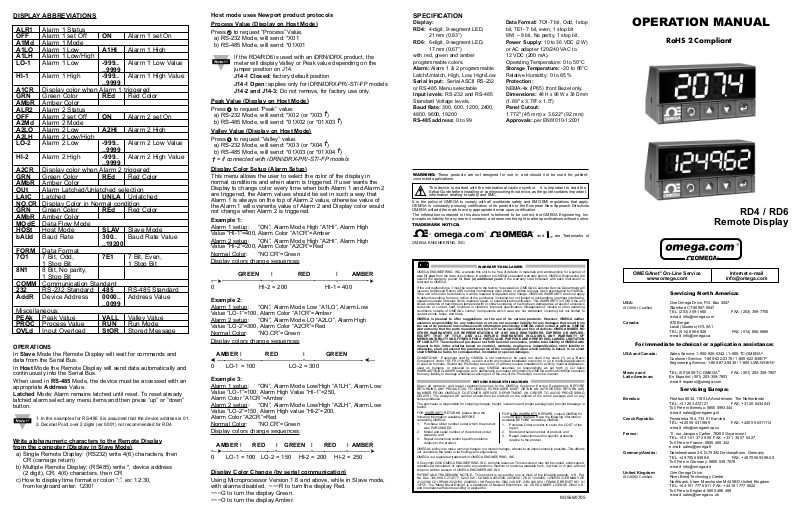

Omega RD-4, RD-6 User guide

SPECIFICATION

Display:
RD4: 4-digit, 9-segment LED,

21 mm (0.83”)

RD6: 6-digit, 9-segment LED,

17 mm (0.67”)
with red, green and amber
programmable colors.
Alarm: Alarm 1 & 2 programmable
Latch/Unlatch, High, Low, High/Low
Serial Input: Serial ASCII RS-232
or RS-485 Menu selectable
Input levels: RS-232 and RS-485
Standard Voltage levels.
Baud Rate: 300, 600, 1200, 2400,
4800, 9600, 19200

RS-485 address: 0 to 99

DISPLAY ABBREVIATIONS

ALR1 Alarm 1 Status
OFF Alarm 1 set Off ON Alarm 1 set On
A1Md Alarm 1 Mode
A1LO Alarm 1 Low A1HI Alarm 1 High
A1LH Alarm 1 Low/High
LO-1 Alarm 1 Low -999.. Alarm 1 Low Value

..9999

HI-1 Alarm 1 High -999.. Alarm 1 High Value

..9999
A1CR Display color when Alarm 1 triggered
GRN Green Color REd Red Color
AMbR Amber Color
ALR2 Alarm 2 Status
OFF Alarm 2 set Off ON Alarm 2 set On
A2Md Alarm 2 Mode
A2LO Alarm 2 Low A2HI Alarm 2 High
A2LH Alarm 2 Low/High
LO-2 Alarm 2 Low -999.. Alarm 2 Low Value

..9999
HI-2 Alarm 2 High -999.. Alarm 2 High Value

..9999
A2CR Display color when Alarm 2 triggered
GRN Green Color REd Red Color
AMbR Amber Color
OUt Alarm Latched/Unlatched selection
LAtC Latched UNLA Unlatched
NO.CR Display Color in Normal condition
GRN Green Color REd Red Color
AMbR Amber Color
MOdE Data Flow Mode
HOSt Host Mode SLAV Slave Mode
bAUd Baud Rate 300.. Baud Rate Value

..19200
FORM Data Format
7O1 7 Bit, Odd, 7E1 7 Bit, Even,

1 Stop Bit 1 Stop Bit

8N1 8 Bit, No parity,

1 Stop Bit

COMM Communication Standard
232 RS-232 Standard 485 RS-485 Standard
AddR Device Address 0000.. Address Value

..0099

Miscellaneous:

PEAk Peak Value VALL Valley Value
PROC Process Value RUN Run Mode
OVLd Input Overload StOR Stored Message

OPERATIONS

In Slave Mode the Remote Display will wait for commands and
data from the Serial Bus.

In Host Mode the Remote Display will send data automatically and
continuously into the Serial Bus.

When used in RS-485 Mode, the device must be accessed with an
appropriate Address Value.

Latched Mode: Alarm remains latched until reset. To reset already
latched alarm select any menu items and then press “up” or “down”
button.

Write alphanumeric characters to the Remote Display
from the computer (Display in Slave Mode)

a) Single Remote Display: (RS232) write 4(6) characters, then

CR (carriage return)

b) Multiple Remote Display: (RS485) write *, device address

(2 digit), CR, 4(6) characters, then CR

c) How to display time format or colon “:”, ex: 12:30,

from keyboard enter: 1230 !

Host mode uses Newport product protocols

Process V

alue (Display on Host Mode)

Press dto request “Process” Value.

a) RS-232 Mode, will send: *X01
b) RS-485 Mode, will send: *01X01

Peak Value (Display on Host Mode)

Press bto request “Peak” value:

a) RS-232 Mode, will send: *X02 (or *X03 †)
b) RS-485 Mode, will send: *01X02 (or *01X03 †)

Valley Value (Display on Host Mode)

Press cto request “Valley” value.

a) RS-232 Mode, will send: *X03 (or *X04†)
b) RS-485 Mode, will send: *01X03 (or *01X04 †)

†

= if connected with iDRN/iDRX-PR/-ST/-FP models

Display Color Setup (Alarm Setup)

This menu allows the user to select the color of the display in
normal conditions and when alarm is triggered. If user wants the
Display to change color every time when both Alarm 1 and Alarm 2
are triggered, the Alarm values should be set in such a way that
Alarm 1 is always on the top of Alarm 2 value, otherwise value of
the Alarm 1 will overwrite value of Alarm 2 and Display color would
not change when Alarm 2 is triggered.

Example 1:

Alarm 1 setup:

“ON”, Alarm Mode High “A1HI”, Alarm High

Value “HI-1”=400, Alarm Color “A1CR”=Amber
Alarm 2 setup:

“ON”, Alarm Mode High “A2HI”, Alarm High

Value “HI-2”=200, Alarm Color “A2CR”=Red
Normal Color:

“NO.CR”=Green

Display colors change sequences

:

GREEN I RED I AMBER

•

--➤-------------------------•--------------------------------•----------------

➤

0 HI-2 = 200 HI-1 = 400

Example 2:

Alarm 1 setup

:

“ON”, Alarm Mode Low “A1LO”, Alarm Low

Value “LO-1”=100, Alarm Color “A1CR”=Amber
Alarm 2 setup:

“ON”, Alarm Mode LO “A2LO”, Alarm High

Value “LO-2”=300, Alarm Color “A2CR”=Red
Normal Color:

“NO.CR”=Green

Display colors change sequences:

AMBER I RED I GREEN

-- ------------•-------------------------------•------------------------------ --­0 LO-1 = 100 LO-2 = 300

Example 3:

Alarm 1 setup:

“ON”, Alarm Mode Low/High “A1LH”, Alarm Low
Value “LO-1”=100, Alarm High Value “HI-1”=250,
Alarm Color “A1CR”=Amber

Alarm 2 setup:

“ON”, Alarm Mode Low/High “A2LH”, Alarm Low
Value “LO-2”=150, Alarm High value “HI-2”=200,
Alarm Color “A2CR”=Red

Normal Color:

“NO.CR”=Green
Display colors change sequences:

AMBER I RED I GREEN I RED I AMBER

•

--➤---------•-----------------•-----------------•-----------------•-----------

➤

0 LO-1 = 100 LO-2 = 150 HI-2 = 200 HI-2 = 250

Display Color Change (by serial communication)

Using Microprocessor Version 1.6 and above, while in Slave mode,
with alarms disabled. ~~~R to turn the display Red.

~~~G to turn the display Green.
~~~O to turn the display Amber.

➤➤

1. In the examples for RS-485 it is assumed that the device address is 01.

2. Decimal Point over 2 digits (ex:0.001) not recommended for RD4.

If the RD4/RD6 is used with an iDRN/iDRX product, the
meter will display Valley or Peak value depending on the
jumper position on J14.

J14-1 Closed: factory default position
J14-1 Open: applies only for iDRN/iDRX-PR/-ST/-FP models
J14-2 and J14-3: Do not remove, for factory use only.

M3566/0705

WARRANTY/DISCLAIMER

OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a period of
one (1) year from the date of purchase. In addition to OMEGA’s standard warranty period, OMEGA Engineering will
extend the warranty period for four (4) additional years if the warranty card enclosed with each instrument is
returned to OMEGA.

If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer Service Department will
issue an Authorized Return (AR) number immediately upon phone or written request. Upon examination by OMEGA,
if the unit is found to be defective, it will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply
to defects resulting from any action of the purchaser, including but not limited to mishandling, improper interfacing,
operation outside of design limits, improper repair, or unauthorized modification. This WARRANTY is VOID if the unit
shows evidence of having been tampered with or shows evidence of having been damaged as a result of excessive
corrosion; or current, heat, moisture or vibration; improper specification; misapplication; misuse or other operating
conditions outside of OMEGA’s control. Components which wear are not warranted, including but not limited to
contact points, fuses, and triacs.

OMEGA is pleased to offer suggestions on the use of its various products. However, OMEGA neither
assumes responsibility for any omissions or errors nor assumes liability for any damages that result from
the use of its products in accordance with information provided by OMEGA, either verbal or written. OMEGA
warrants only that the parts manufactured by it will be as specified and free of defects. OMEGA MAKES NO
OTHER WARRANTIES OR REPRESENTATIONS OF ANY KIND WHATSOEVER, EXPRESS OR IMPLIED,
EXCEPT THAT OF TITLE, AND ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION
OF LIABILITY: The remedies of purchaser set forth herein are exclusive, and the total liability of OMEGA with
respect to this order, whether based on contract, warranty, negligence, indemnification, strict liability or
otherwise, shall not exceed the purchase price of the component upon which liability is based. In no event
shall OMEGA be liable for consequential, incidental or special damages.

CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic
Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) in medical applications
or used on humans. Should any Product(s) be used in or with any nuclear installation or activity, medical application,
used on humans, or misused in any way, OMEGA assumes no responsibility as set forth in our basic
WARRANTY/DISCLAIMER language, and, additionally, purchaser will indemnify OMEGA and hold OMEGA harmless
from any liability or damage whatsoever arising out of the use of the Product(s) in such a manner.

RETURN REQUESTS/INQUIRIES

Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department. BEFORE
RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN AUTHORIZED RETURN (AR)
NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT (IN ORDER TO AVOID PROCESSING
DELAYS). The assigned AR number should then be marked on the outside of the return package and on any
correspondence.

The purchaser is responsible for shipping charges, freight, insurance and proper packaging to prevent breakage in
transit.

FOR W

ARRANTY RETURNS, please have the
following information available BEFORE
contacting OMEGA:

1. Purchase Order number under which the product

was PURCHASED,

2. Model and serial number of the product under

warranty, and

3. Repair instructions and/or specific problems

relative to the product.

FOR NON-W

ARRANTY REPAIRS, consult OMEGA for
current repair charges. Have the following information
available BEFORE contacting OMEGA:

1. Purchase Order number to cover the COST of the

repair,

2. Model and serial number of product, and

3. Repair instructions and/or specific problems

relative to the product.

OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible. This affords
our customers the latest in technology and engineering.

OMEGA is a registered trademark of OMEGA ENGINEERING, INC.

© Copyright 2003 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photocopied,
reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without
the prior written consent of OMEGA ENGINEERING, INC.

PATENT AND TRADEMARK NOTICE: This product is covered by one or more of the following patents: U.S. Pat.
No. Des. 336,895; 5,274,577; 6,243,021 / CANADA 2052599; 2052600 / ITALY 1249456; 1250938 / GERMANY DE
41 34398 C2 / SPAIN 2039150; 2048066 / UK Patent No. GB2 249 837; GB2 248 954 / FRANCE BREVET NO. 91

12756. The “Meter Bezel Design” is a trademark of Newport Electronics, Inc. USED UNDER LICENSE. Other U.S.
and International Patents pending or applied for.

This device is marked with the international caution symbol. It is important to read the
Setup Guide before installing or commissioning this device, as the guide contains important
information relating to safety and EMC.

WARNING: These products are not designed for use in, and should not be used for, patient­connected applications.

®

, omega.com

®

, , and

™

are Trademarks of

OMEGA ENGINEERING, INC.

®

RD4 / RD6

Remote Display

OPERATION MANUAL

It is the policy of OMEGA to comply with all worldwide safety and EMC/EMI regulations that apply.
OEMGA is constantly pursuing certification of its products to the European New Approach Directives.
OMEGA will add the mark to every appropriate device upon certification.

The information contained in this document is believed to be correct, but OMEGA Engineering, Inc.
accepts no liability for any errors it contains, and reserves the right to alter specifications without notice.

TRADEMARK NOTICE:

Data Format: 7O1-7 bit, Odd, 1 stop
bit, 7E1- 7 bit, even, 1 stop bit
8N1 – 8 bit, No parity, 1 stop bit.

Power Supply:

10 to 36 VDC (2 W)
or AC adapter 120/240 VAC to
12 VDC (200 mA).
Operating Temperature: 0 to 50°C
Storage Temperature: -20 to 85°C
Relative Humidity: 0 to 85 %

Protection:

NEMA-4x (IP65) front Bezel only.

Dimensions:

48 H x 96 W x 38 Dmm

(1.89" x 3.78" x 1.5")

Panel Cutout:

1.772" (45 mm) x 3.622" (92 mm)

Approvals:

per EN61010-1:2001

RoHS 2 Compliant

®

®

OMEGAnet® On-Line Service

www.omega.com

Servicing North America:

USA: One Omega Drive, P.O. Box 4047

ISO 9001 Certified Stamford CT 06907-0047

Canada:

TEL: [phone] FAX: [phone]

e-mail: [email protected]

976 Bergar
Laval (Quebec) H7L 5A1
TEL: [phone] FAX: [phone]

e-mail: [email protected]

For immediate technical or application assistance:

USA and Canada: Sales Service: 1-800-826-6342 / 1-800-TC-OMEGA

Mexico and TEL: (001)800-TC-OMEGA® FAX: [phone]
Latin American: En Espa

Customer Service: 1-800-622-2378 / 1-800-622-BEST
Engineering Service: 1-800-872-9436 / 1-800-USA-WHEN

ñol: [phone]-7803

e-mail: [email protected]

Servicing Europe:

Benelux: Postbus 8034, 1180 LA Amstelveen, The Netherlands

Czech Republic:

France:

Germany/Austria: Daimlerstrasse 26, D-75392 Deckenpfronn, Germany

United Kingdom:

ISO 9002 Certified River Bend Technology Centre

TEL: [phone] FAX: [phone]
Toll Free in Benelux: 0800 0993344

e-mail: [email protected]

Frystatska 184, 733 01 Karviná
TEL: [phone] FAX: [phone]

e-mail: [email protected]

11, rue Jacques Cartier, 78280 Guyancourt
TEL: [phone] FAX: [phone]
Toll Free in France: 0800 466 342

e-mail: [email protected]

TEL: [phone] FAX: [phone]
Toll Free in Germany: 0800 639 7678

e-mail: [email protected]

One Omega Drive

Northbank, Irlam Manchester M44 5BD United Kingdom
TEL: [phone] FAX: [phone]
Toll Free in England: 0800 488 488

e-mail: [email protected]

Internet e-mail

[email protected]

®

®

®

Mounting Remote Display Through Panel:

1.

Using the panel cutout diagram shown above, cut an opening in
the panel.

2.

Remove two screws at the back of remote display to remove back

cover.

3.

Insert the unit into the opening from the front of the panel, so the
gasket seals between the bezel and the front of the panel.

4. Align back cover to remote display and reinstall screws.

Mounting Remote Display on Bail:

1. Use the Remote Display template to mark the location of

mounting screws on the flat surface.

2.

Be sure to leave enough room around the bail (as noted on the

template drawing) to allow for removal and rotation of the display.

3. The display can be rotated to 12 positions for the best

viewing angle.

Disassembly Instruction:

Warning: Disconnect all ac power from the unit before
proceeding.

1.

Remove all wiring connections from the rear of the instrument, by
unplugging the power and input connectors.

2.

Remove two screws at the back of remote display and back cover.

3. Remove the Remote Display from the panel.

4. To remove the Remote Display from the bail, spread

mounting ears.

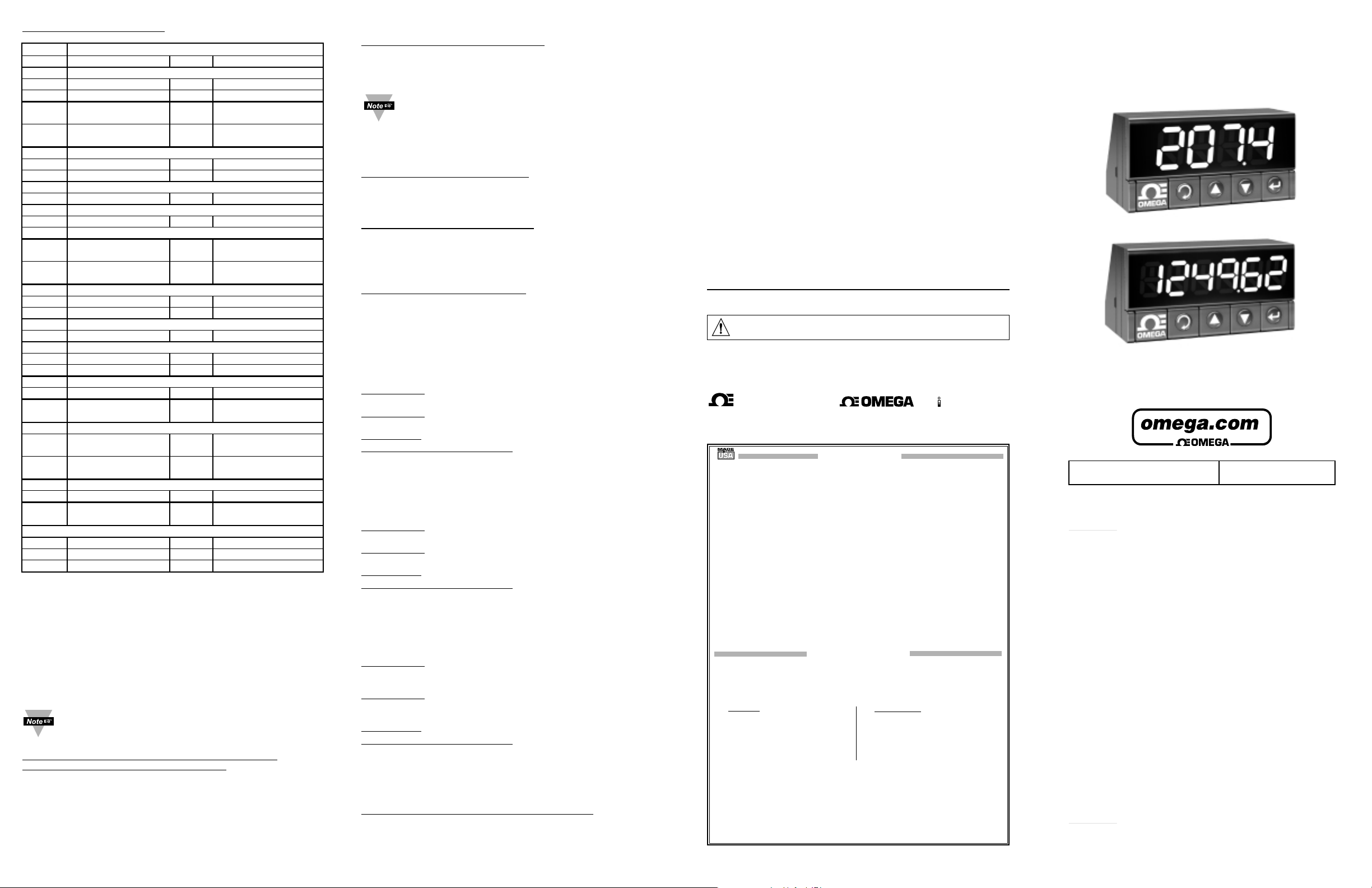

RD4 AND RD6 REMOTE DISPLAY

DESCRIPTION:

The RD4 and RD6 are 4(6) digit master/slave displays providing
remote readout from instruments such as programmable controllers,
digital panel meters and other instruments with serial output. Two
communication interfaces are supported in Remote Display: RS-232
and RS-485 and can be programmed through front panel buttons.

The RD4/RD6 remote display can be mounted in a 1/8 DIN panel
cut-out or surface mounted with the included bale.

The Remote Display features big bright 21mm (0.83”) and 17.3mm
(0.68”) 9 segment LED’s that can be programmed to change color
between Green, Amber, and Red to indicate alarms.

Serial Communications can be made to an RJ-11 jack or screw
terminals. In the Slave mode, the RD4/RD6 can be used for
displaying Alphanumeric characters from a computer.

Power is supplied from 10 to 36 Vdc power supply or AC adapter
120/240 Vac to 12 Vdc (200 mA).

Compatible Host device must feature serial RS232 or RS485 output.

SAFETY:

• The instrument is a panel mount device protected in
accordance with

EN61010-1:2001

.

•

This device does not provide safety isolation. Therefore,
always use a Safety Agency Approved DC power source.

EMC:

• Whenever EMC is an issue, always use shielded cables.

• Never run signal and power wires in the same conduit.

• Use signal wire connections with twisted-pair cables.

• Install Ferrite Bead(s) on signal wire close to the instrument if
EMC problems persist.

MOUNTING

Power Connection.

Connect the main power connections as shown in the figure below.

CONFIGURATION

Button Functions in Configuration Mode

• To enter the Menu, the user must first press abutton.

• Use this button to advance/navigate to the next menu
item. The user can navigate through all the top level
menus by pressing a.

• While a parameter is being modified, press ato
escape without saving the parameter.

• Press the up bbutton to scroll through submenu
selections. When a numerical value is displayed press
this key to increase value of a parameter that is
currently being modified.

• In the Run Mode pressing bcauses the display
to flash the PEAK value several times before returning
to the Run Mode.

• In the top menu press bcauses the display to return to
the Run Mode.

• Press the down cbutton to scroll through submenu
selections. When a numerical value is displayed press
this key to decrease value of a parameter that is
currently being modified.

• In the Run Mode press c causes the display to flash
the Valley value several times before returning to the
Run Mode.

• In the top menu press c causes the display to return to
the Run Mode.

• Press this button to access the submenus from a Top
Level Menu item.

• Press this button to store a submenu selection or after
entering a value – the display will flash a

STOR

message to confirm your selection.

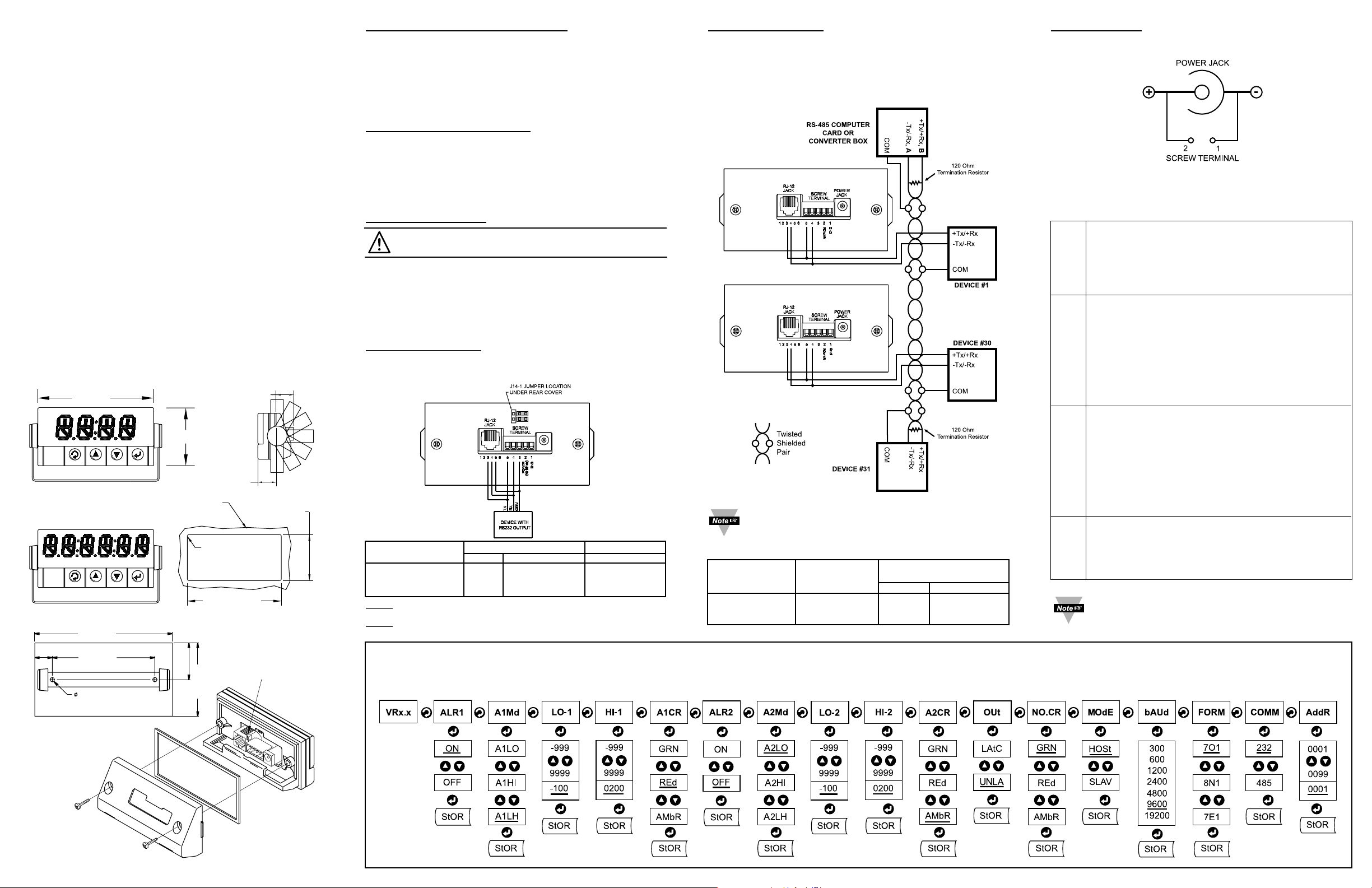

Wiring RS-485 Interface.

The RS-485 standard (multipoint) allows a computer, one or more
devices and Remote Displays (up to 32) to be connected using a
two-wire connection (half-duplex) plus a common wire to connect
to the shield of the cable. It is recommended to use shielded cable
with one twisted pair for EMI noise protection.

Connections to the computer are optional.

Computer Card Device with Remote Display
or Converter Box RS-485 Pin
Pin Function Function RJ-12 Screw Terminal
A, -Tx/-Rx -Tx/-Rx 4 4
B, +Tx/+Rx +Tx/+Rx 3 5
COM COM 3

WIRING
Wiring RS-232 Interface.

The RS-232 standard (point-to-point) allows a single device to be
connected to the Remote Display using a three-wire connection
(full duplex).

Device with RS-232 Host Mode Slave Mode
Pin Function RJ-12 Screw Terminals Screw Terminals

Receive (Rx) 4 5 4
Transmit (Tx) 3 4 5
Ground (RTN) 5 3 3

d

(ENTER)

c

(DOWN)

b

(UP)

a

(MENU)

FLOW CHART _____Underline denotes factory default setup

Below is a flowchart showing how to navigate through all menus by pressing front buttons.

x, w, z, and some punctuations are non-printable
characters.

Note 1: In Slave Mode, the Remote Display will wait for commands and
data from the Serial Bus.
Note 2: In Host Mode, the Remote Display will send data automatically
and continuously into the Serial Bus.

(See Usage Note in
Operations Section)

0.80 [20.3]

0.75 [19.0]

1.772 +.024/-.000

[45.00 +0.61/-0.00]

0.06
[1.5]

3.622 +.032/-.000

PANEL CUT-OUT

J14-1

RD4 FRONT VIEW

RD6 FRONT VIEW

0.60

[15.2]

3.78 [96.0]

4.70 [119.4]

3.50 [88.9]

0.15 [3.7] 2PLCS

1.89 [48.0]

PANEL THICKNESS

0.25 [6.4] MAX

0.03 [0.8] MIN

R 4PLCS

[92.00 +0.81/-0.00]

1.25 [31.8]

2.50 [63.5]

2 = Closed

1

3 = Closed

POWER

JACK

DISPLAY TEMPLATE

J14-1

EXPLODED VIEW
