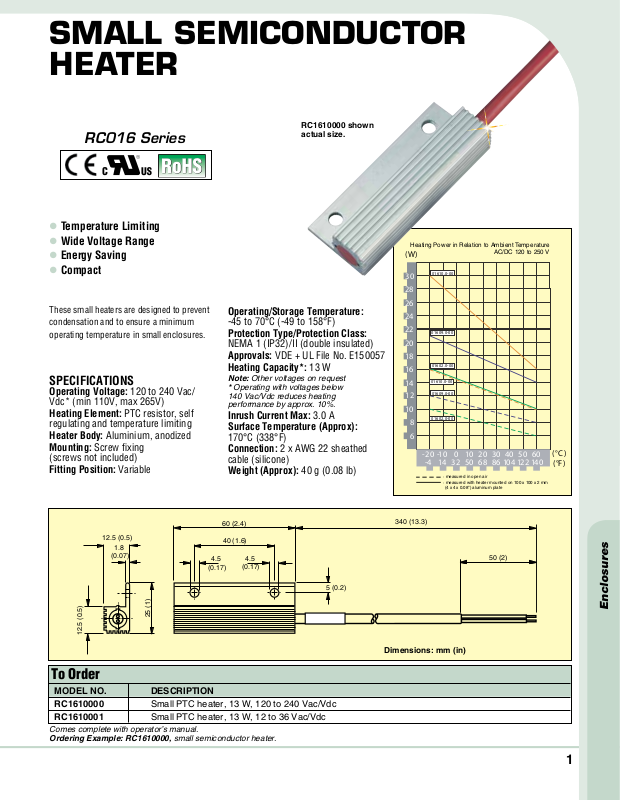

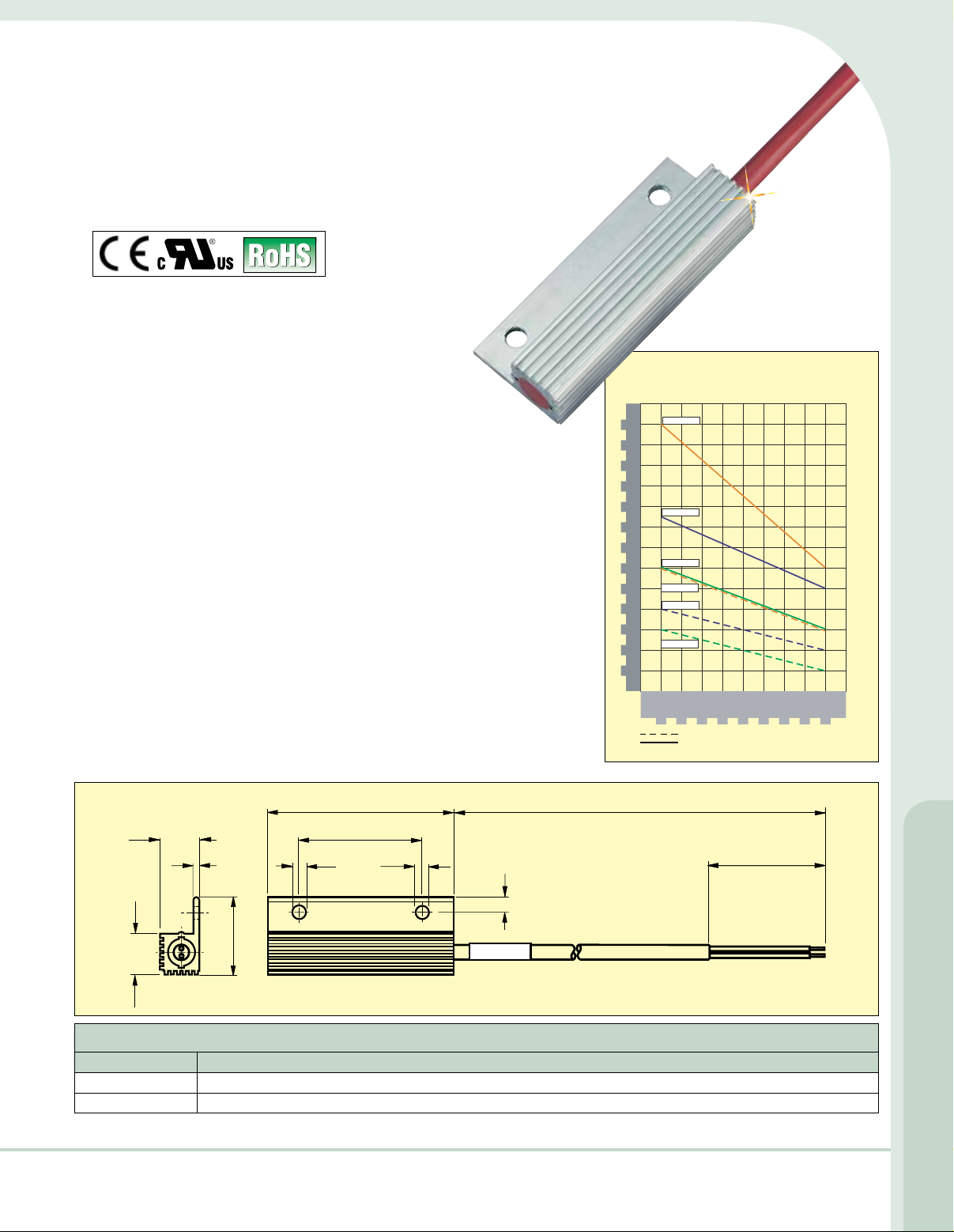

Small Semiconductor
Heater
RC1610000 shown
RC016 Series
l Temperature Limiting
l Wide Voltage Range
l Energy Saving
l Compact
These small heaters are designed to prevent
condensation and to ensure a minimum
operating temperature in small enclosures.
SPECIFICATIONS
Operating Voltage: 120 to 240 Vac/
Vdc* (min 110V, max 265V)
Heating Element: PTC resistor, self
regulating and temperature limiting
Heater Body: Aluminium, anodized
Mounting: Screw fixing
(screws not included)
Fitting Position: Variable
Operating/Storage Temperature:
-45 to 70°C (-49 to 158°F)
Protection Type/Protection Class:
NEMA 1 (IP32)/II (double insulated)
Approvals: VDE + UL File No. E150057
Heating Capacity*: 13 W
Note: Other voltages on request
* Operating with voltages below
140 Vac/Vdc reduces heating
performance by approx. 10%.
Inrush Current Max: 3.0 A
Surface Temperature (Approx):
170°C (338°F)
Connection: 2 x AWG 22 sheathed
cable (silicone)
Weight (Approx): 40 g (0.08 lb)
actual size.
Heating Power in Relationto Ambient Te mperature
(W)
01610.0-00
30
28
26
24
22
01609.0-00
20
18
01602.0-00
16
01610.0-00
14
01609.0-00
12
10
01602.0-00
8
6
-20
-100102030405060
14 32 50 68 86 10 4122 14 0
-4
: measured in open air
: measured with heater mounted on 100 x 100 x 2 mm
(4 x 4 x 0.08") aluminum plate
AC/DC120 to 250 V
(°C)
(°F)
60 (2.4)
12.5 (0.5)
1.8
(0.07)
25 (1)
12.5 (0.5)
4.5
(0.17)
40 (1.6)
4.5
(0.17)
5 (0.2)
To Order
MODEL NO. DESCRIPTION
RC1610000 Small PTC heater, 13 W, 120 to 240 Vac/Vdc
RC1610001 Small PTC heater, 13 W, 12 to 36 Vac/Vdc
Comes complete with operator’s manual.
Ordering Example: RC1610000, small semiconductor heater.
340 (13.3)
50 (2)
Enclosures
Dimensions: mm (in)
