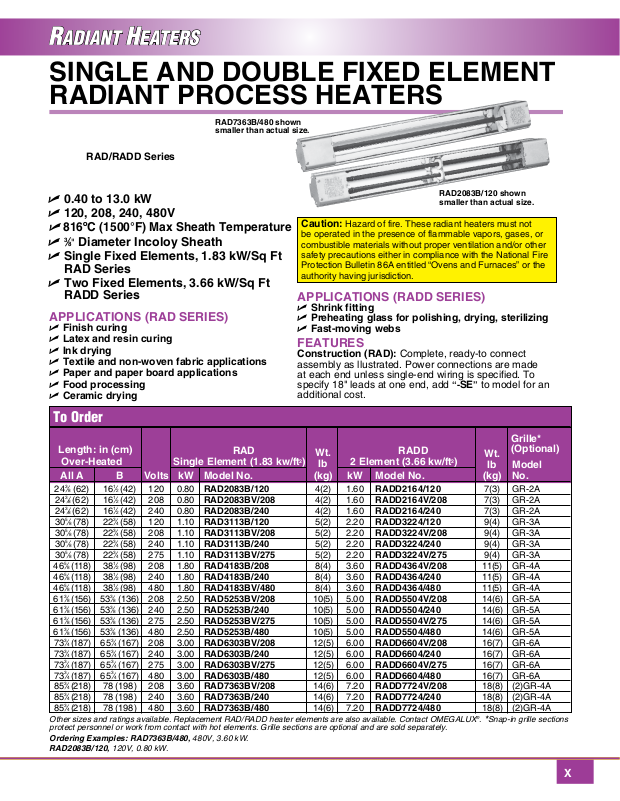

Page 1
SINGLE AND DOUBLE FIXED ELEMENT
RADIANT PROCESS HEATERS
RAD7363B/480 shown
smaller than actual size.
RAD/RADD Series
U 0.40 to 13.0 kW
RAD2083B/120 shown
smaller than actual size.
U 120, 208, 240, 480V
816ºC (1500°F) Max Sheath Temperature
U
U 3⁄8" Diameter Incoloy Sheath
U Single Fixed Elements, 1.83 kW/Sq Ft
RAD Series
Caution:
be operated in the presence of flammable vapors, gases, or
combustible materials without proper ventilation and/or other
safety precautions either in compliance with the National Fire
Protection Bulletin 86A entitled “Ovens and Furnaces” or the
authority having jurisdiction.
Hazard of fire. These radiant heaters must not
U Two Fixed Elements, 3.66 kW/Sq Ft
RADD Series
APPLICATIONS (RAD SERIES)
U Finish curing
U Latex and resin curing
U Ink drying
U Textile and non-woven fabric applications
U Paper and paper board applications
U Food processing
U Ceramic drying
APPLICATIONS (RADD SERIES)
U Shrink fitting
U Preheating glass for polishing, drying, sterilizing
U Fast-moving webs
FEATURES
Construction (RAD): Complete, ready-to connect
assembly as llustrated. Power connections are made
at each end unless single-end wiring is specified. To
specify 18" leads at one end, add “-SE” to model for an
additional cost.
To Order
Length: in (cm)
Over-Heated Single Element (1.83 kw/ft2)
RAD
Wt.
Ib
All A B Volts kW Model No. (kg) kW Model No. (kg) No.
3
24
⁄8 (62) 161⁄2 (42) 120 0.80 RAD2083B/120 4(2) 1.60 RADD2164/120 7(3) GR-2A
3
24
⁄8 (62) 161⁄2 (42) 208 0.80 RAD2083BV/208 4(2) 1.60 RADD2164V/208 7(3) GR-2A
3
24
⁄8 (62) 161⁄2 (42) 240 0.80 RAD2083B/240 4(2) 1.60 RADD2164/240 7(3) GR-2A
5
30
⁄8 (78) 223⁄4 (58) 120 1.10 RAD3113B/120 5(2) 2.20 RADD3224/120 9(4) GR-3A
5
30
⁄8 (78) 223⁄4 (58) 208 1.10 RAD3113BV/208 5(2) 2.20 RADD3224V/208 9(4) GR-3A
5
30
⁄8 (78) 223⁄4 (58) 240 1.10 RAD3113B/240 5(2) 2.20 RADD3224/240 9(4) GR-3A
5
30
⁄8 (78) 223⁄4 (58) 275 1.10 RAD3113BV/275 5(2) 2.20 RADD3224V/275 9(4) GR-3A
5
46
⁄8 (118) 381⁄2 (98) 208 1.80 RAD4183B/208 8(4) 3.60 RADD4364V/208 11(5) GR-4A
5
46
⁄8 (118) 381⁄2 (98) 240 1.80 RAD4183B/240 8(4) 3.60 RADD4364/240 11(5) GR-4A
5
46
⁄8 (118) 381⁄2 (98) 480 1.80 RAD4183BV/480 8(4) 3.60 RADD4364/480 11(5) GR-4A
3
61
⁄8 (156) 533⁄8 (136) 208 2.50 RAD5253BV/208 10(5) 5.00 RADD5504V/208 14(6) GR-5A
3
61
⁄8 (156) 533⁄8 (136) 240 2.50 RAD5253B/240 10(5) 5.00 RADD5504/240 14(6) GR-5A
3
61
⁄8 (156) 533⁄8 (136) 275 2.50 RAD5253BV/275 10(5) 5.00 RADD5504V/275 14(6) GR-5A
3
61
⁄8 (156) 533⁄8 (136) 480 2.50 RAD5253B/480 10(5) 5.00 RADD5504/480 14(6) GR-5A
3
73
⁄4 (187) 653⁄4 (167) 208 3.00 RAD6303BV/208 12(5) 6.00 RADD6604V/208 16(7) GR-6A
3
73
⁄4 (187) 653⁄4 (167) 240 3.00 RAD6303B/240 12(5) 6.00 RADD6604/240 16(7) GR-6A
3
73
⁄4 (187) 653⁄4 (167) 275 3.00 RAD6303BV/275 12(5) 6.00 RADD6604V/275 16(7) GR-6A
3
73
⁄4 (187) 653⁄4 (167) 480 3.00 RAD6303B/480 12(5) 6.00 RADD6604/480 16(7) GR-6A
3
85
⁄4 (218) 78 (198) 208 3.60 RAD7363BV/208 14(6) 7.20 RADD7724V/208 18(8) (2)GR-4A
3
85
⁄4 (218) 78 (198) 240 3.60 RAD7363B/240 14(6) 7.20 RADD7724/240 18(8) (2)GR-4A
3
85
⁄4 (218) 78 (198) 480 3.60 RAD7363B/480 14(6) 7.20 RADD7724/480 18(8) (2)GR-4A
Other sizes and ratings available. Replacement RAD/RADD heater elements are also available. Contact OMEGALUX®. *Snap-in grille sections
protect personnel or work from contact with hot elements. Grille sections are optional and are sold separately.
Ordering Examples: RAD7363B/480, 480V, 3.60 kW.
RAD2083B/120, 120V, 0.80 kW.
RADD
2 Element (3.66 kw/ft2)
Grille*
(Optional)
Wt.
Ib Model
X
