Page 1

BA C

RTD

Q: Snap cover head, AL with 3/4˝ process connection

SERIES R & 8

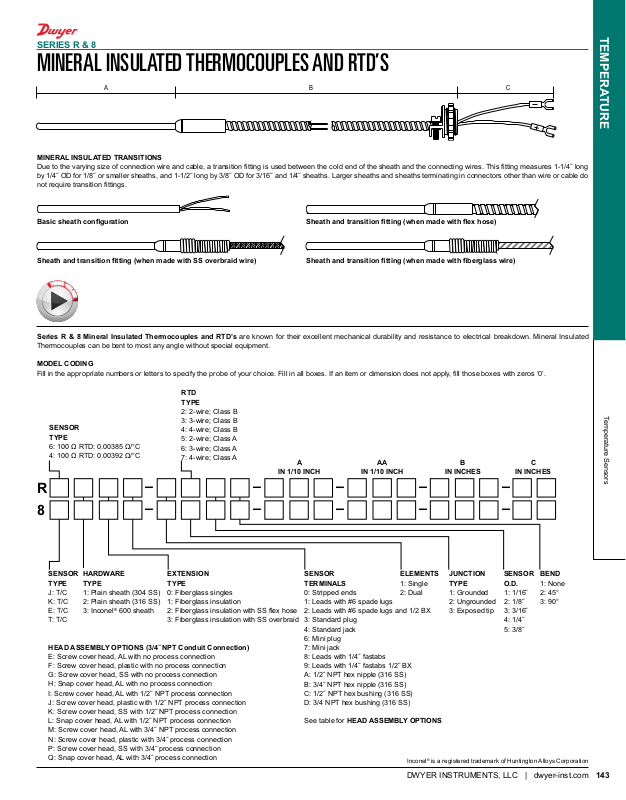

MINERAL INSULATED THERMOCOUPLES AND RTD’S

MINERAL INSULATED TRANSITIONS

Due to the varying size of connection wire and cable, a transition tting is used between the cold end of the sheath and the connecting wires. This tting measures 1-1/4˝ long by 1/4˝ OD for 1/8˝ or smaller sheaths, and 1-1/2˝ long by 3/8˝ OD for 3/16˝ and 1/4˝ sheaths. Larger sheaths and sheaths terminating in connectors other than wire or cable do not require transition ttings.

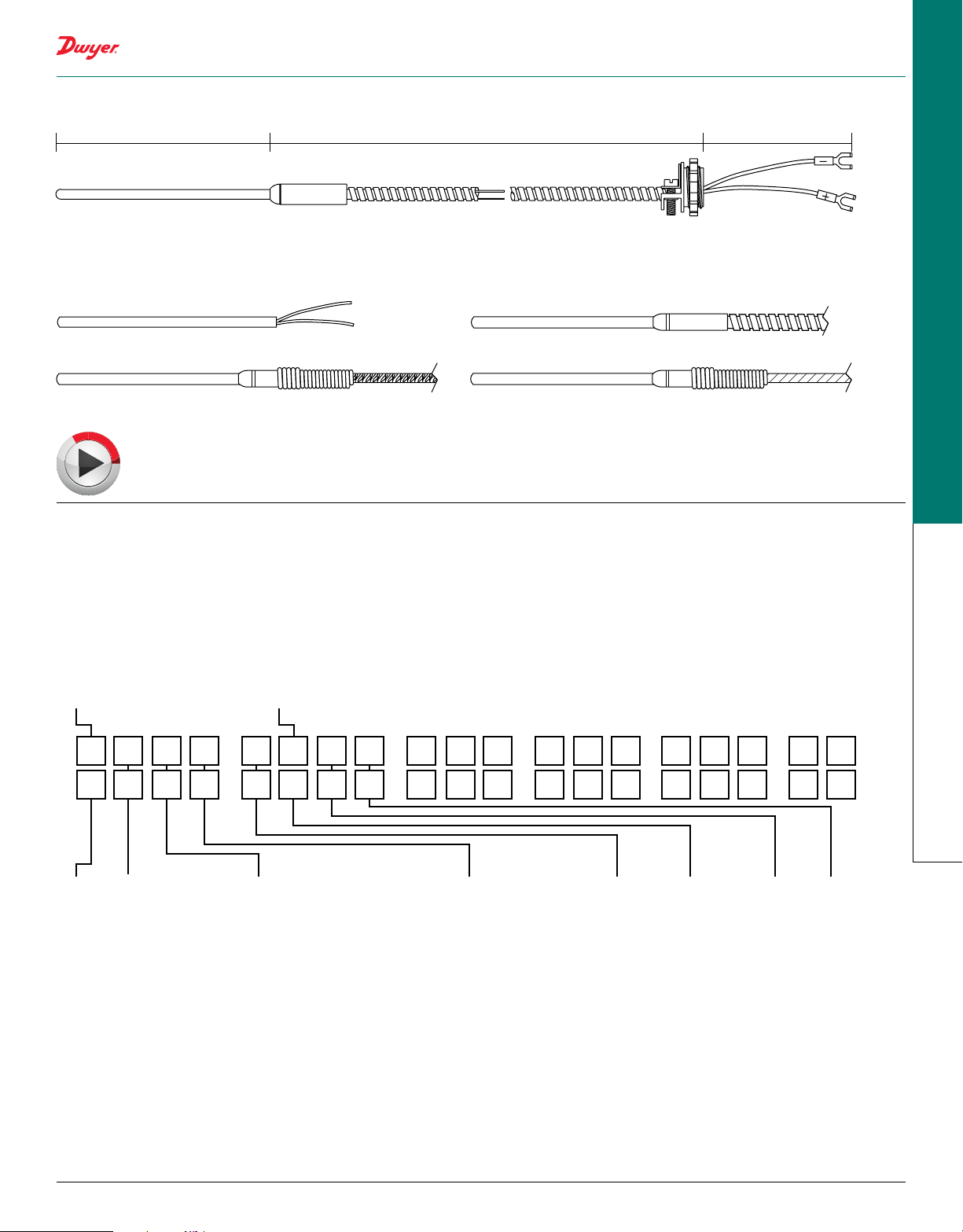

Basic sheath conguration Sheath and transition tting (when made with ex hose)

Sheath and transition tting (when made with SS overbraid wire) Sheath and transition tting (when made with berglass wire)

TEMPERATURE

Series R & 8 Mineral Insulated Thermocouples and RTD’s are known for their excellent mechanical durability and resistance to electrical breakdown. Mineral Insulated Thermocouples can be bent to most any angle without special equipment.

MODEL CODING

Fill in the appropriate numbers or letters to specify the probe of your choice. Fill in all boxes. If an item or dimension does not apply, ll those boxes with zeros ‘0’.

TYPE

2: 2-wire; Class B

SENSOR TYPE

6: 100 Ω RTD: 0.00385 Ω/°C 4: 100 Ω RTD: 0.00392 Ω/°C

3: 3-wire; Class B 4: 4-wire; Class B 5: 2-wire; Class A 6: 3-wire; Class A 7: 4-wire; Class A

IN 1/10 INCH

IN INCHES

–––––

SENSOR TYPE

J: T/C K: T/C E: T/C T: T/C

HEAD ASSEMBLY OPTIONS (3/4˝ NPT Conduit Connection)

E: Screw cover head, AL with no process connection F: Screw cover head, plastic with no process connection G: Screw cover head, SS with no process connection H: Snap cover head, AL with no process connection I: Screw cover head, AL with 1/2˝ NPT process connection J: Screw cover head, plastic with 1/2˝ NPT process connection K: Screw cover head, SS with 1/2˝ NPT process connection L: Snap cover head, AL with 1/2˝ NPT process connection M: Screw cover head, AL with 3/4˝ NPT process connection N: Screw cover head, plastic with 3/4˝ process connection P: Screw cover head, SS with 3/4˝ process connection

HARDWARE TYPE

1: Plain sheath (304 SS) 2: Plain sheath (316 SS) 3: Inconel

600 sheath

EXTENSION TYPE

0: Fiberglass singles 1: Fiberglass insulation 2: Fiberglass insulation with SS flex hose 3: Fiberglass insulation with SS overbraid

SENSOR TERMINALS

0: Stripped ends 1: Leads with #6 spade lugs 2: Leads with #6 spade lugs and 1/2 BX 3: Standard plug 4: Standard jack 6: Mini plug 7: Mini jack 8: Leads with 1/4˝ fastabs 9: Leads with 1/4˝ fastabs 1/2˝ BX A: 1/2˝ NPT hex nipple (316 SS) B: 3/4˝ NPT hex nipple (316 SS) C: 1/2˝ NPT hex bushing (316 SS) D: 3/4 NPT hex bushing (316 SS)

See table for HEAD ASSEMBLY OPTIONS

ELEMENTS

1: Single 2: Dual

Inconel® is a registered trademark of Huntington Alloys Corporation

DWYER INSTRUMENTS, LLC | dwyer-inst.com

JUNCTION TYPE

1: Grounded 2: Ungrounded 3: Exposed tip

SENSOR O.D.

1: 1/16˝ 2: 1/8˝ 3: 3/16˝ 4: 1/4˝ 5: 3/8˝

BEND

1: None 2: 45° 3: 90°

Temperature Sensors

143
