Omega PXM309 Specification

Download

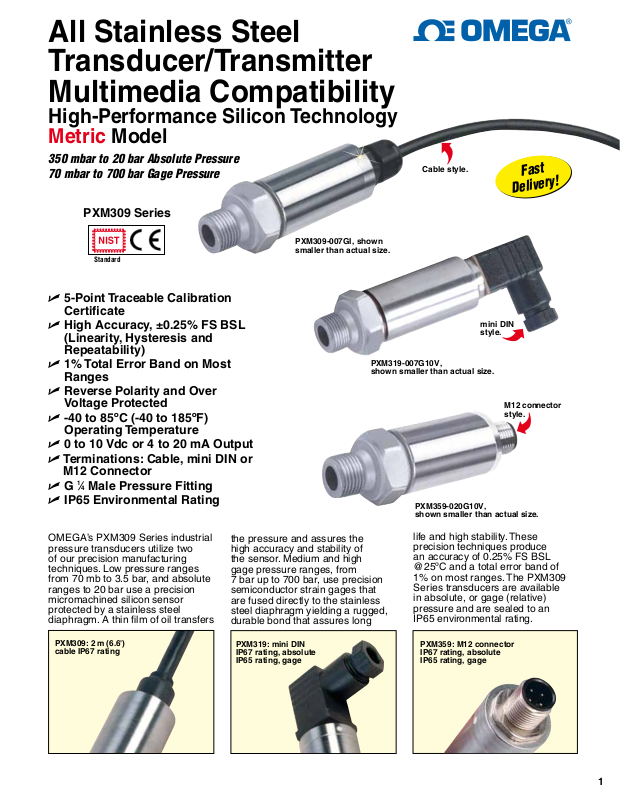

Page 1

All Stainless Steel Transducer/Transmitter

Multimedia Compatibility

High-Performance Silicon Technology

Metric Model

350 mbar to 20 bar Absolute Pressure 70 mbar to 700 bar Gage Pressure

PXM309 Series

Standard

U 5-Point Traceable Calibration

Certiﬁcate

U High Accuracy, ±0.25% FS BSL

(Linearity, Hysteresis and Repeatability)

U 1% Total Error Band on Most

Ranges

U Reverse Polarity and Over

Voltage Protected

U -40 to 85ºC (-40 to 185ºF)

Operating Temperature

U 0 to 10 Vdc or 4 to 20 mA Output U Terminations: Cable, mini DIN or

M12 Connector

U G 1⁄4 Male Pressure Fitting U IP65 Environmental Rating

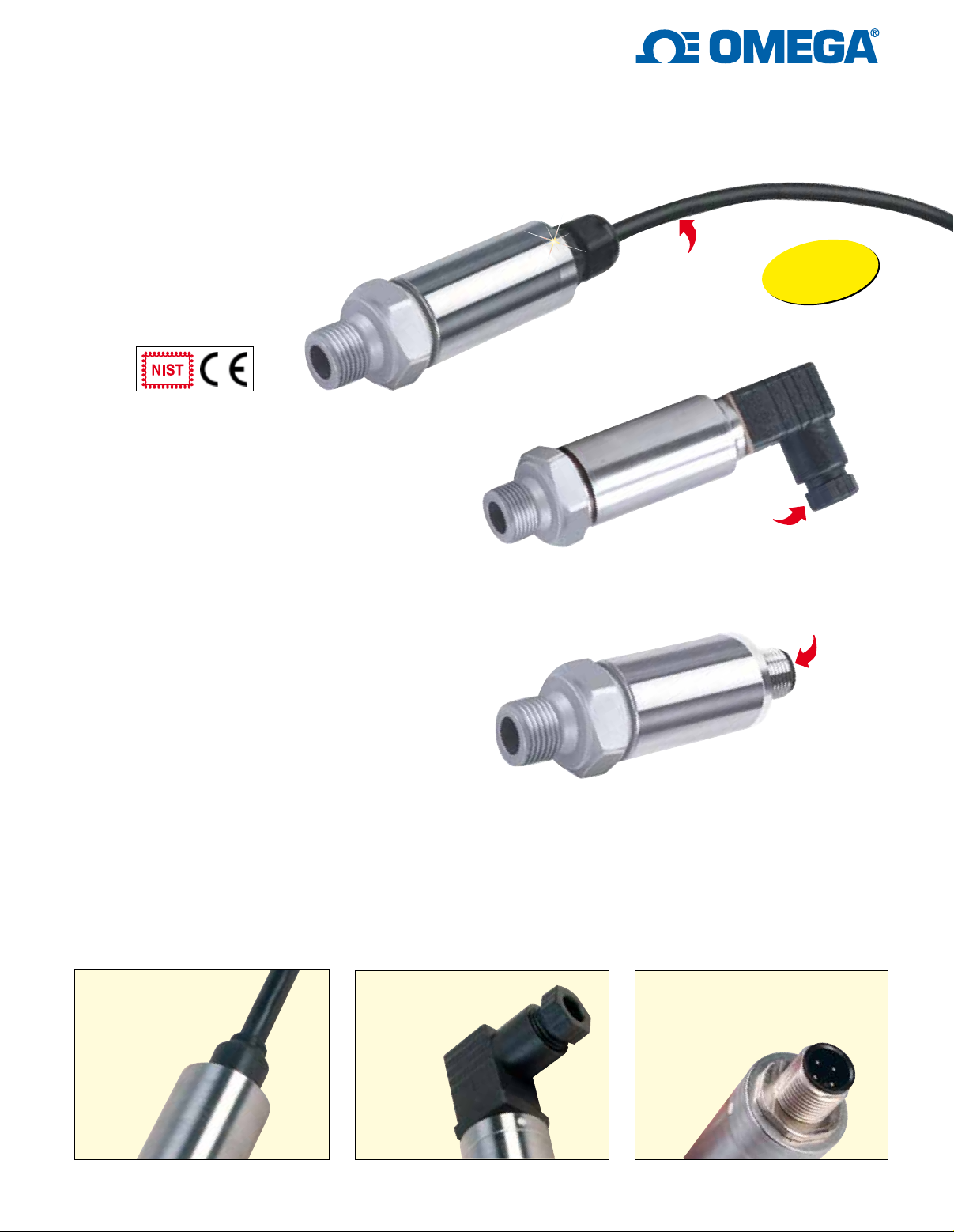

PXM309-007GI, shown smaller than actual size.

PXM319-007G10V, shown smaller than actual size.

Cable style.

Fast

Delivery!

mini DIN style.

M12 connector style.

PXM359-020G10V, shown smaller than actual size.

OMEGA’s PXM309 Series industrial pressure transducers utilize two of our precision manufacturing techniques. Low pressure ranges from 70 mb to 3.5 bar, and absolute ranges to 20 bar use a precision micromachined silicon sensor protected by a stainless steel diaphragm. A thin ﬁlm of oil transfers

PXM309: 2 m (6.6') cable IP67 rating

the pressure and assures the high accuracy and stability of the sensor. Medium and high gage pressure ranges, from 7 bar up to 700 bar, use precision semiconductor strain gages that are fused directly to the stainless steel diaphragm yielding a rugged, durable bond that assures long

PXM319: mini DIN IP67 rating, absolute IP65 rating, gage

life and high stability. These precision techniques produce an accuracy of 0.25% FS BSL @25ºC and a total error band of 1% on most ranges. The PXM309 Series transducers are available in absolute, or gage (relative) pressure and are sealed to an IP65 environmental rating.

PXM359: M12 connector IP67 rating, absolute IP65 rating, gage

Page 2

(0.8) max

Cable

PX309

1.5 m (5')

⁄

HEX

22 (0.88) DIA

PX309

(2.2) max

(0.63)

max

(0.8) max

(0.63)

Cable

309

1.5 m (5')

⁄8 HEX

22 (0.88) DIA

Vented

through cable

Ø 20.2

(0.8)

M12 x 1

5 (0.2)

M12

SPECIFICATIONS

Supply Voltage

Reverse polarity and over voltage protected

0 to 10 Vdc Output: 15 to 30 Vdc at 10 mA

4 to 20 mA: 9 to 30 Vdc Static Accuracy 350 mB to 700 bar:

±0.25% FS BSL at 25ºC (includes linearity, hysteresis and repeatability)

Long Term Stability (1 yr): ±0.25% FS

Total Error Band*

70 mB ±4.5% gage 140 mB ±3% gage 350 mB ±1.5% gage and absolute 1 to 20 bar ±1% absolute 1 to 700 bar ±1% gage

Note*: Total error band includes all accuracy errors, thermal errors, span and zero tolerances.

Isolation (Body to Any Lead): 1 M Ω at 25 Vdc

Pressure Cycles: 1 x 107 full scale cycles

Pressure Overload

70 mB to 3.5 bar Gage: 3 x rated

pressure or 1.38 bar whichever is greater

350 mB to 20 bar Absolute: 3 x rated pressure or 1.38 bar whichever is greater

7 to 700 bar Gage: 2 x rated pressure

Burst Pressure

70 mB to 3.5 bar Gage: 5 x rated

pressure or 1.72 bar whichever is greater

350 mB to 20 bar Absolute: 5 x rated pressure or 1.72 bar whichever is greater

7 to 700 bar Gage: 5 x rated pressure

Compensated Temperature

70 to 350 mbar Gage/Abs: 0 to 50ºC

(32 to 122ºF) 1 to 700 bar Gage: -20 to 85ºC

(-4 to 185ºF) 1 to 20 bar Absolute: -20 to 85ºC

(-4 to 185ºF)

Operating Temperature: -40 to 85ºC (-40 to 185ºF)

Response Time: 1 mS Bandwidth: DC to 1 kHz type Pressure Connection: G

Male

⁄

Wetted Parts

70 mB to 3.5 bar Gage: 316 SS 350 mB to 20 bar Absolute: 316 SS 7 to 700 bar Gage: 17-4PH SS

0 to 35 bar: may contain HNBR o-ring in wetted pressure port assembly

CE Compliant: EC55022, EC55011 Emissions Class A&B

61000-2,-3,-4,-5,-6,&-9

IEC: Shock: 50 g 11 mSec half sine shock Vibration: ± 20 g

Electrical Connections

PXM309: 1.5 m (5') 2 or 3-conductor

cable, mA or 10V outputs, respectively PXM319: mini DIN connector with

mating connector included

PXM359: M12 4-pin connector Weight: Typical 150 g (5.3 oz)

depending upon conﬁguration

10 Vdc Output Wiring

Wiring Cable DIN M12 Excitation (+) Red Pin 1 Pin 1

Excitation (-) Black Pin 2 Pin 2 Output (+) White Pin 3 Pin 3 N/C† Pin 4 Pin 4

mA Output Wiring

Wiring Cable DIN M12 Supply (+) Red Pin 1 Pin 1

Supply (-) Black Pin 2 Pin 2 N/C† Pin 3 Pin 3 N/C† Pin 4 Pin 4

†

N/C: Do not connect any wires to this pin.

mini

PXM319 mini DIN

(1.2)

PXM359

M12 Connector

ø 18

(0.70)

M12 x 1

(0.2)

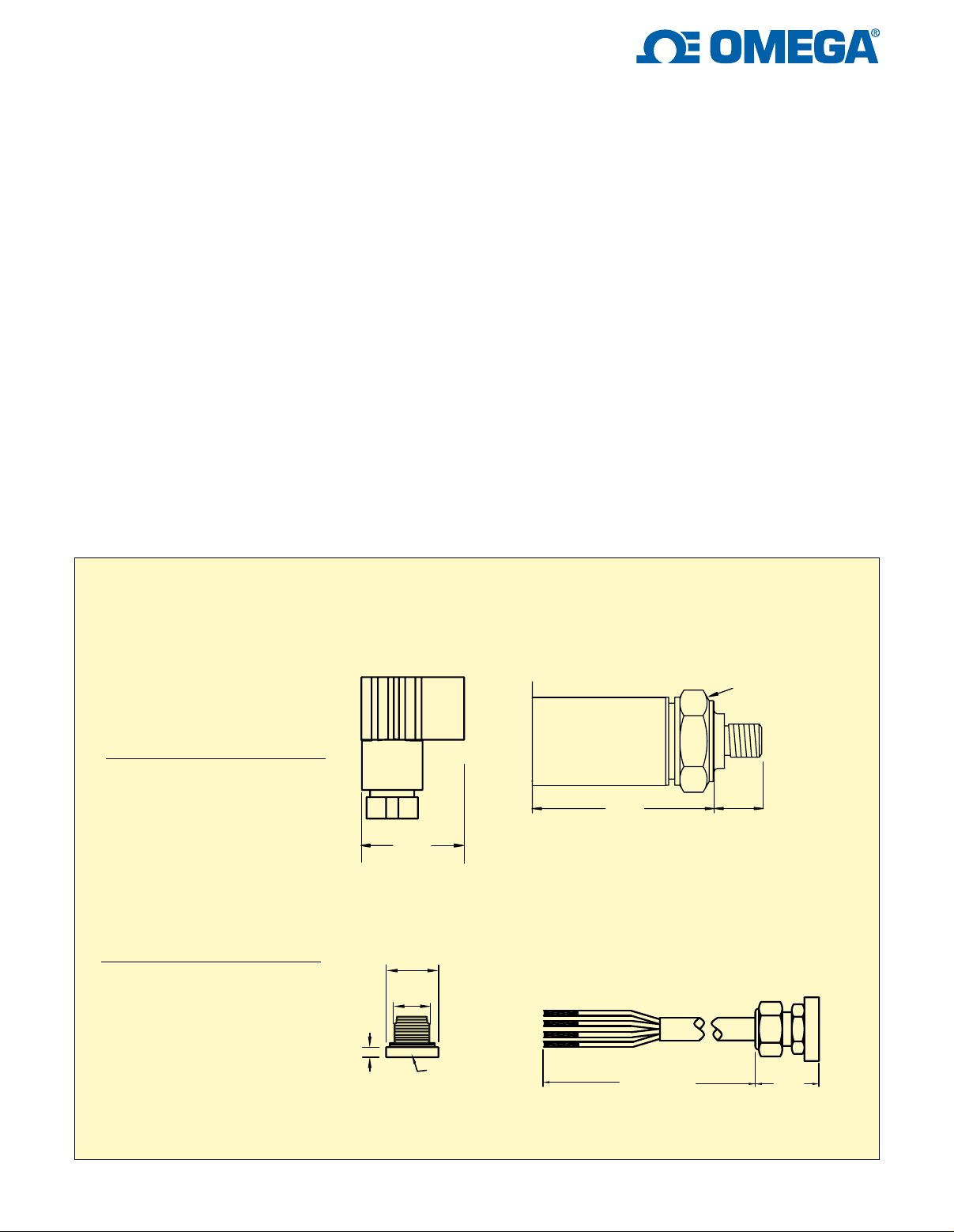

Dimensions: mm (inch) ø = diameter

22 (0.875) HEX

11.4

(0.45)

G ¼ male fitting

PXM309

Cable

22 (0.875) DIA

(2.11)

max

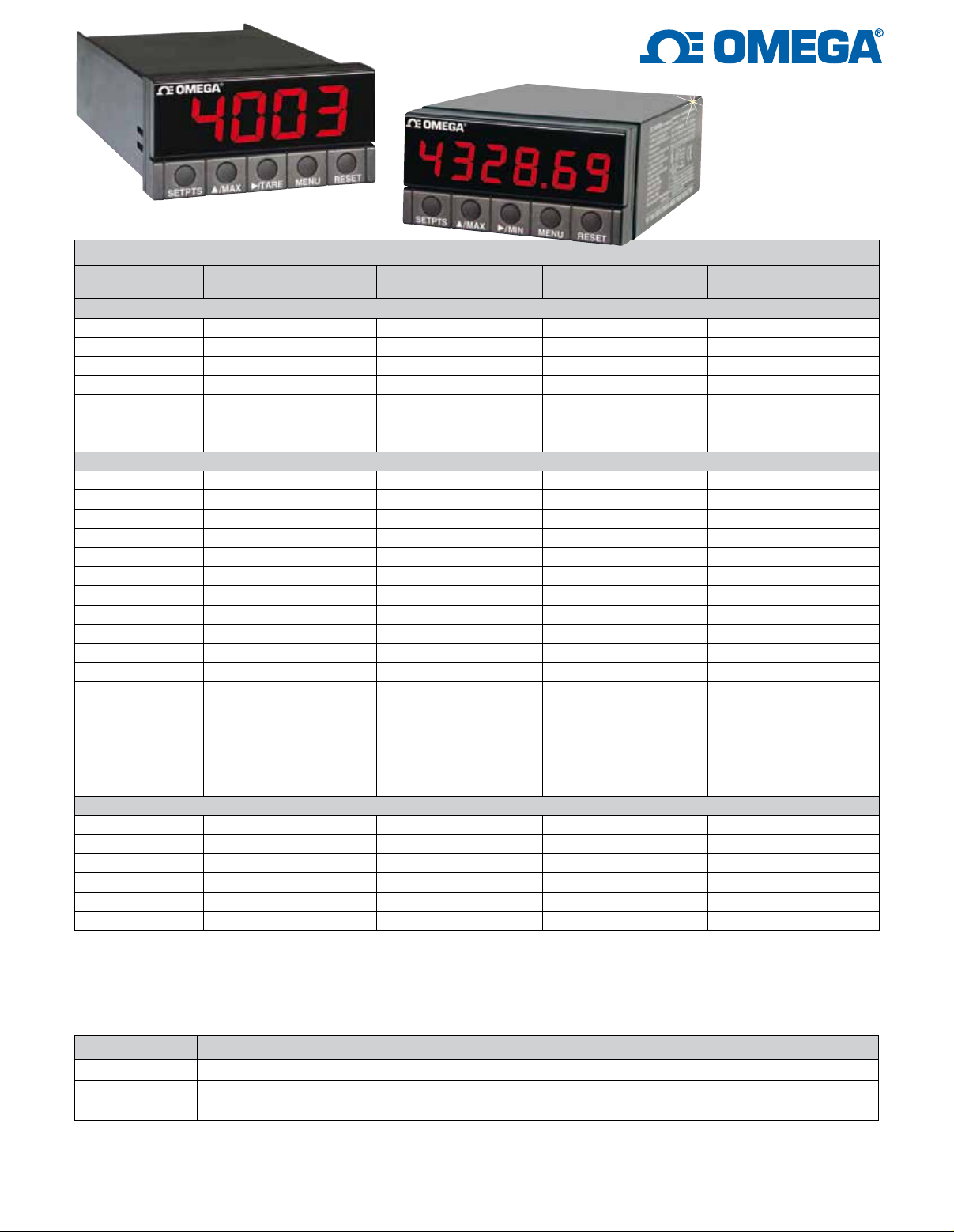

Page 3

DP25B, shown smaller than actual size.

DP41-B, shown smaller than actual size.

To Order

Range

PXM309 Series

Absolute Pressure

Cable Models

350 mbar 1 bar 2 bar

3.5 bar 7 bar 15 bar 20 bar

PXM309-0.35A[*] PXM319-0.35A[*] PXM359-0.35A[*] PXM309-001A[*] PXM319-001A[*] PXM359-001A[*] PXM309-002A[*] PXM319-002A[*] PXM359-002A[*] PXM309-3.5A[*] PXM319-3.5A[*] PXM359-3.5A[*] PXM309-007A[*] PXM319-007A[*] PXM359-007A[*] PXM309-015A[*] PXM319-015A[*] PXM359-015A[*] PXM309-020A[*] PXM319-020A[*] PXM359-020A[*]

Gage (Relative) Pressure

70 mbar 140 mbar 350 mbar 1 bar 2 bar

3.5 bar 7 bar 10 bar 15 bar 20 bar 35 bar 70 bar 140 bar 200 bar 350 bar 500 bar 700 bar

PXM309-0.07G[*] PXM319-0.07G[*] PXM359-0.07G[*] PXM309-0.14G[*] PXM319-0.14G[*] PXM359-0.14G[*] PXM309-0.35G[*] PXM319-0.35G[*] PXM359-0.35G[*] PXM309-001G[*] PXM319-001G[*] PXM359-001G[*] PXM309-002G[*] PXM319-002G[*] PXM359-002G[*] PXM309-3.5G[*] PXM319-3.5G[*] PXM359-3.5G[*] PXM309-007G[*] PXM319-007G[*] PXM359-007G[*] PXM309-010G[*] PXM319-010G[*] PXM359-010G[*] PXM309-015G[*] PXM319-015G[*] PXM359-015G[*] PXM309-020G[*] PXM319-020G[*] PXM359-020G[*] PXM309-035G[*] PXM319-035G[*] PXM359-035G[*] PXM309-070G[*] PXM319-070G[*] PXM359-070G[*] PXM309-140G[*] PXM319-140G[*] PXM359-140G[*] PXM309-200G[*] PXM319-200G[*] PXM359-200G[*] PXM309-350G[*] PXM319-350G[*] PXM359-350G[*] PXM309-500G[*] PXM319-500G[*] PXM359-500G[*] PXM309-700G[*] PXM319-700G[*] PXM359-700G[*]

Vacuum and Compound Gage Pressure

0 to -1 bar PXM309-001V[*] PXM319-001V[*] PXM359-001V[*] DP25B-E, DP41-B

-1 to 0 to +1 bar

PXM309-001CG[*] PXM319-001CG[*] PXM359-001CG[*]

-1 to 2 bar PXM309-V002G[*] PXM319-V002G[*] PXM359-V002G[*] DP25B-E, DP41-B

-1 to 3.5 bar PXM309-V3.5G[*] PXM319-V3.5G[*] PXM359-V3.5G[*] DP25B-E, DP41-B

-1 to 7 bar PXM309-V007G[*] PXM319-V007G[*] PXM359-V007G[*] DP25B-E, DP41-B

-1 to 10 bar PXM309-V010G[*] PXM319-V010G[*] PXM359-V010G[*] DP25B-E, DP41-B

Comes complete with 5-point traceable calibration certificate

[*] Insert “10V” for 0 to 10 Vdc output or “I” for 4 to 20 mA output Note: M12 models require vented cable with gage units below 70 bar.

mini Din Models PXM319 Series

M12 Models PXM359 Series Compatible Meters

DP25B-E, DP41-B DP25B-E, DP41-B DP25B-E, DP41-B DP25B-E, DP41-B DP25B-E, DP41-B DP25B-E, DP41-B DP25B-E, DP41-B

DP25B-E, DP41-B DP25B-E, DP41-B DP25B-E, DP41-B DP25B-E, DP41-B DP25B-E, DP41-B DP25B-E, DP41-B DP25B-E, DP41-B DP25B-E, DP41-B DP25B-E, DP41-B DP25B-E, DP41-B DP25B-E, DP41-B DP25B-E, DP41-B DP25B-E, DP41-B DP25B-E, DP41-B DP25B-E, DP41-B DP25B-E, DP41-B DP25B-E, DP41-B

DP25B-E, DP41-B

Accessories

Model No. Description P002414-1 P002414-2

PXMW-4

Ordering Examples: PXM309-007G10V, cable model, 7 bar range, gage pressure, 0 to 10 Vdc output. PXM319-007AI, mini DIN model, 7 bar range, absolute pressure, 4 to 20 mA output. PXM359-070GI, M12 termination, 70 bar range, gage pressure, 4 to 20 mA output, P002414-1, 2 m (6.6') vented cable with mating M12

connector for PXM359.

2 m (6.6') vented cable with mating M12 connector and ﬂying leads for PXM359

5 m (16.4') vented cable with mating M12 connector and ﬂying leads for PXM359

SEALING WASHER FOR G 1/4, STAINLESS STEEL WITH FKM SEAL (INCLUDED)
