Page 1

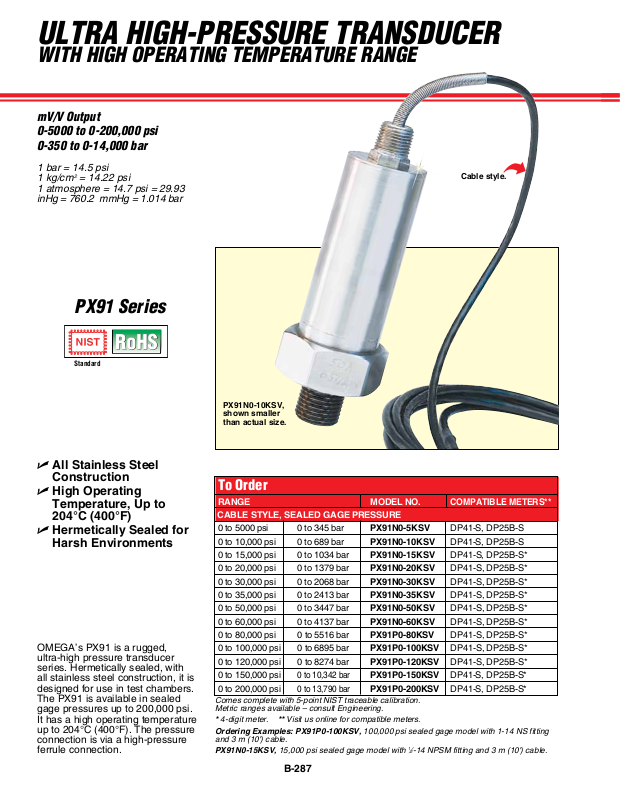

ULTRA HIGH-PRESSURE TRANSDUCER

WITH HIGH OPERATING TEMPERATURE RANGE

mV/V Output 0-5000 to 0-200,000 psi 0-350 to 0-14,000 bar

1 bar = 14.5 psi 1 kg/cm2 = 14.22 psi 1 atmosphere = 14.7 psi = 29.93 inHg = 760.2 mmHg = 1.014 bar

PX91 Series

Standard

U All Stainless Steel

Construction

U High Operating

Temperature, Up to 204°C (400°F)

U Hermetically Sealed for

Harsh Environments

OMEGA’s PX91 is a rugged, ultra-high pressure transducer series. Hermetically sealed, with all stainless steel construction, it is designed for use in test chambers. The PX91 is available in sealed gage pressures up to 200,000 psi. It has a high operating temperature up to 204°C (400°F). The pressure connection is via a high-pressure ferrule connection.

Cable style.

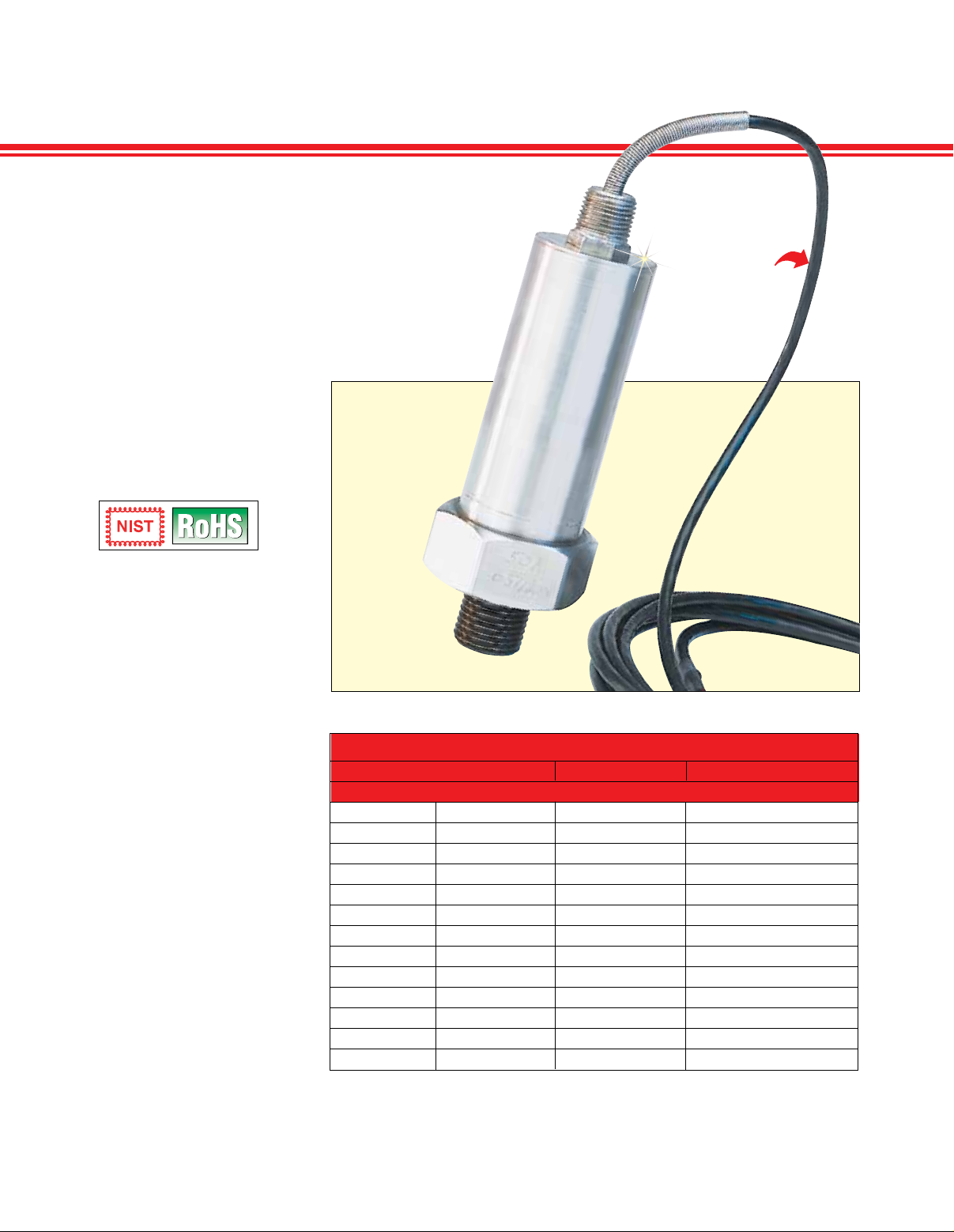

PX91N0-10KSV, shown smaller than actual size.

To Order

RANGE MODEL NO. CABLE STYLE, SEALED GAGE PRESSURE

0 to 5000 psi 0 to 345 bar PX91N0-5KSV DP41-S, DP25B-S 0 to 10,000 psi 0 to 689 bar PX91N0-10KSV DP41-S, DP25B-S 0 to 15,000 psi 0 to 1034 bar PX91N0-15KSV DP41-S, DP25B-S* 0 to 20,000 psi 0 to 1379 bar PX91N0-20KSV DP41-S, DP25B-S* 0 to 30,000 psi 0 to 2068 bar PX91N0-30KSV DP41-S, DP25B-S* 0 to 35,000 psi 0 to 2413 bar PX91N0-35KSV DP41-S, DP25B-S* 0 to 50,000 psi 0 to 3447 bar PX91N0-50KSV DP41-S, DP25B-S* 0 to 60,000 psi 0 to 4137 bar PX91N0-60KSV DP41-S, DP25B-S* 0 to 80,000 psi 0 to 5516 bar PX91P0-80KSV DP41-S, DP25B-S* 0 to 100,000 psi 0 to 6895 bar PX91P0-100KSV DP41-S, DP25B-S* 0 to 120,000 psi 0 to 8274 bar PX91P0-120KSV DP41-S, DP25B-S* 0 to 150,000 psi 0 to 200,000 psi

Comes complete with 5-point NIST traceable calibration. Metric ranges available – consult Engineering.

* 4-digit meter. ** Visit us online for compatible meters. Ordering Examples: PX91P0-100KSV, 100,000 psi sealed gage model with 1-14 NS fitting

and 3 m (10') cable. PX91N0-15KSV, 15,000 psi sealed gage model with

0 to 10,342 bar 0 to 13,790 bar

PX91P0-150KSV DP41-S, DP25B-S* PX91P0-200KSV DP41-S, DP25B-S*

⁄2-14 NPSM fitting and 3 m (10') cable.

COMPATIBLE METERS**

B-287

Page 2

AR TWORK/PRODUCT ART/ OMEGADYNE/OD-PX91SERIES

PX91 Series

HIGH-TEMPERATURE/HIGH-PRESSURE TRANSDUCER

(0.50)

Wiring Code

Cable Bendix Singal

Green White Black Red

(1.50)

DIA.

+ OUTPUT – OUTPUT – INPUT + INPUT

N/C

Pin B Pin C Pin D

Pin E/F

3 m (10') 4-CONDUCTOR SHIELDED PTFE CABLE 18

3/8-18 NPT

(0.69)

N Style Pressure Port

45 HEX

(1.75)

105

(4.13)

P Style Pressure Port

(0.75)

5,000-70,000 psi

(Standard)

(1.25)

(1.0)

8 (0.315) DIA.

1/2-14 NPS

+ 0

150°

– 2

59°

+ 0 – 0.5

(0.910)

DIA.

44 (1.75)

HEX

PRESSURE TRANSDUCERS

SPECIALTY

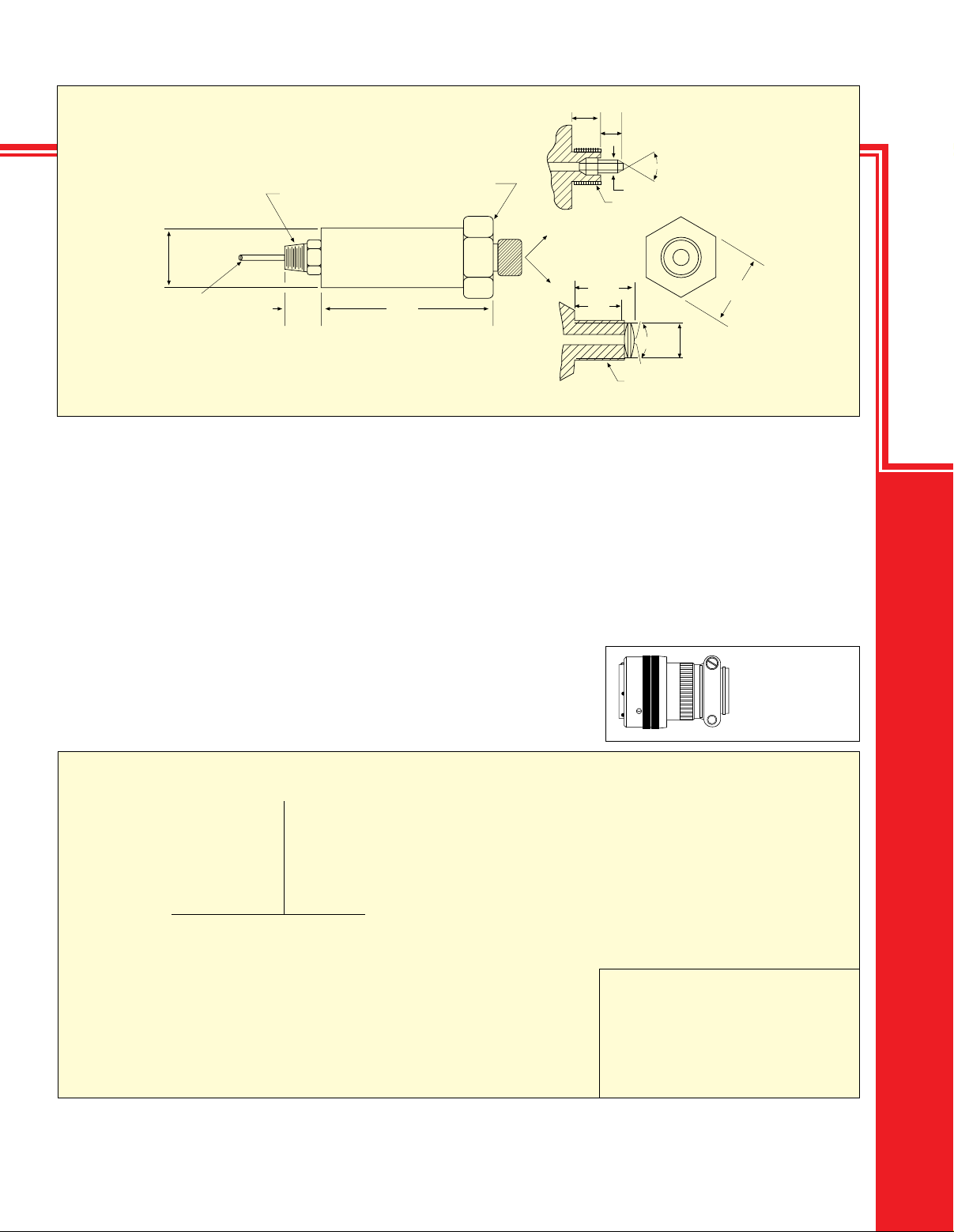

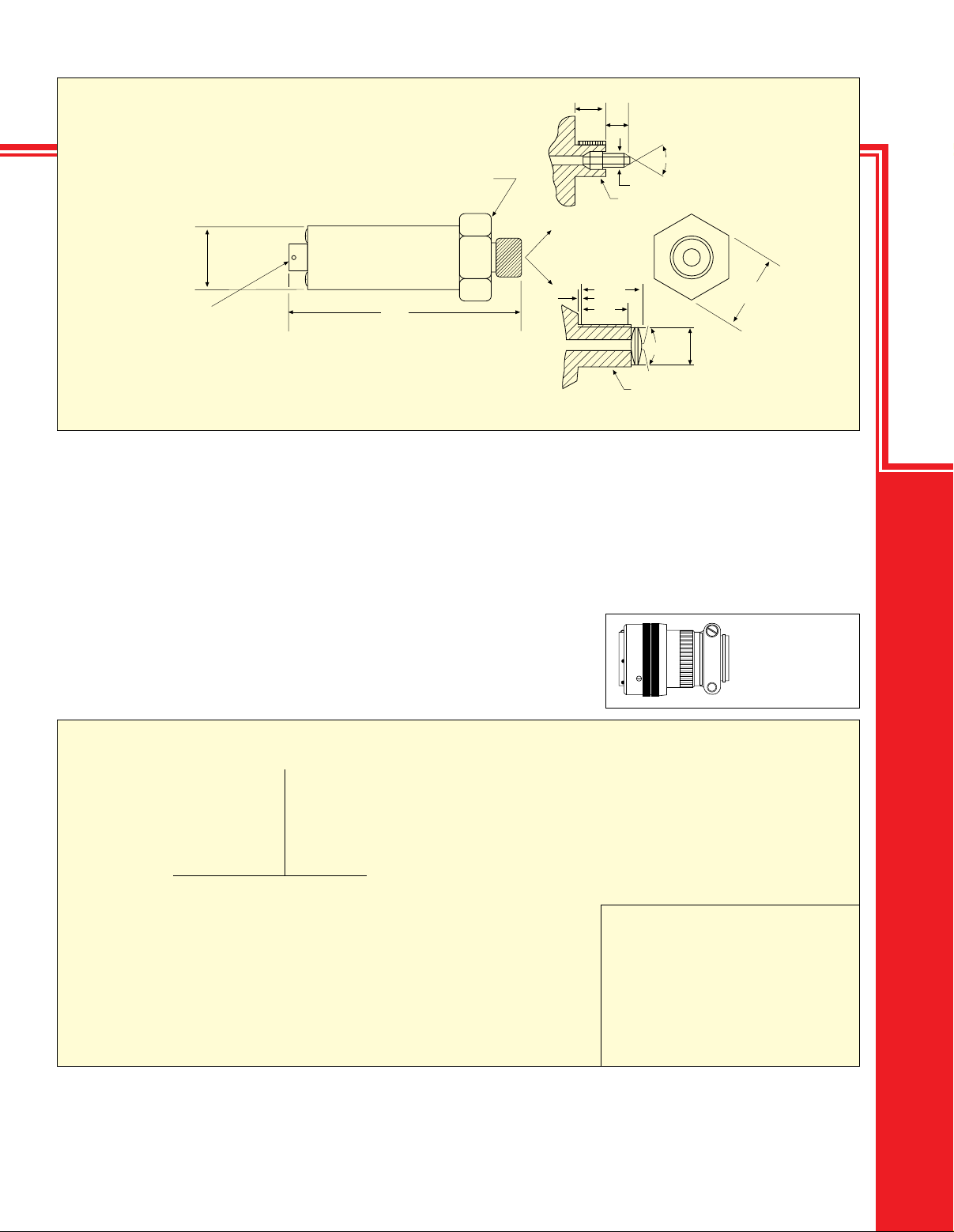

Dimensions: mm (inch)

SPECIFICATIONS

mV/V Output

Excitation: 10 Vac/Vdc (15V max) Output: 1 mV/V ±0.5% Bridge Resistance: 350 Ω nominal Zero Balance: ±2.5% Linearity:

≤70K psi: ±0.35% FSO >70K psi: ±0.50% FSO

Hysteresis: ±0.10% FSO Repeatability: ±0.10% FSO Operating Temp Range:

-56 to 204°C (-70 to 400°F)

Electrical Connection:

4-conductor shielded cable

3 m (10')

Compensated Temp Range:

21 to 218°C (70 to 425°F)

Thermal Effects: Span: 0.01% rdg/°F

Zero: 0.01% FSO/°F

Proof Pressure:

≤70K psi: 120% of rated pressure >70K psi: 110% of rated pressure

Burst Pressure:

≤70K psi: 150% of rated pressure >70K psi: 120% of rated pressure

80,000-200,000 psi

(Standard)

1-14 NS-2

Wetted Parts:

≤70K psi: 17-4 PH stainless steel >70K psi: 455 stainless steel

Pressure Port:

≤70K psi:

⁄2-14 NPSM (use with 0.315" dia. 59° ferrule) >70K psi: 1-14 NS-2 (use with 0.910" dia 150° ferrule)

Calibration:

≤30k psi: Full scale calibration >

30k psi: Calibration up to 30k psi.

Consult Sales for full scale price.

Mating Connector PT06F10-6S-R

CUSTOM CONFIGURATIONS

PX91 PRESSURE ELECTRICAL RANGE

SERIES PORT CONNECTION (psi) UNITS OUTPUT OPTIONS

[ 1 ] [ 2 ] [ 3 ] [ 4 ] [ 5 ] [ 6 ]

Ranges ≤70,000 psi

N =

⁄2-14 NPSM (use with

0.315" dia. 59° ferrule)

Ranges >70,000 psi P= 1-14 NS-2 (use with 0.910"

dia. 150° ferrule)

5K 10K 15K 20K 30K 35K

S = Sealed gage

V = mV/V

Visit us online for additional options.

50K

0 = 3 m (10') PTFE cable

1 = PTIH-10-6P Connector

60K 80K 100K 120K 150K 200K

To order a custom configuration:

1. Select a pressure port

2. Select electrical connection

3. Select a pressure range

4. Select pressure units

Metric ranges available – consult Engineering.

5. Select output

To order extra cable on cable style models, add suffix “-(length in feet) FT” for additional cost per foot beyond the standard 3 m (10') length. Ordering Examples: PX91N0-50KSV-25FT, 50,000 psi sealed gage pressure range model with mV/V output, 1⁄2 -14 NPSM fitting and

7.6 m (25') cable. PX91P0-100KSV, 100,000 psi sealed gage pressure range model with mV output, 1-14 NS-2 fitting and 3 m (10') cable.

B-288

Page 3

ULTRA-HIGH-PRESSURE TRANSDUCERS

CABLE OR CONNECTOR STYLE

0-5 Vdc Output 0-5000 to 0-200,000 psi 0-350 to 0-14,000 bar

1 bar = 14.5 psi 1 kg/cm 1 atmosphere = 14.7 psi = 29.93 inHg = 760.2 mmHg = 1.014 bar

= 14.22 psi

PX91 Series

Standard

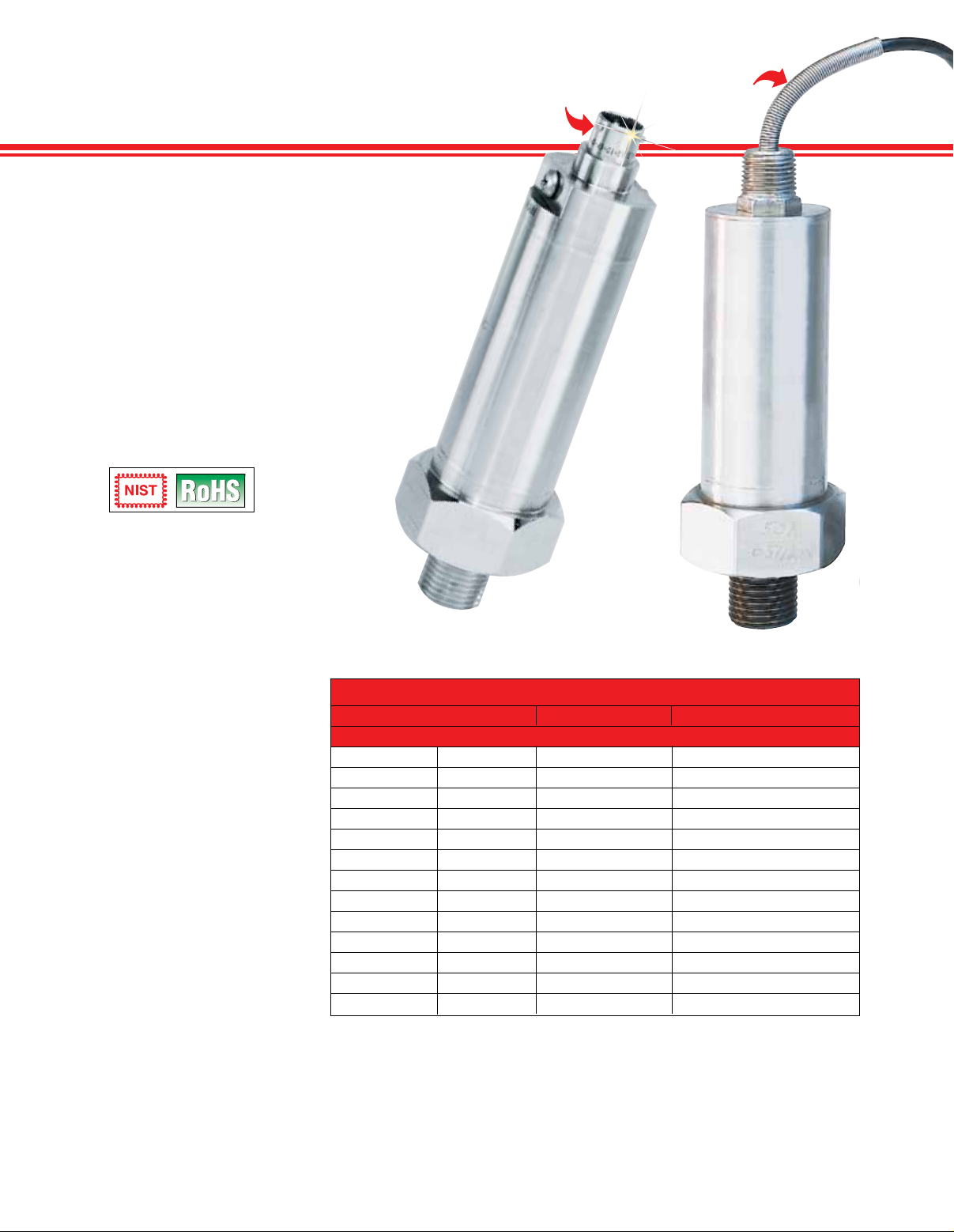

PX91N1-30KS5T

Twist-lock style.

Cable style.

Both models shown smaller than actual size.

U Ranges Up to 200,000 psi U High Operating

Temperature, Up to 121°C (250°F)

U Hermetically Sealed for

Harsh Environments

U Internal Shunt Resistor

OMEGA’s PX91 amplified output series comprises rugged, hightemperature/ultra-high-pressure transducers. They are hermetically sealed, with all stainless steel construction, and are designed for the harshest test chamber environments. The PX91 is available in sealed gage pressures from 5000 psi to 200,000 psi. The electrical connection is either a sealed connector or a lightningprotected, amplifier housing. The pressure connection is via a high-pressure ferrule.

PX91N0-30KS5T

To Order

RANGE MODEL NO. COMPATIBLE METERS** SEALED GAGE PRESSURE – [*] INSERT “0” FOR CABLE OR “1” FOR CONNECTOR

0 to 5000 psi 0 to 345 bar PX91N[*]-5KS5T 0 to 10,000 psi 0 to 689 bar PX91N[*]-10KS5T 0 to 15,000 psi 0 to 1034 bar PX91N[*]-15KS5T 0 to 20,000 psi 0 to 1379 bar PX91N[*]-20KS5T 0 to 30,000 psi 0 to 2068 bar PX91N[*]-30KS5T 0 to 35,000 psi 0 to 2413 bar PX91N[*]-35KS5T 0 to 50,000 psi 0 to 3447 bar PX91N[*]-50KS5T 0 to 60,000 psi 0 to 4137 bar PX91N[*]-60KS5T 0 to 80,000 psi 0 to 5516 bar PX91P[*]-80KS5T

0 to 100,000 psi 0 to 120,000 psi

0 to 150,000 psi 0 to 10,342 bar

0 to 200,000 psi 0 to 13,790 bar

Comes complete with 5-point NIST traceable calibration. Metric ranges available – consult Engineering.

4-digit meter.

Visit us online for compatible meters.

[*] Insert “0” for 3 m (10') cable, “1” for connector style or “5” for amplifier housing. Ordering Examples: PX91N1-60KS5T, 60,000 psi sealed gage model with 0 to 5 Vdc output,

⁄2

-14 NPSM fitting, connector style. PT06F10-6S-R, mating connector (sold separately).

PX91P0-80KS5T, 80,000 psi sealed gage model with 0 to 5 Vdc output, 1-14 NS fitting and 3 m (10') PTFE cable.

0 to 6895 bar PX91P[*]-100KS5T 0 to 8274 bar PX91P[*]-120KS5T

PX91P[*]-150KS5T PX91P[*]-200KS5T

DP41-E, DP25B-E, DP24-E

DP41-E, DP25B-E, DP24-E DP41-E, DP25B-E*, DP24-E* DP41-E, DP25B-E*, DP24-E* DP41-E, DP25B-E*, DP24-E* DP41-E, DP25B-E*, DP24-E* DP41-E, DP25B-E*, DP24-E* DP41-E, DP25B-E*, DP24-E* DP41-E, DP25B-E*, DP24-E* DP41-E, DP25B-E*, DP24-E* DP41-E, DP25B-E*, DP24-E* DP41-E, DP25B-E*, DP24-E* DP41-E, DP25B-E*, DP24-E*

B-289

Page 4

AR TWORK/PRODUCT AR T/ OMEGADYNE/OD-PX91connector

PX91 Series

ULTRA-HIGH-PRESSURE TRANSDUCERS

Wiring Code

Cable Bendix Singal

Green White Black Red

Orange Blue

Pin D

Pin E

Pin F

(1.5)

DIA.

PTIH-10-6P OR EQUAL

+ OUTPUT – OUTPUT – INPUT + INPUT

Shunt Shunt

N Style Pressure Port

45 HEX

(1.75)

191

(7.50)

MAX

P Style Pressure Port

1.6

(0.062)

(0.563)

(0.75)

5000-70,000 psi

(Standard)

(1.218)

(0.875)

1/2-14 NPS

59 °

8 (0.315) DIA.

+ 0

– 2

150 °

+ 0 – 2

23 (0.910) DIA.

44 (1.75)

HEX

PRESSURE TRANSDUCERS

SPECIALTY

1-14 NF-2

Pressure Port:

≤70K psi:

⁄2-14 NPSM (fits 0.315" dia. 59° ferrule) >70K psi: 1-14 NS-2 (use 0.910" dia. 150° ferrule)

Electrical Connection:

PTIH-10-6P or 10' cable Optional: Lightning-protected amplifier housing

Mating Connector: For connector style, PT06F10-6S

-R (sold separately)

Mating Connector PT06F10-6S-R

Dimensions: mm (inch)

SPECIFICATIONS

Excitation: 28 Vdc ±4 V Output: 0 to 5 Vdc ±10% adj Zero Balance: 0 V ±10% FSO adj Non-Linearity:

≤70K psi: 0.35% FS

>70K psi: 0.5% FS Hysteresis: 0.10% FS Repeatability: 0.10% FS Operating Temp Range:

-46 to 121°C (-50 to 250°F)

Shunt: 80% FSO Compensated Temp Range:

17 to 71°C (60 to 160°F)

Thermal Effects: Span: 0.005% rdg/°F

Zero: 0.005% FSO/°F

Proof Pressure:

≤50k PSI: 120% of rated pressure >50k PSI: 110% of rated pressure

Burst Pressure:

≤50k PSI: 150% of rated pressure >50k PSI: 120% of rated pressure

Wetted Parts:

≤70K: 17-4 PH SS >70K: 455 SS

80,000-200,000 psi

(Standard)

CUSTOM CONFIGURATIONS

PX91 PRESSURE ELECTRICAL RANGE SERIES PORT CONNECTION (psi) UNITS OUTPUT OPTIONS

[ 1 ] [ 2 ] [ 3 ] [ 4 ] [ 5 ] [ 6 ]

Ranges ≤70,000 psi

⁄2-14 NPSM (use with

N =

0.315" dia. 59° ferrule)

Ranges >70,000 psi P= 1-14 NS-2 (use with 0.910"

dia. 150° ferrule)

0 = 3 m (10') cable

+ add cost/ft over

3 m (10')

1 = PTIH-10-6P connector

(or equal, no charge) Mating connector (sold separately), order

PT06F10-6S

Amplified

Models Only

Metric ranges available – consult Engineering.

5 = Lightning-protected

amplifier housing

{

(no charge)

-R

5K 10K 15K 20K 30K 35K 50K 60K 80K 100K 120K 150K 200K

S = Sealed gage

5T = 0 to 5 Vdc

Visit us online for additional options, including extended compensated temperatures.

To order a custom configuration:

1. Select a pressure port

2. Select electrical connection

3. Select a pressure range

4. Select pressure units

5. Select output

To order extra cable on cable style models, add suffix “-(length in feet) FT” for additional cost per foot beyond the standard 3 m (10') length.

Ordering Examples: PX91P5-100KS5T, 100,000 psi sealed gage pressure range model with 0 to 5 Vdc output, 1-14 NS-2 fitting and lightning-

protected amplifier housing. PX91P1-80KS5T, 80,000 psi sealed gage pressure range model with 0 to 5 Vdc output, 1-14 NS-2 fitting and integral connector. PT06F10-6S-R, mating connector (sold separately). PX91N0-50K5T-25FT, 50,000 psi sealed gage pressure range model with 0 to 5 Vdc output, Vdc output, 1-14 NS fitting and twist-lock 6 pin connector. PT06F10-6S-R, mating connector (sold separately).

NPSM fitting and 7.6 m (25') cable. PX91P0-100KS5T, 100,000 psi sealed gage pressure range model with 0 to 5

B-290

Page 5

ULTRA-HIGH-PRESSURE TRANSMITTER

LIGHTNING-PROTECTED HEAD STYLE

4 to 20 mA Output 0-5000 to 0-200,000 psi 0-350 to 0-14,000 bar

1 bar = 14.5 psi 1 kg/cm2 = 14.22 psi 1 atmosphere = 14.7 psi = 29.93 inHg = 760.2 mmHg = 1.014 bar

PX91 Series

Standard

U Ranges Up to 200,000 psi U All Stainless Steel Case U High Operating

Temperature, Up to 121°C (250°F)

U Lightning-Protected

Amplifier Housing

OMEGA’s PX91 amplified output series comprises rugged, high-temperature/ultra highpressure transducers. They are hermetically sealed, with all stainless steel construction, and are designed for the harshest test chamber environments. The PX91 is available in sealed gage pressures from 5000 psi to 200,000 psi. The electrical connection is a lightning-protected amplifier housing. The pressure connection is via a highpressure ferrule.

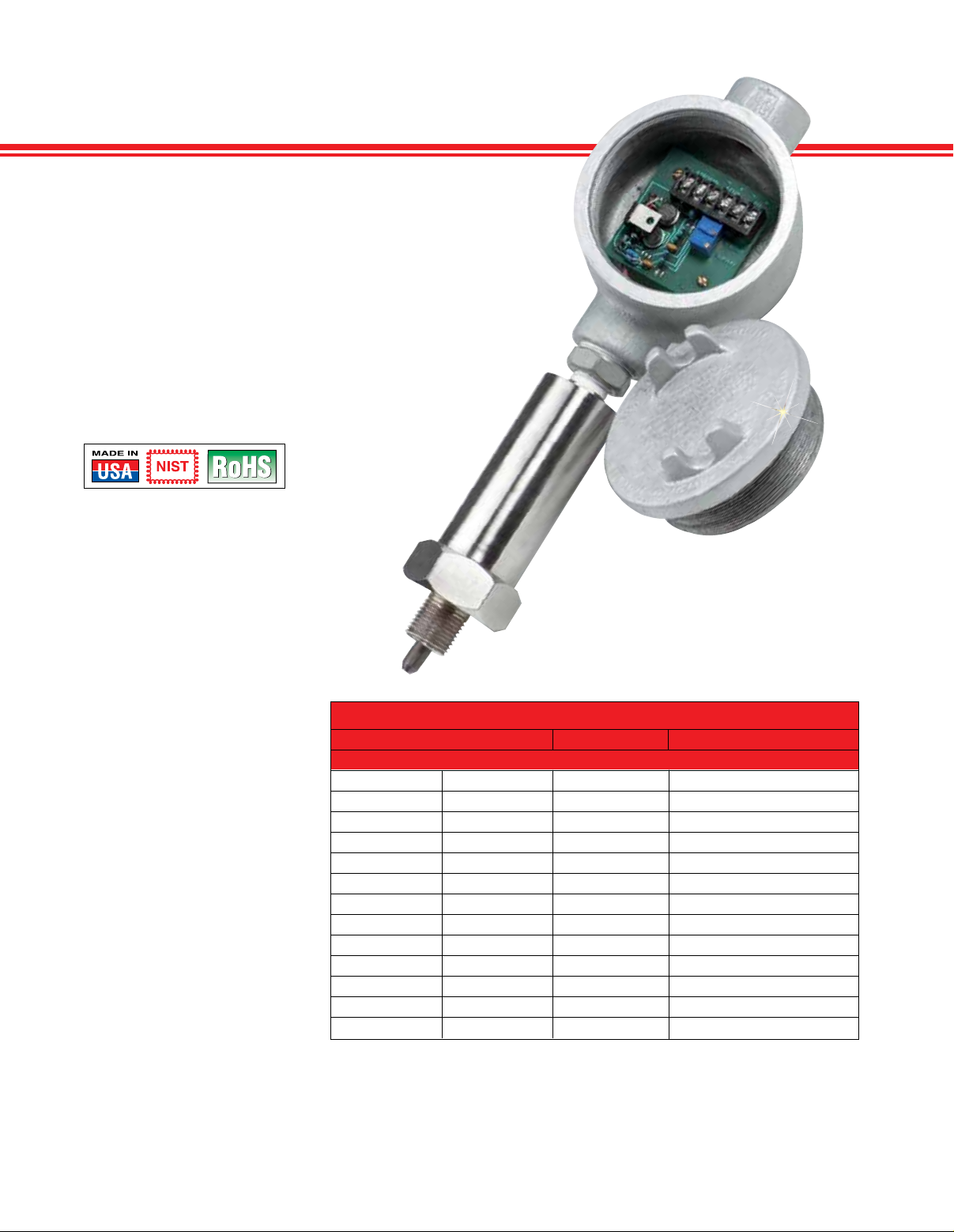

PX91N5-50KSI shown much smaller than actual size.

To Order

PROTECTED HEAD STYLE, SEALED GAGE PRESSURE, 4 to 20 mA OUTPUT

0 to 5000 psi 0 to 345 bar PX91N5-5KSI 0 to 10,000 psi 0 to 689 bar PX91N5-10KSI 0 to 15,000 psi 0 to 1034 bar PX91N5-15KSI 0 to 20,000 psi 0 to 1379 bar PX91N5-20KSI 0 to 30,000 psi 0 to 2068 bar PX91N5-30KSI 0 to 35,000 psi 0 to 2413 bar PX91N5-35KSI 0 to 50,000 psi 0 to 3447 bar PX91N5-50KSI 0 to 60,000 psi 0 to 4137 bar PX91N5-60KSI 0 to 80,000 psi 0 to 5516 bar PX91P5-80KSI 0 to 100,000 psi 0 to 6895 bar PX91P5-100KSI 0 to 120,000 psi 0 to 8274 bar PX91P5-120KSI 0 to 150,000 psi 0 to 10,342 bar PX91P5-150KSI 0 to 200,000 psi 0 to 13,790 bar PX91P5-200KSI

Comes complete with 5-point NIST traceable calibration and operator’s manual. Metric ranges available – consult Engineering.

4-digit meter.

See omega.com for compatible meters.

Ordering Examples: PX91N5-60KSI, 60,000 psi sealed gage model with 4 to 20 mA output,

⁄2-14 NPSM fitting and lightning-protected amplifier housing.

PX91P5-80KSI, 80,000 psi sealed gage model with 4 to 20 mA output, 1-14 NS fitting and lightning-protected amplifier housing.

Visit omega.com/px91-ic for Pricing and Details

RANGE MODEL NO. COMPATIBLE METERS**

DP41-E, DP25B-E, DP24-E DP41-E, DP25B-E, DP24-E DP41-E, DP25B-E*, DP24-E* DP41-E, DP25B-E*, DP24-E* DP41-E, DP25B-E*, DP24-E* DP41-E, DP25B-E*, DP24-E* DP41-E, DP25B-E*, DP24-E* DP41-E, DP25B-E*, DP24-E* DP41-E, DP25B-E*, DP24-E* DP41-E, DP25B-E*, DP24-E* DP41-E, DP25B-E*, DP24-E* DP41-E, DP25B-E*, DP24-E* DP41-E, DP25B-E*, DP24-E*

B-291

Page 6

ARTWORK/PRODUCT ART/ OMEGADYNE/OD-PX91-HEAD STYLE

ULTRA-HIGH-PRESSURE TRANSMITTER

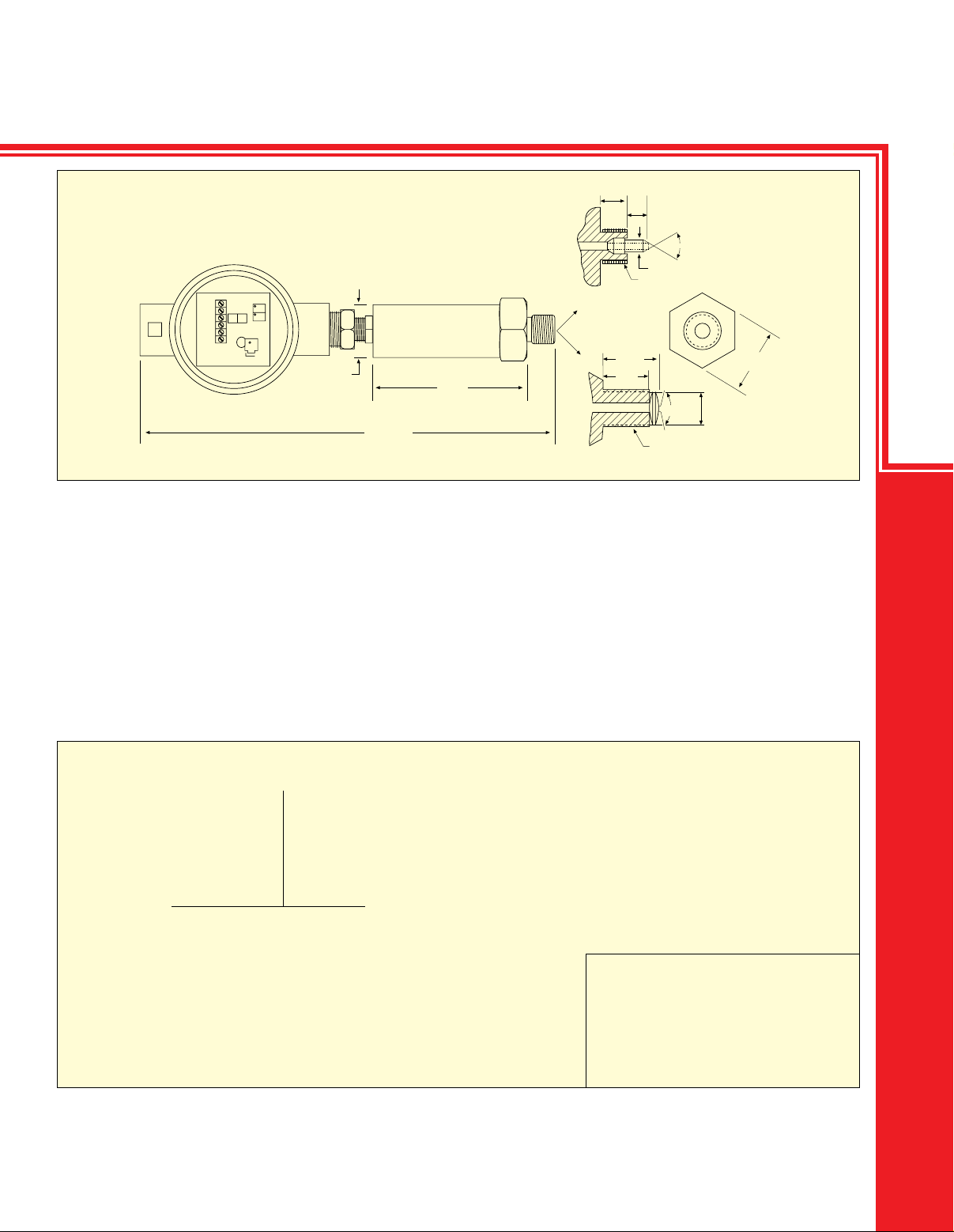

Dimensions: mm (inch)

N STYLE PRESSURE PORT

ZERO

SPAN

3/4

JUNCTION BOX

(TOP COVER REMOVED)

(1.50)

DIA.

305

(12) MAX

P STYLE PRESSURE PORT

105

(4.13)

(0.75)

5000-70,000 psi

(Standard)

(1.25)

(1.0)

80,000-200,000 psi

(Standard)

(0.50)

8 (0.315) DIA.

1/2-14 NPS

150°

1-14 NS-2

PRESSURE TRANSDUCERS

+ 0 – 0.5

59°

SPECIALTY

44 (1.75)

HEX

+ 0

– 2

(0.910)

DIA.

SPECIFICATIONS

4 to 20 mA Output

ELECTRICAL Excitation: 12 to 40 Vdc Output: 4 to 20 mA ±10% adj Zero Balance: 4 mA +10% -2% adj Linearity:

≤70K psi: ±0.35% FSO

>70K psi: ±0.50% FSO Hysteresis: ±0.10% FSO Repeatability: ±0.10% FSO Operating Temp Range:

-46 to 121°C (-50 to 250°F)

Compensated Temp Range:

17 to 71°C (60 to 160°F)

Thermal Effects: Span: 0.005% rdg/°F

Zero: 0.005% FSO/°F

Proof Pressure:

≤50k PSI: 120% of rated pressure >50k PSI:

110% of rated pressure

Burst Pressure:

≤50k PSI: 150% of rated pressure >50k PSI:

120% of rated pressure

Wetted Parts:

≤70K psi: 17-4 PH stainless steel >70K psi: 455 stainless steel

Pressure Port:

≤70K psi:

⁄2-14 NPSM (use 0.315" dia. 59° ferrule) >70K psi: 1-14 NS-2 (use 0.910" dia. 150° ferrule)

Electrical Connection: Terminal strip inside lightning-protected amplifier housing

Optional: PTIH-10-6P or equal Mating Connector: PT06F10-6S

(sold separately)

-R

CUSTOM CONFIGURATIONS

PX91 PRESSURE ELECTRICAL RANGE

SERIES PORT CONNECTION (psi) UNITS OUTPUT OPTIONS

Ranges ≤70,000 psi

⁄2-14 NPSM (use with

N =

0.315" dia 59° ferrule)

Ranges >70,000 psi P= 1-14 NS-2 (use with 0.910"

dia. 150° ferrule)

Amplified

Models Only

Metric ranges available – consult Engineering.

To order extra cable on cable style models, add suffix “-(length in feet) FT” for additional cost per foot beyond the standard 3 m (10') length. Ordering Examples: PX91P5-100KSI, 100,000 psi sealed gage pressure range model with 4 to 20 mA output, 1-14 NS-2 fitting and lightning-

protected amplifier housing.

PX91P1-100KSI, 100,000 psi sealed gage pressure range model with 4 to 20 mA output, 1-14 NS fitting and integral twist-lock connector. PT06F10-6S-R, mating connector (sold separately).

[ 1 ] [ 2 ] [ 3 ] [ 4 ] [ 5 ] [ 6 ]

S = Sealed gage 10K 15K 20K

I = 4 to 20 mA

See omega.com for additional options.

30K 35K 50K

0 = 3 m (10') PTFE cable

+ add cost/ft

over 3 m (10')

1 = PTIH-10-6P connector

(or equal, no charge) Mating connector (sold separately), order

PT06F10-6S

-R

5 = Lightning-protected

amplifier housing

{

(no charge)

60K 80K 100K 120K 150K 200K

To order a custom configuration:

1. Select a pressure port

2. Select electrical connection

3. Select a pressure range

4. Select pressure units

5. Select output

B-292
