X633

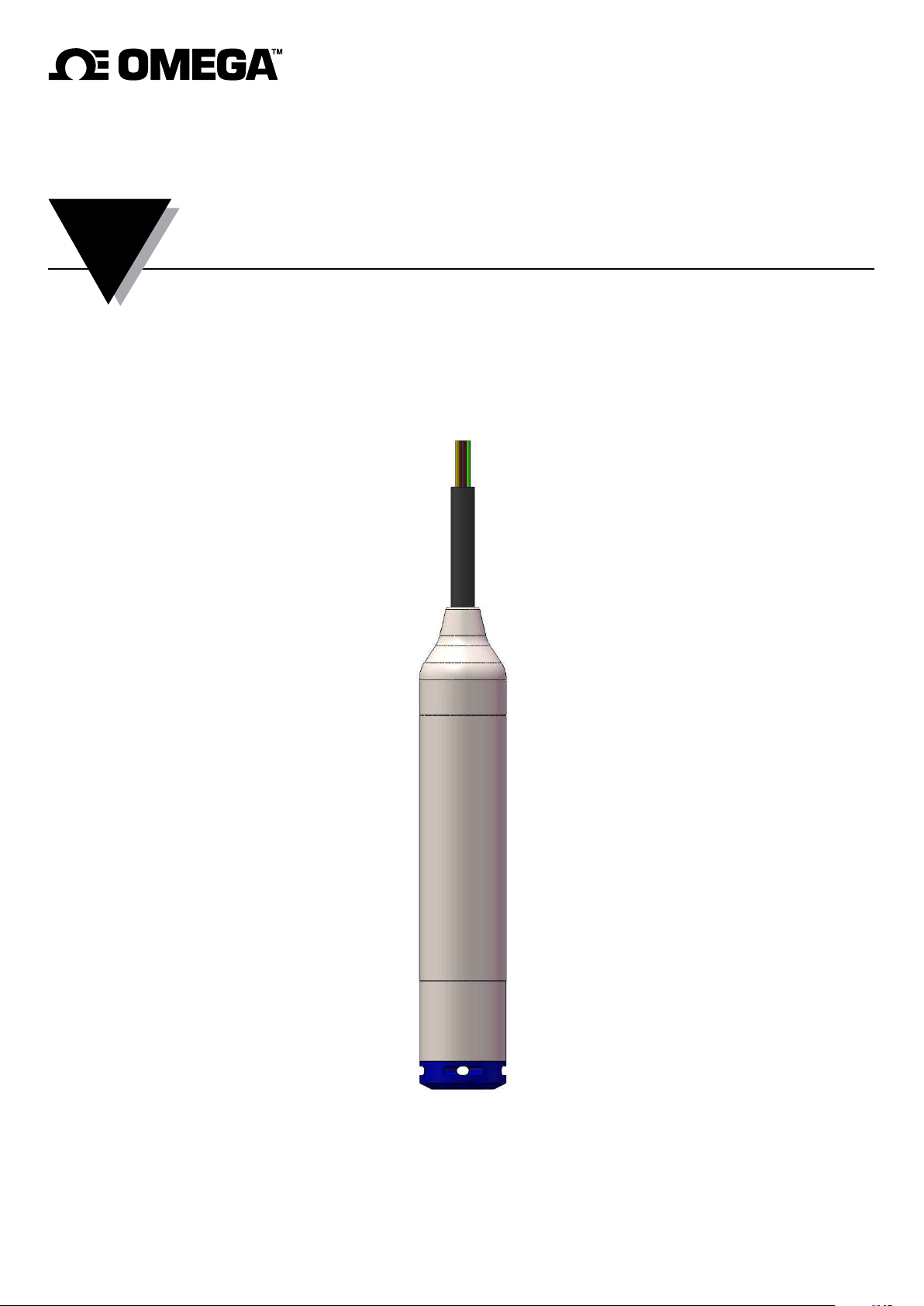

Submersible Level Transmitter
INSTRUCTION
SHEET
M5720/1118
Shop online at omega.com
For latest product manuals: omegamanual.info
e-mail: [email protected]
Page 2
Pressure transmitter should be installed by professional engineers
！
or qualified technical personnel. The product specifications and
important information provided on the label should be carefully
read before installation and wiring operations.
Pressure transmitter is powered by an external power supply. The
！
power supply circuit should comply with energy-limiting circuit by
relevant standards, and pay attention to the high voltage circuits
that may exist.
The maximum static pressure overload has been stated on the
！
product label, the process maximum pressure should not exceed
the full span of sensor.
When using pressure transmitter in hazardous areas, installation,
！
use and maintenance should also comply with the operation
manual and relevant requirements of national standards.

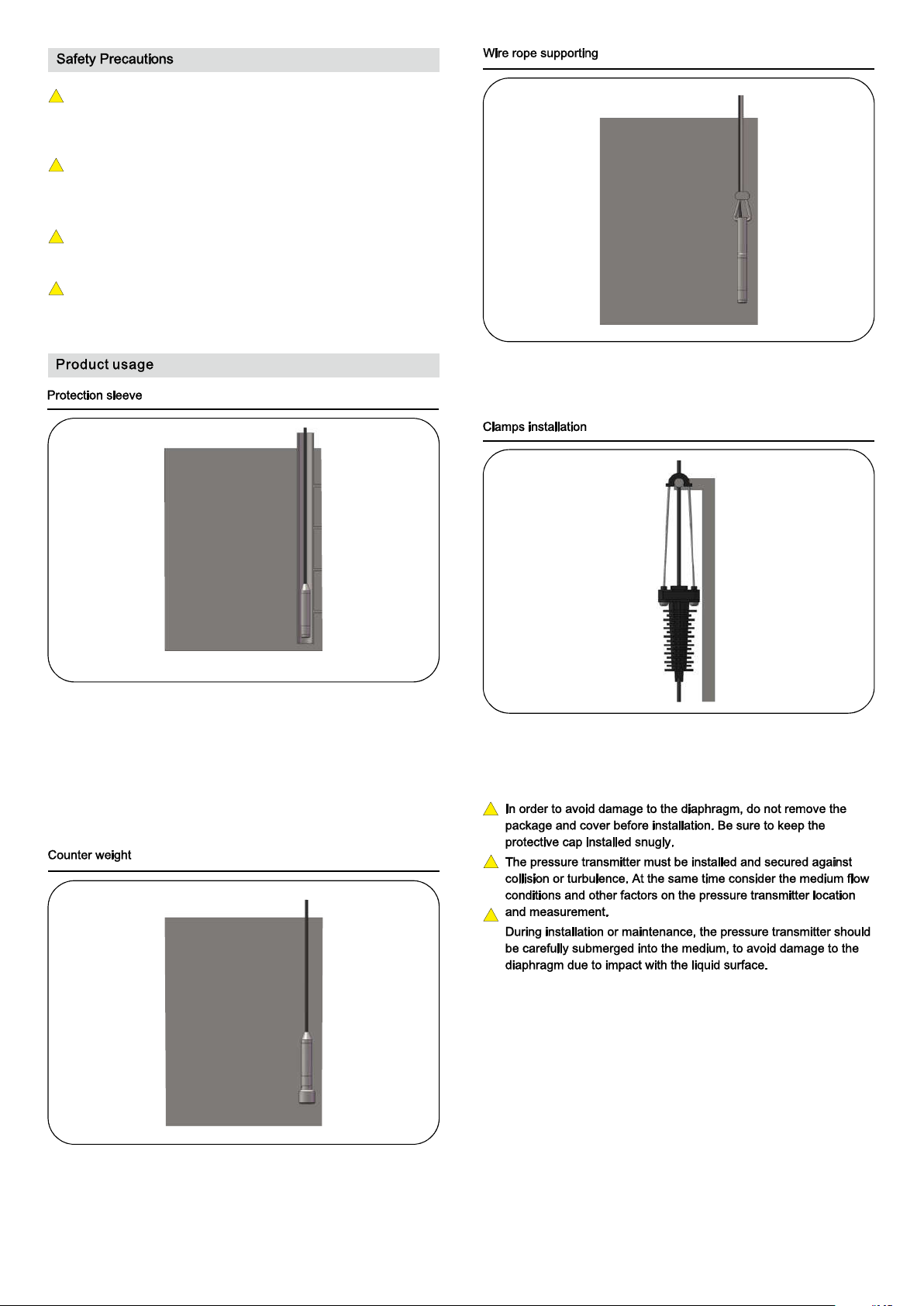

For products with more than 50 meters cable, the wire rope and cable
bundled multi-point should be used to strengthen the level transmitter
support.
Submersible Level Transmitter should be suspended inside the
protective sleeve to avoid the impact on the level transmitter from fast
flowing medium.
Top end of protection casing should extend above the level surface,
to avoid the influence on measurement accuracy from surface
disturbances.
Level transmitter probe should be higher than the bottom, at least
20cm, to avoid the blockage of impurities and sand.
Clamps can be used to fix and support the entire product for direct
cable connection level transmitter. Cable outlet should be of sufficient
length to be directly connected to the control room, or adapter junction
box, avoid bare connections in the field environment.
！
！
！
In cases were a protective tube is unable to be used, a counterweight
can be used to stabilize a transmitter in fast flowing areas.
Page 3

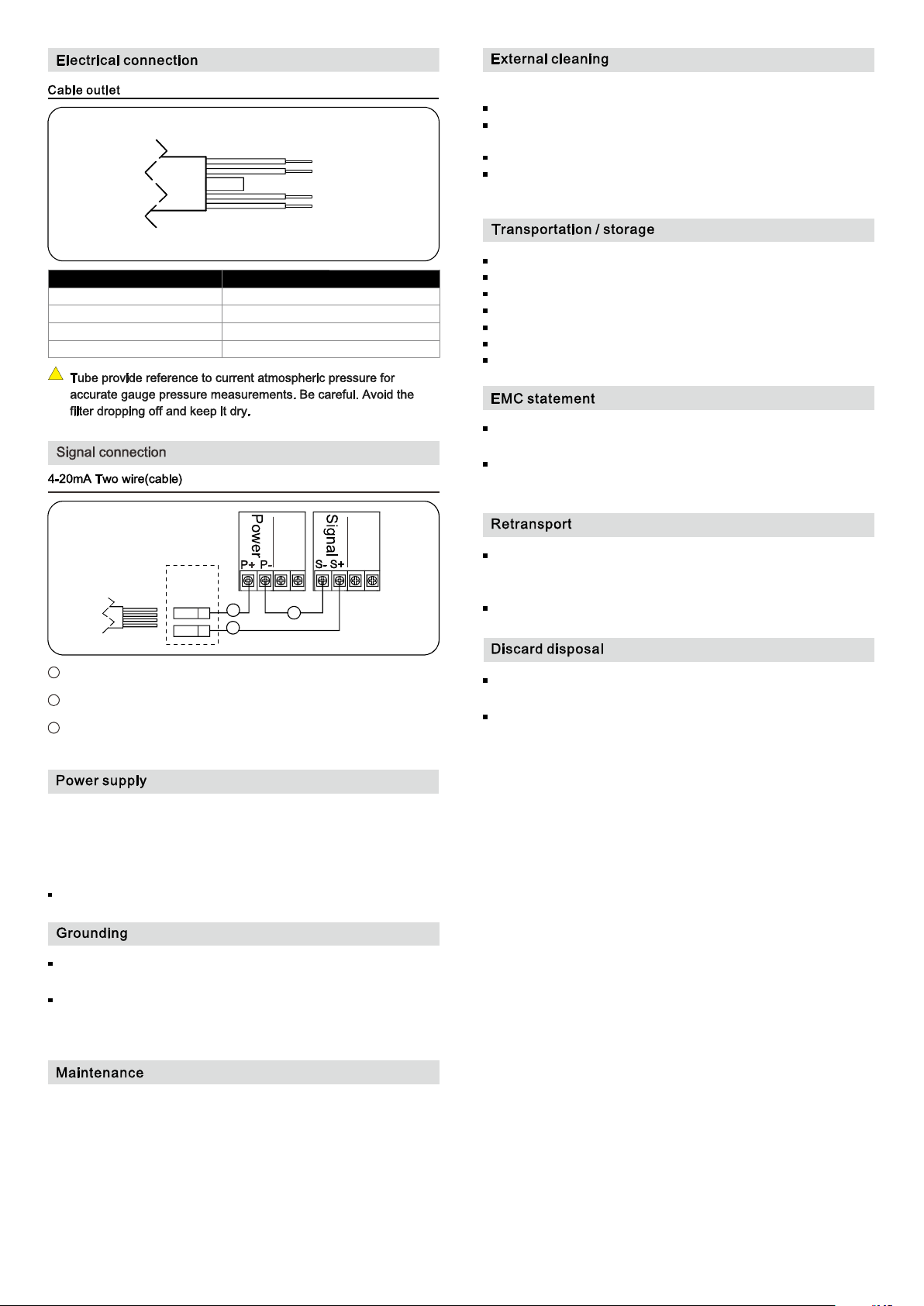

Filt er
Lab el Two wires
Red Power +
Bla ck Power -
Blu e
Yello w
！
Red
Black
Blue
Yellow
Please notice the following when cleaning:
Use washing agent which will not damage to the instruments
Protect process diaphragm from mechanical damage, eg: the mechanical
damage caused by sharp objects.
Mechanical cleaning of metal diaphragm is prohibited.
Do not point the nozzles to the diaphragm directly when doing internal
cleaning by pressure washer.
Do not store outside
Keep dry and dust-free
Do not expose to the corrosive medium
Avoid solar radiation
Avoid mechanical shock and vibration
Storage temperature: -30-80℃
Maximum relative humidity: 95%
This pressure transmitter conforms to 2014/30/EU EMC standard
and bears the CE mark
Users need to ensure the whole equipment conform to all the
applicable standards.
Label
Red
Black
Connect the positive power supply (P+) to the red wire of level
1
transmitter;
Connect the positive signal module (S+) to the black wire of level
2
transmitter;
Connect the negative signal module (S-) to the negative power
3
supply (P-).
It is recommended to use an independent linear direct-current power
supply. Verify that the combined loop resistances (signal cable, display
meter, and other equipment) are not to high, so that the voltage
supplied to the pressure transmitter meets the normal operating
requirements.
Standard current signal output: 12-30VDC
Using cable with shielded twisted-pair signal has the best effect. To
avoid ground loop, shielded layer adopts single-end grounded.
Transient is effective only in the case of good
protection module
grounding. Metal shell and internal grounding terminals are used to
the nearest ground directly.
1
+
2
-
3
Remove all media from surfaces of the pressure transmitter.
Always refer safety data sheet for proper personal protection
equipment when handling dangerous medium!
Please adopt proper package to avoid damage in transportation.
The instrument is not restrained by WEEE instruction 2002/96/EG
and laws of relevant countries.
Please pass the instrument to specialized recycling companies
other than local recycling points.
Requires no maintenance
