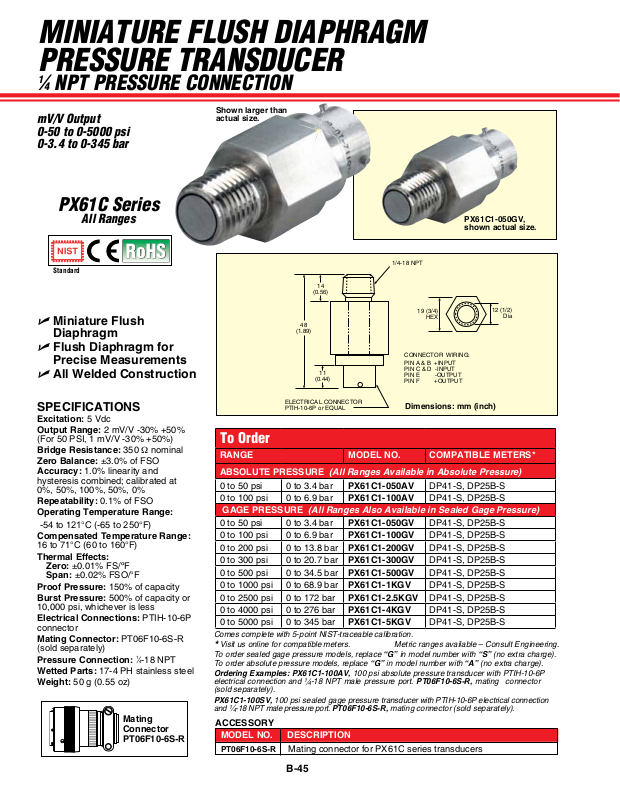

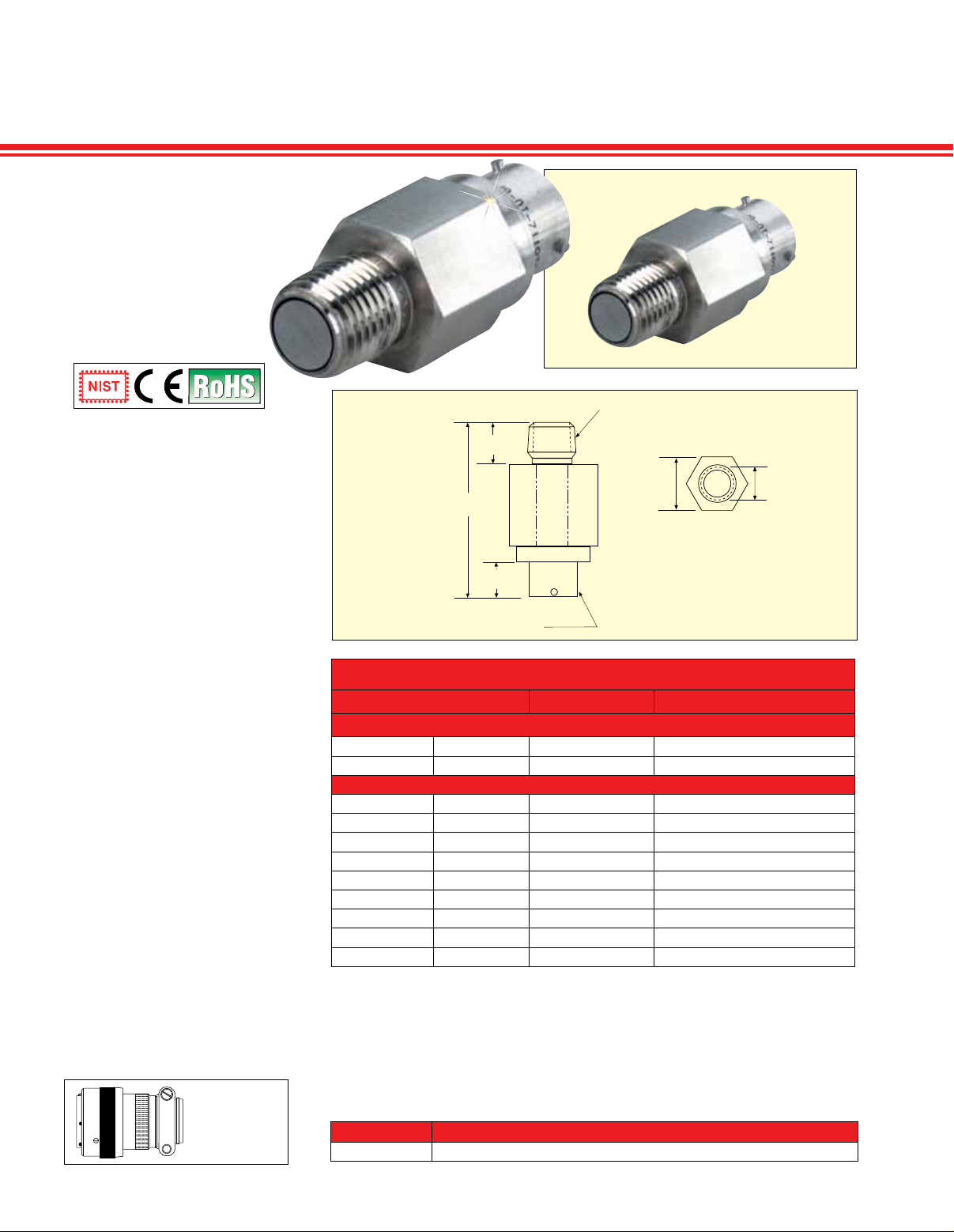

Page 1
MINIATURE FLUSH DIAPHRAGM
PRESSURE TRANSDUCER
1
⁄4 NPT PRESSURE CONNECTION
Shown larger than
mV/V Output
0-50 to 0-5000 psi
0-3.4 to 0-345 bar
PX61C Series
All Ranges
actual size.
PX61C1-050GV,
shown actual size.
Standard
U Miniature Flush
Diaphragm
U Flush Diaphragm for
Precise Measurements
U All Welded Construction
SPECIFICATIONS
Excitation: 5 Vdc
Output Range: 2 mV/V -30% +50%
(For 50 PSI, 1 mV/V -30% +50%)
Bridge Resistance: 350 Ω nominal
Zero Balance: ±3.0% of FSO
Accuracy: 1.0% linearity and
hysteresis combined; calibrated at
0%, 50%, 100%, 50%, 0%
Repeatability: 0.1% of FSO
Operating Temperature Range:
-54 to 121°C (-65 to 250°F)
Compensated Temperature Range:
16 to 71°C (60 to 160°F)
Thermal Effects:
Zero: ±0.01% FS/ºF
Span: ±0.02% FSO/°F
Proof Pressure: 150% of capacity
Burst Pressure: 500% of capacity or
10,000 psi, whichever is less
Electrical Connections: PTIH-10-6P
connector
Mating Connector: PT06F10-6S
(sold separately)
Pressure Connection:
Wetted Parts: 17-4 PH stainless steel
Weight: 50 g (0.55 oz)
1
⁄4-18 NPT
Mating
Connector
PT06F10-6S
-R
-R
1/4-18 NPT
14
(0.56)
12 (1/2)
Dia
48
(1.89)
11
(0.44)
ELECTRICAL CONNECTOR
PTIH-10-6P or EQUAL
19 (3/4)
HEX
CONNECTOR WIRING:
PIN A & B +INPUT
PIN C & D -INPUT
PIN E -OUTPUT
PIN F +OUTPUT
Dimensions: mm (inch)
To Order
RANGE MODEL NO. COMPATIBLE METERS*
ABSOLUTE PRESSURE (All Ranges Available in Absolute Pressure)
0 to 50 psi 0 to 3.4 bar
0 to 100 psi 0 to 6.9 bar
GAGE PRESSURE (All Ranges Also Available in Sealed Gage Pressure)
0 to 50 psi 0 to 3.4 bar
0 to 100 psi 0 to 6.9 bar
0 to 200 psi 0 to 13.8 bar
0 to 300 psi 0 to 20.7 bar
0 to 500 psi 0 to 34.5 bar
0 to 1000 psi 0 to 68.9 bar
0 to 2500 psi 0 to 172 bar
0 to 4000 psi 0 to 276 bar
0 to 5000 psi 0 to 345 bar
Comes complete with 5-point NIST-traceable calibration.
Visit us online for compatible meters. Metric ranges available – Consult Engineering.
*
To order sealed gage pressure models, replace “G” in model number with “S” (no extra charge).
To order absolute pressure models, replace “G” in model number with “A” (no extra charge).
Ordering Examples: PX61C1-100AV, 100 psi absolute pressure transducer with PTIH-10-6P
electrical connection and
(sold separately).
PX61C1-100SV, 100 psi sealed gage pressure transducer with PTIH-10-6P electrical connection
1
-18 NPT male pressure port. PT06F10-6S
and
⁄
4
ACCESSORY
MODEL NO. DESCRIPTION
PT06F10-6S-R
1
-18 NPT male pressure port. PT06F10-6S-R, mating connector
⁄
4
Mating connector for PX61C series transducers
PX61C1-050AV
PX61C1-100AV
PX61C1-050GV
PX61C1-100GV
PX61C1-200GV
PX61C1-300GV
PX61C1-500GV
PX61C1-1KGV
PX61C1-2.5KGV
PX61C1-4KGV
PX61C1-5KGV
-R, mating connector (sold separately).
DP41-S, DP25B-S
DP41-S, DP25B-S
DP41-S, DP25B-S
DP41-S, DP25B-S
DP41-S, DP25B-S
DP41-S, DP25B-S
DP41-S, DP25B-S
DP41-S, DP25B-S
DP41-S, DP25B-S
DP41-S, DP25B-S
DP41-S, DP25B-S
B-45

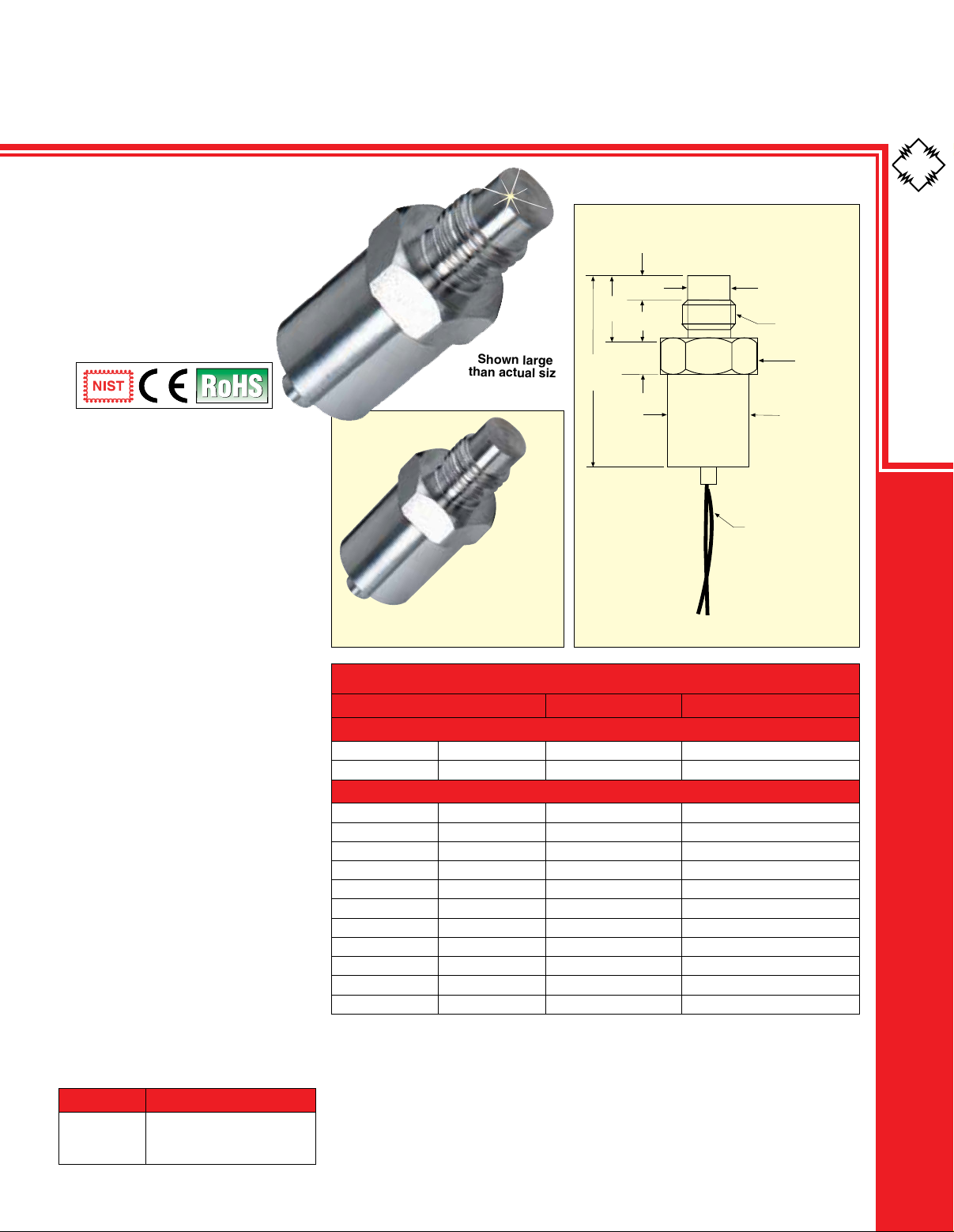

Page 2
MINIATURE FLUSH DIAPHRAGM
PX61L0
PRESSURE TRANSDUCER
1
⁄2-20 UNF PRESSURE CONNECTION
mV/V Output
0-50 to 0-15,000 psi
0-3 to 0-1000 bar
5
.3 [0.2
1[/
6.4
[0.25]
1
5
.
5 [0.61[
/
1
46
(1.81)
MAX
6.4 [0.65]
7.6
(0.30)
PX61V Series
All Ranges
Shown larger
than actual size.
10.2 (0.40)
DIA
1/2-20 UNF-2A
19 (0.75)
HEX
PRESSURE TRANSDUCERS
MILLIVOLT OUTPUT
Standard
U Miniature Flush
Diaphragm
U All Stainless Steel
Construction
U Available in psia, psis,
psig, and Metric Ranges
SPECIFICATIONS
Excitation: 5 Vdc
Output Range: 2 mV/V -30% +50%
(For 50 PSI, 1 mV/V -30% +50%)
Accuracy: 1.0% linearity and
hysteresis combined
Repeatability: ±0.1% of FSO
Balance: ±3.0% of FSO
Bridge Resistance: 350 Ω nominal
Operating Temperature Range:
-54 to 121°C (-65 to 250°F)
Compensated Temperature Range:
16 to 71°C (60 to 160°F)
Thermal Effects:
Zero: ±0.01% FS/ºF
Span: ±0.02% FSO/°F
Proof Pressure: 150% of capacity
Burst Pressure Minimum:
300% of capacity or 30,000 psi,
whichever is less
Electrical Connections: 1.5 m (5');
4-conductor cable or PTIH-10-6P
connector
Pressure Connection:
Wetted Parts: 17-4 PH stainless steel
ACCESSORY
MODEL NO. DESCRIPTION
PT06F10-6S-R Mating connector for
PX61V1
transducers
1
⁄2-20 UNF-2A
series
19 (0.75)
DIA
WIRING CODE:
PX61V1-100GV,
with connector style
electrical connection,
shown actual size.
GREEN +OUTPUT
WHITE -OUTPUT
BLACK -INPUT
RED +INPUT
Dimensions: mm (inch)
4-CONDUCTOR CABLE
1.6 m (5') LONG
To Order
RANGE MODEL NO. COMPATIBLE METERS**
ABSOLUTE PRESSURE (All Ranges Available in Absolute Pressure)
0 to 50 psi 0 to 3.4 bar
0 to 100 psi 0 to 6.9 bar
GAGE PRESSURE (All Ranges Also Available in Sealed Gage Pressure)
0 to 50 psi 0 to 3.4 bar
0 to 100 psi 0 to 6.9 bar
0 to 150 psi 0 to 10.3 bar
0 to 200 psi 0 to 13.8 bar
0 to 300 psi 0 to 20.7 bar
0 to 500 psi 0 to 34.5 bar
0 to 1000 psi 0 to 68.9 bar
0 to 2500 psi 0 to 172 bar
0 to 5000 psi 0 to 345 bar
0 to 10,000 psi 0 to 689 bar
0 to 15,000 psi 0 to 1034 bar
Comes complete with 5-point NIST-traceable calibration. Metric ranges available – Consult
Engineering.
†
4-digit meter, counts in increments of 10. ** Visit us online for compatible meters.
[*] To order cable style insert “0”, to order connector style insert “1”.
To order psia models, replace “G” in model number with “A”.
To order psis models, replace “G” in model number with “S”.
Ordering Examples: PX61V0-100AV, 100 psi absolute pressure transducer with 1.5 m (5') cable
1
and
⁄2-20 UNF male pressure port.
PX61V0-100SV, 100 psi sealed gage pressure transducer with 1.5 m (5') cable and 1⁄2-20 UNF
male pressure port.
B-46
PX61V[*]-050AV
PX61V[*]-100AV
PX61V[*]-050GV
PX61V[*]-100GV
PX61V[*]-150GV
PX61V[*]-200GV
PX61V[*]-300GV
PX61V[*]-500GV
PX61V[*]-1KGV
PX61V[*]-2.5KGV
PX61V[*]-5KGV
PX61V[*]-10KGV
PX61V[*]-15KGV
DP41-S, DP25B-S
DP41-S, DP25B-S
DP41-S, DP25B-S
DP41-S, DP25B-S
DP41-S, DP25B-S
DP41-S, DP25B-S
DP41-S, DP25B-S
DP41-S, DP25B-S
DP41-S, DP25B-S
DP41-S, DP25B-S
DP41-S, DP25B-S
DP41-S, DP25B-S
DP41-S, DP25B-S
†
B
