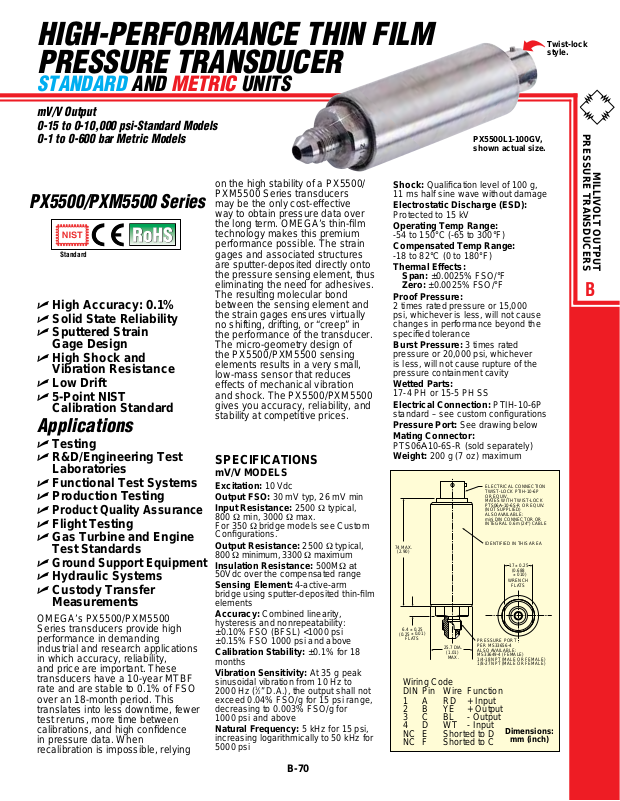

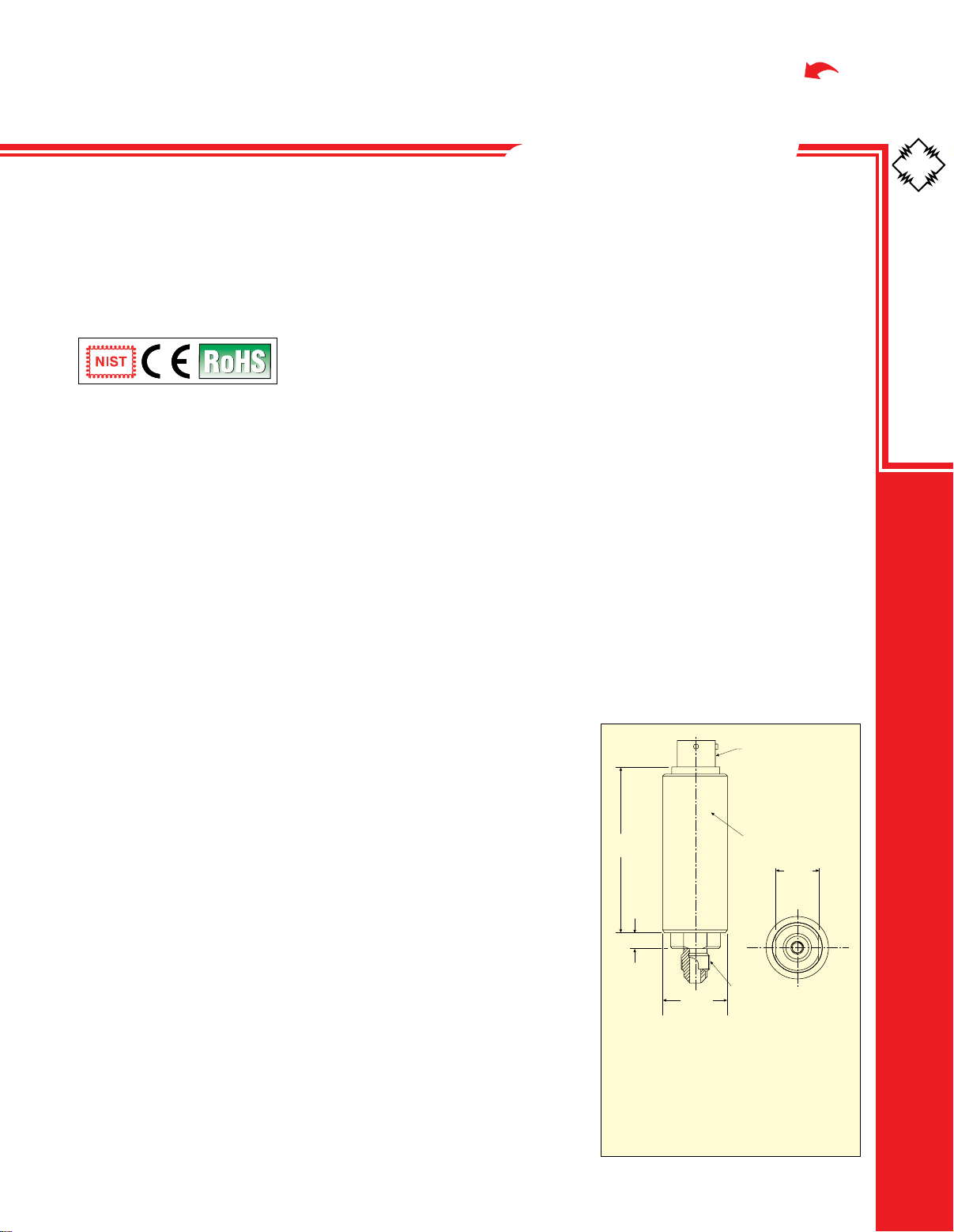

HIGH-PERFORMANCE THIN FILM
PX5500L1
PRESSURE TRANSDUCER
STANDARD AND METRIC UNITS
mV/V Output
0-15 to 0-10,000 psi-Standard Models
0-1 to 0-600 bar Metric Models
PX5500/PXM5500 Series
Standard
U High Accuracy: 0.1%
U Solid State Reliability
U Sputtered Strain
Gage Design
U High Shock and
Vibration Resistance
U Low Drift
U 5-Point NIST
Calibration Standard
Applications
U Testing
U R&D/Engineering Test
Laboratories
U Functional Test Systems
U Production Testing
U
Product Quality Assurance
U Flight Testing
U Gas Turbine and Engine
Test Standards
U
Ground Support Equipment
U Hydraulic Systems
U Custody Transfer
OMEGA’s PX5500/PXM5500
Series transducers provide high
performance in demanding
industrial and research applications
in which accuracy, reliability,
and price are important. These
transducers have a 10-year MTBF
rate and are stable to 0.1% of FSO
over an 18-month period. This
translates into less downtime, fewer
test reruns, more time between
calibrations, and high confidence
in pressure data. When
recalibration is impossible, relying
Measurements
on the high stability of a PX5500/
PXM5500 Series transducers
may be the only cost-effective
way to obtain pressure data over
the long term. OMEGA’s thin-film
technology makes this premium
performance possible. The strain
gages and associated structures
are sputter-deposited directly onto
the pressure sensing element, thus
eliminating the need for adhesives.
The resulting molecular bond
between the sensing element and
the strain gages ensures virtually
no shifting, drifting, or “creep” in
the performance of the transducer.
The micro-geometry design of
the PX5500/PXM5500 sensing
elements results in a very small,
low-mass sensor that reduces
effects of mechanical vibration
and shock. The PX5500/PXM5500
gives you accuracy, reliability, and
stability at competitive prices.
SPECIFICATIONS
mV/V MODELS
Excitation: 10 Vdc
Output FSO: 30 mV typ, 26 mV min
Input Resistance:
800 Ω min, 3000 Ω max.
For 350 Ω bridge models see Custom
Configurations.
Output Resistance: 2500 Ω typical,
800 Ω minimum, 3300 Ω maximum
Insulation Resistance: 500MΩ at
50Vdc over the compensated range
Sensing Element: 4-active-arm
bridge using sputter-deposited thin-film
elements
Accuracy: Combined linearity,
hysteresis and nonrepeatability:
±0.10% FSO (BFSL) <1000 psi
±0.15% FSO 1000 psi and above
Calibration Stability: ±0.1% for 18
months
Vibration Sensitivity: At 35 g peak
sinusoidal vibration from 10 Hz to
2000 Hz (
exceed 0.04% FSO/g for 15 psi range,
decreasing to 0.003% FSO/g for
1000 psi and above
Natural Frequency: 5 kHz for 15 psi,
increasing logarithmically to 50 kHz for
5000 psi
1
⁄2” D.A.), the output shall not
2500 Ω typical,
Shock: Qualification level of 100 g,
11 ms half sine wave without damage
Electrostatic Discharge (ESD):
Protected to 15 kV
Operating Temp Range:
-54 to 150°C (-65 to 300°F)
Compensated Temp Range:
-18 to 82°C (0 to 180°F)
Thermal Effects:
Span: ±0.0025% FSO/°F
Zero: ±0.0025% FSO/°F
Proof Pressure:
2 times rated pressure or 15,000
psi, whichever is less, will not cause
changes in performance beyond the
specified tolerance
Burst Pressure: 3 times rated
pressure or 20,000 psi, whichever
is less, will not cause rupture of the
pressure containment cavity
Wetted Parts:
17-4 PH or 15-5 PH SS
Electrical Connection: PTIH-10-6P
standard – see custom configurations
Pressure Port: See drawing below
Mating Connector:
PTS06A10-6S-R (sold separately)
Weight: 200 g (7 oz) maximum
74 MAX.
(2.90)
6.4
±
±
(0.25
FLATS
Wiring Code
DIN Pin Wire Function
1 A RD + Input
2 B YE + Output
3 C BL - Output
4 D WT - Input
NC E Shorted to D
NC F Shorted to C
0.25
0.01)
PX5500L1-100GV,

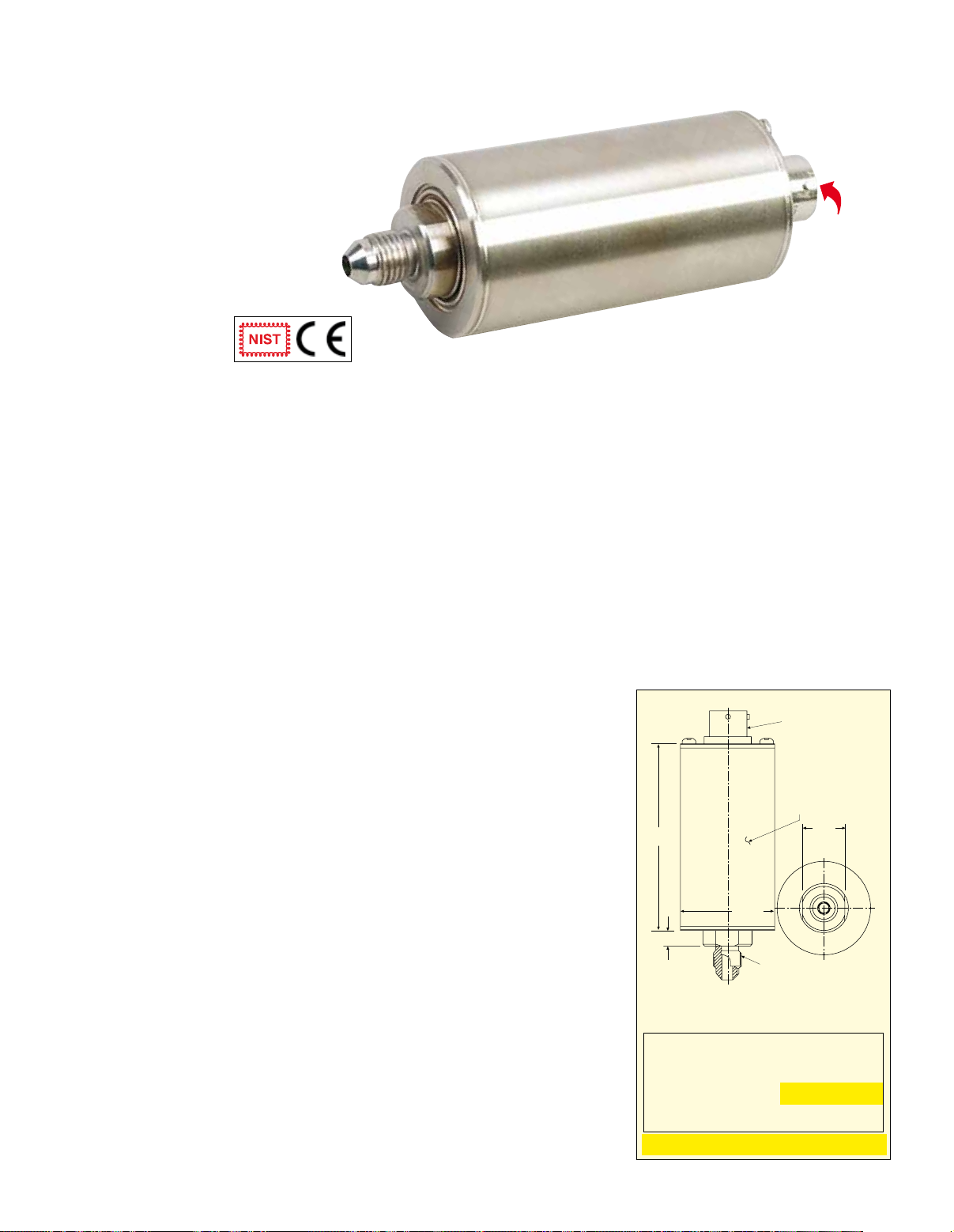

shown actual size.
PRESSURE PORT
(1.01)
MAX.
PER MS33656-4
ALSO AVAILABLE:
MS33649-4 (FEMALE)
1/4-18 NPT (MALE OR FEMALE)
1/8-27 NPT (MALE OR FEMALE)
25.7 DIA.
ELECTRICAL CONNECTION
TWIST-LOCK PTIH-10-6P
OR EQUIV.
MATES WITH TWIST-LOCK
PTS06A-10-6S-R OR EQUIV.
(NOT SUPPLIED)
ALSO AVAILABLE:
mini DIN CONNECTOR OR
INTEGRAL 0.6m (24") CABLE
IDENTIFIED IN THIS AREA
0.25
±
17
(0.688
010)
±
WRENCH
FLATS
Dimensions:
mm (inch)
Twist-lock
style.
PRESSURE TRANSDUCERS
MILLIVOLT OUTPUT
B
B-70
Page 2

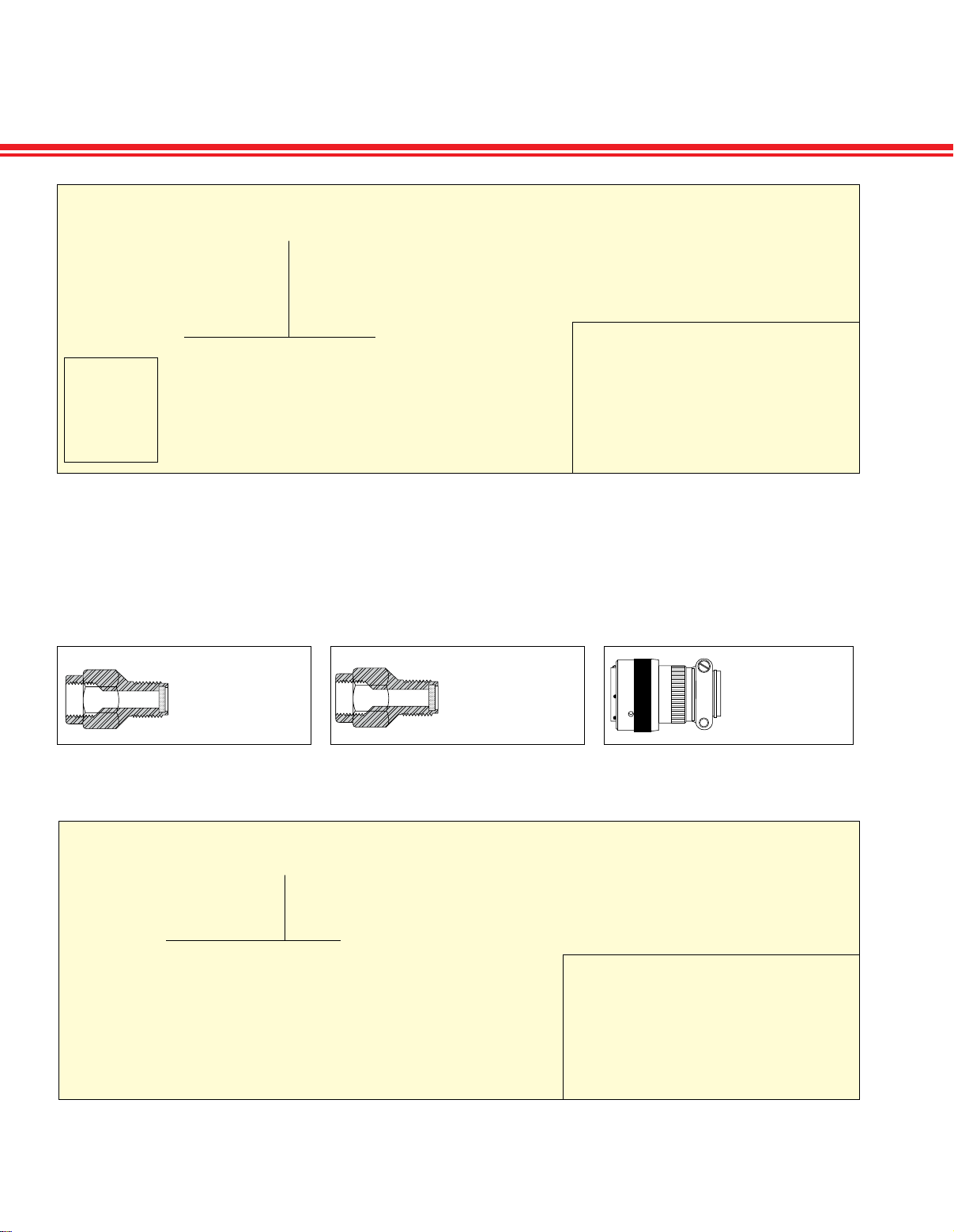

HIGH-PERFORMANCE THIN FILM PRESSURE TRANSDUCER
P-DPG500 Fig. 1
P-DPG500 Fig. 1
STANDARD CUSTOM CONFIGURATIONS
PX5500* PRESSURE ELECTRICAL RANGE
SERIES PORT CONNECTION UNITS OUTPUT OPTIONS
A =
B = 1⁄8-27 NPT Female
C = 1⁄4-18 NPT Male
D = 1⁄4-18 NPT Female
L = MS33656-4
M = MS33649-4
*For a 350 Ω
bridge change
model number
to PX5503.
No additional
charge.
Comes complete with 5-point calibration.
Ordering Examples: PX5503A1-015AV, 350 Ω bridge,
range and mV/V output.
PTS06A-10-6S-R, mating connector (sold separately). PX5500M1-10KG5T, MS33649-4 female pressure port, PTIH-10-6P style
connector, 10,000 psi gage pressure range and 0 to 5 Vdc output. PTS06A-10-6S-R, mating connector (sold separately).
PX5500L0-015AI-25FT, MS33656-4 male pressure port, 8 m (25') lead wire, 15 psi absolute pressure range and 4 to 20 mA output.
[ 1 ] [ 2 ] [ 3 ] [ 4 ] [ 5 ] [ 6 ]
1
⁄8-27 NPT Male
0 = 0.6 m (2') cable add
1 = PTIH-10-6P connector
6 = DIN connector
cost per/ft over 0.6 m (2')
(or equal). Mating
connector (sold
separately), order
PTS06A-10-6S-R
015 psi
025
050
100
250
500
1K
1.5K
2.5K
3K
5K
10K
A, G, S
A, G, S
A, G, S
A, G, S
A, G, S
A, G, S
A, G, S
A, G, S
A, G, S
A, G, S
A, G, S
A, G, S
Base Price PX5500
V = mV/V
5T = 0 to 5V
I =
4 to 20mA
To order a custom configuration:
1. Select a pressure port
2. Select electrical connection
3. Select a pressure range
4. Select pressure units – Absolute,
Gage or Sealed gage
5. Select output
6. Select options and agency approvals
1
-27 NPT male pressure port, PTIH-10-6P style connector, 15 psi absolute pressure
⁄
8
CAL11 = 11-pt cal
+ cost
1
⁄4 NPT Pressure
Snubbers:
PS-4G = Gas
PS-4E = Lt Oil
PS-4D = Dense Lq
G1⁄4 Pressure
Snubbers:
PS-4G-MG = Gas
PS-4E-MG = Lt Oil
PS-4D-MG = Dense
Liquid
METRIC PSI RANGE CUSTOM CONFIGURATIONS
PXM5500 PRESSURE ELECTRICAL RANGE
SERIES PORT CONNECTION (BAR) UNITS OUTPUT OPTIONS
MA = G
MB = G1⁄8B Female no charge
MC = G1⁄4B Male cost
MD = G1⁄4B Female no charge
Visit us online for additional options including
extended compensated temperatures.
Ordering Examples: PXM5500MB0-010BARS5T, 10 bar sealed gage pressure transducer with G
termination.
PXM5500MD1-010BARA5T, 10 bar absolute pressure transducer with
1
G
PTS06
⁄
4
[ 1 ] [ 2 ] [ 3 ] [ 4 ] [ 5 ] [ 6 ]
1
⁄8B Male cost
0 = 0.6 m (2') cable (std)
add cost per/m over
0.2 m (2')
1 = PTIH-10-6P connector
(or equal, no charge)
6 = mini DIN connector
1.0
1.6
4.0
6.0
10
16
25
40
60
100
160
250
400
600
A, G, S
A, G, S
A, G, S
A, G, S
A, G, S
A, G, S
A, G, S
A, G, S
A, G, S
A, G, S
A, G, S
A, G, S
A, G, S
A, G, S
I = 4 to 20 mA
Base price
PXM5500
To order a custom configuration:
1. Select a pressure port
2. Select electrical connection
3. Select a pressure range
4. Select pressure units – Absolute,
Gage or Sealed gage
5. Select output
6. Select options and agency approvals
1
B female connection and 0.6 m (2') cable
⁄
8
A-10-6S-R, mating connector (sold separately).
B female connection and twist-lock connector.
CAL11 = 11-point calibration
Mating Connector
PTS06A-10-6S-R
certificate
( )m = Optional cable
length in meters
B-71
Page 3
STANDARD
PX5500L1-100GV,
shown actual size.
mini DIN
style.
Twist-lock
style.
STANDARD MODELS
To Order
Models with mV/V Output, MS33656-4 Connection, Integral Connector
RANGE MODEL NO. COMPATIBLE METERS*
ABSOLUTE PRESSURE (All Ranges Available in Absolute Pressure)
0 to 15 psi 0 to 1.0 bar PX5500L1-015AV DP41-S, DP25B-S
0 to 25 psi 0 to 1.7 bar PX5500L1-025AV DP41-S, DP25B-S
0 to 50 psi 0 to 3.4 bar PX5500L1-050AV DP41-S, DP25B-S
0 to 100 psi 0 to 6.9 bar PX5500L1-100AV DP41-S, DP25B-S
GAGE PRESSURE (All Ranges also Available in Sealed Gage Pressure)
0 to 15 psi 0 to 1.0 bar PX5500L1-015GV DP41-S, DP25B-S
0 to 25 psi 0 to 1.7 bar PX5500L1-025GV DP41-S, DP25B-S
0 to 50 psi 0 to 3.4 bar PX5500L1-050GV DP41-S, DP25B-S
0 to 100 psi 0 to 6.9 bar PX5500L1-100GV DP41-S, DP25B-S
0 to 250 psi 0 to 17.2 bar PX5500L1-250GV DP41-S, DP25B-S
0 to 500 psi 0 to 34.5 bar PX5500L1-500GV DP41-S, DP25B-S
0 to 1000 psi 0 to 68.9 bar PX5500L1-1KGV DP41-S, DP25B-S
0 to 1500 psi 0 to 103 bar PX5500L1-1.5KGV DP41-S, DP25B-S
0 to 2500 psi 0 to 172 bar PX5500L1-2.5KGV DP41-S, DP25B-S
0 to 3000 psi 0 to 207 bar PX5500L1-3KGV DP41-S, DP25B-S
0 to 5000 psi 0 to 345 bar PX5500L1-5KGV DP41-S, DP25B-S
0 to 10,000 psi 0 to 689 bar PX5500L1-10KGV DP41-S, DP25B-S
Comes complete with 5-point calibration.
To order absolute pressure models, replace “G” in model number with “A”. No extra charge.
To order sealed gage models, replace “
Ordering Examples: PX5500L1-1KSV, 1000 psi sealed gage transducer with PTIH-10-6P
electrical connection and MS33656-4 male pressure port. PTS06A-10-6S-R, mating connector
(sold separately).
PX5500L1-100AV, 100 psi absolute pressure transducer with PTIH-10-6P electrical connection
and MS33656-4 male pressure port. PTS06A-10-6S-R, mating connector (sold separately).
G” in model number with “S”. No extra charge.
Visit us online for compatible meters.
*
PRESSURE TRANSDUCERS
MILLIVOLT OUTPUT
B
PXM5500MC6-010BARGV,
shown actual size.
ACCESSORY
MODEL NO. DESCRIPTION
Mating connector for
PTS06A-10-6S
PX5500/PXM5500
-R
units with PTIH-10-6P
electrical connection
METRIC
METRIC MODELS
To Order
Models with G
RANGE MODEL NO. COMPATIBLE METERS*
GAGE PRESSURE
0 to 1 bar 0 to 15 psi PXM5500MC[*]-001BARGV DP41-S, DP25B-S
0 to 1.60 bar 0 to 23 psi PXM5500MC[*]-1.60BARGV DP41-S, DP25B-S
0 to 4 bar 0 to 58 psi PXM5500MC[*]-004BARGV DP41-S, DP25B-S
0 to 6 bar 0 to 87 psi PXM5500MC[*]-006BARGV DP41-S, DP25B-S
0 to 10 bar 0 to 145 psi PXM5500MC[*]-010BARGV DP41-S, DP25B-S
0 to 16 bar 0 to 232 psi PXM5500MC[*]-016BARGV DP41-S, DP25B-S
0 to 25 bar 0 to 363 psi PXM5500MC[*]-025BARGV DP41-S, DP25B-S
0 to 40 bar 0 to 580 psi PXM5500MC[*]-040BARGV DP41-S, DP25B-S
0 to 60 bar 0 to 870 psi PXM5500MC[*]-060BARGV DP41-S, DP25B-S
0 to 100 bar 0 to 1450 psi PXM5500MC[*]-100BARGV DP41-S, DP25B-S
0 to 160 bar 0 to 2321 psi PXM5500MC[*]-160BARGV DP41-S, DP25B-S
0 to 250 bar 0 to 3626 psi PXM5500MC[*]-250BARGV DP41-S, DP25B-S
0 to 400 bar 0 to 5802 psi PXM5500MC[*]-400BARGV DP41-S, DP25B-S
0 to 600 bar 0 to 8702 psi PXM5500MC[*]-600BARGV DP41-S, DP25B-S
Comes complete with 5-point NIST-traceable calibration.
* Visit us online for compatible meters.
[*] = Insert “0” for 0.6 m (2') cable “1” for twist-lock connector for “6” for mini DIN connector.
To order absolute pressure models, replace “G” in model number with “A” (no extra charge).
To order sealed gage models, replace “G” in model number with “S” (no extra charge).
Ordering Example: PXM5500MC6-60BARSV, mV/V output, 60 bar sealed gage transducer
with mini DIN connector and G
1
⁄4
Male Pressure Connection, Cable or mini DIN and mV/V Output
1
male pressure port. Mating connector included.
⁄
4
B-72
Page 4
High-Performance Thin Film
PX5505L1
Pressure T ransducer
Imperial and Metric Models
0-5 and 0-10 Vdc Output Models
3 Wire Amplifier
0-15 to 0-10,000 psi-Imperial Models
0-1 to 0-600 bar-Metric Models
1 bar = 14.5 psi
1 kg/cm2 = 14.22 psi
1 atmosphere = 14.7 psi = 29.93
inHg = 760.2 mmHg = 1.014 bar
PX5500/
PXM5500 Series
U Integral Shunt Calibration
U Low Noise, 5 Vdc and
10 Vdc Output Models
U High 0.1% Accuracy
U Solid State Reliability
U Sputtered Strain Gage
Design
U High Shock and
Vibration Resistance
U Low Drift
Applications
U R&D/Engineering Test
Laboratories
U Functional Test Systems
U Production Testing
U Flight Testing
U Gas Turbine and Engine
Test Stands
U Hydraulic Systems
U Custody Transfer
Measurements
OMEGA’S PX5500/PXM5500
transducer series provides high
performance in demanding
industrial and research applications
where accuracy, reliability,
and price are important. These
transducers have a 10-year MTBF
rate and are stable to 0.1% of FSO
over an 18-month period. This
translates into less downtime, fewer
test reruns, more time between
calibrations, and high confidence
in your pressure data. When
recalibration is impossible, relying
on the high stability of the PX5500/
PXM5500 Series transducers may
be the only cost-effective way to
obtain pressure data over the long
term. OMEGA’s thin-film technology
makes this premium performance
possible. The strain gages and
Standard
associated parts are sputterdeposited directly onto the pressure
sensing element, eliminating the
need for adhesives. The resulting
molecular bond between the sensing
element and the strain gage ensures
virtually no shifting, drifting, or
“creep” in the performance of the
transducer. The micro-geometry
design of the PX5500/PXM5500
sensing element affords a very small,
low-mass sensor that reduces effects
of mechanical vibration and shock.
The PX5500/PXM5500 gives you
accuracy, reliability, and stability
at competitive prices.
Specifications
Electrical Connection:
Configurations
Pressure Port: See Custom
Configurations
Mating Connector (Style 1):
PT06F10-6S-R (sold separately)
Weight: 225 g (8 oz) max
Excitation: 16 to 38 Vdc unregulated
Output (FS) 5E/5T Models: 5 Vdc
±0.1 Vdc ±10% adj
Output (FS) 10E Models: 10 Vdc
±0.1 Vdc ±10% adj
CE Compliant: Meets industrial
emissions and immunity to EN61326
Zero Balance: 0 Vdc ±0.1 Vdc ±5% adj
Input Current: 20 mA max with no load
Output Resistance: 100 Ω max
Insulation Resistance:
100MΩ at 50Vdc between all pins shorted
together and case
Electrostatic Discharge:
Protected to 15 kV max
Sensing Element:
4-active-arm bridge using sputterdeposited thin-film elements
Accuracy: Combined linearity,
hysteresis and repeatability:
±0.10% FS (BFSL) <70 bar (<1000 psi)
±0.15% FS 70 bar (1000 psi) and above
Natural Frequency:
5 kHz for 1 bar (15 psi), increasing
logarithmically to 50 kHz for 5000 psi
See Custom
1
Operating Temp Range:
-54 to 121°C (-65 to 250°F)
Compensated Temp Range:
-18 to 82°C (0 to 180°F)
Thermal Effects (Over the
Compensated Range):
Span: ±0.015% FS/°F (0.027%/ºC)
Zero: ±0.015% FS/°F (0.027%/ºC)
Proof Pressure: 2 times rated pressure
or 1000 bar (15,000 psi), whichever is less,
will not cause changes in performance
beyond the specified tolerance
Burst Pressure: 3 times rated
pressure or 1300 bar (20,000 psi),
whichever is less, will not cause rupture
of the pressure containment cavity
Wetted Parts:
17-4 PH or 15-5 PH stainless steel
76 MAX.
(3.00)
6.4 ±0.25
(0.25 ±0.01)
FLATS
Wiring Code
(all data applies to 5E/10E/5T except yellow highlight information)
DIN Pin Wire Function
1 A RD + Input
2 B YE + Output
3 C WT Common
4 D BL 5E/10E: Shunt Cal*
* For 5E/10E Shunt Cal, connect Shunt Cal pin/wire to Common pin/wire.
** 5T is a legacy product and is not recommended for new designs.
Twist-lock
style.

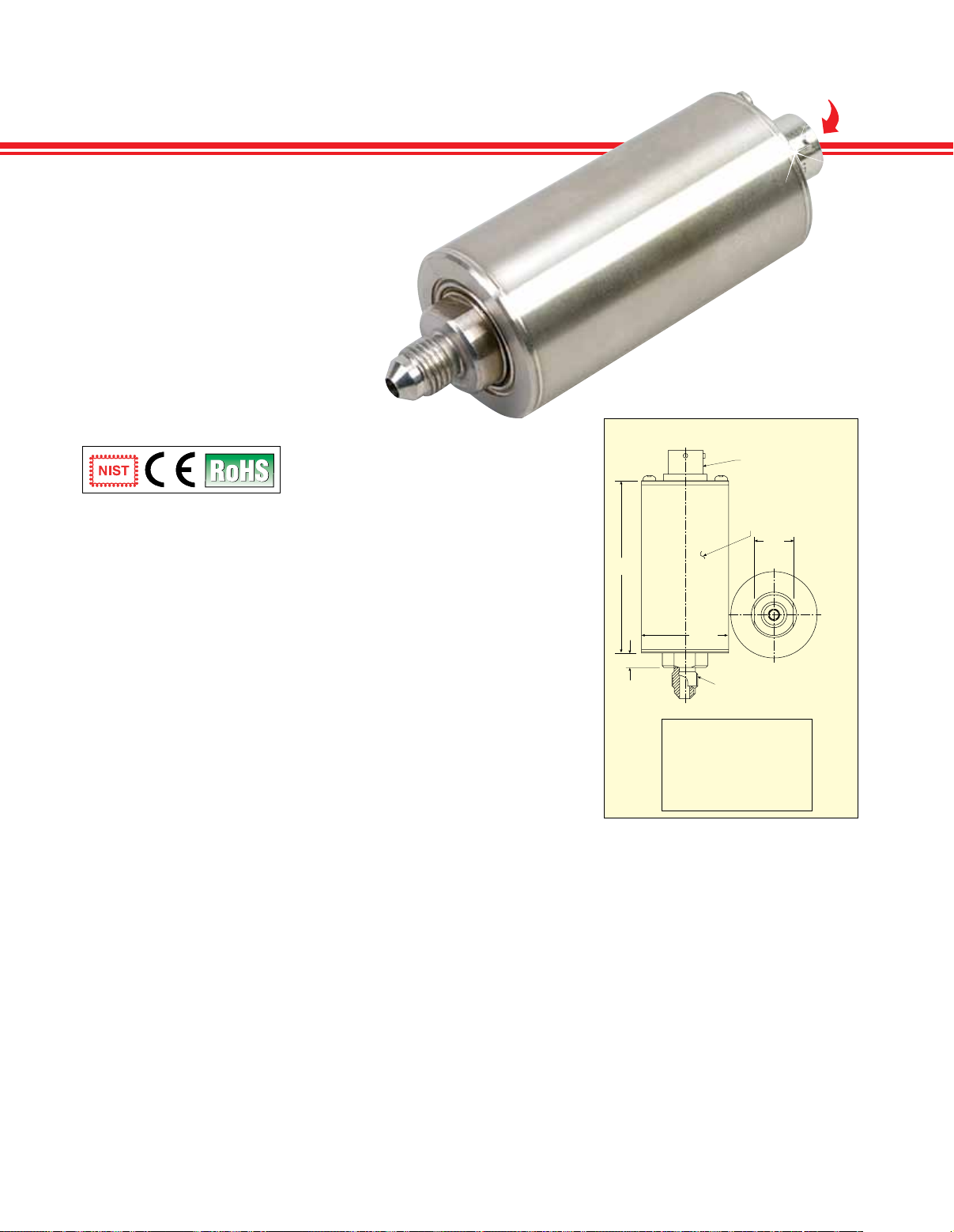

IMPERIAL
PX5500L1-100G5E,
shown actual size.
ELECTRICAL CONNECTION
BENDIX PTIH-10-6P
ELECTRICAL CONNECTION
OR EQUIV.
BENDIX PTIH-10-6P
MATES WITH BENDIX
OR EQUIV.
PT06F10-6S-R OR EQUIV.
MATES WITH BENDIX
PTS06A-10-6S OR EQUIV.
(NOT SUPPLIED).
(NOT SUPPLIED).
MINI DIN AND INTEGRAL
ALSO AVAILABLE:
CABLE ALSO AVAILABLE.
mini DIN CONNECTOR OR
INTEGRAL 0.6 m (24") CABLE
PX5500
17.5
(0.69)
WRENCH
FLATS
38 DIA.
(1.51)
MAX.
PRESSURE PORT
Dimensions:
mm (inch)
E Do not Connect
F Do not Connect
5T**: Common
PXM5500
(0.71)
18
HEX
Page 5
P-DPG500 Fig. 1
High-Perf ormance Thin-Film Pressure
Transducer
Imperial Custom Configurations

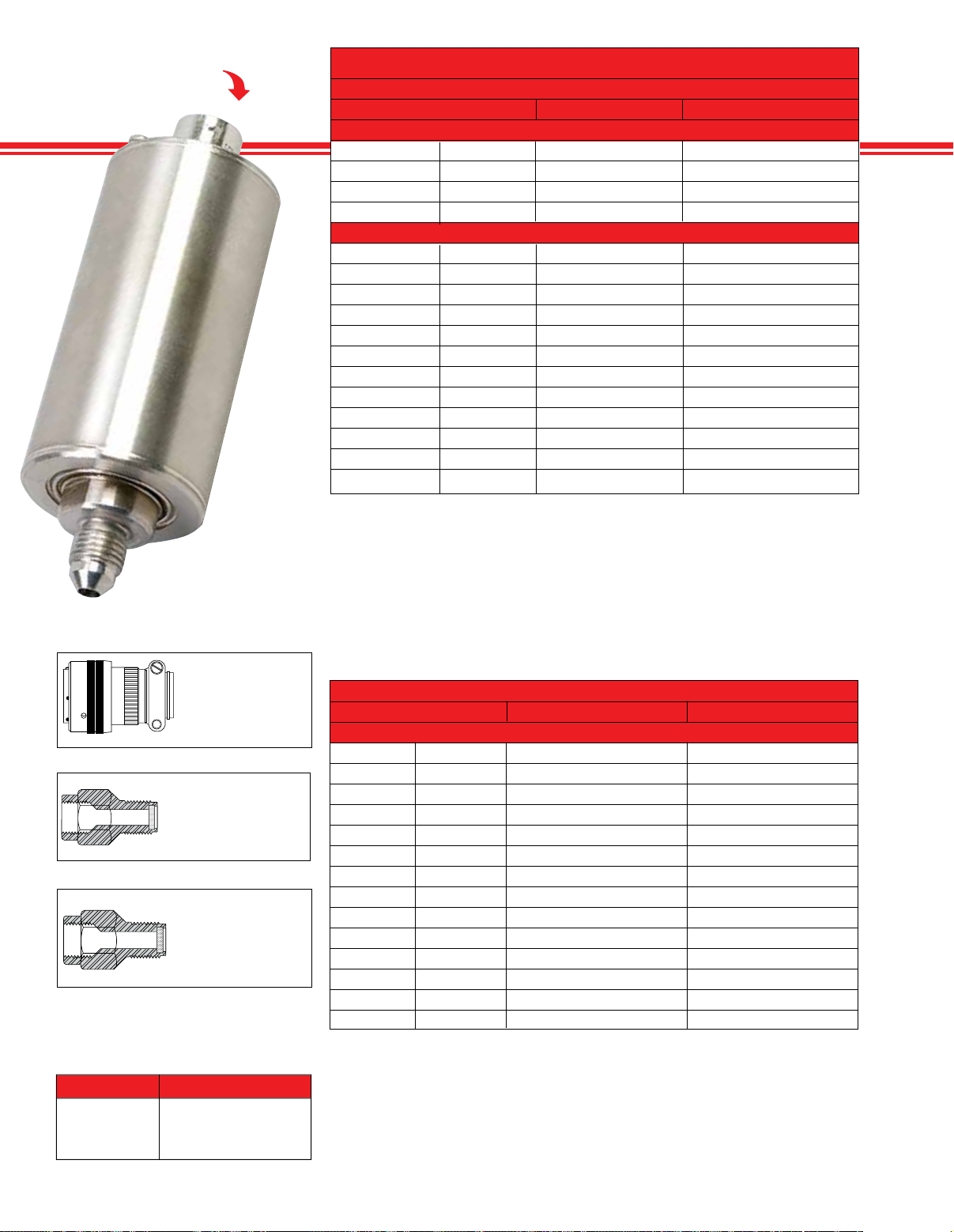

PX5500 PRESSURE ELECTRICAL
SERIES PORT CONNECTION RANGE UNITS OUTPUT OPTIONS
A = 1⁄8-27 NPT male
B = 1⁄8-27 NPT female
C = 1⁄4-18 NPT male
D = 1⁄4-18 NPT female
L = MS33656-4
M = MS33649-4
Visit us online for additional options including
extended compensated temperatures.
[ 1 ] [ 2 ] – [ 3 ] [ 4 ] [ 5 ] [ 6 ]
0 = 0.6 m (2') cable
add cost per/foot
over 0.6 m (2')
1 = PTIH-10-6P twist-lock
connector (or equal, no
charge). Mating connector
(sold separately), order
PT06F10-6S
mini DIN connector (no charge)
6 =
-R
015 psi
025
050
100
250
500
1K
1.5K
2.5K
3K
5K
10K
S,G,A
S,G,A
S,G,A
S,G,A
S,G,A
S,G,A
S,G,A
S,G,A
S,G,A
S,G,A
S,G,A
S,G,A
5E = 0 to 5 Vdc
10E = 0 to 10 Vdc
5T* = 0 to 5 Vdc
* 5T is a legacy
product and is not
recommended for
new designs.
To order a custom configuration:
1. Select a pressure port
2. Select electrical connection
3. Select a pressure range
4. Select pressure units – Sealed Gage,
Gage or Absolute
CAL11 = 11-point calibration
certificate
+ cost
( )ft = Optional cable
length in meters
5. Select output
6. Select options
To Order
Popular Imperial Models with 0 to 5 or 0 to 10 Vdc Output Shown Below (See Custom Configurations
Section for All Available Versions/Options)
Pressure Range Model No. (With Output Termination Style)
Imperial Metric 0.6 m (2') Cable PTIH-10-6P Connector mini DIN Connector
Absolute Pressure (All Ranges Available in Absolute Pressure, See Custom Configurations Section)
0 to 15 psi 0 to 1.0 bar
0 to 25 psi 0 to 1.7 bar
0 to 50 psi 0 to 3.4 bar
0 to 100 psi 0 to 6.9 bar
Gage Pressure (All Ranges Also Available in Sealed Gage Pressure, See Below)
0 to 15 psi 0 to 1.0 bar
0 to 25 psi 0 to 1.7 bar
0 to 50 psi 0 to 3.4 bar
0 to 100 psi 0 to 6.9 bar
0 to 250 psi 0 to 17.2 bar
0 to 500 psi 0 to 34.5 bar
0 to 1000 psi 0 to 68.9 bar
0 to 1500 psi 0 to 103 bar
0 to 2500 psi 0 to 172 bar
0 to 3000 psi 0 to 207 bar
0 to 5000 psi 0 to 345 bar
0 to 10,000 psi 0 to 689 bar
Comes complete with 5-point NIST-traceable calibration. Visit us online for compatible meters.
[*] Pressure Port (see Custom Configurations section and enter A, B, C, D, L, or M).
[**] Output Voltage Range: Enter “5E” for 0 to 5 Vdc output, or “10E” for 0 to 10 Vdc output.
To order absolute pressure transducers, change “G” in model number to “A” (no extra charge).
To order sealed gage transducers, change “G” in model number to “S” (no extra charge).
Ordering Examples: PX5500L1-025A10E, 25 psi absolute transducer with 0 to 10 Vdc output,
PTIH-10-6P electrical connection, and MS33656-4, male pressure port. PT06F10-6S-R, mating
connector (sold separately).
PX5500C6-5KG5E, 5000 psi gage pressure transducer with 0 to 5 Vdc output, mini DIN electrical
connection, and 1⁄4-18 NPT male pressure port.
PX5500[*]0-015A[**] PX5500[*]1-015A[**] PX5500[*]6-015A[**]
PX5500[*]0-025A[**] PX5500[*]1-025A[**] PX5500[*]6-025A[**]
PX5500[*]0-050A[**] PX5500[*]1-050A[**] PX5500[*]6-050A[**]
PX5500[*]0-100A[**] PX5500[*]1-100A[**] PX5500[*]6-100A[**]
PX5500[*]0-015G[**] PX5500[*]1-015G[**] PX5500[*]6-015G[**]
PX5500[*]0-025G[**] PX5500[*]1-025G[**] PX5500[*]6-025G[**]
PX5500[*]0-050G[**] PX5500[*]1-050G[**] PX5500[*]6-050G[**]
PX5500[*]0-100G[**] PX5500[*]1-100G[**] PX5500[*]6-100G[**]
PX5500[*]0-250G[**] PX5500[*]1-250G[**] PX5500[*]6-250G[**]
PX5500[*]0-500G[**] PX5500[*]1-500G[**] PX5500[*]6-500G[**]
PX5500[*]0-1KG[**] PX5500[*]1-1KG[**] PX5500[*]6-1KG[**]
PX5500[*]0-1.5KG[**] PX5500[*]1-1.5KG[**] PX5500[*]6-1.5KG[**]
PX5500[*]0-2.5KG[**] PX5500[*]1-2.5KG[**] PX5500[*]6-2.5KG[**]
PX5500[*]0-3KG[**] PX5500[*]1-3KG[**] PX5500[*]6-3KG[**]
PX5500[*]0-5KG[**] PX5500[*]1-5KG[**] PX5500[*]6-5KG[**]
PX5500[*]0-10KG[**] PX5500[*]1-10KG[**] PX5500[*]6-10KG[**]
G1⁄4 Pressure
Snubbers:
PS-4G-MG = Gas
PS-4E-MG = Lt Oil
PS-4D-MG =
Dense
Liquid
2
Page 6
High-Perf ormance Thin-Film Pressure
Transducer
Metric Custom Configurations
PXM5500 PRESSURE ELECTRICAL RANGE
SERIES PORT CONNECTION (BAR) UNITS OUTPUT OPTIONS
MA = G1⁄8B Male extra charge
MB = G1⁄8B Female no charge
MC = G1⁄4B Male extra charge
MD = G1⁄4B Female no charge
Visit us online for additional options including
extended compensated temperatures.
[ 1 ] [ 2 ] – [ 3 ] [ 4 ] [ 5 ] [ 6 ]
0 = 0.6 m (2') cable (std)
add cost per/meter
over 0.6 m (2')
1 = PTIH-10-6P twist-lock
connector (or equal, no
charge). Mating connector
(sold separately), order
PT06F10-6S
6 = mini DIN connector (no charge)
-R
001BAR
1.60BAR
004BAR
006BAR
010BAR
016BAR
025BAR
040BAR
060BAR
100BAR
160BAR
250BAR
400BAR
600BAR
S,G,A
S,G,A
S,G,A
S,G,A
S,G,A
S,G,A
S,G,A
S,G,A
S,G,A
S,G,A
S,G,A
S,G,A
S,G,A
S,G,A
5E = 0 to 5 Vdc
10E = 0 to 10 Vdc
5T* = 0 to 5 Vdc
* 5T is a legacy
product and is not
recommended for
new designs.
CAL11 = 11-point calibration
( )ft = Optional cable
To order a custom configuration:
1. Select a pressure port
2. Select electrical connection
3. Select a pressure range
4. Select pressure units – Sealed Gage,
Gage or Absolute
5. Select output
6. Select options
certificate
+ cost
length in meters
Popular Metric Models with 0 to 5 or 0 to 10 Vdc Output Shown Below (See Custom Configurations
Section for All Available Versions/Options)
Pressure Range Model No. (With Output Termination Style)
Metric Imperial 0.6 m (2') Cable PTIH-10-6P Connector mini DIN Connector
Gage Pressure (All Ranges Also Available in Absolute and Sealed Gage Pressure, See Below)
0 to 1 bar 0 to 15 psi
0 to 1.60 bar
0 to 23 psi
0 to 4 bar 0 to 58 psi
0 to 6 bar 0 to 87 psi
0 to 10 bar 0 to 145 psi
0 to 16 bar 0 to 232 psi
0 to 25 bar 0 to 363 psi
0 to 40 bar 0 to 580 psi
0 to 60 bar 0 to 870 psi
0 to 100 bar 0 to 1450 psi
0 to 160 bar 0 to 2321 psi
0 to 250 bar 0 to 3626 psi
0 to 400 bar 0 to 5802 psi
0 to 600 bar 0 to 8702 psi
Comes complete with 5-point NIST-traceable calibration. Visit us online for compatible meters.
[*] Pressure Port (see Custom Configurations section and enter MA, MB, MC, or MD).
[**] Output Voltage Range: Enter “5E” for 0 to 5 Vdc output, or “10E” for 0 to 10 Vdc output.
To order absolute pressure models, replace “G” in model number with “A” (no extra charge).
To order sealed gage models, replace “G” in model number with “S” (no extra charge).
Ordering Examples: PXM5500MC6-060BARS5E, 60 bar sealed gage transducer with 0 to 5 Vdc output, mini DIN electrical connection and
G1⁄4 male pressure port. Mating connector included.
PXM5500MC0-010BARA10E, 10 bar absolute pressure transducer with 0 to 10 Vdc output, 0.6 m (2’) cable connection and G1⁄4 male
pressure port.
PXM5500M[*]0-001BARG[**] PXM5500M[*]1-001BARG[**] PXM5500M[*]6-001BARG[**]
PXM5500M[*]0-1.60BARG[**] PXM5500M[*]1-1.60BARG[**] PXM5500M[*]6-1.60BARG[**]
PXM5500M[*]0-004BARG[**] PXM5500M[*]1-004BARG[**] PXM5500M[*]6-004BARG[**]
PXM5500M[*]0-006BARG[**] PXM5500M[*]1-006BARG[**] PXM5500M[*]6-006BARG[**]
PXM5500M[*]0-010BARG[**] PXM5500M[*]1-010BARG[**] PXM5500M[*]6-010BARG[**]
PXM5500M[*]0-016BARG[**] PXM5500M[*]1-016BARG[**] PXM5500M[*]6-016BARG[**]
PXM5500M[*]0-025BARG[**] PXM5500M[*]1-025BARG[**] PXM5500M[*]6-025BARG[**]
PXM5500M[*]0-040BARG[**] PXM5500M[*]1-040BARG[**] PXM5500M[*]6-040BARG[**]
PXM5500M[*]0-060BARG[**] PXM5500M[*]1-060BARG[**] PXM5500M[*]6-060BARG[**]
PXM5500M[*]0-100BARG[**] PXM5500M[*]1-100BARG[**] PXM5500M[*]6-100BARG[**]
PXM5500M[*]0-160BARG[**] PXM5500M[*]1-160BARG[**] PXM5500M[*]6-160BARG[**]
PXM5500M[*]0-250BARG[**] PXM5500M[*]1-250BARG[**] PXM5500M[*]6-250BARG[**]
PXM5500M[*]0-400BARG[**] PXM5500M[*]1-400BARG[**] PXM5500M[*]6-400BARG[**]
PXM5500M[*]0-600BARG[**] PXM5500M[*]1-600BARG[**] PXM5500M[*]6-600BARG[**]
Accessories
Model No. Description
PT06F10-6S-R
Mating connector for PX5500/PXM5500 Series units with PTIH-10-6P twist-lock connector
3
Page 7
HIGH-PERFORMANCE
THIN-FILM TRANSMITTER
STANDARD AND METRIC MODELS
4 to 20 mA Output
0-15 to 0-10,000 psi-Standard Models
0-1 to 0-600 bar-Metric Models
1 bar = 14.5 psi
1 kg/cm2 = 14.22 psi
1 atmosphere = 14.7 psi = 29.93
inHg = 760.2 mmHg = 1.014 bar
Twist-lock
style.
STANDARD
PX5500L1-100GI,
shown actual size.
PX5500/PXM5500 Series
Standard
U High 0.1% Accuracy
U Solid State Reliability
U Sputtered Strain
Gage Design
U High Shock and
Vibration Resistance
U Low Drift
U 5-Point NIST
Calibration Standard
Applications
U Testing
U R&D/Engineering Test
Laboratories
U Functional Test Systems
U Production Testing
U Product Quality
Assurance
U Flight Testing
U Gas Turbine and Engine
Test Standards
U Ground Support
Equipment
U Hydraulic Systems
U Custody Transfer
Measurements
OMEGA’s PX5500/PXM5500
transducer series provides high
performance in demanding industrial
and research applications where
accuracy, reliability, and price are
important. These transducers have
a 10-year MTBF rate and are stable
to 0.1% of FS over an 18-month
period. This translates into less
downtime, fewer test reruns, more
time between calibrations, and
more reliable pressure data. When
recalibration is impossible, relying
on the high stability of a PX5500/
PXM5500 transducer may be the
only cost-effective way to obtain
pressure data over the long term.
OMEGA’s thin-film technology
makes this premium performance
possible. The strain gages and
associated structures are sputterdeposited directly onto the pressure
sensing element, thus eliminating
the need for adhesives. The resulting
molecular bond between the
sensing element and the strain
gages ensures virtually no
shifting, drifting, or “creep” in the
performance of the transducer.
The micro-geometry design of the
PX5500/PXM5500 sensing element
results in a very small, low-mass
sensor that reduces effects of
mechanical vibration and shock.
The PX5500/PXM5500 delivers
accuracy, reliability, and stability
at competitive prices.
SPECIFICATIoNS
mA Models
Excitation: 10 to 40 Vdc unregulated,
reverse polarity protected
output (FS): 4 to 20 mA ±0.8 mA adj
Zero Balance: 4 mA ±0.4 mA adj
Input Current: 20 mA max with no load
Dimensions: mm (inch)
ELECTRICAL CONNECTION
BENDIX PTIH-10-6P
OR EQUIV.
MATES WITH BENDIX
PT06F10-6S-R OR EQUIV.
(NOT SUPPLIED).
ALSO AVAILABLE:
mini DIN CONNECTOR OR
INTEGRAL 0.6 m (24") CABLE
PX5500
PXM5500
17.5
G1/4
±0.25
(0.71)
18
(0.688 ±0.010)
76 MAX.
(3.00)
38 DIA.
(1.51)
MAX.
PX5500: PRESSURE PORT
PER MS3656-4*
6.4 ±0.25
(0.25 ±0.01)
FLATS
Wiring Code
DIN Pin Wire Function
1 A RD + Input
2 D WT - Input
Load Impedance: 50 (V – 10) Ω max
where V is supply voltage (40 Vdc max)
Insulation Resistance:
100MΩ at 50Vdc between all pins
shorted together and case
Electrostatic Discharge:
Protected to 15 kV max
Sensing Element:
4-active-arm bridge using sputterdeposited thin-film elements
Accuracy (Combined Linearity,
Hysteresis and Repeatability):
±0.10% FS (BFSL) <1000 psi
±0.15% FS 1000 psi and above
Vibration Sensitivity: At 20 g peak
sinusoidal vibration from 10 to 2000 Hz
1
(
⁄2” D.A.), the output shall not exceed
0.04% FS/g for 15 psi range, decreasing
to 0.003% FS/g for 1000 psi and above
Natural Frequency: 5 kHz for 15 psi,
increasing logarithmically to 50 kHz
for 5000 psi
ALSO AVAILABLE: MS33649-4 (FEMALE)
1/4-18 NPT (MALE OR FEMALE)
1/8-27 NPT (MALE OR FEMALE
PXM5500: G1/8 OR G1/4 (MALE OR FEMALE)
B YE No Con
C BL No Con
E No Connection
F No Connection
WRENCH
FLATS
HEX
B-215
Page 8
SPUTTERED SILICON TECHNOLOGY
Shock: Qualification level of 100 g,
11 ms half sine wave without damage
operating Temp Range:
-40 to 85°C (-40 to 185°F)
Compensated Temp Range:
-18 to 82°C (0 to 180°F)
Thermal Effects (over the
Compensated Range):
Span: ±0.02% FS/°F
Zero: ±0.02% FS/°F
Proof Pressure: 2 times rated pressure
or 15,000 psi, whichever is less, will not
cause changes in performance beyond
the specified tolerance
Burst Pressure: 3 times rated pressure
or 20,000 psi, whichever is less, will
not cause rupture of the pressure
containment cavity
Wetted Parts:
17-4 PH or 15-5 PH stainless steel
Pressure Port: See dimensional
drawings on page B-215
Electrical Connection: PTIH-10-6P
standard
Mating Connector: PT06F10-6S-R
(sold separately)
Weight: 225 g (8 oz) maximum
STANDARD CUSToM CoNFIGURATIoNS
PX5500 PRESSURE ELECTRICAL
SERIES PoRT CoNNECTIoN RANGE (psi) UNITS oUTPUT oPTIoNS
A =
B = 1⁄8-27 NPT female
C = 1⁄4-18 NPT male
D = 1⁄4-18 NPT female
L = MS33656-4
M = MS33649-4
[ 1 ] [ 2 ] [ 3 ] [ 4 ] [ 5 ] [ 6 ]
1
⁄8-27 NPT male
0 = 0.6 m (2') cable
add cost per/ft over 0.6 m (2')
1 = PTIH-10-6P connector
(or equal, no charge).
Mating connector
(sold separately), order
PT06F10-6S-R
6 = mini DIN connector
015
025
050
100
250
500
1K
1.5K
2.5K
3K
5K
10K
A, G, S
A, G, S
A, G, S
A, G, S
A, G, S
A, G, S
A, G, S
A, G, S
A, G, S
A, G, S
A, G, S
A, G, S
Base Price PX5500
I = 4 to 20 mA
To order a custom configuration:
1. Select a pressure port
2. Select electrical connection
3. Select a pressure range
4. Select pressure units – Absolute,
Gage or Sealed gage
5. Select output
CAL11 = 11-pt cal
+ cost
( )ft = Optional
cable length
in feet
6. Select options and agency approvals
Ordering Examples: PX5500A1-015AV, 1⁄8-27 NPT male pressure port, twist-lock connector, 15 psi absolute pressure range and mV/V output.
PT06F10-6S
10,000 psi gage pressure range and 0 to 5 Vdc output. PT06F10-6S-R, mating connector (sold separately).
PX5500L0-015AI-25FT, MS33656-4 male pressure port, 8 m (25') lead wire, 15 psi absolute pressure range and 4 to 20mA output.
-R, mating connector (sold separately). PX5500M1-10KG5T, MS33649-4 female pressure port, twist-lock connector,
PRESSURE TRANSDUCERS
CURRENT oUTPUT
B
METRIC CUSToM CoNFIGURATIoNS
PXM5500 PRESSURE ELECTRICAL RANGE
SERIES PoRT CoNNECTIoN (BAR) UNITS oUTPUT oPTIoNS
MA = G
MB = G1⁄8B Female no charge
MC = G1⁄4B Male cost
MD = G1⁄4B Female no charge
Visit us online for additional options including
extended compensated temperatures.
Ordering Examples: PXM5500MB0-010BARS5T, 10 bar sealed gage pressure transducer with G
cable termination.
PXM5500MD1-010BARA5T,
PT06F10-6S-R, mating connector (sold separately).
[ 1 ] [ 2 ] [ 3 ] [ 4 ] [ 5 ] [ 6 ]
1
⁄8B Male cost
0 = 0.6 m (2') cable (std)
add cost per/m over 0.2 m (2')
1 = PTIH-10-6P connector
(or equal, no charge)
6 = mini DIN connector
1.0
1.6
4.0
6.0
10
16
25
40
60
100
160
250
400
600
A, G, S
A, G, S
A, G, S
A, G, S
A, G, S
A, G, S
A, G, S
A, G, S
A, G, S
A, G, S
A, G, S
A, G, S
A, G, S
A, G, S
Base price
PXM5500
I = 4 to 20 mA
CAL11 = 11-point calibration
To order a custom configuration:
1. Select a pressure port
2. Select electrical connection
3. Select a pressure range
4. Select pressure units – Absolute,
Gage or Sealed gage
5. Select output
6. Select options and agency approvals
1
⁄8B female connection and 0.6 m (2')
10 bar absolute pressure transducer with G1⁄4B female connection and twist-lock connector.
certificate
( )m = Optional cable
length in meters
B-216
Page 9
P-DPG500 Fig. 1
P-DPG500 Fig. 1
ACCESSoRY
Mo
PT06
DEL
F10-6S-
No.
Twist-lock
style.
STANDARD
PX5500L1-100GI,
shown actual size.
Mating
Connector
PT06F10-6S-R
1
⁄4 NPT Pressure
Snubbers:
PS-4G = Gas
PS-4E = Lt Oil
PS-4D = Dense Lq
G1⁄4 Pressure
Snubbers:
PS-4G-MG = Gas
PS-4E-MG = Lt Oil
PS-4D-MG = Dense
ESCRIPTIo
D
Mating connector for
PX5500 units with
R
integral twist-lock
connector
Liquid
N
STANDARD MoDELS
To Order
Models with 4 to 20 mA output, MS33656-4 Connection, Twist-Lock Connector
RANGE MoDEL No. CoMPATIBLE METERS*
Absolute Pressure (All Ranges Available in Absolute Pressure)
0 to 15 psi 0 to 1.0 bar PX5500L[*]-015AI
0 to 25 psi 0 to 1.7 bar PX5500L[*]-025AI
0 to 50 psi 0 to 3.4 bar PX5500L[*]-050AI
0 to 100 psi 0 to 6.9 bar PX5500L[*]-100AI
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
Gage Pressure (All Ranges Also Available in Sealed Gage Pressure)
0 to 15 psi 0 to 1.0 bar PX5500L[*]-015GI
0 to 25 psi 0 to 1.7 bar PX5500L[*]-025GI
0 to 50 psi 0 to 3.4 bar PX5500L[*]-050GI
0 to 100 psi 0 to 6.9 bar PX5500L[*]-100GI
0 to 250 psi 0 to 17.2 bar PX5500L[*]-250GI
0 to 500 psi 0 to 34.5 bar PX5500L[*]-500GI
0 to 1000 psi 0 to 68.9 bar PX5500L[*]-1KGI
0 to 1500 psi 0 to 103 bar
0 to 2500 psi 0 to 172 bar
PX5500L[*]-1.5KGI DP41-E, DP25B-E, DP24-E
PX5500L[*]-2.5KGI DP41-E, DP25B-E, DP24-E
0 to 3000 psi 0 to 207 bar PX5500L[*]-3KGI
0 to 5000 psi 0 to 345 bar PX5500L[*]-5KGI
0 to 10,000 psi 0 to 689 bar PX5500L[*]-10KGI
Comes complete with 5-point NIST traceable calibration.
Visit us online for compatible meters.
*
[*] = Insert “0” for 0.6 m (2') cable, “1” for twist-lock connector, or “6” for mini DIN connector.
To order absolute pressure models, change “G” in model number to “A” (no extra charge).
To order sealed gage models, change “G” in model number to “S” (no extra charge).
Ordering Examples: PX5500L1-1KSI, 1000 psi sealed gage transducer with 4 to 20 mA
output, PTIH-10-6P electrical connector and MS33656-4, male pressure port.
PT06F10-6S-R, mating connector (sold separately).
PX5500L1-100AI, 100 psi absolute pressure transducer with 4 to 20 mA output, PTIH-10-6P
electrical connector and MS33656-4, male pressure port. PT06F10-6S-R, mating connector
(sold separately).
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
METRIC MoDELS
Models with G 1⁄4 Male Pressure Connection, Cable or Connector and 4 to 20 mA output
RANGE MoDEL No. CoMPATIBLE METERS*
GAGE PRESSURE
0 to 1 bar 0 to 15 psi
0 to 1.60 bar
0 to 4 bar
0 to 6 bar
0 to 10 bar
0 to 16 bar
0 to 25 bar
0 to 40 bar
0 to 60 bar
0 to 100 bar
0 to 160 bar
0 to 250 bar
0 to 400 bar
0 to 600 bar
Comes complete with 5-point NIST traceable calibration.
Visit us online for compatible meters.
*
[*] = Insert “0” for 0.6 m (2') cable, “1” for twist-lock connector, or “6” for mini DIN connector.
To order absolute pressure models, replace “G” in model number with “A” (no extra charge).
To order sealed gage models, replace “G” in model number with “S” (no extra charge).
Ordering Examples: PXM5500MC0-060BARSI, 60 bar sealed gage transmitter with
4 to 20 mA output, 0.6 m (2') cable connection and G
PXM5500MC6-1.60BARAI, 1.6 bar absolute pressure transmitter with 4 to 20 mA output,
mini-DIN connection and G
0 to 23 psi
0 to 58 psi
0 to 87 psi
0 to 145 psi
0 to 232 psi
0 to 363 psi
0 to 580 psi
0 to 870 psi
0 to 1450 psi
0 to 2321 psi
0 to 3626 psi
0 to 5802 psi
0 to 8702 psi
PXM5500MC[*]-001BARGI
PXM5500MC[*]-1.60BARGI
PXM5500MC[*]-004BARGI
PXM5500MC[*]-006BARGI
PXM5500MC[*]-010BARGI
PXM5500MC[*]-016BARGI
PXM5500MC[*]-025BARGI
PXM5500MC[*]-040BARGI
PXM5500MC[*]-060BARGI
PXM5500MC[*]-100BARGI
PXM5500MC[*]-160BARGI
PXM5500MC[*]-250BARGI
PXM5500MC[*]-400BARGI
PXM5500MC[*]-600BARGI
1
⁄4 male pressure port.
1
⁄4 male pressure port. Mating connector included.
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
B-217
Loading...
