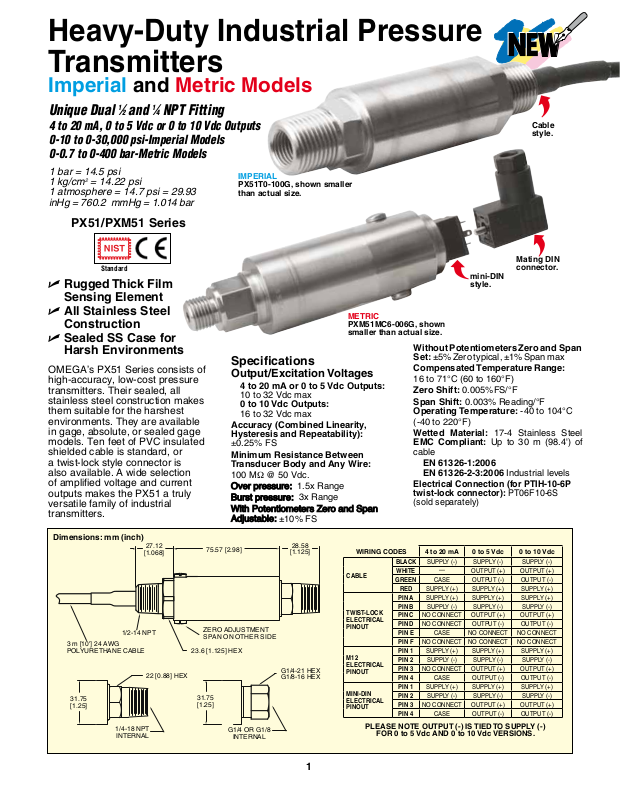

Omega PX51-IS Specification

Heavy-Duty Industrial Pressure
Transmitters

Imperial and Metric Models

Unique Dual 1⁄2 and 1⁄4 NPT Fitting

4 to 20 mA, 0 to 5 Vdc or 0 to 10 Vdc Outputs
0-10 to 0-30,000 psi-Imperial Models
0-0.7 to 0-400 bar-Metric Models

1 bar = 14.5 psi
1 kg/cm2 = 14.22 psi
1 atmosphere = 14.7 psi = 29.93
inHg = 760.2 mmHg = 1.014 bar

PX51/PXM51 Series

Standard

U Rugged Thick Film

Sensing Element

U All Stainless Steel

Construction

U Sealed SS Case for

Harsh Environments

OMEGA’s PX51 Series consists of
high-accuracy, low-cost pressure
transmitters. Their sealed, all
stainless steel construction makes
them suitable for the harshest
environments. They are available
in gage, absolute, or sealed gage
models. Ten feet of PVC insulated
shielded cable is standard, or
a twist-lock style connector is
also available. A wide selection
of amplified voltage and current
outputs makes the PX51 a truly
versatile family of industrial
transmitters.

IMPERIAL

PX51T0-100G, shown smaller
than actual size.

METRIC

PXM51MC6-006G, shown
smaller than actual size.

Specifications

Output/Excitation Voltages

4 to 20 mA or 0 to 5 Vdc Outputs:

10 to 32 Vdc max

0 to 10 Vdc Outputs:

16 to 32 Vdc max

Accuracy (Combined Linearity,
Hysteresis and Repeatability):

±0.25% FS

Minimum Resistance Between
Transducer Body and Any Wire:

100 MΩ @ 50 Vdc.
Over pressure: 1.5x Range
Burst pressure: 3x Range
With Potentiometers Zero and Span

Adjustable: ±10% FS

mini-DIN
style.

Without Potentiometers Zero and Span
Set: ±5% Zero typical, ±1% Span max

Compensated Temperature Range:
16 to 71°C (60 to 160°F)

Zero Shift: 0.005%FS/°F
Span Shift: 0.003% Reading/°F

Operating Temperature: -40 to 104°C

(-40 to 220°F)

Wetted Material: 17-4 Stainless Steel
EMC Compliant: Up to 30 m (98.4') of

cable

EN 61326-1:2006
EN 61326-2-3:2006 Industrial levels

Electrical Connection (for PTIH-10-6P
twist-lock connector): PT06F10-6S

(sold separately)

Cable
style.

Mating DIN
connector.

Dimensions: mm (inch)

1/2-14 NPT

3 m [10'] 24 AWG
POLYURETHANE CABLE

31.75
[1.25]

1/4-18 NPT
INTERNAL

27.12

[1.068]

22 [0.88] HEX

75.57 [2.98]

ZERO ADJUSTMENT
SPAN ON OTHER SIDE

23.6 [1.125] HEX

31.75
[1.25]

G1/4 OR G1/8

INTERNAL

28.58

[1.125]

G1/4-21 HEX
G1/8-16 HEX

1

WIRING CODES 4 to 20 mA 0 to 5 Vdc 0 to 10 Vdc

CABLE

TWIST-LOCK
ELECTRICAL
PINOUT

M12
ELECTRICAL
PINOUT

MINI-DIN
ELECTRICAL
PINOUT

BLACK

GREEN

PLEASE NOTE OUTPUT (-) IS TIED TO SUPPLY (-)

FOR 0 to 5 Vdc AND 0 to 10 Vdc VERSIONS.

SUPPLY (-) SUPPLY (-) SUPPLY (-)

WHITE

RED
PIN A
PIN B
PIN C
PIN D
PIN E
PIN F
PIN 1
PIN 2
PIN 3
PIN 4
PIN 1
PIN 2
PIN 3
PIN 4

—

CASE OUTPUT (-) OUTPUT (-)
SUPPLY (+) SUPPLY (+) SUPPLY (+)
SUPPLY (+) SUPPLY (+) SUPPLY (+)

SUPPLY (-) SUPPLY (-) SUPPLY (-)
NO CONNECT OUTPUT (+) OUTPUT (+)
NO CONNECT OUTPUT (-) OUTPUT (-)

CASE NO CONNECT NO CONNECT

NO CONNECT NO CONNECT NO CONNECT

SUPPLY (+) SUPPLY (+) SUPPLY (+)

SUPPLY (-) SUPPLY (-) SUPPLY (-)
NO CONNECT OUTPUT (+) OUTPUT (+)

CASE OUTPUT (-) OUTPUT (-)

SUPPLY (+) SUPPLY (+) SUPPLY (+)

SUPPLY (-) SUPPLY (-) SUPPLY (-)
NO CONNECT OUTPUT (+) OUTPUT (+)

CASE OUTPUT (-) OUTPUT (-)

OUTPUT (+) OUTPUT (+)

Electrical Termination Styles

For Both Imperial and Metric Models

Code 0 1 5

3 m (10') cable (standard)

1

with

⁄2 NPT conduit

Code 6 GW

Mating DIN
connector

mini-DIN connector

PTIH-10-6P twist-lock

connector

Submersible waterproof

cable with 1⁄2 NPT conduit

M12 connector

2

Heavy-Duty Industrial
Transmitter

IMPERIAL CUSTOM CONFIGURATIONS

PX51 PRESSURE ELECTRICAL RANGE
SERIES PORT CONNECTION (psi) UNITS OUTPUT OPTIONS

[ 1 ] [ 2 ] — [ 3 ] [ 4 ] [ 5 ] [ 6 ]

1

C =

⁄4-18 NPT-M

D = 1⁄4-18 NPT-F
T = Dual 1⁄2-14 NPT external

1

⁄4-18 NPT internal

K = 7⁄16-20 UNF-F
J = 7⁄16-20 UNF-M
S = 1⁄4 HP Tube Fitting

(≥10,000 psi ranges)

0 = 3 m (10') pigtail with
1⁄2 NPT conduit

1 = PTIH-10-6P twist-lock 6-pin
connector

5 = M12 connector
6 = mini-DIN connector
GW = Submersible waterproof

cable with 1⁄2 NPT conduit

Ordering Examples: PX51T1-100GI, 100 psi gage pressure transmitter with dual 1⁄2-14 NPT external 1⁄4-18 NPT internal and
PTIH-10-6P connector, 4 to 20 mA output. PT06F10-6S, mating connector (sold separately). PX51T0-1KSGI, 1000 psi sealed pressure

transmitter with dual 1⁄2-14 NPT external 1⁄4-18 NPT internal and 3 m (10') cable, 4 to 20 mA output.

010
015
020
025
030
050
075
100
200
300
500
750
1K

1.5K
2K

2.5K
3K

3.5K
5K

7.5K
10K
15K
20K
30K

†

†

†

†

A,G,SG
A,G,SG
A,G,SG
A,G,SG
A,G,SG
A,G,SG
A,G,SG
A,G,SG
A,G,SG
A,G,SG
A,G,SG
A,G,SG
A,G,SG
A,G,SG
A,G,SG
A,G,SG
A,G,SG
A,G,SG
A,G,SG
A,G,SG
A,G,SG
A,G,SG
A,G,SG
A,G,SG

I = 4 to 20 mA output
5V = 0 to 5 Vdc output
10V = 0 to 10 Vdc output

†

= Supplied with type “S” pressure port; 1⁄4" HP

tube fitting.

To order a custom configuration:

1. Select a pressure port

2. Select electrical connection

3. Select a pressure range

4. Select pressure units - Absolute, Gage
or Sealed Gage

5. Select output

6. Select options

(No Suffix) = Potentiometers

NP = No

Standard

Potentiometers

METRIC CUSTOM CONFIGURATIONS

PXM51 PRESSURE ELECTRICAL RANGE
SERIES PORT CONNECTION (BAR) UNITS OUTPUT OPTIONS

[ 1 ] [ 2 ] — [ 3 ] [ 4 ] [ 5 ] [ 6 ]

1

MA = G
MB = G1⁄8B Female
MC = G1⁄4B Male
MD = G1⁄4B Female

⁄8B Male

0 = 3 m (10') cable (std) with

1 = PTIH-10-6P twist-lock 6 pin

connector

5 = M12 connector
6 = mini-DIN connector

GW = Submersible waterproof

cable with

1

⁄2 NPT conduit

1

⁄2 NPT conduit

0.7

001

1.60

2.50
004
006
010
016
025
040
060
100
160
250
400

A,G,SG
A,G,SG
A,G,SG
A,G,SG
A,G,SG
A,G,SG
A,G,SG
A,G,SG
A,G,SG
A,G,SG
A,G,SG
A,G,SG
A,G,SG
A,G,SG
A,G,SG

I = 4 to 20 mA output
5V = 0 to 5 Vdc output
10V = 0 to 10 Vdc output

To order a custom configuration:

1. Select a pressure port

2. Select electrical connection

3. Select a pressure range

4. Select pressure units - Absolute, Gage

(No Suffix) = Potentiometers

Standard

NP = No

Potentiometers

or Sealed Gage

5. Select output

6. Select options

Ordering Examples: PXM51MB0-010SGI, 10 bar sealed gage pressure transmitter with G
4 to 20 mA output. PXM51MD1-010AI, 10 bar absolute pressure transducer with G1⁄8B Female pressure port and PTIH-10-6P connector,
4 to 20 mA output.

1

⁄8B Female pressure port and 3 m (10') cable,

3

P-DPG500 Fig. 1

P-DPG500 Fig. 1

IMPERIAL MODELS

Mating DIN
connector

mini-DIN style.

METRIC

PXM51MC6-006GI,
shown smaller than
actual size.

1

Snubbers:

PS-4G = Gas
PS-4E = Lt Oil
PS-4D = Dense Lq

METRIC MODELS

⁄4 NPT Pressure

G1⁄4 Pressure
Snubbers:

PS-4G-MG = Gas
PS-4E-MG = Lt Oil
PS-4D-MG = Dense

Liquid

To Order

Range Model No. Compatible Meters

Absolute Pressure (All Ranges Available in Absolute Pressure)

0 to 15 psi 0 to 1.0 bar
0 to 25 psi 0 to 1.4 bar
0 to 30 psi 0 to 2.1 bar
0 to 50 psi 0 to 3.4 bar

Gage Pressure (All Ranges Also Available in Sealed Gage Pressure)

0 to 10 psi 0 to 0.69 bar
0 to 15 psi 0 to 1.0 bar
0 to 20 psi 0 to 1.4 bar
0 to 30 psi 0 to 2.1 bar
0 to 50 psi 0 to 3.4 bar
0 to 75 psi 0 to 5.2 bar
0 to 100 psi 0 to 6.9 bar
0 to 200 psi 0 to 13.8 bar
0 to 300 psi 0 to 20.7 bar
0 to 500 psi 0 to 34.5 bar
0 to 750 psi 0 to 51.7 bar
0 to 1000 psi 0 to 68.9 bar
0 to 1500 psi 0 to 103 bar
0 to 2000 psi 0 to 138 bar
0 to 3500 psi 0 to 241 bar
0 to 5000 psi 0 to 345 bar
0 to 7500 psi 0 to 517 bar
0 to 10,000 psi 0 to 689 bar
0 to 15,000 psi 0 to 1034 bar
0 to 20,000 psi 0 to 1379 bar
0 to 30,000 psi 0 to 2068 bar

All models come complete with 5-point NIST traceable calibration.

[*] = Insert “0” for 3 m (10') cable, “1” for twist-lock 6 pin connector, “5” for M12 connector,
“6” for mini-DIN connector, or “GW” for submersible waterproof cable.

[**] = Insert “I” for 4 to 20 mA output, “5V” for 0 to 5 Vdc output or “10V” for 0 to 10 Vdc output.
Note: To order Standard configurations including Potentiometers, no suffix required. For “No

Potentiometers”, add “NP” suffix.
† 4-digit meter, counts in increments of 10.

Ordering Examples:
PX51T0-5KGI, 5000 psi gage pressure transmitter, 4 to 20 mA output with 3 m (10') cable.

PX51S0-010G5V 10 psi gage transmitter, 0

PX51T[*]-015A[**]
PX51T[*]-025A[**]
PX51T[*]-030A[**]
PX51T[*]-050A[**]

PX51T[*]-010G[**]
PX51T[*]-015G[**]
PX51T[*]-020G[**]
PX51T[*]-030G[**]
PX51T[*]-050G[**]
PX51T[*]-075G[**]
PX51T[*]-100G[**]
PX51T[*]-200G[**]
PX51T[*]-300G[**]
PX51T[*]-500G[**]
PX51T[*]-750G[**]
PX51T[*]-1KG[**]
PX51T[*]-1.5KG[**]
PX51T[*]-2KG[**]
PX51T[*]-3.5KG[**]
PX51T[*]-5KG[**]
PX51T[*]-7.5KG[**]
PX51S[*]-10KG[**]
PX51S[*]-15KG[**]
PX51S[*]-20KG[**]
PX51S[*]-30KG[**]

DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E

DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E†, DP24-E
DP41-E, DP25B-E†, DP24-E
DP41-E, DP25B-E†, DP24-E
DP41-E, DP25B-E†, DP24-E

to

To Order

Models with G1⁄4

Gage Pressure

0 to 0.7 bar 0 to 10 psi
0 to 1 bar 0 to 15 psi
0 to 1.60 bar 0 to 23 psi
0 to 2.50 bar 0 to 36 psi
0 to 4 bar 0 to 58 psi
0 to 6 bar 0 to 87 psi
0 to 10 bar 0 to 145 psi
0 to 16 bar 0 to 232 psi
0 to 25 bar 0 to 363 psi
0 to 40 bar 0 to 580 psi
0 to 60 bar 0 to 870 psi
0 to 100 bar 0 to 1450 psi
0 to 160 bar 0 to 2321 psi
0 to 250 bar 0 to 3626 psi
0 to 400 bar 0 to 5802 psi

All models come complete with 5-point NIST traceable calibration. Pressure port for all metric models is G
[*] = Insert “0” for 3 m (10') cable, “1” for twist-lock 6 pin connector, “5” for M12 connector, “6” for mini-DIN connector or “GW” for

submersible waterproof cable.
To order sealed gage pressure models, replace “G” in model number with “SG” (no extra charge).
To order absolute pressure models, replace “G” in model number with “A” (no extra charge).

[**] = Insert “I” for 4 to 20 mA output, “5V” for 0 to 5 Vdc output or “10V” for 0 to 10 Vdc output
Note: To order Metric configurations including Potentiometers, no suffix required. For “No Potentiometers”, add “NP” suffix.
Ordering Examples: PXM51MC6-25GI, 25 bar gage pressure transducer with G
PXM51MD0-1.60AI, 1.6 bar absolute pressure transducer with G

Male Pressure Connection, Cable or Connector

Range Model No. Compatible Meters

PXM51MC[*]-0.7G
PXM51MC[*]-001G
PXM51MC[*]-1.60G
PXM51MC[*]-2.50G
PXM51MC[*]-004G
PXM51MC[*]-006G
PXM51MC[*]-010G
PXM51MC[*]-016G
PXM51MC[*]-025G
PXM51MC[*]-040G
PXM51MC[*]-060G
PXM51MC[*]-100G
PXM51MC[*]-160G
PXM51MC[*]-250G
PXM51MC[*]-400G

1

⁄4 internal thread, 3 m (10') cable and 4 to 20 mA output.

[**]

[**]

[**]

[**]
[**]
[**]
[**]
[**]
[**]
[**]
[**]
[**]
[**]
[**]
[**]

1

⁄4 male thread, mini-DIN connector and 4 to 20 mA output.

iSeries, DP41-E, DP25B-E
iSeries, DP41-E, DP25B-E
iSeries, DP41-E, DP25B-E
iSeries, DP41-E, DP25B-E
iSeries, DP41-E, DP25B-E
iSeries, DP41-E, DP25B-E
iSeries, DP41-E, DP25B-E
iSeries, DP41-E, DP25B-E
iSeries, DP41-E, DP25B-E
iSeries, DP41-E, DP25B-E
iSeries, DP41-E, DP25B-E
iSeries, DP41-E, DP25B-E
iSeries, DP41-E, DP25B-E
iSeries, DP41-E, DP25B-E
iSeries, DP41-E, DP25B-E

1

⁄4B male.

(no extra charge).

4

5 Vdc output with

3 m (10')

†

†

†

†

cable.
