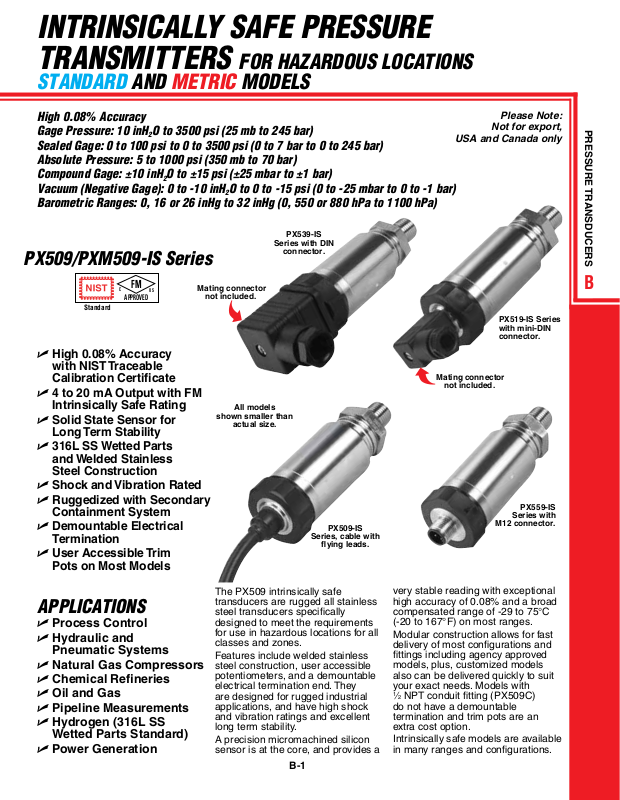

INTRINSICALLY SAFE PRESSURE
TRANSMITTERS FOR HAZARDOUS LOCATIONS
STANDARD AND METRIC MODELS
High 0.08% Accuracy
Gage Pressure: 10 inH2O to 3500 psi (25 mb to 245 bar)
Sealed Gage: 0 to 100 psi to 0 to 3500 psi (0 to 7 bar to 0 to 245 bar)
Absolute Pressure: 5 to 1000 psi (350 mb to 70 bar)
Compound Gage: ±10 inH2O to ±15 psi (±25 mbar to ±1 bar)
Vacuum (Negative Gage): 0 to -10 inH2O to 0 to -15 psi (0 to -25 mbar to 0 to -1 bar)
Barometric Ranges: 0, 16 or 26 inHg to 32 inHg (0, 550 or 880 hPa to 1100 hPa)

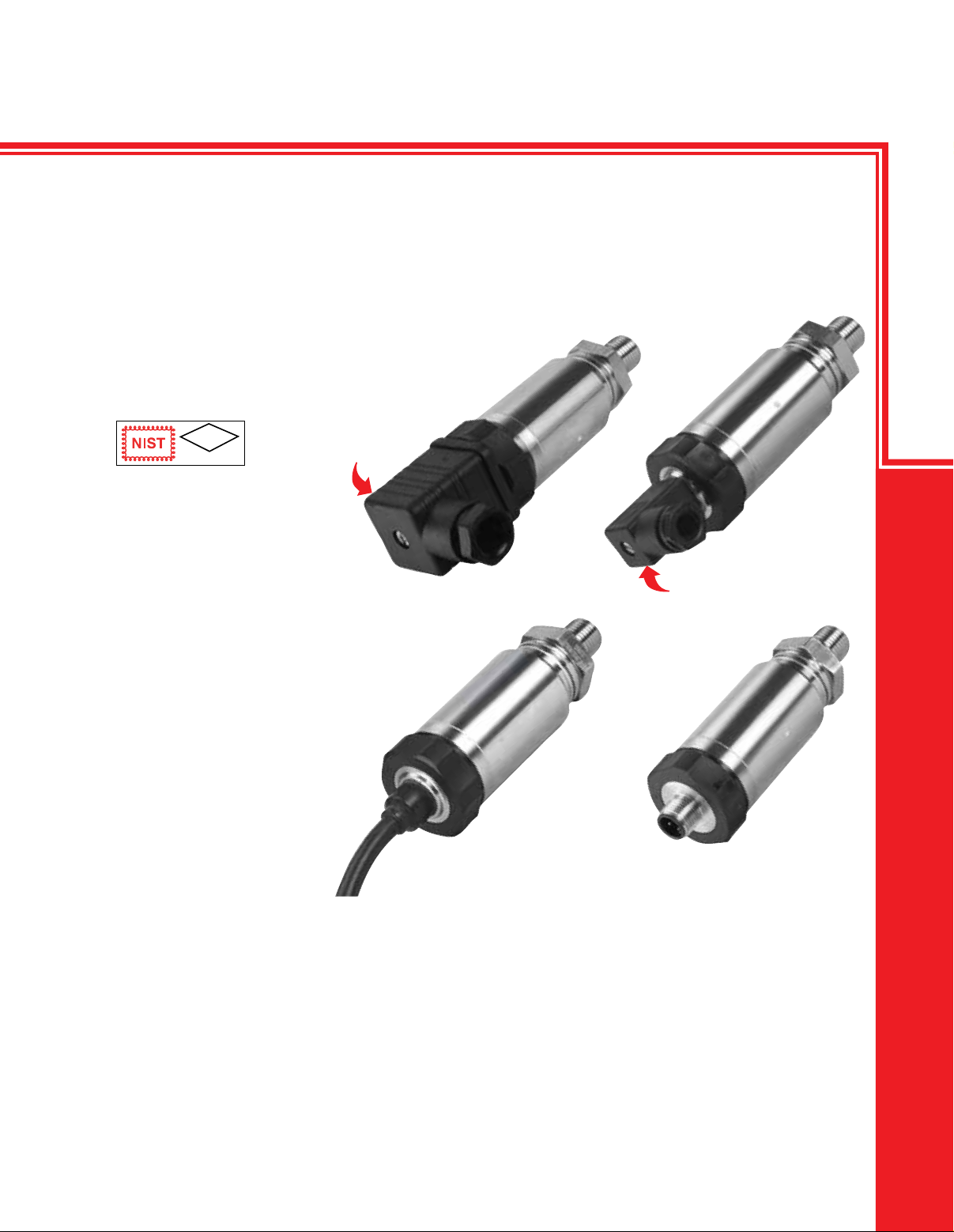

PX539-IS
Series with DIN
connector.
PX509/PXM509-IS Series
FM
C
US
Standard
APPROVED
U High 0.08% Accuracy
with NIST Traceable
Calibration Certificate
U 4 to 20 mA Output with FM
Intrinsically Safe Rating
U Solid State Sensor for
Long Term Stability
U 316L SS Wetted Parts
and Welded Stainless
Steel Construction
U Shock and Vibration Rated
U Ruggedized with Secondary
Containment System
U Demountable Electrical
Termination
U User Accessible Trim
Pots on Most Models
Mating connector
not included.
All models
shown smaller than
actual size.
PX509-IS
Series, cable with
flying leads.
Please Note:
Not for export,
USA and Canada only
PX519-IS Series
with mini-DIN
connector.
Mating connector
not included.
M12 connector.
PRESSURE TRANSDUCERS
B
PX559-IS
Series with
APPLICATIONS
U
Process Control
U
Hydraulic and
Pneumatic Systems
U
Natural Gas Compressors
U
Chemical Refineries
U
Oil and Gas
U
Pipeline Measurements
U
Hydrogen (316L SS
Wetted Parts Standard)
U
Power Generation
The PX509 intrinsically safe
transducers are rugged all stainless
steel transducers specifically
designed to meet the requirements
for use in hazardous locations for all
classes and zones.
Features include welded stainless
steel construction, user accessible
potentiometers, and a demountable
electrical termination end. They
are designed for rugged industrial
applications, and have high shock
and vibration ratings and excellent
long term stability.
A precision micromachined silicon
sensor is at the core, and provides a
B-1
very stable reading with exceptional
high accuracy of 0.08% and a broad
compensated range of -29 to 75°C
(-20 to 167°F) on most ranges.
Modular construction allows for fast
delivery of most configurations and
fittings including agency approved
models, plus, customized models
also can be delivered quickly to suit
your exact needs. Models with
1
⁄2 NPT conduit fitting (PX509C)
do not have a demountable
termination and trim pots are an
extra cost option.
Intrinsically safe models are available
in many ranges and configurations.
Page 2
INTRINSICALLY SAFE TRANSMITTERS
AGENCY APPROVALS
TYPE AGENCY APPROVAL LISTINGS
Intrinsically Safe
(US and Canada)
Non-Incendive FM
NOTE: Please refer to www.omega.com/approvals/ for downloadable copies of FM Approvals Certificate of Compliance and installation
control drawings.
FM
SPECIFICATIONS
Compensated Temperature &
Thermal Effects:
Compensated Temperature
10 inH2O to 5 psi: -17 to 75°C
15 to 3500 psi: -29 to 75°C
Zero Temperature Shift
10 inH2O to 5 psi: ±1.0% span
15 to 3500 psi: ±0.5% span
Span Temperature Shift
10 inH
15 to 3500 psi: ±0.5% span
Over Pressure
10 inH
1 psi: 6 times
2.5 to 500 psi: 4 times
750 to 3500: 3 times
Containment
10 inH2O to 5 psi: To 1000 psi
15 to 750 psi: To 3000 psi
1000 psi: To 4000 psi
1500 psi: To 6000 psi
2500 psi: To 8000 psi
3500 psi: To 11,000 psi
Absolute/Barometric Pressure
Ranges
Over Pressure
5 psia: 6 times span
15 to 1000 psia: 4 times span
1500 to 5000 psia: 7250 psia
maximum
Containment
All Ranges: To 1000 psi
Gauge/Vacuum/Compound
Pressure Ranges
Over Pressure
10 inH
1 psi: 6 times span
2.5 to 1000 psi: 4 times span
1500 to 5000 psi: 7250 psi
maximum
O to 5 psi: ±1.0% span
2
O: 10 times
2
O: 10 times span
2
Hazardous (Classified) Location, Rated Intrinsically Safe, Securite Intrinsique
Class I, II, III, Division 1 Gr A, B, C, D, E, F, G
Class I, Zone 0 Aex ia IIc (US), Class I, Zone 0 Ex ia IIC (Canada),
T4, Ta = -40 to 75°C
FM Hazardous (Classified) Location, Rated Non-Incendive
Class I Division 2 Groups A, B, C, D (US and Canada)
T4, Ta = -40 to 75°C, Conduit electrical connections only
ELECTRICAL
Minimum Resistance Between
Transducer Body and Any Wire:
100MΩ @ 50 Vdc
Accuracy (Combined Linearity,
Hysteresis and Repeatability):
±0.08% BSL maximum (other
accuracies available)
For conduit (C and CW) zero
and span set ±0.5% full scale
typical ±1% maximum or
set ±1% full scale typical ±2%
maximum ranges 2.5 psi
and below
Pressure Cycles: 1 million typical
Long Term Stability (1-Year): ±0.1%
full scale typical
Excitation Voltage: 10 to 28 Vdc,
output 4 to 20 mA
Operating Temperature:
-40 to 75°C (-40 to 167°F)
Wetted Material: 316L stainless steel
Bandwidth: DC to 1kHz (typical)
Sensor: Oil filled silicon
EMC Compliant: Up to 30 m (98.4’)
of cable
EN 61326-1:2006
EN 61326-2-3:2006 Industrial levels
Shock: 50 g, 11 msec half sine shock
Vibration: ±20 g
Response Time: <1 msec
RoHS Compliant
Standard Pressure Port:
1
⁄4-18 NPT male
Metric Pressure Port: G1/4B male
most popular (other ports available,
please contact the Factory)
Weight: 315 g (11 oz) typical
depending upon configuration
PX509 also available in
industrial models with 5 or
10 Vdc or 4 to 20 mA outputs.

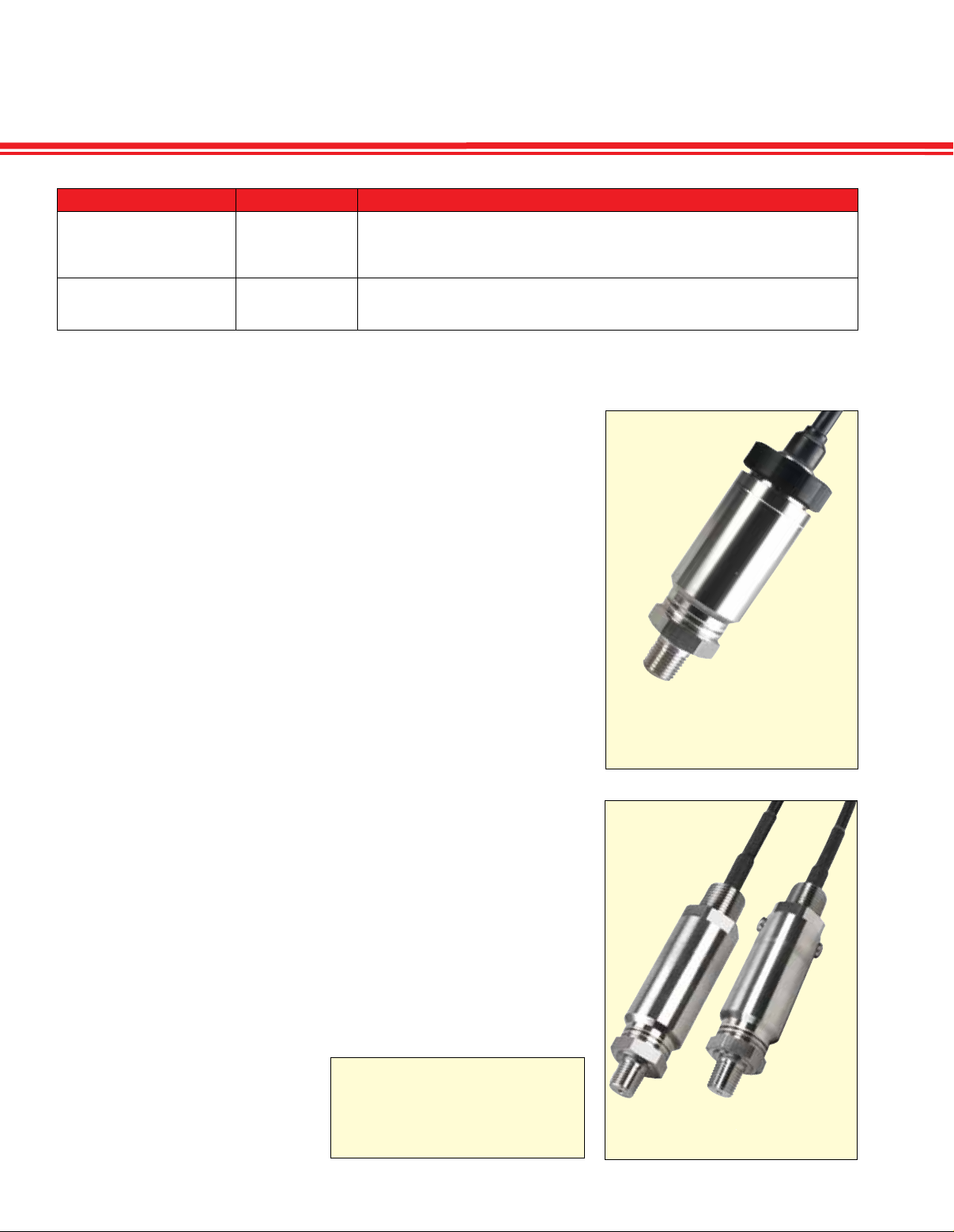

TERMINATIONS
PX509-IS
2 m (6') cable.
PX509C-IS
2 m (6') cable and 1⁄2 NPT
conduit fitting PX509C
required for NI rating.
PX509CP-IS
B-2
Page 3
INTRINSICALLY SAFE TRANSMITTERS
Gage, Sealed Gage and Absolute Pressure Ranges 4 to 20 mA Output
To Order
RANGE/RESOLUTION
STANDARD MODELS
GAGE PRESSURE
0 to 10 inH2O 0 to 25 mb
0 to 1 psig
0 to 2.5 0 to 170 mb
0 to 5 0 to 350 mb
0 to 15 0 to 1 bar
0 to 30 0 to 2
0 to 50 0 to 3.5
0 to 100 0 to 7
0 to 150 0 to 10
0 to 250 0 to 17.5
0 to 500 0 to 35
0 to 750 0 to 50
0 to 1000 0 to 70
0 to 1500 0 to 100
0 to 2500 0 to 175
0 to 3500 0 to 245
0 to 100 psi 0 to 7 bar
ABSOLUTE PRESSURE MODELS SEE TABLE ON PREVIOUS PAGE FOR AGENCY APPROVALS
All models come complete with 5-point NIST traceable calibration.
Any cable or connector must meet the requirements of the environment where it is being installed. The safety engineer should
specify the cables and connectors.
[**] SELECT MODEL NO. ELECTRICAL TERMINATION
09 PX509
09C PX509C
09CP PX509CP
09CW PX509CW
09CWP
19 PX519
29 PX529
39 PX539
49 PX549
59 PX559
Ordering Examples: PX509C-100GC2IS, 2 m (6') cable termination with 1⁄2 NPT conduit fitting, 100 psig range, 4 to 20 mA output with
FM intrinsically safe rating.
PX509CP-1.0KGC2IS, 2 m (6') cable termination with 1⁄2 NPT conduit fitting with side accessible trim pots, 1000 psig range, 4 to 20 mA output
with FM intrinsically safe rating.
PX519-005AC2IS, mini-DIN connector (mating connector not included), 0 to 5 psi absolute range, 4 to 20 mA output with FM intrinsically
safe rating.
SEALED GAGE
0 to 150 0 to 10
0 to 250 0 to 17.5
0 to 500 0 to 35
0 to 750 0 to 50
0 to 1000 0 to 70
0 to 1500 0 to 100
0 to 2500 0 to 175
0 to 3500 0 to 245
0 to 5 psi
0 to 15 0 to 1 bar
0 to 30 0 to 2
0 to 50 0 to 3.5
0 to 100 0 to 7
0 to 150 0 to 10
0 to 250 0 to 17.5
0 to 500 0 to 35
0 to 750 0 to 50
0 to 1000 0 to 70
0 to 1500 0 to 100
0 to 2500 0 to 175
0 to 3500 0 to 245
PX509CWP
0 to 70 mb
0 to 350 mb
Cable with flying leads, 2 m (6') IP65
Cable with
Cable with 1⁄2 NPT conduit connector and side accessible trim pots IP65
Submersible cable with 1⁄2
Submersible cable with 1⁄2 NPT conduit connector and side accessible
trim pots (not demountable) 3 m (10')
mini-DIN connector (mating connector not included) IP65
Twist-lock 6 pin connector IP65
DIN connector (mating connector not included) IP65
Glass to metal sealed solder pins IP65
M12 connector, M12 cables sold separately IP65
1
⁄2 NPT conduit connector (no trim pots, not demountable) IP65
SEE TABLE ON PREVIOUS PAGE FOR AGENCY APPROVALS
PX5[**]-10WGC2IS PXM5[**]-025HGC2IS
PX5[**]-001GC2IS PXM5[**]-070HGC2IS
PX5[**]-2.5GC2IS PXM5[**]-170HGC2IS
PX5[**]-005GC2IS PXM5[**]-350HGC2IS
PX5[**]-015GC2IS PXM5[**]-001BGC2IS
PX5[**]-030GC2IS PXM5[**]-002BGC2IS
PX5[**]-050GC2IS PXM5[**]-3.5BGC2IS
PX5[**]-100GC2IS PXM5[**]-007BGC2IS
PX5[**]-150GC2IS PXM5[**]-010BGC2IS
PX5[**]-250GC2IS PXM5[**]-17.5BGC2IS
PX5[**]-500GC2IS PXM5[**]-035BGC2IS
PX5[**]-750GC2IS PXM5[**]-050BGC2IS
PX5[**]-1.0KGC2IS PXM5[**]-070BGC2IS
PX5[**]-1.5KGC2IS PXM5[**]-100BGC2IS
PX5[**]-2.5KGC2IS PXM5[**]-175BGC2IS
PX5[**]-3.5KGC2IS PXM5[**]-245BGC2IS
SEE TABLE ON PREVIOUS PAGE FOR AGENCY APPROVALS
PX5[**]-100SGC2IS PXM5[**]-7BSGC2IS
PX5[**]-150SGC2IS PXM5[**]-10BSGC2IS
PX5[**]-250SGC2IS PXM5[**]-17.5BSGC2IS
PX5[**]-500SGC2IS PXM5[**]-35BSGC2IS
PX5[**]-750SGC2IS PXM5[**]-50BSGC2IS
PX5[**]-1.0KSGC2IS PXM5[**]-70BSGC2IS
PX5[**]-1.5KSGC2IS PXM5[**]-100BSGC2IS
PX5[**]-2.5KSGC2IS PXM5[**]-175BSGC2IS
PX5[**]-3.5KSGC2IS PXM5[**]-245BSGC2IS
PX5[**]-005AC2IS PXM5[**]-350HAC2IS
PX5[**]-015AC2IS PXM5[**]-001BAC2IS
PX5[**]-030AC2IS PXM5[**]-002BAC2IS
PX5[**]-050AC2IS PXM5[**]-3.5BAC2IS
PX5[**]-100AC2IS PXM5[**]-007BAC2IS
PX5[**]-150AC2IS PXM5[**]-010BAC2IS
PX5[**]-250AC2IS PXM5[**]-17.5BAC2IS
PX5[**]-500AC2IS PXM5[**]-035BAC2IS
PX5[**]-750AC2IS PXM5[**]-050BAC2IS
PX5[**]-1.0KAC2IS PXM5[**]-070BAC2IS
PX5[**]-1.5KAC2IS PXM5[**]-100BAC2IS
PX5[**]-2.5KAC2IS PXM5[**]-175BAC2IS
PX5[**]-3.5KAC2IS PXM5[**]-245BAC2IS
NPT conduit connector (no trim pots, not demountable) 3 m (10')
METRIC MODELSSTANDARD METRIC
B-3
ENVIRONMENT
RATING
IP65
IP65
PRESSURE TRANSDUCERS
B
Page 4
INTRINSICALLY SAFE PRESSURE
TRANSMITTERS FOR HAZARDOUS LOCATIONS
STANDARD AND METRIC MODELS
ELECTRICAL
TERMINATIONS

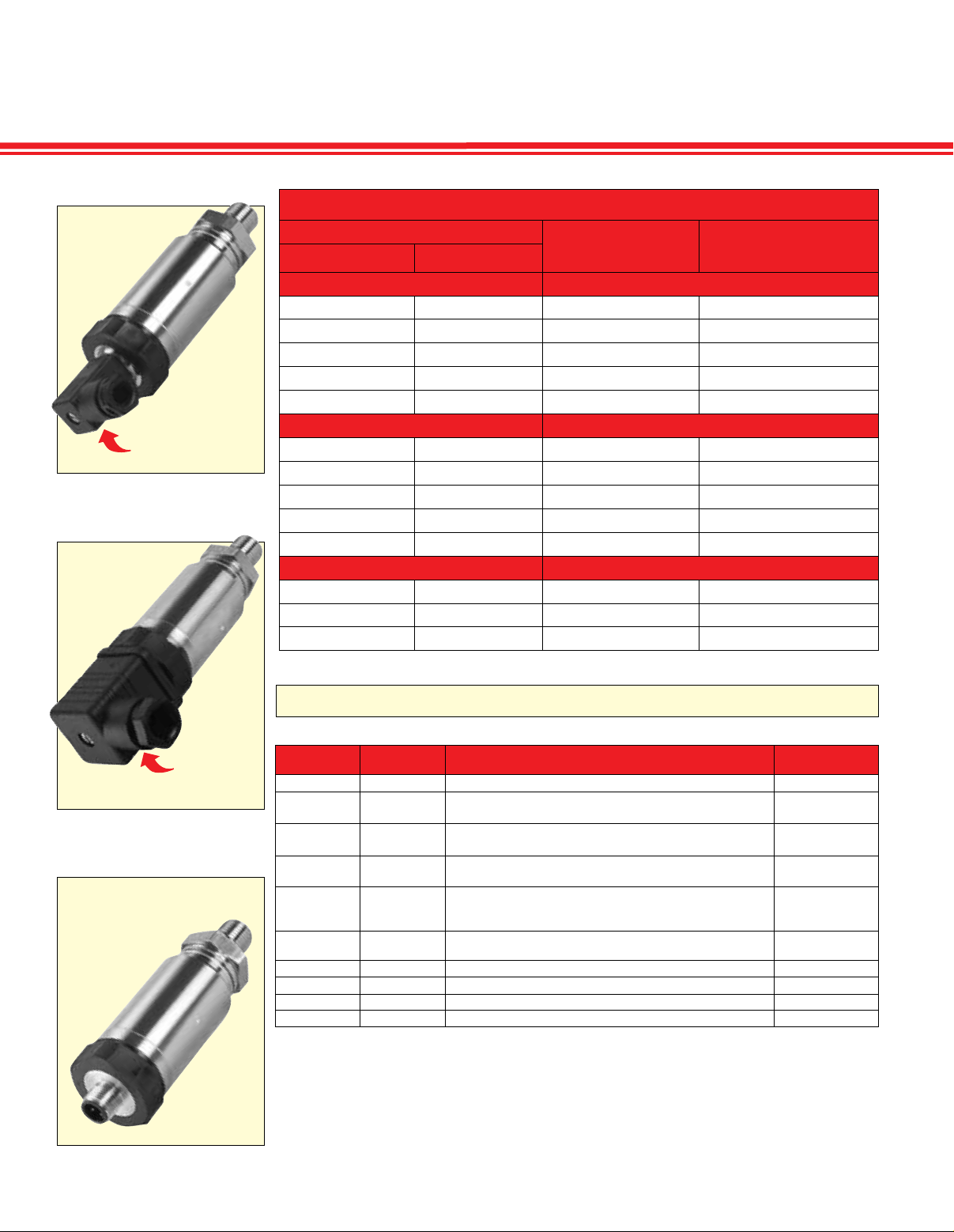

PX519-IS with
mini-DIN
connector.
Mating connector
not included.
PX539-IS with
DIN connector.
Compound Gage, Vacuum and Barometric Pressure Ranges 4 to 20 mA Output
To Order
RANGE
STANDARD METRIC
COMPOUND GAGE RANGES SEE TABLE FOR AGENCY APPROVALS
±10 inH2O ±25 mbar
±1 psig ±70 mbar
±2 ±170 mbar
±5 ±350 mbar
±15 ±1 bar
VACUUM RANGES (NEGATIVE GAGE) SEE TABLE FOR AGENCY APPROVALS
0 to -10 inH2O 0 to -25 mbar
0 to -1 psig 0 to -70 mbar
0 to -2.5 0 to -170 mbar
0 to -5 0 to -350 mbar
0 to -15 0 to -1 bar
BAROMETRIC RANGES (ABSOLUTE PRESSURE)
0 to 32 inHg 0 to 1100 hPa
16 to 32 inHg 550 to 1100 hPa
26 to 32 inHg 880 to 1100 hPa
All models come complete with 5-point NIST traceable calibration.
STANDARD MODELS
PX5[**]-10WCGBC2IS
PX5[**]-001C
PX5[**]-2.5C
PX5[**]-005C
PX5[**]-015C
PX5[**]-10WVC2IS PXM5[**]-025HVC2IS
PX5[**]-001VC2IS PXM5[**]-070HVC2IS
PX5[**]-2.5VC2IS PXM5[**]-170HVC2IS
PX5[**]-005VC2IS PXM5[**]-350HVC2IS
PX5[**]-015VC2IS PXM5[**]-001BVC2IS
SEE TABLE FOR AGENCY APPROVALS
PX5[**]-32BC2IS PXM5[**]-1100HBC2IS
PX5[**]-16BC2IS PXM5[**]-550HBC2IS
PX5[**]-26BC2IS PXM5[**]-880HBC2IS
GBC2IS
GBC2IS
GBC2IS
GBC2IS
METRIC MODELS
PXM5[**]-025HCGBC2IS
PXM5[**]-070HCGBC2IS
PXM5[**]-170HCGBC2IS
PXM5[**]-350HCGBC2IS
PXM5[**]-001BCGBC2IS
PX559-IS with
M12 connector.
Mating
connector
not included.
Any cable or connector must meet the requirements of the environment where it is being
installed. The safety engineer should specify the cables and connectors.
[**] SELECT MODEL NO. ELECTRICAL TERMINATION
09 PX509
09C PX509C
09CP PX509CP
09CW PX509CW
09CWP
19 PX519
29 PX529
39 PX539
49 PX549
59 PX559
Custom configurations also available, visit us online for details.
Ordering Examples: PX509C-16BC2IS, 2 m (6') cable termination with
16 to 32 inHg barometric range, 4 to 20 mA output with FM intrinsically safe rating.
PX529C-2.5VC2IS, twist-lock 6 pin connector, 0 to -2.5 psi vacuum range, 4 to 20 mA output with FM
intrinsically safe rating.
PX549-16HBC2IS, glass to metal sealed solder pins, 550 to 1100 hPa barometric range, 4 to 20 mA
output with FM intrinsically safe rating.
PX559-001CGBC2IS, M12 connector termination, ±1 psi compound gage range, 12 mA ±8 mA output
(zero =12 mA) with FM intrinsically safe rating.
PX509CWP
Cable with flying leads, 2 m (6') IP65
Cable with
model PX509C (no trim pots, not demountable)
Cable with 1⁄2 NPT conduit connector and
side accessible trim pots specify model PX509CP
Submersible cable with 1⁄2
trim pots, not demountable) 3 m (10')
Submersible cable with 1⁄2 NPT conduit connector
and side accessible
3 m (10')
Mini-DIN connector (mating connector not
included)
Twist-lock 6 pin connector IP65
DIN connector (mating connector not included) IP65
Glass to metal sealed solder pins IP65
M12 connector, M12 cables sold separately IP65
1
⁄2 NPT conduit connector and specify
NPT conduit connector (no
trim pots (not demountable)
1
⁄2 NPT conduit fitting,
ENVIRONMENT
RATING
IP65
IP65
IP65
IP65
IP65
B-4
Loading...
