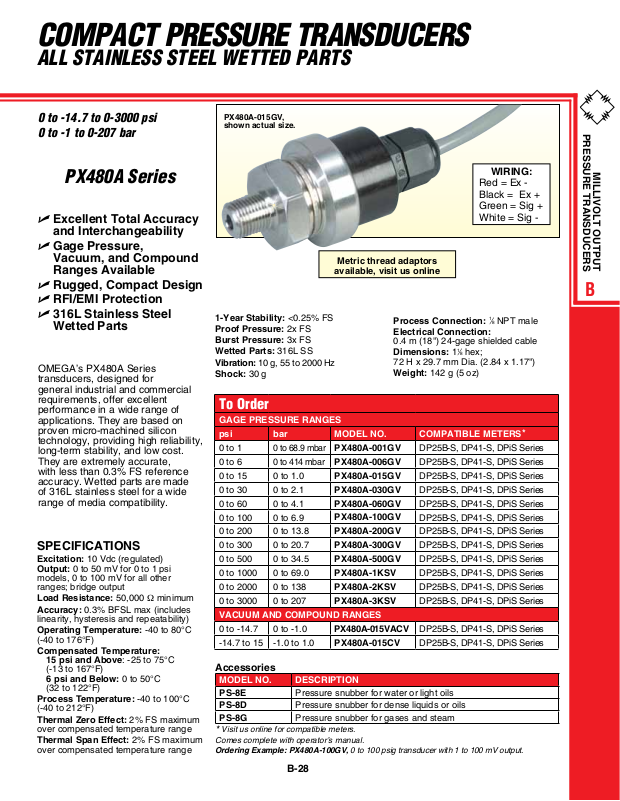

COMPACT PRESSURE TRANSDUCERS

ALL STAINLESS STEEL WETTED PARTS

0 to -14.7 to 0-3000 psi 0 to -1 to 0-207 bar

PX480A Series

U Excellent Total Accuracy

and Interchangeability

U Gage Pressure,

Vacuum, and Compound Ranges Available

U Rugged, Compact Design U RFI/EMI Protection U 316L Stainless Steel

Wetted Parts

OMEGA’s PX480A Series transducers, designed for general industrial and commercial requirements, offer excellent performance in a wide range of applications. They are based on proven micro-machined silicon technology, providing high reliability, long-term stability, and low cost. They are extremely accurate, with less than 0.3% FS reference accuracy. Wetted parts are made of 316L stainless steel for a wide range of media compatibility.

SPECIFICATIONS

Excitation: 10 Vdc (regulated) Output: 0 to 50 mV for 0 to 1 psi

models, 0 to 100 mV for all other ranges; bridge output

Load Resistance: 50,000 Ω minimum Accuracy: 0.3% BFSL max (includes

linearity, hysteresis and repeatability) Operating Temperature: -40 to 80°C

(-40 to 176°F) Compensated Temperature:

15 psi and Above: -25 to 75°C

(-13 to 167°F) 6 psi and Below: 0 to 50°C (32 to 122°F)

Process Temperature: -40 to 100°C (-40 to 212°F)

Thermal Zero Effect: 2% FS maximum over compensated temperature range

Thermal Span Effect: 2% FS maximum over compensated temperature range

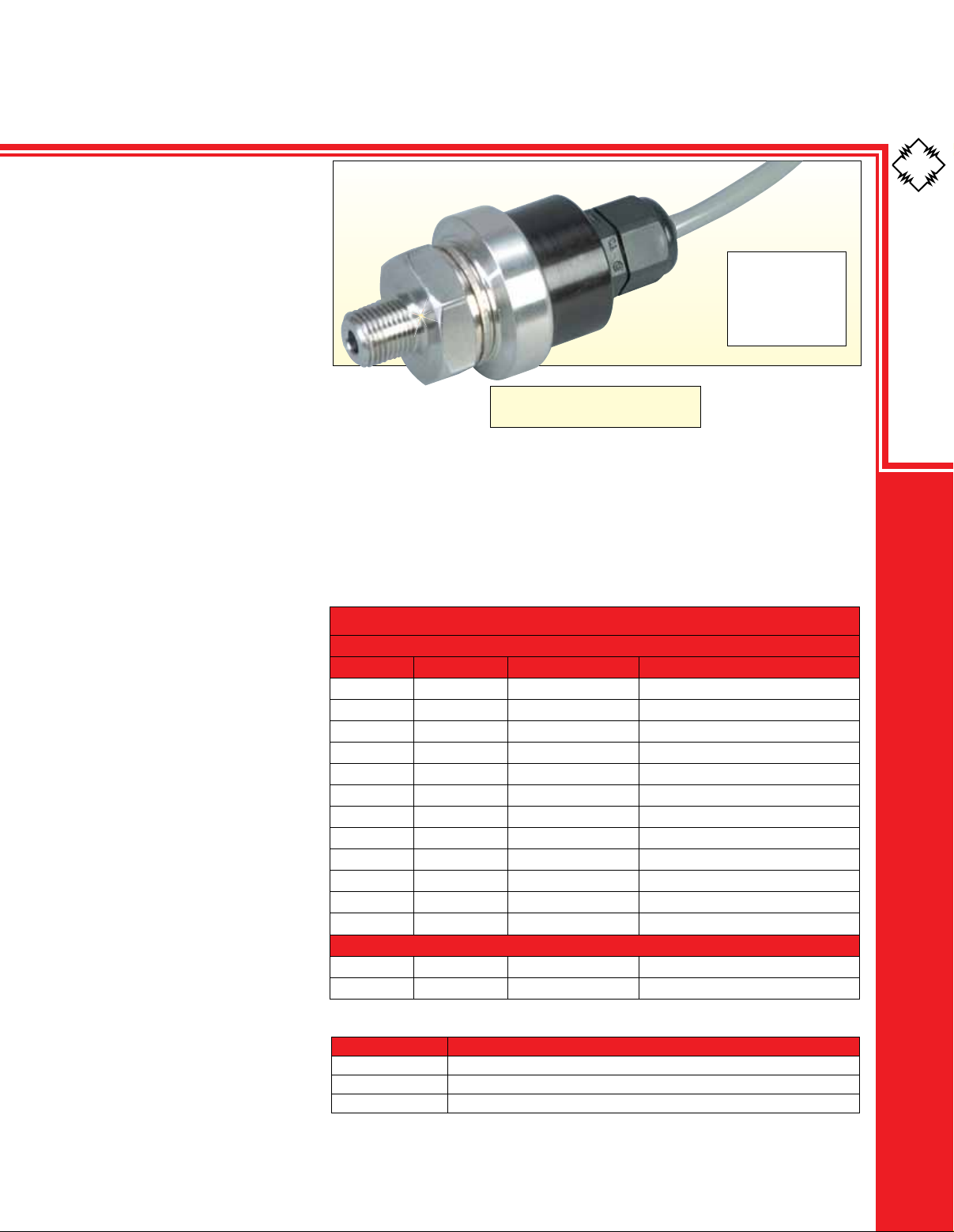

PX480A-015GV, shown actual size.

WIRING:

Red = Ex Black = Ex + Green = Sig +

White = Sig -

Metric thread adaptors

available, visit us online

1-Year Stability: <0.25% FS Proof Pressure: 2x FS Burst Pressure: 3x FS Wetted Parts: 316L SS Vibration: 10 g, 55 to 2000 Hz Shock: 30 g

Process Connection: 1⁄8 NPT male Electrical Connection:

0.4 m (18") 24-gage shielded cable Dimensions: 1

72 H x 29.7 mm Dia. (2.84 x 1.17") Weight: 142 g (5 oz)

⁄8 hex;

To Order

GAGE PRESSURE RANGES

psi bar MODEL NO. COMPATIBLE METERS

0 to 1

0 to 6

0 to 15 0 to 1.0

0 to 30 0 to 2.1

0 to 60 0 to 4.1

0 to 100 0 to 6.9

0 to 200 0 to 13.8

0 to 300 0 to 20.7

0 to 500 0 to 34.5

0 to 1000 0 to 69.0

0 to 2000 0 to 138

0 to 3000 0 to 207

VACUUM AND COMPOUND RANGES

0 to -14.7 0 to -1.0

-14.7 to 15 -1.0 to 1.0

0 to 68.9 mbar

0 to 414 mbar

Accessories

MODEL NO. DESCRIPTION

PS-8E PS-8D PS-8G

Visit us online for compatible meters.

Comes complete with operator’s manual. Ordering Example: PX480A-100GV, 0 to 100 psig transducer with 1 to 100 mV output.

Pressure snubber for water or light oils Pressure snubber for dense liquids or oils Pressure snubber for gases and steam

PX480A-001GV

PX480A-006GV

PX480A-015GV

PX480A-030GV

PX480A-060GV

PX480A-100GV

PX480A-200GV

PX480A-300GV

PX480A-500GV

PX480A-1KSV

PX480A-2KSV

PX480A-3KSV

PX480A-015VACV

PX480A-015CV

DP25B-S, DP41-S, DPiS Series

PRESSURE TRANSDUCERS

MILLIVOLT OUTPUT

B-28
