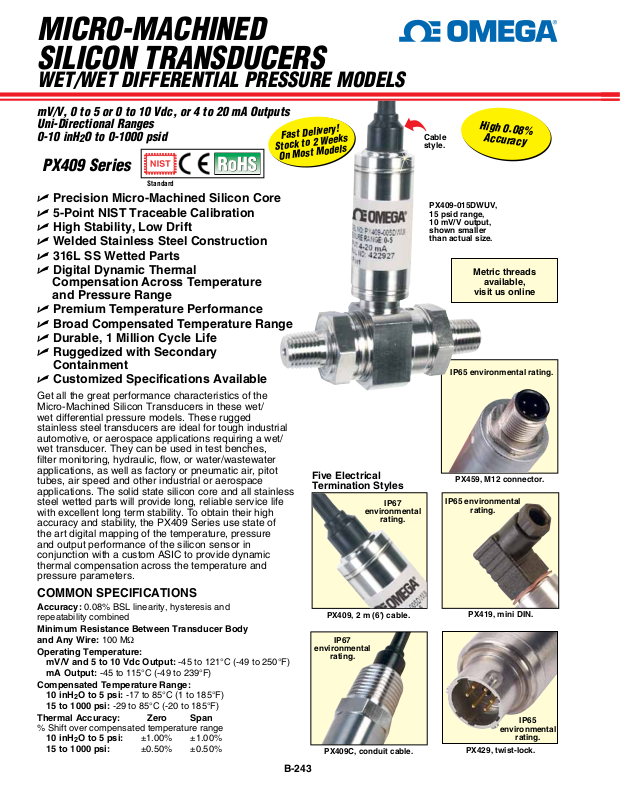

Page 1
MICRO-MACHINED
SILICON TRANSDUCERS
WET/WET DIFFERENTIAL PRESSURE MODELS
mV/V, 0 to 5 or 0 to 10 Vdc, or 4 to 20 mA Outputs
Uni-Directional Ranges
0-10 inH2O to 0-1000 psid
PX409 Series
Standard
U Precision Micro-Machined Silicon Core
U 5-Point NIST Traceable Calibration
U High Stability, Low Drift
U Welded Stainless Steel Construction
U 316L SS Wetted Parts
U Digital Dynamic Thermal
Compensation Across Temperature
and Pressure Range
U Premium Temperature Performance
U Broad Compensated Temperature Range
U Durable, 1 Million Cycle Life
U Ruggedized with Secondary
Containment
U Customized Specifications Available
Get all the great performance characteristics of the
Micro-Machined Silicon Transducers in these wet/
wet differential pressure models. These rugged
stainless steel transducers are ideal for tough industrial
automotive, or aerospace applications requiring a wet/
wet transducer. They can be used in test benches,
filter monitoring, hydraulic, flow, or water/wastewater
applications, as well as factory or pneumatic air, pitot
tubes, air speed and other industrial or aerospace
applications. The solid state silicon core and all stainless
steel wetted parts will provide long, reliable service life
with excellent long term stability. To obtain their high
accuracy and stability, the PX409 Series use state of
the art digital mapping of the temperature, pressure
and output performance of the silicon sensor in
conjunction with a custom ASIC to provide dynamic
thermal compensation across the temperature and
pressure parameters.
Fast Delivery!
Stock to 2 Weeks
On Most Models
Five Electrical
Termination Styles
IP67
environmental
rating.
High 0.08%
Cable
style.

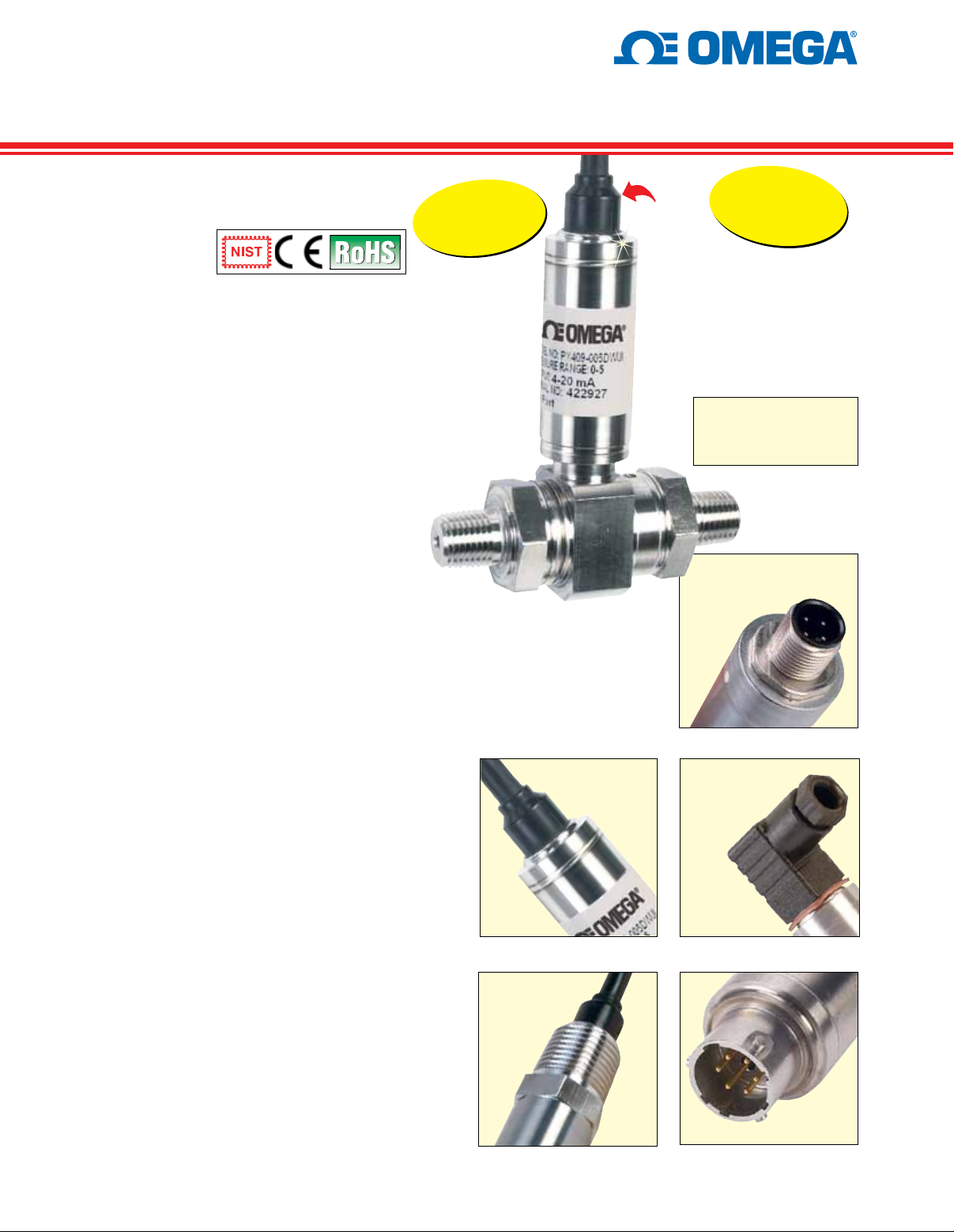

PX409-015DWUV,
15 psid range,
10 mV/V output,
shown smaller
than actual size.
IP65 environmental rating.
IP65 environmental
Accuracy
Metric threads
available,
visit us online
PX459, M12 connector.
rating.
COMMON SPECIFICATIONS
Accuracy: 0.08% BSL linearity, hysteresis and
repeatability combined
Minimum Resistance Between Transducer Body
and Any Wire: 100 MΩ
Operating Temperature:
mV/V and 5 to 10 Vdc Output: -45 to 121°C (-49 to 250°F)
mA Output: -45 to 115°C (-49 to 239°F)
Compensated Temperature Range:
10 inH
15 to 1000 psi: -29 to 85°C (-20 to 185°F)
Thermal Accuracy: Zero Span
% Shift over compensated temperature range
10 inH
15 to 1000 psi: ±0.50% ±0.50%
O to 5 psi: -17 to 85°C (1 to 185°F)
2
O to 5 psi: ±1.00% ±1.00%
2
B-243
PX409, 2 m (6') cable.
IP67
environmental
rating.
PX409C, conduit cable.
PX419, mini DIN.
IP65
environmental
rating.
PX429, twist-lock.
Page 2
MICRO-MACHINED
Conduit backend PX409C
Integral cable backend PX409
Twist-lock backend PX429
mini DIN backend PX419
5 (0.2)
5 (0.2)
5 (0.2)
28
(1.1)
½ NPT TH’D
Vent with porous plug
(gage units only)
Vent with porous plug
(gage units only)
Ø 20.2
(0.8)
2
(0.2)
2 connector
bacend
Conduit backend PX409C
Integral cable backend PX409
Twist-lock backend PX429
mini DIN backend PX419
5 (0.2)
5 (0.2)
5 (0.2)
28
(1.1)
½ NPT TH’D
Vent with porous plug
(gage units only)
SILICON TRANSDUCERS
WET/WET DIFFERENTIAL PRESSURE MODELS
Pressure Cycles: 1 million minimum
Long Term Stability (1-Year):
±0.1% FS typical
Bandwidth: DC to 1 kHz typical
Response Time: <1 ms
CE Compliant: Meets EN61326-1: 2006
for industrial locations
Shock: 50 g, 11 mS half sine, vertical and
horizontal axis
Vibration: 5-2000-5 Hz, 30 minute cycle,
Curve L, Mil-Spec 810 figure
514-2-2, vertical and horizontal axis
Wetted Parts: 316L stainless steel
Line/Static Pressure: 500 psi maximum
applied to both sides simultaneously
Proof Pressure (Differential):
10 inH
1 psi range = 6 times range
2.5 to 750 psi ranges = 4 times range
1000 psi range = 3 times range
Hi Side Containment Pressure
(Differential):
Ranges 15 to 1000 psi: to 3000 psi
Pressure Ports:
Electrical Terminations:
PX409: 2 m (6') cable
PX409C: 2 m (6') cable with
conduit thread
PX419: mini DIN
(mating connector included)
PX429: Twist-lock,
(mating connector sold separately)
PX459: M12 connector
PX429 Mating Connector:
PT06F10-6S
Weight: 200 g (7 oz) maximum
O range = 10 times range
2
Ranges 10 inH2O to 5 psi: to 1000 psi
1
⁄4 NPT male
1
⁄2 NPT

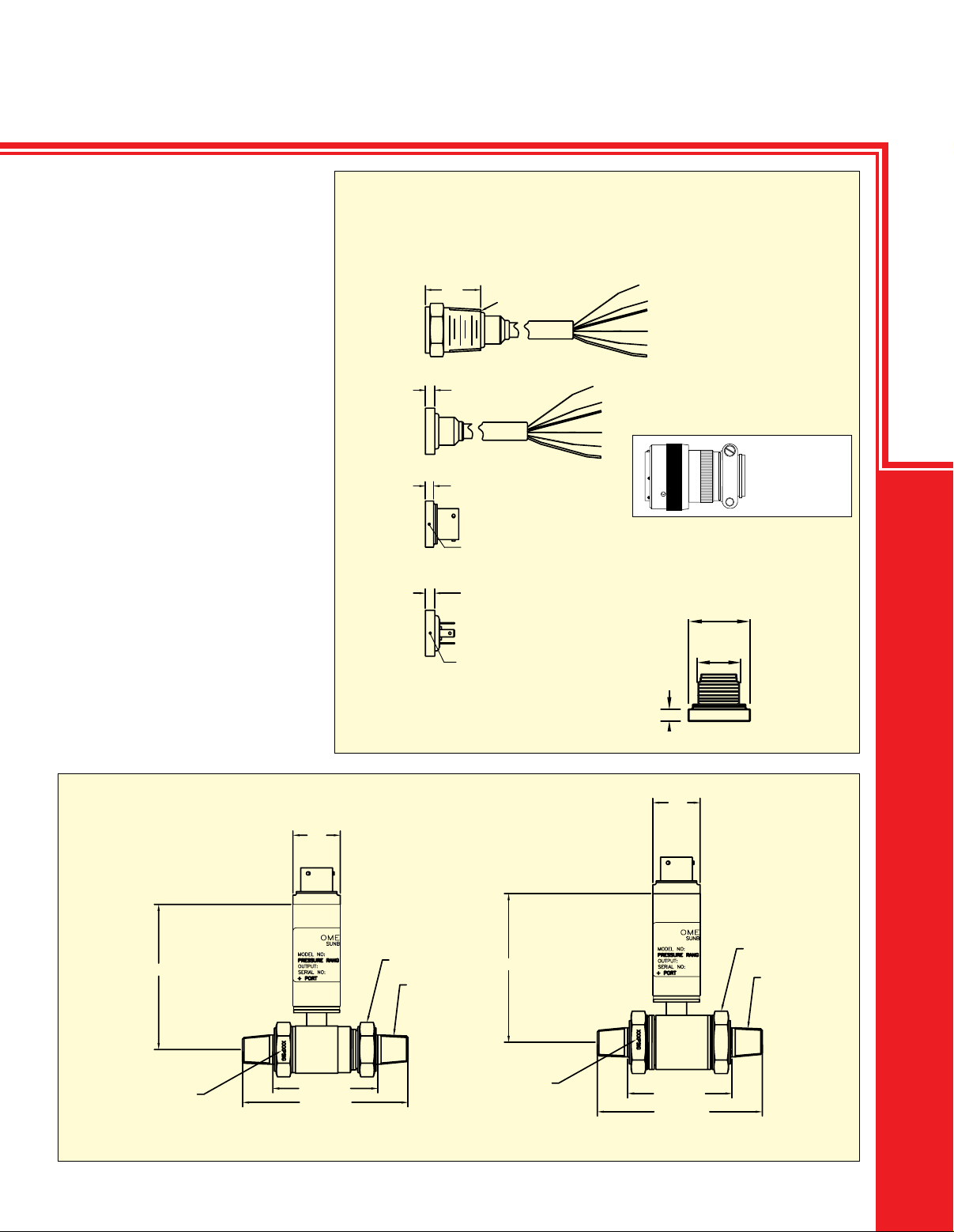

Dimensions: mm (inch)
ø = diameter
ø22.8
(0.9)
Dimensions: mm (inch)
M12 connector
backend PX459
ø 20.2
(0.8)
M12 x 1
5 (0.2)
ø22.8
(0.9)
Mating
Connector
PT06F10-6S
PRESSURE TRANSDUCERS
DIFFERENTIAL
B
71.1 (2.8)
Serial # and range
identify high port
50.8 (2.0)
78.7 (3.1)
30 psid and above
22.8 (0.875) hex
each end
¼ - 18 NPT
each end
Serial # and range
identify high port
B-244
71.1 (2.8)
50.8 (2.0)
78.7 (3.1)
15 psid and below
25.4 (1.0) hex
each end
¼ - 18 NPT
each end
Page 3
WET/WET DIFFERENTIAL
PRESSURE MODELS
UNI-DIRECTIONAL RANGES WITH mV/V OUTPUTS
UNI-DIRECTIONAL mV/V
SPECIFICATIONS
Output: 10 mV/V ratiometric
Supply Voltage: 5 to 10 Vdc
Current Draw: 5 mA @ 10 Vdc
Input Impedance: 1000 to 5000 Ω
Output Impedance: 5000 Ω ±10% typical
Zero Balance:
Ranges ≤ 2.5psi: ±1% typical (2% maximum)
Ranges > 2.5psi: ±0.5% typical (1% maximum)
Span Setting:
Ranges ≤ 2.5psi: ±1% typical (2% maximum)
Ranges > 2.5psi: ±0.5% typical (1% maximum)
CABLE TERMINATION*
To Order
10 mV/V OUTPUT, 1⁄4 NPT MALE FITTINGS
RANGE METRIC MODEL NO.
0 to 10 inH
0 to 1 psi 70 mbar PX409-001DWUV
0 to 2.5 psi 170 mbar PX409-2.5DWUV
0 to 5 psi 350 mbar PX409-005DWUV
0 to 15 psi 1 bar PX409-015DWUV
0 to 30 psi 2 bar PX409-030DWUV
0 to 50 psi 3.5 bar PX409-050DWUV
0 to 100 psi 7 bar PX409-100DWUV
0 to 150 psi 10 bar PX409-150DWUV
0 to 250 psi 17.5 bar PX409-250DWUV
0 to 500 psi 35 bar PX409-500DWUV
0 to 750 psi 50 bar PX409-750DWUV
0 to 1000 psi 70 bar PX409-1.0KDWUV
To order conduit fitting backend change model number
*
from “PX409” to “PX409C”, no additional cost.
MINI DIN TERMINATION
10 mV/V OUTPUT, 1⁄4 NPT MALE FITTINGS
RANGE METRIC MODEL NO.
0 to 10 inH
0 to 1 psi 70 mbar PX419-001DWUV
0 to 2.5 psi 170 mbar PX419-2.5DWUV
0 to 5 psi 350 mbar PX419-005DWUV
0 to 15 psi 1 bar PX419-015DWUV
0 to 30 psi 2 bar PX419-030DWUV
0 to 50 psi 3.5 bar PX419-050DWUV
0 to 100 psi 7 bar PX419-100DWUV
0 to 150 psi 10 bar PX419-150DWUV
0 to 250 psi 17.5 bar PX419-250DWUV
0 to 500 psi 35 bar PX419-500DWUV
0 to 750 psi 50 bar PX419-750DWUV
0 to 1000 psi 70 bar PX419-1.0KDWUV
O 25 mbar PX409-10WDWUV
2
O 25 mbar PX419-10WDWUV
2
Fast Delivery!
Stock to 2 Weeks
On Most Models

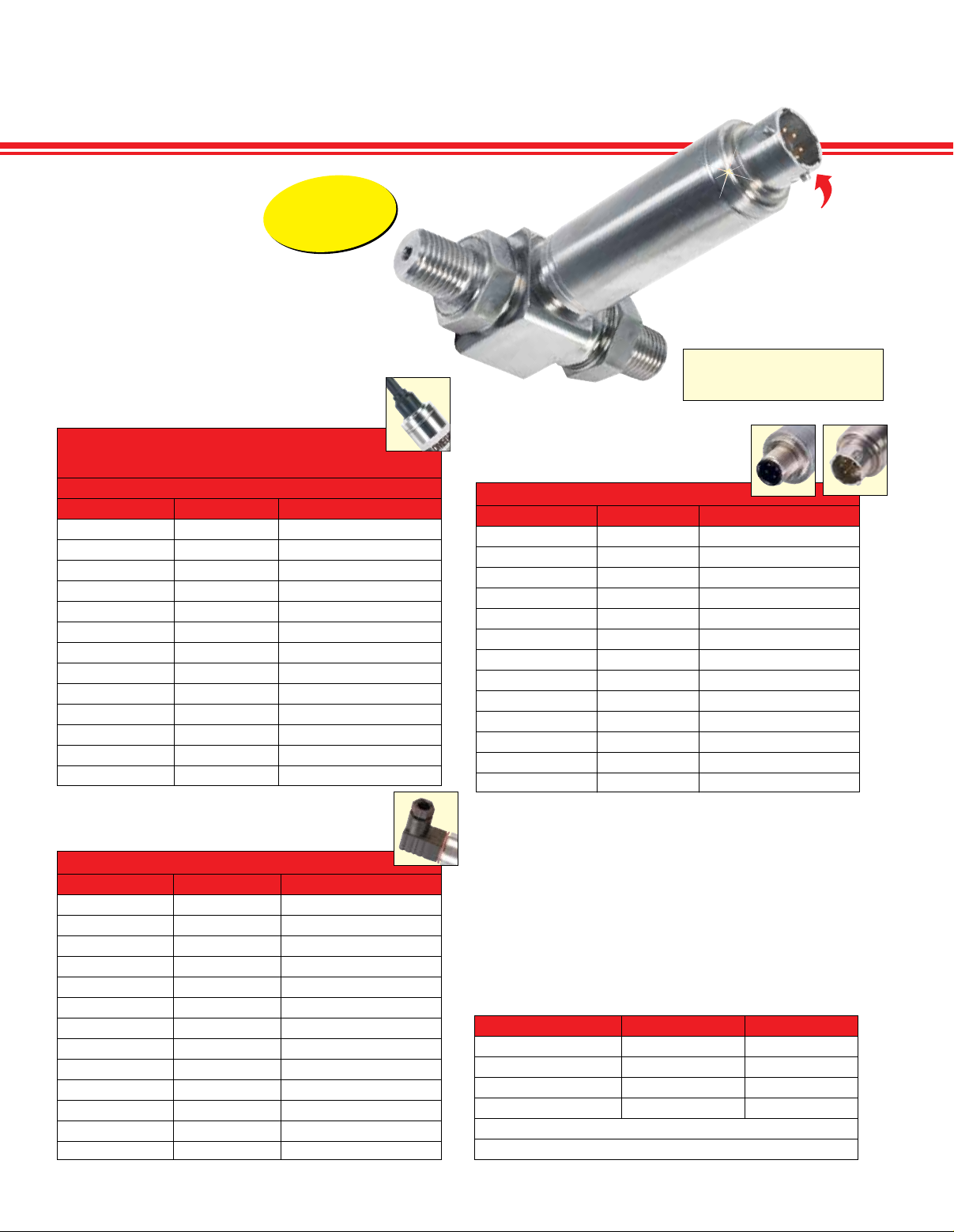

PX409-030DWUV,
30 psid range, 10 mV/V
output, shown smaller
than actual size.
M12 or TWIST-LOCK
TERMINATION
10 mV/V OUTPUT, 1⁄4 NPT MALE FITTINGS
RANGE METRIC MODEL NO.
0 to 10 inH
0 to 1 psi 70 mbar PX4[*]9-001DWUV
0 to 2.5 psi 170 mbar PX4[*]9-2.5DWUV
0 to 5 psi 350 mbar PX4[*]9-005DWUV
0 to 15 psi 1 bar PX4[*]9-015DWUV
0 to 30 psi 2 bar PX4[*]9-030DWUV
0 to 50 psi 3.5 bar PX4[*]9-050DWUV
0 to 100 psi 7 bar PX4[*]9-100DWUV
0 to 150 psi 10 bar PX4[*]9-150DWUV
0 to 250 psi 17.5 bar PX4[*]9-250DWUV
0 to 500 psi 35 bar PX4[*]9-500DWUV
0 to 750 psi 50 bar PX4[*]9-750DWUV
0 to 1000 psi 70 bar PX4[*]9-1.0KDWUV
Comes complete with 5-point NIST traceable calibration certificate.
[*] Enter “5” for PX459 M12 connector or “2” for PX429 twist lock
connector (mating PX429 connector sold separately).
Ordering Examples: PX409-100DWUV, 0 to 100 psi uni-directional
wet/wet differential pressure range, 10 mV/V output, 0.08%
accuracy,
PX419-015DWUV, 0 to 15 psi uni-directional wet/wet differential
pressure range, 10 mV/V output, 0.08% accuracy,
mini DIN connector.
PX429-10WDWUV, 0 to 10 inH2O uni-directional wet/wet differential
pressure range, 10 mV/V output, 0.08% accuracy,
twist-lock connector plus PT06F10-6S, mating connector.
O 25 mbar PX4[*]9-10WDWUV
2
1

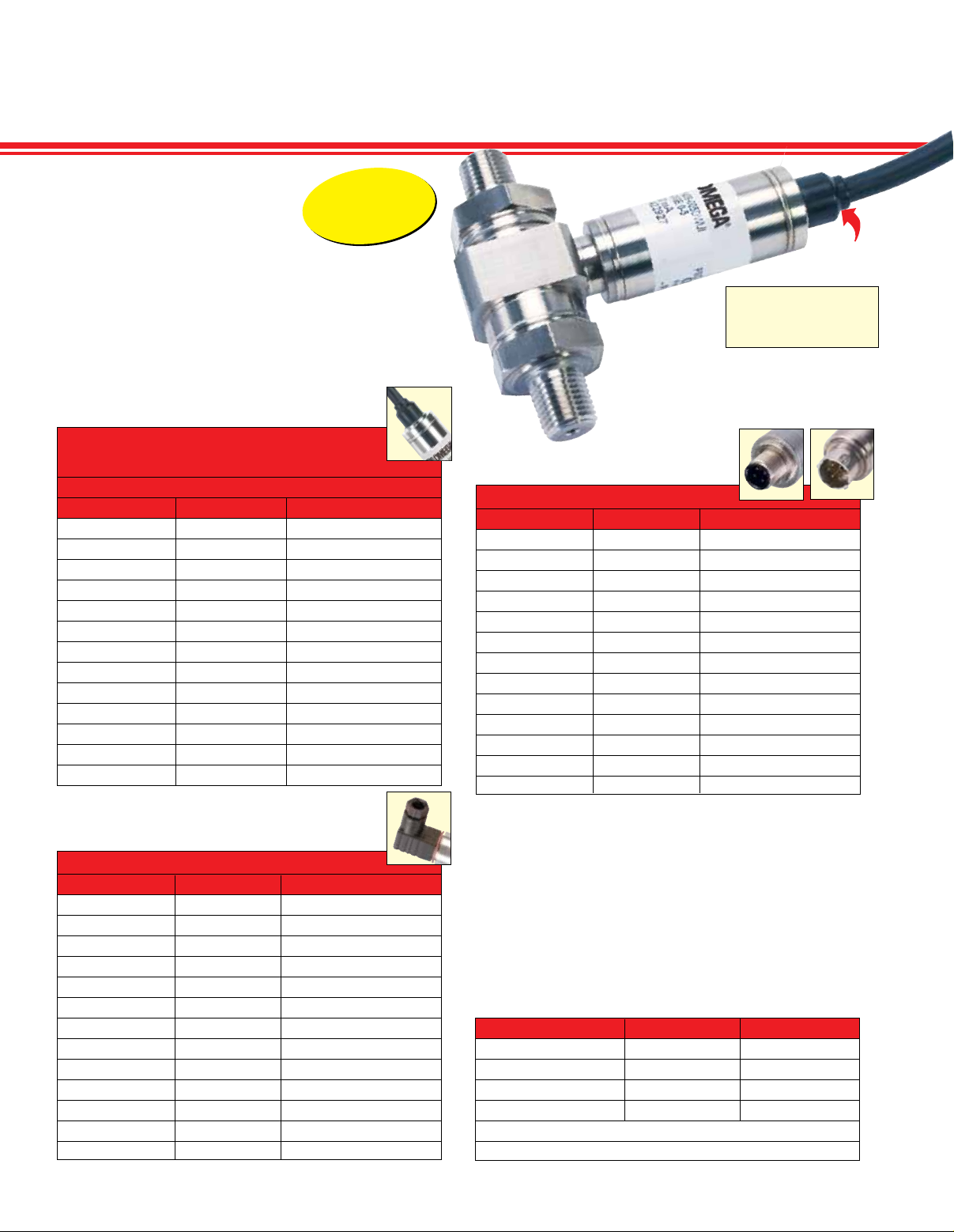

⁄4 NPT fittings, 2 m (6') cable.
CONNECTIONS—mV/V OUTPUT
PX429 TWIST-LOCK PX419/PX459 PX409 CABLE
Pin A +EXC Pin 1 +EXC Red +EXC
Pin B -EXC Pin 2 -EXC Black -EXC
Pin C +SIG Pin 3 +SIG White +SIG
Pin D -SIG Pin 4 -SIG Green -SIG
Pin E No Connection
Pin F No Connection
Cable
style.
Metric threads
available, visit us
online
1
⁄4 NPT fittings,
1
⁄4 NPT fittings,
B-245
Page 4
WET/WET DIFFERENTIAL
PRESSURE MODELS
UNI-DIRECTIONAL RANGES WITH 0 to 5 Vdc OUTPUTS
UNI-DIRECTIONAL VOLTAGE
OUTPUT SPECIFICATIONS
Output Voltage/Supply Voltage: 0 to 5 Vdc/
10 to 30 Vdc; 0 to 10 Vdc/15 to 30 Vdc
(change “5V” to “10V” in model number)
Current Draw: 10 mA maximum
Maximum Current Output: 2 mA (= 2500 Ω
minimum load resistance)
Output Impedance: 100 Ω
Zero Balance:
Ranges > 2.5psi: ±0.5% typical (1% maximum)
Ranges ≤ 2.5psi: ±1% typical (2% maximum)
Span Setting:
Ranges > 2.5psi: ±0.5% typical (1% maximum)
Ranges ≤ 2.5psi: ±1% typical (2% maximum)
CABLE TERMINATION*
To Order
0 to 5 Vdc OUTPUT, 1⁄4 NPT MALE FITTINGS
RANGE METRIC MODEL NO.
0 to 10 inH
0 to 1 psi 70 mbar PX409-001DWU5V
0 to 2.5 psi 170 mbar PX409-2.5DWU5V
0 to 5 psi 350 mbar PX409-005DWU5V
0 to 15 psi 1 bar PX409-015DWU5V
0 to 30 psi 2 bar PX409-030DWU5V
0 to 50 psi 3.5 bar PX409-050DWU5V
0 to 100 psi 7 bar PX409-100DWU5V
0 to 150 psi 10 bar PX409-150DWU5V
0 to 250 psi 17.5 bar PX409-250DWU5V
0 to 500 psi 35 bar PX409-500DWU5V
0 to 750 psi 50 bar PX409-750DWU5V
0 to 1000 psi 70 bar PX409-1.0KDWU5V
To order conduit fitting backend change model number
*
from “PX409” to “PX409C”, no additional cost.
MINI-DIN TERMINATION
0 to 5 Vdc OUTPUT, 1⁄4 NPT MALE
RANGE METRIC MODEL NO.
0 to 10 inH
0 to 1 psi 70 mbar PX419-001DWU5V
0 to 2.5 psi 170 mbar PX419-2.5DWU5V
0 to 5 psi 350 mbar PX419-005DWU5V
0 to 15 psi 1 bar PX419-015DWU5V
0 to 30 psi 2 bar PX419-030DWU5V
0 to 50 psi 3.5 bar PX419-050DWU5V
0 to 100 psi 7 bar PX419-100DWU5V
0 to 150 psi 10 bar PX419-150DWU5V
0 to 250 psi 17.5 bar PX419-250DWU5V
0 to 500 psi 35 bar PX419-500DWU5V
0 to 750 psi 50 bar PX419-750DWU5V
0 to 1000 psi 70 bar PX419-1.0KDWU5V
O 25 mbar PX409-10WDWU5V
2
FITTINGS
O 25 mbar PX419-10WDWU5V
2

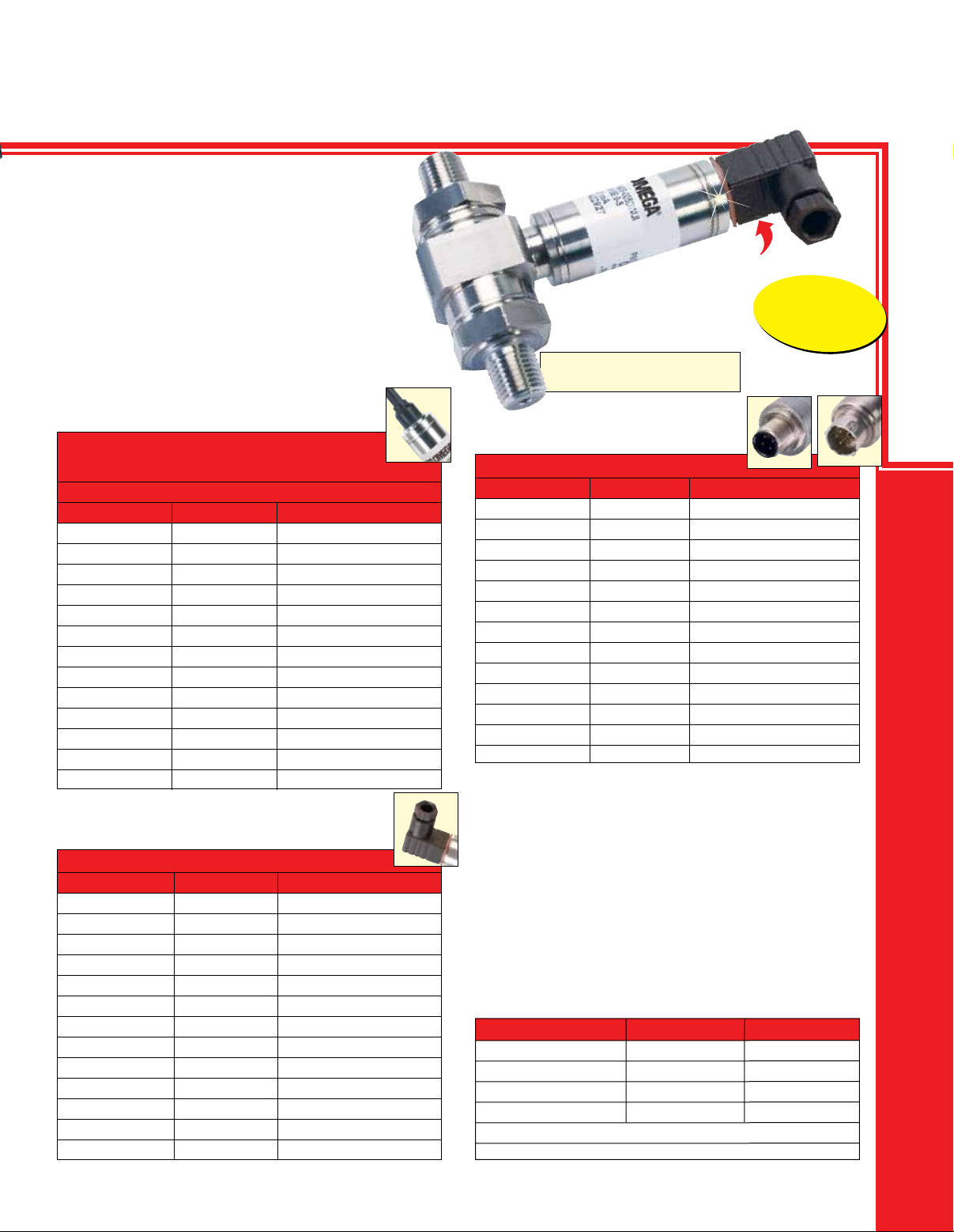

PX419-100DWU5V,
100 psid range, 0 to 5 Vdc
output shown smaller than
actual size.
Metric threads
available, visit us online
M12 or TWIST-LOCK
TERMINATION
0 to 5 Vdc OUTPUT, 1⁄4 NPT MALE FITTINGS
RANGE METRIC MODEL NO.
0 to 10 inH
0 to 1 psi 70 mbar PX4[*]9-001DWU5V
0 to 2.5 psi 170 mbar PX4[*]9-2.5DWU5V
0 to 5 psi 350 mbar PX4[*]9-005DWU5V
0 to 15 psi 1 bar PX4[*]9-015DWU5V
0 to 30 psi 2 bar PX4[*]9-030DWU5V
0 to 50 psi 3.5 bar PX4[*]9-050DWU5V
0 to 100 psi 7 bar PX4[*]9-100DWU5V
0 to 150 psi 10 bar PX4[*]9-150DWU5V
0 to 250 psi 17.5 bar PX4[*]9-250DWU5V
0 to 500 psi 35 bar PX4[*]9-500DWU5V
0 to 750 psi 50 bar PX4[*]9-750DWU5V
0 to 1000 psi 70 bar PX4[*]9-1.0KDWU5V
Comes complete with 5-point NIST traceable calibration certificate.
[*] Enter “5” for PX459 M12 connector or “2” for PX429 twist lock
connector (mating PX429 connector sold separately).
Note: To order 0 to 10 Vdc output, change “5V” to “10V” in model
number, no additional cost.
Ordering Examples: PX409-100DWU5V, 0 to 100 psi
uni-directional wet/wet differential pressure range, 0 to 5 Vdc output,
0.08% accuracy,
PX419-015DWU5V, 0 to 15 psi uni-directional wet/wet differential
pressure range, 0 to 5 Vdc output, 0.08% accuracy,
mini DIN connector.
PX429-10WDWU5V, 0 to 10 inH2O uni-directional wet/wet
differential pressure range, 0 to 5 Vdc output, 0.08% accuracy,
1
⁄4 NPT fittings, twist-lock connector plus PT06F10-6S,
mating connector.
O 25 mbar PX4[*]9-10WDWU5V
2
1
⁄4 NPT fittings, 2 m (6') cable.
CONNECTIONS—VOLTAGE OUTPUT
PX429 TWIST-LOCK PX419/PX459 PX409 CABLE
Pin A +EXC Pin 1 +EXC Red +EXC
Pin B -COM Pin 2 -COM Black -EXC
Pin C +SIG Pin 3 +SIG White +SIG
Pin D No Conn Pin 4 No Conn Green No Conn
Pin E No Connection
Pin F No Connection
mini DIN
style.
Fast Delivery!
Stock to 2 Weeks
On Most Models
1
⁄4 NPT fittings,
PRESSURE TRANSDUCERS
DIFFERENTIAL
B
B-246
Page 5
WET/WET DIFFERENTIAL
PRESSURE MODELS
UNI-DIRECTIONAL
RANGES WITH 4 to 20 mA OUTPUTS
UNI-DIRECTIONAL
mA SPECIFICATIONS
Output: 4 to 20 mA
Supply Voltage: 9 to 30 Vdc;
[9 to 20 Vdc above 105°C (229°F)]
Max Loop Resistance: (Vs-9) x 50 Ω
Zero Balance:
Ranges > 2.5psi: ±0.5% typical (1% maximum)
Ranges ≤ 2.5psi: ±1% typical (2% maximum)
Span Setting:
Ranges > 2.5psi: ±0.5% typical (1% maximum)
Ranges ≤ 2.5psi: ±1% typical (2% maximum)
CABLE TERMINATION*
To Order
4 to 20 mA
RANGE METRIC MODEL NO.
0 to 10 inH
0 to 1 psi 70 mbar PX409-001DWUI
0 to 2.5 psi 170 mbar PX409-2.5DWUI
0 to 5 psi 350 mbar PX409-005DWUI
0 to 15 psi 1 bar PX409-015DWUI
0 to 30 psi 2 bar PX409-030DWUI
0 to 50 psi 3.5 bar PX409-050DWUI
0 to 100 psi 7 bar PX409-100DWUI
0 to 150 psi 10 bar PX409-150DWUI
0 to 250 psi 17.5 bar PX409-250DWUI
0 to 500 psi 35 bar PX409-500DWUI
0 to 750 psi 50 bar PX409-750DWUI
0 to 1000 psi 70 bar PX409-1.0KDWUI
To order conduit fitting backend change model number
*
from “PX409” to “PX409C”, no additional cost.
MINI DIN TERMINATION
4 to 20 mA OUTPUT, 1⁄4 NPT MALE
RANGE METRIC MODEL NO.
0 to 10 inH
0 to 1 psi 70 mbar PX419-001DWUI
0 to 2.5 psi 170 mbar PX419-2.5DWUI
0 to 5 psi 350 mbar PX419-005DWUI
0 to 15 psi 1 bar PX419-015DWUI
0 to 30 psi 2 bar PX419-030DWUI
0 to 50 psi 3.5 bar PX419-050DWUI
0 to 100 psi 7 bar PX419-100DWUI
0 to 150 psi 10 bar PX419-150DWUI
0 to 250 psi 17.5 bar PX419-250DWUI
0 to 500 psi 35 bar PX419-500DWUI
0 to 750 psi 50 bar PX419-750DWUI
0 to 1000 psi 70 bar PX419-1.0KDWUI
OUTPUT, 1⁄4 NPT MALE FITTINGS
O 25 mbar PX409-10WDWUI
2
O 25 mbar PX419-10WDWUI
2
Fast Delivery!
Stock to 2 Weeks
On Most Models
FITTINGS
M12 or TWIST-LOCK
TERMINATION
4 to 20 mA OUTPUT, 1⁄4 NPT MALE FITTINGS
RANGE METRIC MODEL NO.
0 to 10 inH
0 to 1 psi 70 mbar PX4[*]9-001DWUI
0 to 2.5 psi 170 mbar PX4[*]9-2.5DWUI
0 to 5 psi 350 mbar PX4[*]9-005DWUI
0 to 15 psi 1 bar PX4[*]9-015DWUI
0 to 30 psi 2 bar PX4[*]9-030DWUI
0 to 50 psi 3.5 bar PX4[*]9-050DWUI
0 to 100 psi 7 bar PX4[*]9-100DWUI
0 to 150 psi 10 bar PX4[*]9-150DWUI
0 to 250 psi 17.5 bar PX4[*]9-250DWUI
0 to 500 psi 35 bar PX4[*]9-500DWUI
0 to 750 psi 50 bar PX4[*]9-750DWUI
0 to 1000 psi 70 bar PX4[*]9-1.0KDWUI
Comes complete with 5-point NIST traceable calibration certificate.
[*] Enter “5” for PX459 M12 connector or “2” for PX429 twist lock
connector (mating PX429 connector sold separately).
Ordering Examples: PX409-100DWUI, 0 to 100 psi uni-directional
wet/wet differential pressure range, 4 to 20 mA output, 0.08%
accuracy,
PX419-015DWUI, 0 to 15 psi uni-directional wet/wet differential
pressure range, 4 to 20 mA output, 0.08% accuracy,
mini DIN connector.
PX429-10WDWUI, 0 to 10 inH2O uni-directional wet/wet differential
pressure range, 4 to 20 mA output, 0.08% accuracy,
twist-lock connector plus PT06F10-6S, mating connector.
CONNECTIONS—CURRENT OUTPUT
PX429 TWIST-LOCK PX419/PX459 PX409 CABLE
Pin A +SUP Pin 1 +SUP Red +SUP
Pin B -SUP Pin 2 -SUP Black -SUP
Pin C No Conn Pin 3 No Conn White No Conn
Pin D No Conn Pin 4 No Conn Green No Conn
Pin E No Connection
Pin F No Connection
PX429-005DWUI, 5 psid
range, 4 to 20 mA output,
shown smaller than
actual size.
Metric threads
available, visit us online
O 25 mbar PX4[*]9-10WDWUI
2
1
⁄4 NPT fittings, 2 m (6') cable.
1
⁄4 NPT fittings,
1
⁄4 NPT fittings,
Twist-lock
style.
B-247
Loading...
