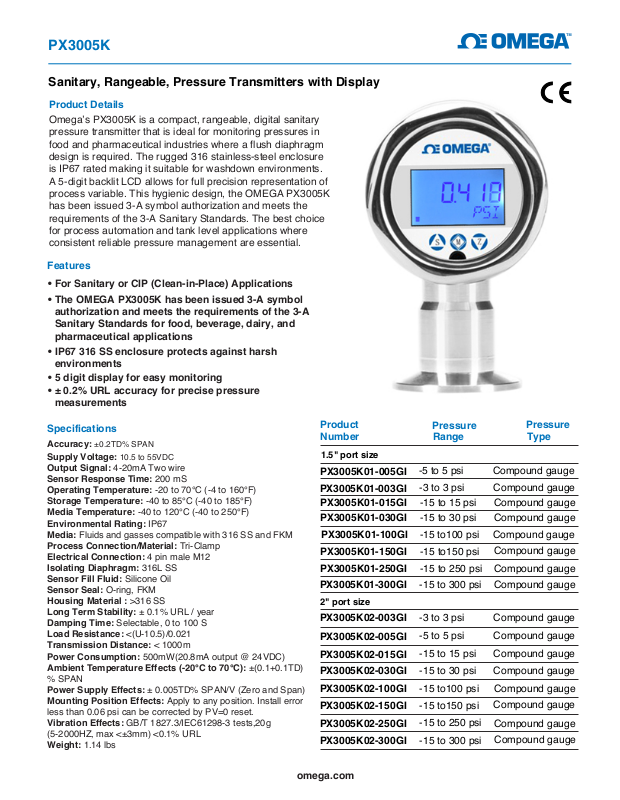

PX3005K
Sanitary, Rangeable, Pressure Transmitters with Display
Product Details
Omega’s PX3005K is a compact, rangeable, digital sanitary
pressure transmitter that is ideal for monitoring pressures in
food and pharmaceutical industries where a flush diaphragm
design is required. The rugged 316 stainless-steel enclosure
is IP67 rated making it suitable for washdown environments.
A 5-digit backlit LCD allows for full precision representation of
process variable. This hygienic design, the OMEGA PX3005K
has been issued 3-A symbol authorization and meets the
requirements of the 3-A Sanitary Standards. The best choice
for process automation and tank level applications where
consistent reliable pressure management are essential.
Features
• For Sanitary or CIP (Clean-in-Place) Applications
• The OMEGA PX3005K has been issued 3-A
authorization and meets the requirements of the 3-A
Sanitary Standards for food, beverage, dairy, and
pharmaceutical applications
• IP67 316 SS enclosure protects against harsh
environments
• 5 digit display for easy monitoring
• ± 0.2% URL accuracy for precise pressure
measurements
symbol
Specifications
Accuracy: ±0.2TD% SPAN
Supply Voltage:
Output Signal:4-20mA Two wire
Sensor Response Time:200 mS
Operating Temperature:-20 to 70°C (-4 to 160°F)
Storage Temperature:-40 to 85°C (-40 to 185°F)
Media Temperature: -40 to 120°C (-40 to 250°F)
Environmental Rating: IP67
Media: Fluids and gasses compatible with 316 SS and FKM
Process Connection/Material:Tri-Clamp
Electrical Connection:4 pin male M12
Isolating Diaphragm:316L SS
Sensor Fill Fluid: Silicone Oil
Sensor Seal:O-ring, FKM
Housing Material :>316 SS
Long Term Stability: ± 0.1% URL / year
Damping Time: Selectable, 0 to 100 S
Load Resistance: <(U-10.5)/0.021
Transmission Distance: < 1000m
Power Consumption: 500mW(20.8mA output @ 24VDC)
Ambient Temperature Effects (-20°C to 70°C): ±(0.1+0.1TD)
% SPAN
Power Supply Effects:± 0.005TD% SPAN/V (Zero and Span)
Mounting Position Effects:Apply to any position. Install error
less than 0.06 psi can be corrected by PV=0 reset.
Vibration Effects: GB/T 1827.3/IEC61298-3 tests,20g
(5-2000HZ, max <±3mm) <0.1% URL
Weight: 1.14 lbs
10.5 to 55VDC
Product
Number
1.5" port size
PX3005K01-005GI
PX3005K01-003GI
PX3005K01-015GI
PX3005K01-030GI
PX3005K01-100GI
PX3005K01-150GI
PX3005K01-250GI
PX3005K01-300GI
2" port size
PX3005K02-003GI
PX3005K02-005GI
PX3005K02-015GI
PX3005K02-030GI
PX3005K02-100GI
PX3005K02-150GI
PX3005K02-250GI
PX3005K02-300GI
Pressure
Range
-5 to 5 psi
-3 to 3 psi
-15 to 15 psi
-15 to 30 psi
-15 to100 psi
-15 to150 psi
-15 to 250 psi
-15 to 300 psi
-3 to 3 psi
-5 to 5 psi
-15 to 15 psi
-15 to 30 psi
-15 to100 psi
-15 to150 psi
-15 to 250 psi
-15 to 300 psi
Pressure
Type
Compound gauge
Compound gauge
Compound gauge
Compound gauge
Compound gauge
Compound gauge
Compound gauge
Compound gauge
Compound gauge
Compound gauge
Compound gauge
Compound gauge
Compound gauge
Compound gauge
Compound gauge
Compound gauge
omega.com
