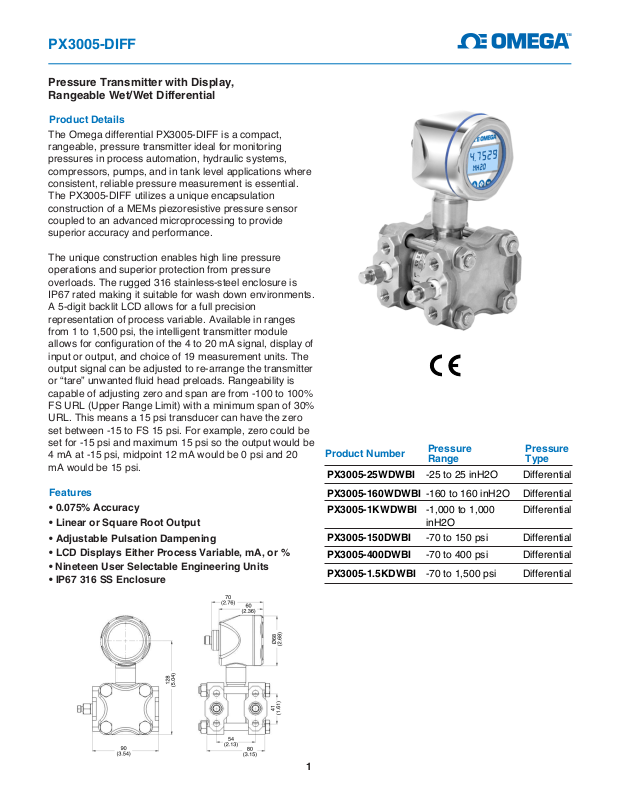

Page 1
PX3005-DIFF
Pressure Transmitter with Display,
Rangeable Wet/Wet Differential
Product Details

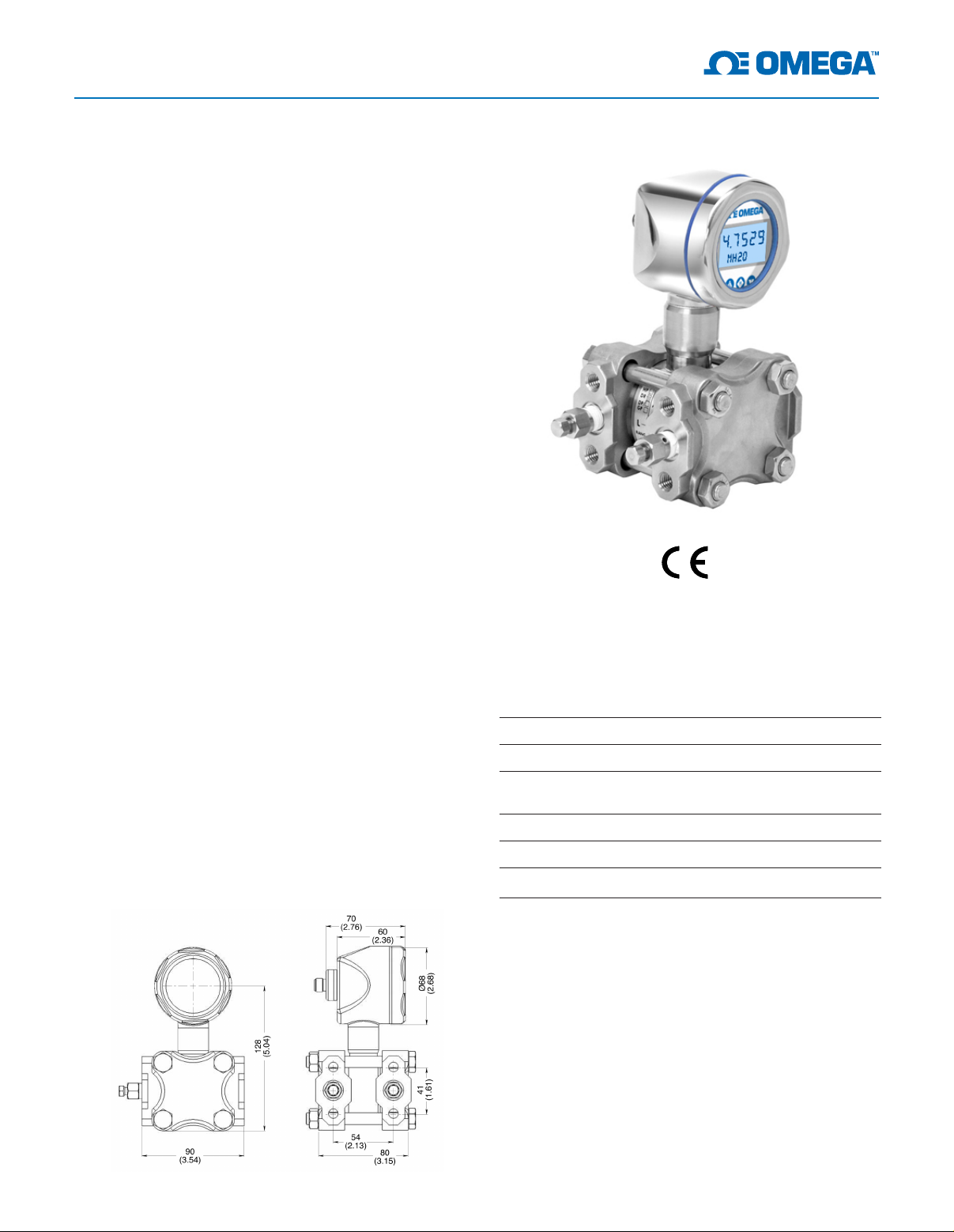

The Omega differential PX3005-DIFF is a compact,
rangeable, pressure transmitter ideal for monitoring
pressures in process automation, hydraulic systems,
compressors, pumps, and in tank level applications where
consistent, reliable pressure measurement is essential.
The PX3005-DIFF utilizes a unique encapsulation
construction of a MEMs piezoresistive pressure sensor
coupled to an advanced microprocessing to provide
superior accuracy and performance.
The unique construction enables high line pressure
operations and superior protection from pressure
overloads. The rugged 316 stainless-steel enclosure is
IP67 rated making it suitable for wash down environments.
A 5-digit backlit LCD allows for a full precision
representation of process variable. Available in ranges
from 1 to 1,500 psi, the intelligent transmitter module
allows for configuration of the 4 to 20 mA signal, display of
input or output, and choice of 19 measurement units. The
output signal can be adjusted to re-arrange the transmitter
or “tare” unwanted fluid head preloads. Rangeability is
capable of adjusting zero and span are from -100 to 100%
FS URL (Upper Range Limit) with a minimum span of 30%
URL. This means a 15 psi transducer can have the zero
set between -15 to FS 15 psi. For example, zero could be
set for -15 psi and maximum 15 psi so the output would be
4 mA at -15 psi, midpoint 12 mA would be 0 psi and 20
mA would be 15 psi.
Features
• 0.075% Accuracy
• Linear or Square Root Output
• Adjustable Pulsation Dampening
• LCD Displays Either Process Variable, mA, or %
• Nineteen User Selectable Engineering Units
• IP67 316 SS Enclosure
Product Number
PX3005-25WDWBI -25 to 25 inH2O Differential
PX3005-160WDWBI -160 to 160 inH2O
PX3005-1KWDWBI -1,000 to 1,000
PX3005-150DWBI -70 to 150 psi
PX3005-400DWBI -70 to 400 psi
Pressure
Range
inH2O
Pressure
Type
Differential
Differential
Differential
Differential
DifferentialPX3005-1.5KDWBI -70 to 1,500 psi
1
Page 2
Specifications
Mbar "H2O Mbar "H2O Mbar "H2O Mbar "H2O Bar Psi Bar Psi Bar Psi
60 25 0.02 0.8 60 25 -60 -25 250 3600 250 3600 160 2300
400 160 0.04 1.6 400 160 -400 -160 400 5750 250 3600 160 2300
2500 1000 0.25 10 2500 1000 -2500 -1000 400 5750 250 3600 160 2300
Bar Psi Bar Psi Bar Psi Bar Psi Bar Psi Bar Psi Bar Psi
10 150 0.1 1.5 10 150 -5 -70 400 5750 250 3600 160 2300
30 400 0.3 4 30 400 -5 -70 400 5750 250 3600 160 2300
100 1500 1 15 100 1500 -5 -70 400 5750 250 3600 160 2300
Lo Side Over
Range Limit
Static Pressure
Limit
Hi Side Over
Range Limit
Range Limit Table
Turndown = nominal range of the device / set span of device
EXAMPLE: a PX3005-1KWDWBI with set span of 500"H2O TD = 1000"H2O/500"H2O = 2
Accuracy (NLHR, 20°C ±5°C):
±0.075TD% SPAN
(Square root output accuracy is 1.5 times linear output accuracy)
Long Term Stability:
±0.2% URL/60 months
Ambient Temperature Effects -20 to 80°C (-4 to 176°F):
±(0.1 +0.1TD)% SPAN
Static Pressure Effects:
Effect on zero ±0.15TD % SPAN/10MPa (1450 psi); Effect
Power Supply Effects:
± 0.005TD% SPAN/V (Zero and Span)
Mounting Position Effects:
Install error less than 400Pa (1.60” H2O) can be
corrected by PV = 0 reset
Vibration Effects:
GB/T 1827.3/IEC61298-3 tests, 20g (5 to 2000 HZ, max
<±3 mm), <0.1% URL
Supply Voltage:
10.5 to 55VDC
Output Signal:
4 to 20mA Two wire, linear or square root output selectable
Sensor Response Time:
200 mS
Damping Time:
Selectable, 0 to 100 S
Load Resistance Ω:
<(U-10.5)/0.021
Transmission Distance:
< 1000m
Power Consumption:
500mW(20.8mA output @ 24VDC)
Operating Temperature:
-20 to 70°C (-4 to 160°F)
Storage Temperature:
-40 to 85°C (-40 to 185°F)
Media Temperature:
-40 to 120°C (-40 to 250°F)
Environmental Rating:
IP67
Media:
Fluids and gasses compatible with 316 SS
Process Connection/Material:
¼" -18NPT F/316 SS
Electrical Connection:
4 pin male M12
Isolating Diaphragm:
316L SS
Sensor Fill Fluid:
Silicone Oil
Sensor Seal:
O-ring, FKM
Housing Material:
316 SS
Weight:
Net Weight: about 3kg (without mounting bracket and
process connection adaptor)
Nominal Value Minimum Span UPPER (URL) LOWER (LRL)
2
