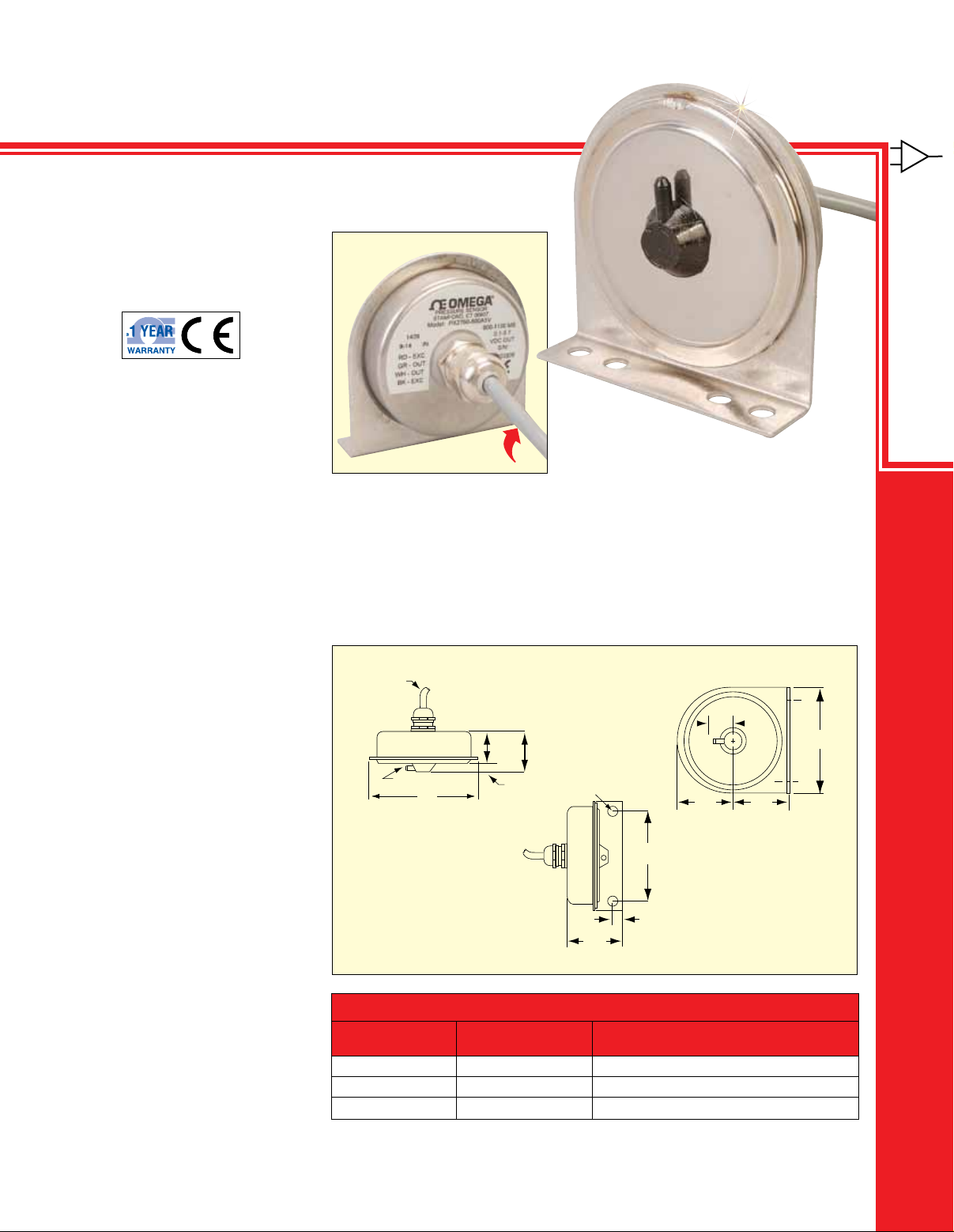

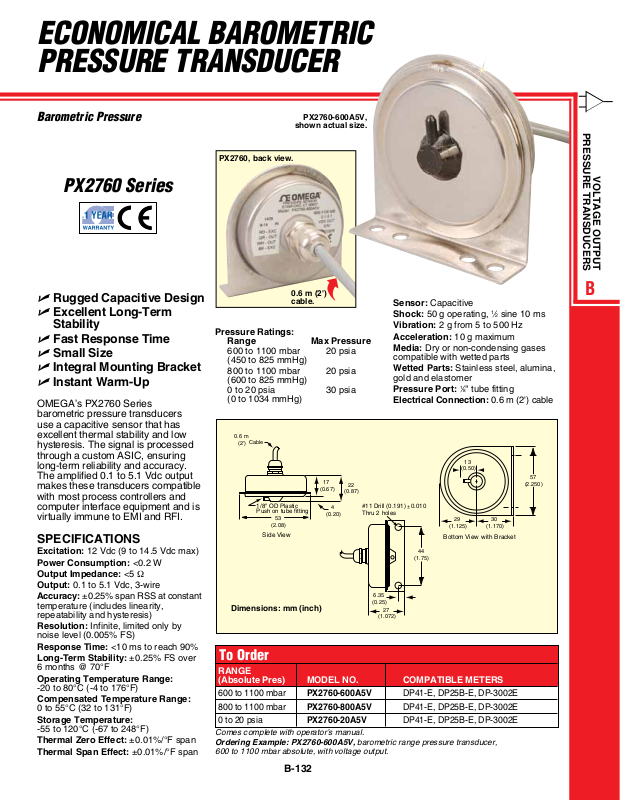

ECONOMICAL BAROMETRIC
Outline Drawing
PRESSURE TRANSDUCER
Barometric Pressure
PX2760 Series
U Rugged Capacitive Design
U Excellent Long-Term
Stability
U Fast Response Time
U Small Size
U Integral Mounting Bracket
U Instant Warm-Up
OMEGA’s PX2760 Series
barometric pressure transducers
use a capacitive sensor that has
excellent thermal stability and low
hysteresis. The signal is processed
through a custom ASIC, ensuring
long-term reliability and accuracy.
The amplified 0.1 to 5.1 Vdc output
makes these transducers compatible
with most process controllers and
computer interface equipment and is
virtually immune to EMI and RFI.
SPECIFICATIONS
Excitation: 12 Vdc (9 to 14.5 Vdc max)
Power Consumption: <0.2 W
Output Impedance: <5 Ω
Output: 0.1 to 5.1 Vdc, 3-wire
Accuracy: ±0.25% span RSS at constant
temperature (includes linearity,
repeatability and hysteresis)
Resolution: Infinite, limited only by
noise level (0.005% FS)
Response Time: <10 ms to reach 90%
Long-Term Stability: ±0.25% FS over
6 months @ 70°F
Operating Temperature Range:
-20 to 80°C (-4 to 176°F)
Compensated Temperature Range:
0 to 55°C (32 to 131°F)
Storage Temperature:
-55 to 120°C (-67 to 248°F)
Thermal Zero Effect: ±0.01%/°F span
Thermal Span Effect: ±0.01%/°F span
PX2760-600A5V,
shown actual size.
PX2760, back view.
0.6 m (2')
cable.
Pressure Ratings:
Range Max Pressure
600 to 1100 mbar 20 psia
(450 to 825 mmHg)
800 to 1100 mbar 20 psia
(600 to 825 mmHg)
0 to 20 psia 30 psia
(0 to 1034 mmHg)
0.6 m
Cable
(2')
17
22
(0.67)
(0.87)
1/8" OD Plastic
Push on tube fitting
53
(2.08)
Side View
Dimensions: mm (inch)
To Order
RANGE
(Absolute Pres) MODEL NO. COMPATIBLE METERS
600 to 1100 mbar PX2760-600A5V DP41-E, DP25B-E, DP-3002E
4
(0.20)
#11 Drill (0.191) 0.010
Thru 2 holes
Sensor: Capacitive
Shock: 50 g operating,
1
⁄2 sine 10 ms
Vibration: 2 g from 5 to 500 Hz
Acceleration: 10 g maximum
Media: Dry or non-condensing gases
compatible with wetted parts
Wetted Parts: Stainless steel, alumina,
gold and elastomer
Pressure Port:
1
⁄8" tube fitting
Electrical Connection: 0.6 m (2') cable
13
(0.50)
+
_
6.35
(0.25)
(1.072)
29
(1.125)
Bottom View with Bracket
44
(1.75)
27
30
(1.170)
800 to 1100 mbar PX2760-800A5V DP41-E, DP25B-E, DP-3002E
0 to 20 psia PX2760-20A5V DP41-E, DP25B-E, DP-3002E
Comes complete with operator’s manual.
Ordering Example: PX2760-600A5V, barometric range pressure transducer,
600 to 1100 mbar absolute, with voltage output.
