Operating Instructions

PX2700

General Information

Your Omega transducer has been carefully calibrated before shipment to you, and it should be han­dled with t he same care given any precision instrument. Pressure range and dimensions are report-

ed on the specications bulletin for the transducer.

Ambient Conditions

Do not use in ambient conditions corrosive to anodize aluminum, or submerge in liquids, subject to
spray or vibration environment.

Electrical Conditions

Standard

“Belden” Cable Lead Option

Function

Positive Excitation Red White

Positive Output Green Yellow

(#8723 Grey Cable) “Tensolite” Cable Lead

Negative Output White Brown

Negative Excitation Black Black

Case Shield Shield

Electrical

The electrical circuit is equivalent to a 4-terminal network which can be grounded at only one point,
either at the negative excitation or the negative signal output lead, but must not be commoned or
grounded at more than one point.

The pressure transducer must be operated with the case connected either to the negative excitation
terminal or to the negative output terminal. Failure to do this may result in damage to, or unsatisfac­tory operation of the unit. This connected may be made by connecting shield and black (negative
excitation) leads or alternatively by connecting the shield and negative output signal leads together.
Best shielding against noise will be obtained by connecting the shield and negative excitation leads.
Circuit is reversed voltage protected for at least 5 minutes. Internal transient suppression network is
provided for short duration transients to 150 volts.

In some instances, use of long cables (several hundred feet long), may introduce enough cable
capacitance into the output circuit to cause output oscillation. If encountered, this oscillation may be
eliminated by connecting a 100 ohm resistor (1/8 watt or larger) in series in each of the output leads
at the end of the 2 foot transducer cable. These series resistors of course add to the output resis­tance.

Adjustments (with cover removed)

CAUTIONS:

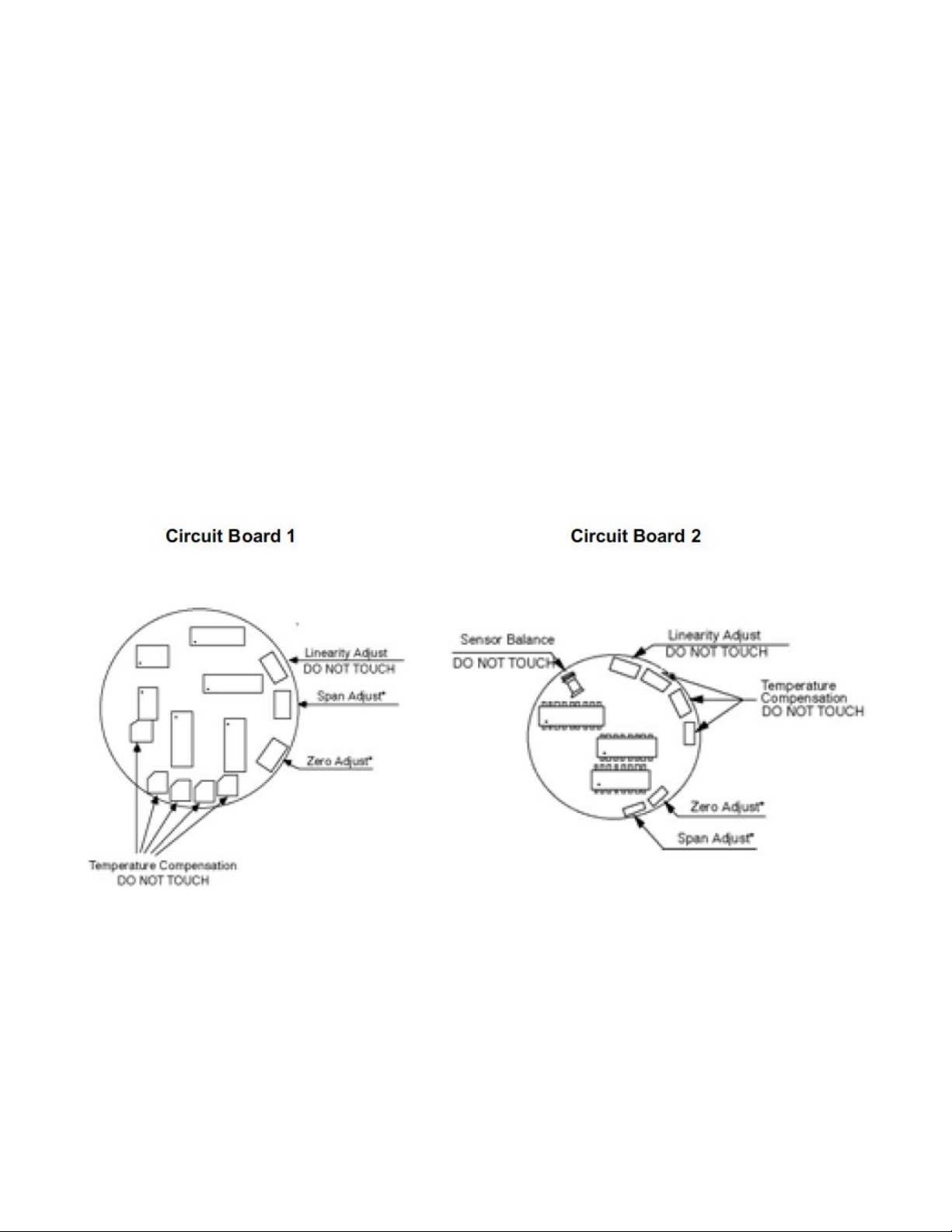

1. Before making any adjustments, determine which circuit board diagram on Page 2
matches the circuit board in your transducer.

2. Turn off excitation power during cover removal or replacement.

3. Touching any adjustments other than zero of span may necessitate recalibration and
voids the warranty.

ZERO OUTPUT:

Output can be adjusted to zero by potentiometer as shown in diagram. Unit factory adjusted to 0.00
VDC output (±5mV).

SPAN:

Can be adjusted bu potentiometer as shown in diagram. Unit factory adjusted to 5.00 VDC full scale
output (±5mV).

LINEARITY - DO NOT TOUCH
Factory adjusted for best linearity.

NOTE: When circuit cover is removed, a zero shift can be noticed. The zero will return by the same
amount when the cover is replaced. This displacement of the output should be taken into account
when making adjustments or during recalibration.

*Adjustments: Due to the high accuracy of this transducer, adjustments to zero and span should
only be made with the use of primary pressure standards of known accuracy higher than that of the
PX2700.

INSTALLATION INSTRUCTIONS FOR MULTIPLE HOOK-UP

OF 4-WIRE OMEGA PRESSURE TRANSDUCERS

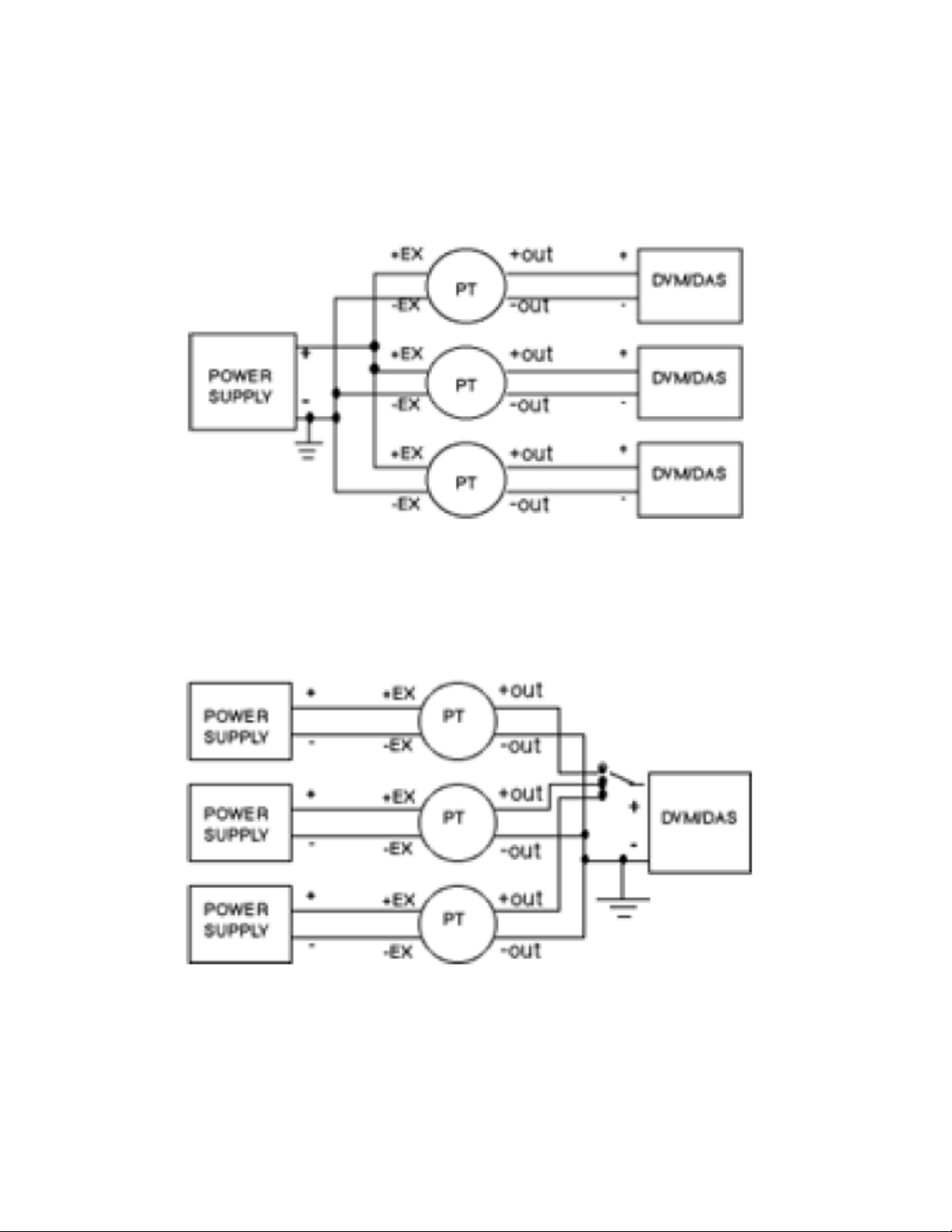

OPTION #1

Uses a single, ground referenced power supply for excitation and separate, isolated (not ground refer­enced) readout or “differential input) to a data acquisition system for each pressure transducer output.

OPTION #2

Uses a separate, isolated power supply for each pressure transducer’s excitation and a single ground

referenced readout or “single ended input” to a data acquisition system for all outputs.

Power Supply (Nominal 24 VDC)

PT - Pressure Transducer (4 Wire Circuit)

DVM/DAS - Digital Volt Meter or Data Acquisition System

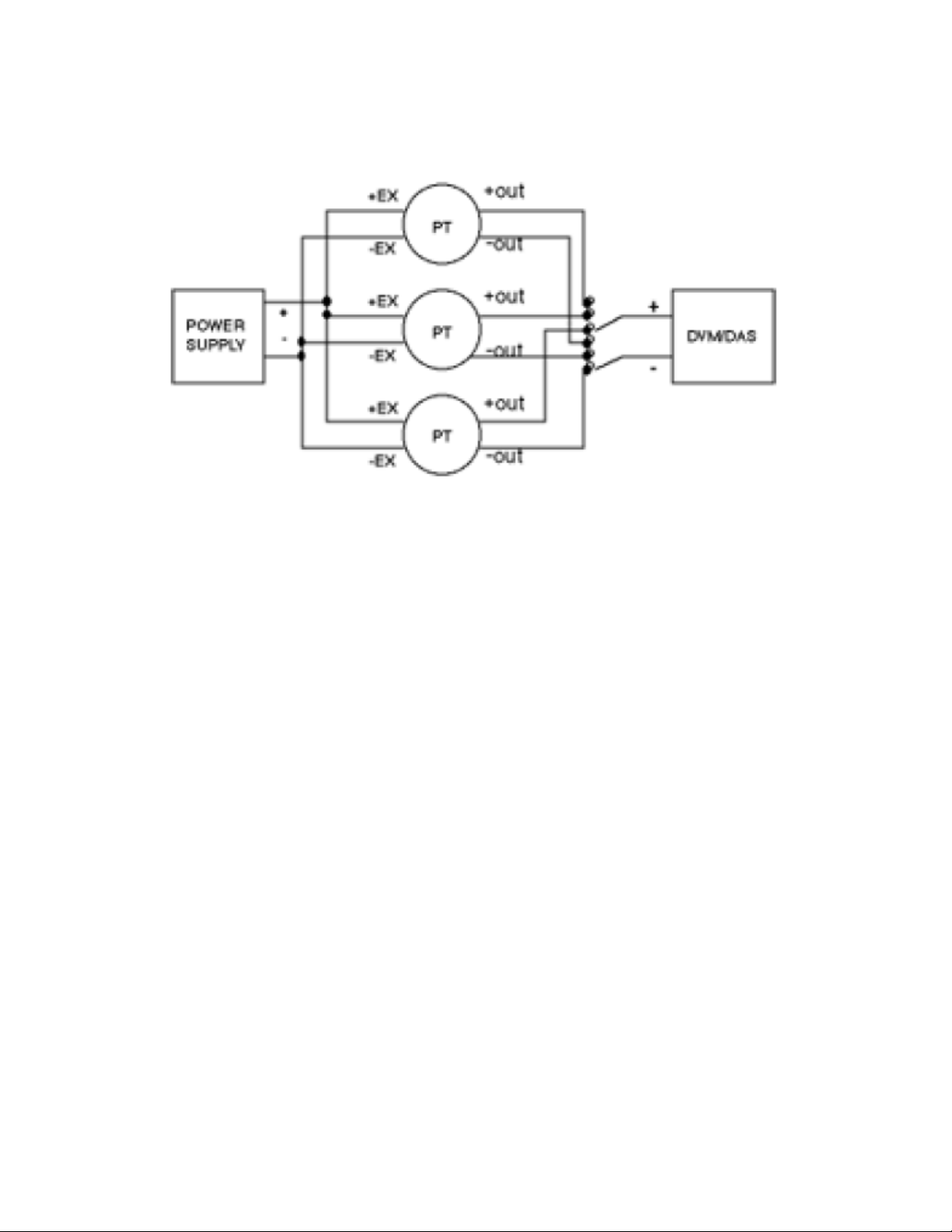

OPTION #3

Uses a single, ground referenced power supply for excitation and either a single, isolated readout with
a bipolar switch that “breaks before makes” both the + output and - output of each pressure transduc­er, or a single data acquisition system with a multiplexer (MUX).

NOTE: The shield is internally commoned to the case and pressure port of the transducer. When the
shield is connected to ground the case and pressure port of the transducer will also be commoned to
that ground.
