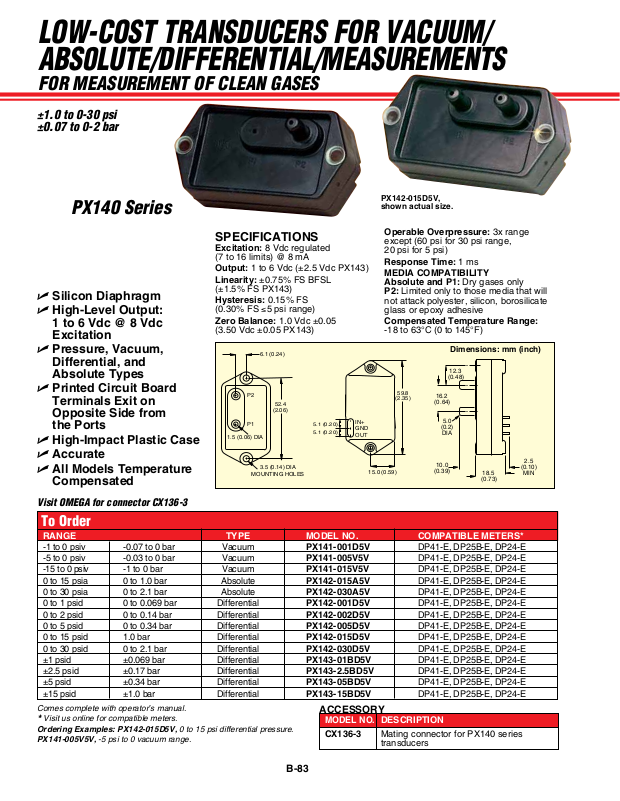

LOW-COST TRANSDUCERS FOR VACUUM/
1.5 (0.06) DIA
3.5 (0.14) DIA
MOUNTING HOLES
5.1 (0.20)
5.1 (0.20)
6.1 (0.24)
15.0 (0.59)
P2
P1
IN+
GND
OUT
52.4
(2.06)
59.8
(2.35)
ABS0LUTE/DIFFERENTIAL/MEASUREMENTS
FOR MEASUREMENT OF CLEAN GASES
±1.0 to 0-30 psi
±0.07 to 0-2 bar
PX142-015D5V,
PX140 Series
shown actual size.
SPECIFICATIONS
Excitation: 8 Vdc regulated
(7 to 16 limits) @ 8 mA
Output: 1 to 6 Vdc (±2.5 Vdc PX143)
Linearity: ±0.75% FS BFSL
U Silicon Diaphragm
U High-Level Output:
1 to 6 Vdc @ 8 Vdc
Excitation
(±1.5% FS PX143)
Hysteresis: 0.15% FS
(0.30% FS ≤5 psi range)
Zero Balance: 1.0 Vdc ±0.05
(3.50 Vdc ±0.05 PX143)
U Pressure, Vacuum,
Differential, and
Absolute Types
U Printed Circuit Board
Terminals Exit on
Opposite Side from
the Ports
U High-Impact Plastic Case
U Accurate
U All Models Temperature
Compensated
Visit OMEGA for connector CX136-3
To Order
RANGE TYPE MODEL NO. COMPATIBLE METERS*
-1 to 0 psiv -0.07 to 0 bar Vacuum
-5 to 0 psiv -0.03 to 0 bar Vacuum
-15 to 0 psiv -1 to 0 bar Vacuum
0 to 15 psia 0 to 1.0 bar Absolute
0 to 30 psia 0 to 2.1 bar Absolute
0 to 1 psid 0 to 0.069 bar Differential
0 to 2 psid 0 to 0.14 bar Differential
0 to 5 psid 0 to 0.34 bar Differential
0 to 15 psid 1.0 bar Differential
0 to 30 psid 0 to 2.1 bar Differential
±1 psid ±0.069 bar Differential
±2.5 psid ±0.17 bar Differential
±5 psid ±0.34 bar Differential
±15 psid ±1.0 bar Differential
Comes complete with operator’s manual.
Visit us online for compatible meters.
*
Ordering Examples: PX142-015D5V, 0 to 15 psi differential pressure.
PX141-005V5V, -5 psi to 0 vacuum range.
Operable Overpressure: 3x range
except (60 psi for 30 psi range,
20 psi for 5 psi)
Response Time: 1 ms
MEDIA COMPATIBILITY
Absolute and P1: Dry gases only
P2: Limited only to those media that will
not attack polyester, silicon, borosilicate
glass or epoxy adhesive
Compensated Temperature Range:
-18 to 63°C (0 to 145°F)
Dimensions: mm (inch)
12.3
(0.48)
16.2
(0.64)
5.0
(0.2)
DIA
10.0
PX141-001D5V
PX141-005V5V
PX141-015V5V
PX142-015A5V
PX142-030A5V
PX142-001D5V
PX142-002D5V
PX142-005D5V
PX142-015D5V
PX142-030D5V
PX143-01BD5V
PX143-2.5BD5V
PX143-05BD5V
PX143-15BD5V
(0.39)
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
DP41-E, DP25B-E, DP24-E
18.5
(0.73)
ACCESSORY
MODEL NO.
CX136-3 Mating connector for PX140 series
DESCRIPTION
transducers
2.5
(0.10)
MIN
B-83
