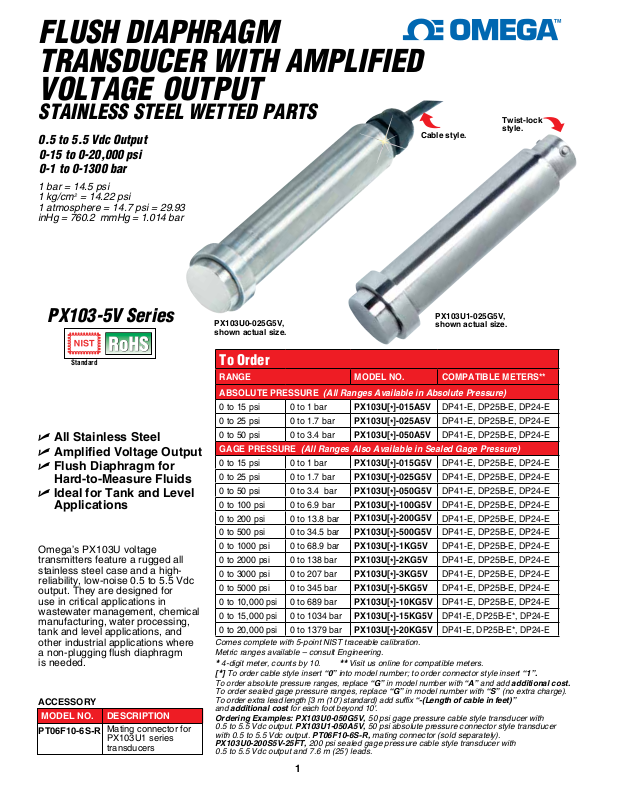

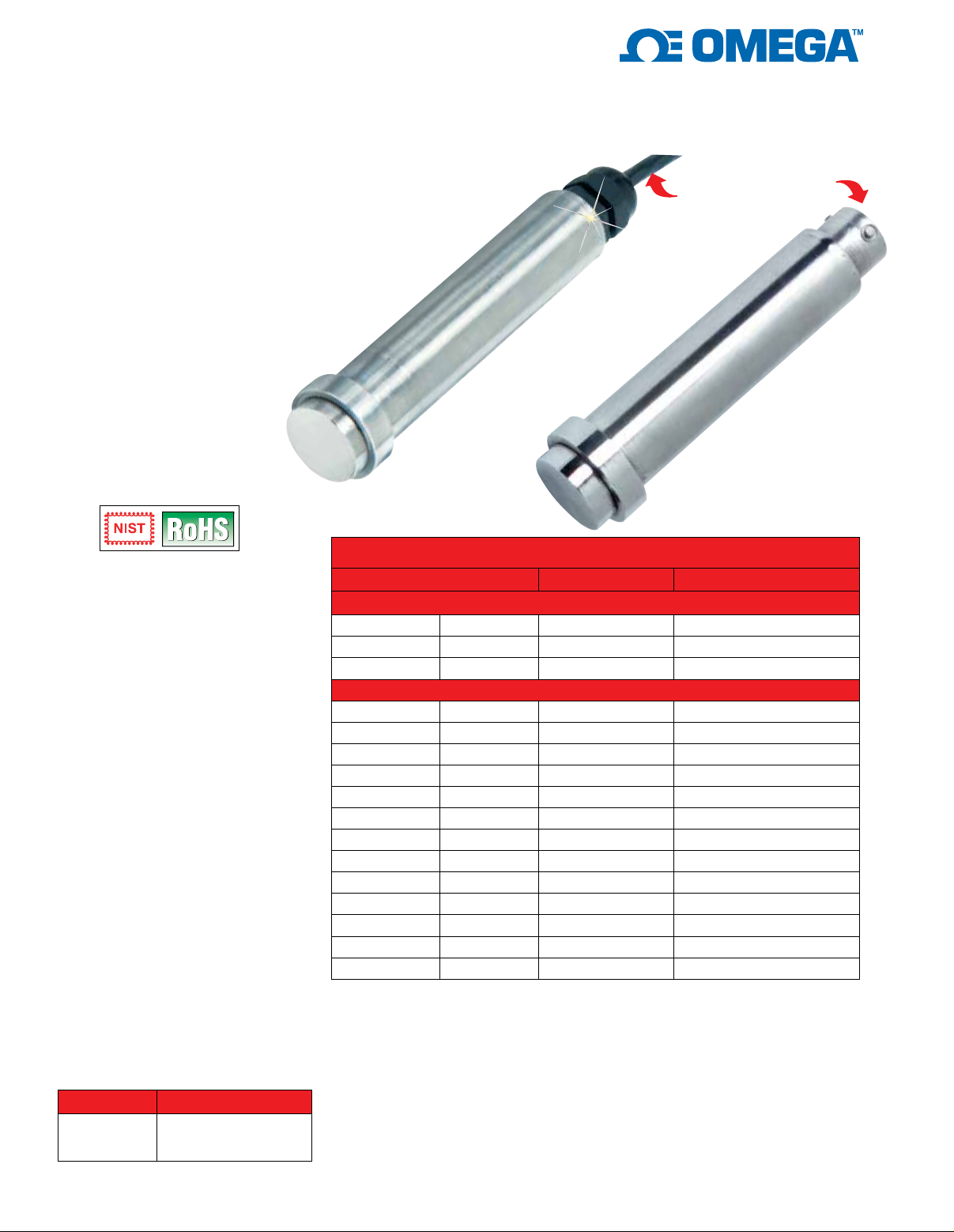

Page 1

FLUSH DIAPHRAGM TRANSDUCER WITH AMPLIFIED VOLTAGE OUTPUT

STAINLESS STEEL WETTED PARTS

0.5 to 5.5 Vdc Output 0-15 to 0-20,000 psi 0-1 to 0-1300 bar

1 bar = 14.5 psi 1 kg/cm2 = 14.22 psi 1 atmosphere = 14.7 psi = 29.93 inHg = 760.2 mmHg = 1.014 bar

PX103-5V Series

Standard

U All Stainless Steel U Amplified Voltage Output U Flush Diaphragm for

Hard-to-Measure Fluids

U Ideal for Tank and Level

Applications

Omega’s PX103U voltage transmitters feature a rugged all stainless steel case and a highreliability, low-noise 0.5 to 5.5 Vdc output. They are designed for use in critical applications in wastewater management, chemical manufacturing, water processing, tank and level applications, and other industrial applications where a non-plugging flush diaphragm is needed.

ACCESSORY

MODEL NO. DESCRIPTION

PT06F10-6S-R

Mating connector for PX103U1 series transducers

PX103U0-025G5V, shown actual size.

To Order

RANGE MODEL NO. COMPATIBLE METERS**

ABSOLUTE PRESSURE (All Ranges Available in Absolute Pressure)

0 to 15 psi 0 to 1 bar

0 to 25 psi 0 to 1.7 bar

0 to 50 psi 0 to 3.4 bar

GAGE PRESSURE (All Ranges Also Available in Sealed Gage Pressure)

0 to 15 psi 0 to 1 bar

0 to 25 psi 0 to 1.7 bar

0 to 50 psi 0 to 3.4 bar

0 to 100 psi 0 to 6.9 bar

0 to 200 psi 0 to 13.8 bar

0 to 500 psi 0 to 34.5 bar

0 to 1000 psi 0 to 68.9 bar

0 to 2000 psi 0 to 138 bar

0 to 3000 psi 0 to 207 bar

0 to 5000 psi 0 to 345 bar

0 to 10,000 psi 0 to 689 bar

0 to 15,000 psi 0 to 1034 bar

0 to 20,000 psi 0 to 1379 bar

Comes complete with 5-point NIST traceable calibration. Metric ranges available – consult Engineering.

4-digit meter, counts by 10. ** Visit us online for compatible meters.

[*] To order cable style insert “0” into model number; to order connector style insert “1”.

To order absolute pressure ranges, replace “G” in model number with “A” and add additional cost. To order sealed gage pressure ranges, replace “G” in model number with “S” (no extra charge). To order extra lead length [3 m (10') standard) add suffix “-(Length of cable in feet)” and additional cost for each foot beyond 10'.

Ordering Examples: PX103U0-050G5V, 50 psi gage pressure cable style transducer with

0.5 to 5.5 Vdc output. PX103U1-050A5V, 50 psi absolute pressure connector style transducer with 0.5 to 5.5 Vdc output. PT06F10-6S-R, mating connector (sold separately). PX103U0-200S5V-25FT, 200 psi sealed gage pressure cable style transducer with

0.5 to 5.5 Vdc output and 7.6 m (25') leads.

Cable style.

PX103U[*]-015A5V

PX103U[*]-025A5V

PX103U[*]-050A5V

PX103U[*]-015G5V

PX103U[*]-025G5V

PX103U[*]-050G5V

PX103U[*]-100G5V

PX103U[*]-200G5V

PX103U[*]-500G5V

PX103U[*]-1KG5V

PX103U[*]-2KG5V

PX103U[*]-3KG5V

PX103U[*]-5KG5V

PX103U[*]-10KG5V

PX103U[*]-15KG5V

PX103U[*]-20KG5V

Twist-lock style.

PX103U1-025G5V, shown actual size.

DP41-E, DP25B-E, DP24-E

DP41-E, DP25B-E*, DP24-E

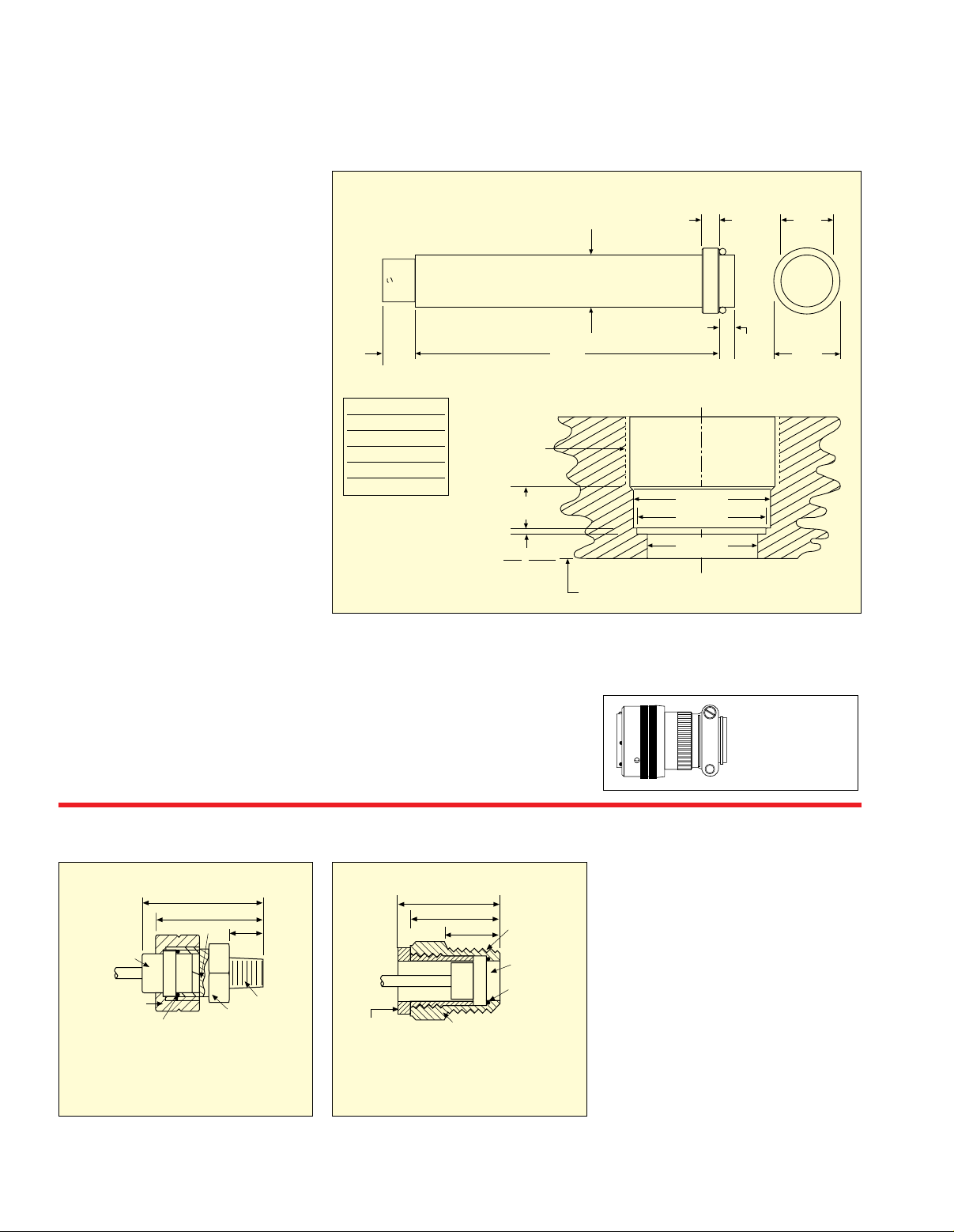

Page 2

ARTW ORK/PRO DUCTART/ OMEGADYNE/OD-P

PX103 SERIE S

5V OUTPUT MODEL

BENDIX PT1H -10-6P OR EQ UAL

FLUSH DIAPHRAGM TRANSMITTER

SPECIFICATIONS

Dimensions: mm (inch)

5.5 Vdc OUTPUT

Excitation: 10 to 30 Vdc Output: 0.5 to 5.5 Vdc

(0.5 to 10.5 Vdc optional)

Zero Balance: 0.5V ±0.1V Accuracy:

<100 psi: ±1% FSO linearity,

hysteresis and repeatability combined

≥100 psi: ±0.5% FSO linearity,

hysteresis and repeatability combined

Operating Temp Range: <100 psi: -45 to 93°C (-50 to 200°F)

≥100 psi: -45 to 121°C (-50 to 250°F)

Compensated Temp Range: <100 psi: -1 to 54°C (30 to 130°F) ≥100 psi: -18 to 66°C (0 to 150°F)

THERMAL EFFECTS <100 psi:

Span: <±2% within compensated range Zero: <±1% within compensated range

≥100 psi:

Span: ±0.003% rdg/°F Zero: ±0.0045% FSO/°F

Ranges (psi): 5,15, 25, 50, 100, 200, 500, 1K, 5K, 10K, 20K; gage, sealed gage or absolute; metric ranges also available

Proof Pressure: <100 psi: 200% of rated pressure

≥100 psi: 150% rated pressure 30,000 psi: maximum

Burst Pressure: <100 psi: 500% of rated pressure

≥100 psi: 300% of rated pressure 50,000 psi: maximum

(0.45)

WIRING CODE PIN WIRE

A GN +Out B W -Out C BK -In D R +In E & F - N/C

RECOMMENDED MOUNTING HOLE FOR FLUSH MOUNTINGS

1 1/16-12 UN-2B

Wetted Parts: Ranges <100 psi: 316 stainless steel Ranges

≥100 psi: 17-4 PH stainless

steel

Pressure Port: Flush diaphragm O-Ring: #2-018, sold separately Electrical Connection: 3 m (10')

4-conductor shielded PVC cable or PTIH-10-6P or equal

5.72 (0.225) MAX

1.27

(0.050)

1.37

(0.054)

19 DIA.

(0.75)

(3.5)

23.80/23.82

(0.937/0.938)

22.88/22.91

(0.901/0.902)

19.30/19.43

(0.760/0.765)

MEASURE PX103 TO ASSURE FLUSH MOUNT

6.3

(0.250)

5.1-7.6

(0.20-3.0)

Mating Connector:

PT06F10-6S-R (sold separately)

Mating Connector PT06F10-6S-R

19 DIA. (0.749)

23.7

(0.935)

MAX

Flush Mount Adaptors for Series PX103 Transducers

AD-1SS 10,000 psi

TRANSDUCER

31.75 (1-1/4) HEX

O-RING SEAL

316 Series stainless steel,

/4 NPT male

Dimensions: mm (inch)

63.5 (2.5)

52.78 (2.078)

THRU HOLE

28.6 (1-1/8) HEX

19 (0.750)

MAX

1/4 NPT

O-Ring Provided with Each Adaptor

AD-3SS

47.8 (1.88)

38.1 (1.5)

23.81 (0.94)

31.75 (1-1/4) HEX

34.9 (1-3/8) HEX

316 Series stainless steel, 1 NPT male flush mounting [-3.18 (1/8) on flush tolerance]

Dimensions: mm (inch)

10,000 psi

1 NPT

TRANSDUCER

O-RING SEAL

“O” RINGS

FKM or Polyurethane

Use for pressures under 10,000 psi:

#2-018-V

FKM ................Pack of 10

Use for pressures of 10,000 psi and higher:

#2-018-P

POLYURETHANE

......

Pack of 15

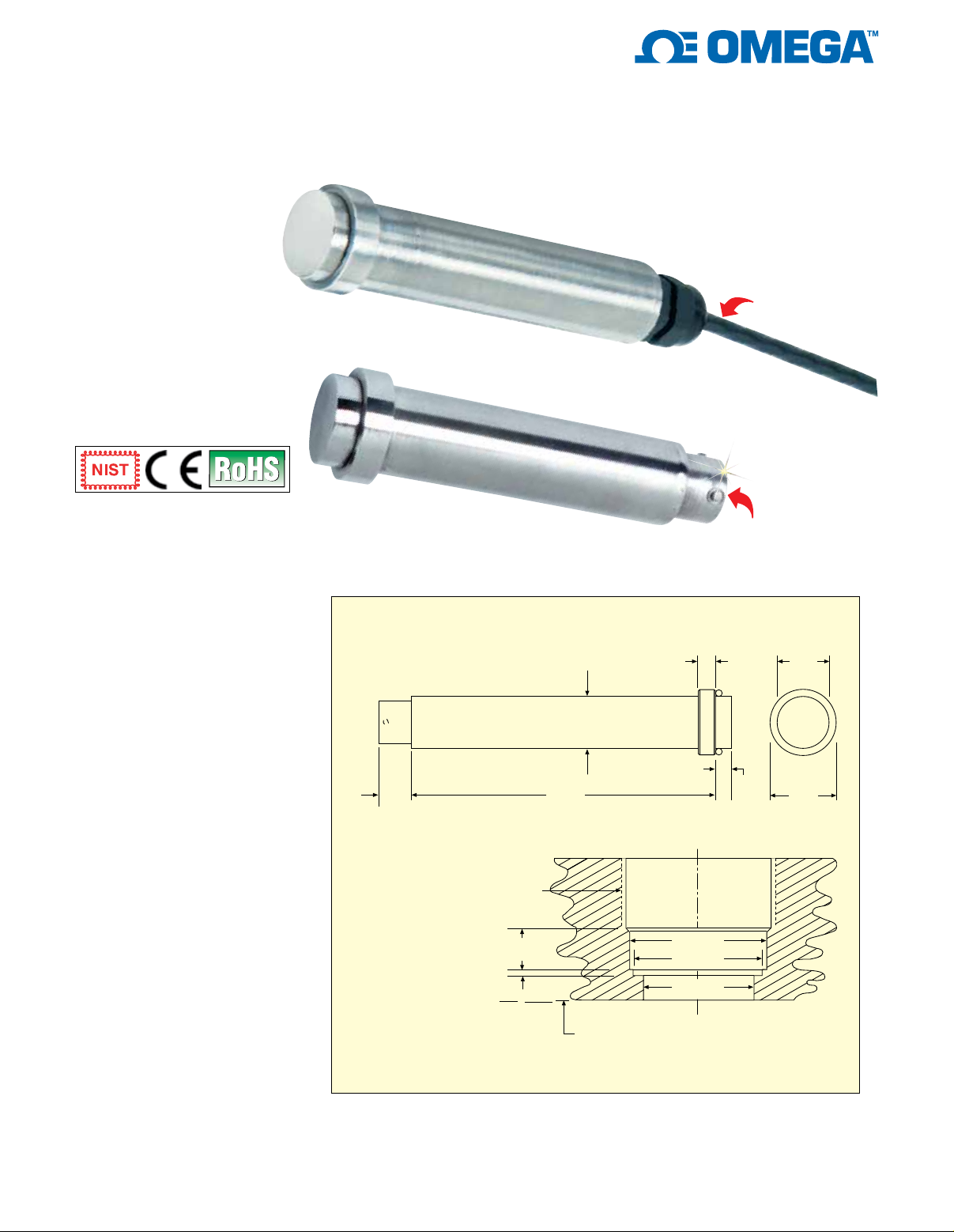

Page 3

FLUSH DIAPHRAGM

ARTWORK/PRODUCT ART/ OMEGADYNE/OD-P103Current

MEASURE PX103 TO ASSURE FLUSH MOUNT

PX103 SERIES

CURRENT OUTPUT MODEL

BENDIX PT1H-10-6P OR EQUAL

TRANSMITTER

STAINLESS STEEL WETTED PARTS MOUNTING FITTINGS AVAILABLE

4 to 20 mA Output 0-15 to 0-20,000 psi 0-1 to 0-1300 bar

1 bar = 14.5 psi 1 kg/cm2 = 14.22 psi 1 atmosphere = 14.7 psi = 29.93 inHg = 760.2 mmHg = 1.014 bar

PX103-i Series

Cable style.

PX103U0-025GI, shown actual size.

Standard

U All Stainless Steel U Low-Noise 4 to 20 mA

Output

U Flush Diaphragm for

Hard-to-Measure Fluids

U Ideal for Tank and Level

Applications

Omega’s PX103 Series transmitters feature a rugged all stainless steel case and a 4 to 20 mA output.

high-reliability, low-noise

They are designed for use in critical applications in wastewater management, chemical manufacturing, water processing, tank and level operations, and other industrial applications in which a non-plugging flush diaphragm is needed.

Connections Red or A = + Input Black or B = - Input

(0.45)

RECOMMENDED MOUNTING HOLE FOR FLUSH MOUNTINGS

SPECIFICATIONS

Excitation: 10 to 30 Vdc Output: 4 to 20 mA Zero Balance: 4 mA ±0.2 mA Accuracy:

<100 psi: ±1% linearity, hysteresis

and repeatability combined ≥100 psi: ±0.5% linearity, hysteresis and repeatability combined

Dimensions: mm (inch)

Operating Temp Range: <100 psi: -40 to 82°C (-40 to 180°F) ≥100 psi: -46 to 121°C (-50 to 250°F)

1 1/16-12 UN-2B

5.72 (0.225) MAX

(0.050)

1.27 (0.054)

1.37

PX103U1-025GI, shown actual size.

19 DIA.

(0.75)

(3.5)

Compensated Temp Range: <100 psi:-1 to 54°C (30 to 130°F) ≥100 psi: -18 to 66°C (0 to 150°F)

23.80/23.82

(0.937/0.938)

22.88/22.91

(0.901/0.902)

19.30/19.43

(0.760/0.765)

6.3

(0.250)

5.1-7.6

(0.20-

0.30)

Twist-lock style.

(0.749)

DIA.

23.75 (0.93)

MAX

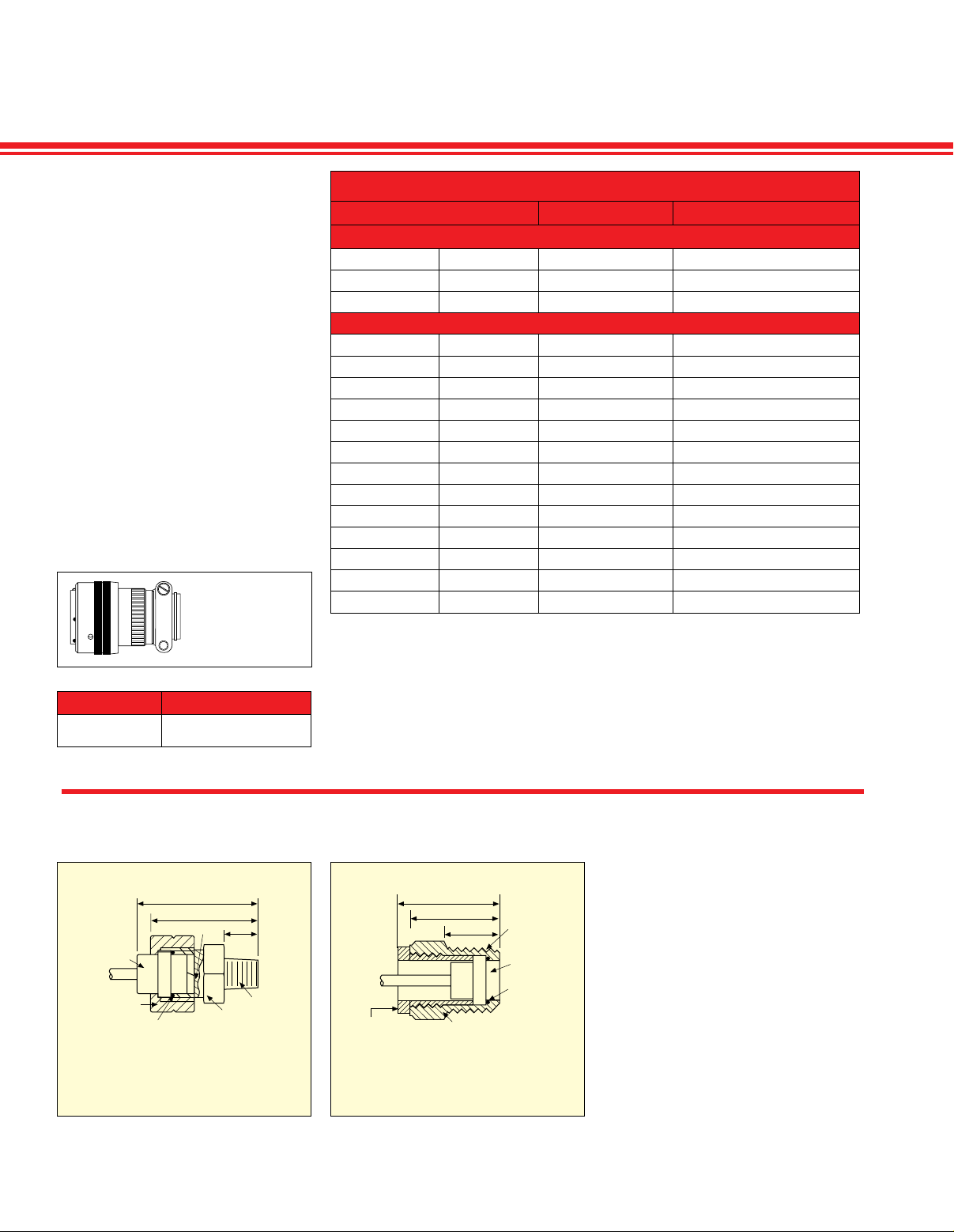

Page 4

FLUSH DIAPHRAGM TRANSMITTER

Thermal Effects: <100 psi:

Span: <±2% within compensated range Zero: <±1% within compensated range ≥100 psi: Span: 0.003% rdg/°F Zero: 0.0045% FS/°F

Proof Pressure: <100 psi: 200% of rated pressure

≥100 psi: 150% rated pressure, 30,000 psi maximum

Burst Pressure: <100 psi: 500% of rated pressure

≥100 psi: 300% of rated pressure, 50,000 psi maximum

Wetted Parts: Ranges <100 psi: 316 SS Ranges ≥100 psi: 17-4 PH SS

O-Ring: Not included #2-018 Electrical Connection:

PTIH-10-6P or equal or 3 m (10') 2-conductor shielded PVC cable

Mating Connector:

PT06F10-6S-R (sold separately)

PX103U1 Mating Connector PT06F10-6S-R

ACCESSORY

MODEL NO. DESCRIPTION

PT06F10-6S-R

Mating connector for PX103U1 Series

To Order

RANGE MODEL NO. COMPATIBLE METERS**

ABSOLUTE PRESSURE (All Ranges Available in Absolute Pressure)

0 to 15 psi 0 to 1 bar

0 to 25 psi 0 to 1.7 bar

0 to 50 psi 0 to 3.4 bar

GAGE PRESSURE (All Ranges Also Available in Sealed Gage Pressure)

0 to 15 psi 0 to 1 bar

0 to 25 psi 0 to 1.7 bar

0 to 50 psi 0 to 3.4 bar

0 to 100 psi 0 to 6.9 bar

0 to 200 psi 0 to 13.8 bar

0 to 500 psi 0 to 34.5 bar

0 to 1000 psi 0 to 68.9 bar

0 to 2000 psi 0 to 138 bar

0 to 3000 psi 0 to 207 bar

0 to 5000 psi 0 to 345 bar

0 to 10,000 psi 0 to 689 bar

0 to 15,000 psi 0 to 1034 bar

0 to 20,000 psi 0 to 1379 bar

Comes complete with 5-point NIST traceable calibration. Metric ranges available – consult Engineering.

4-digit meter, counts in increments of 10.

Visit us online for compatible meters.

[*] To order cable style insert “0” into model number; to order connector style insert “1”.

To order absolute pressure ranges, replace “G” in model number with “A” and add additional cost. To order sealed gage pressure models, replace “G” in model number with “S” (no extra charge). To order extra lead length [3 m (10') standard], add suffix “-(Length of cable in feet)” and

additional Ordering Example: PX103U1-100GI, 100 psi gage pressure, connector style transducer

PT06F10-6S-R, mating connector (sold separately).

cost for each foot beyond 10'.

PX103U[*]-015AI

PX103U[*]-025AI

PX103U[*]-050AI

PX103U[*]-015GI

PX103U[*]-025GI

PX103U[*]-050GI

PX103U[*]-100GI

PX103U[*]-200GI

PX103U[*]-500GI

PX103U[*]-1KGI

PX103U[*]-2KGI

PX103U[*]-3KGI

PX103U[*]-5KGI

PX103U[*]-10KGI

PX103U[*]-15KGI

PX103U[*]-20KGI

DP41-E, DP25B-E, DP24-E

DP41-E, DP25B-E*, DP24-E

Flush Mount Adaptors for PX103 Series Transducers

AD-1SS 10,000 psi

TRANSDUCER

31.75 (1-1/4) HEX

O-RING SEAL

316 Series stainless steel,

/4 NPT male

Dimensions: mm (inch)

63.5 (2.5)

52.78 (2.078)

THRU HOLE

28.6 (1-1/8) HEX

19 (0.750)

MAX

1/4 NPT

O-Ring Provided with Each Adaptor

AD-3SS

47.8 (1.88)

38.1 (1.5)

23.81 (0.94)

31.75 (1-1/4) HEX

34.9 (1-3/8) HEX

316 Series stainless steel, 1 NPT male flush mounting [-3.18 (1/8) on flush tolerance]

Dimensions: mm (inch)

10,000 psi

1 NPT

TRANSDUCER

O-RING SEAL

“O” RINGS

FKM or Polyurethane

Use for pressures under 10,000 psi:

#2-018-V

FKM ................Pack of 10

Use for pressures of 10,000 psi and higher:

#2-018-P

POLYURETHANE

......

Pack of 15
