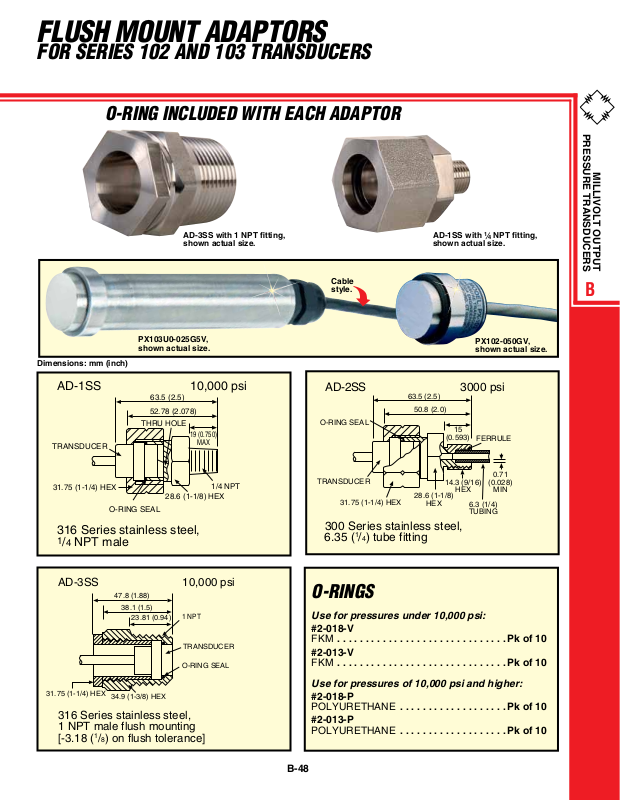

FluSh MOunt adaptORS
FOR SeRieS 102 and 103 tRanSduceRS
O-Ring included with each adaptOR
PRESSURE TRANSDUCERS
MILLIVOLT OUTPUT
AD-3SS with 1 NPT fitting,
shown actual size.
PX103U0-025G5V,
shown actual size.
Dimensions: mm (inch)
AD-1SS 10,000 psi
63.5 (2.5)
52.78 (2.078)
THRU HOLE
19 (0.750)
TRANSDUCER
31.75 (1-1/4) HEX
28.6 (1-1/8) HEX
O-RING SEAL
MAX
316 Series stainless steel,
1
/4 NPT male
1/4 NPT
AD-1SS with
shown actual size.
Cable
style.
PX102-050GV,
shown actual size.
AD-2 SS 3000 psi
O-RING SEAL
TRANSDUCER
31.75 (1-1/4) HEX
300 Series stainless steel,
1
6.35 (
/4) tube fitting
63.5 (2.5)
50.8 (2.0)
28.6 (1-1/8)
HEX
15
(0.593)
14.3 (9/16)
HEX
6.3 (1/4)
TUBING
FERRULE
1
NPT fitting,
⁄
4
0.71
(0.028)
MIN
B
AD-3SS
47.8 (1.88)
38.1 (1.5)
23.81 (0.94)
31.75 (1-1/4) HEX
34.9 (1-3/8) HEX
316 Series stainless steel,
1 NPT male flush mounting
[-3.18 (1/8) on flush tolerance]
10,000 psi
1 NPT
TRANSDUCER
O-RING SEAL
O-RingS
Use for pressures under 10,000 psi:
#2-018-V
FKM ..............................Pk of 10
#2-013-V
FKM ..............................Pk of 10
Use for pressures of 10,000 psi and higher:
#2-018-P
POLYURETHANE ...................Pk of 10
#2-013-P
POLYURETHANE ...................Pk of 10
B-48
